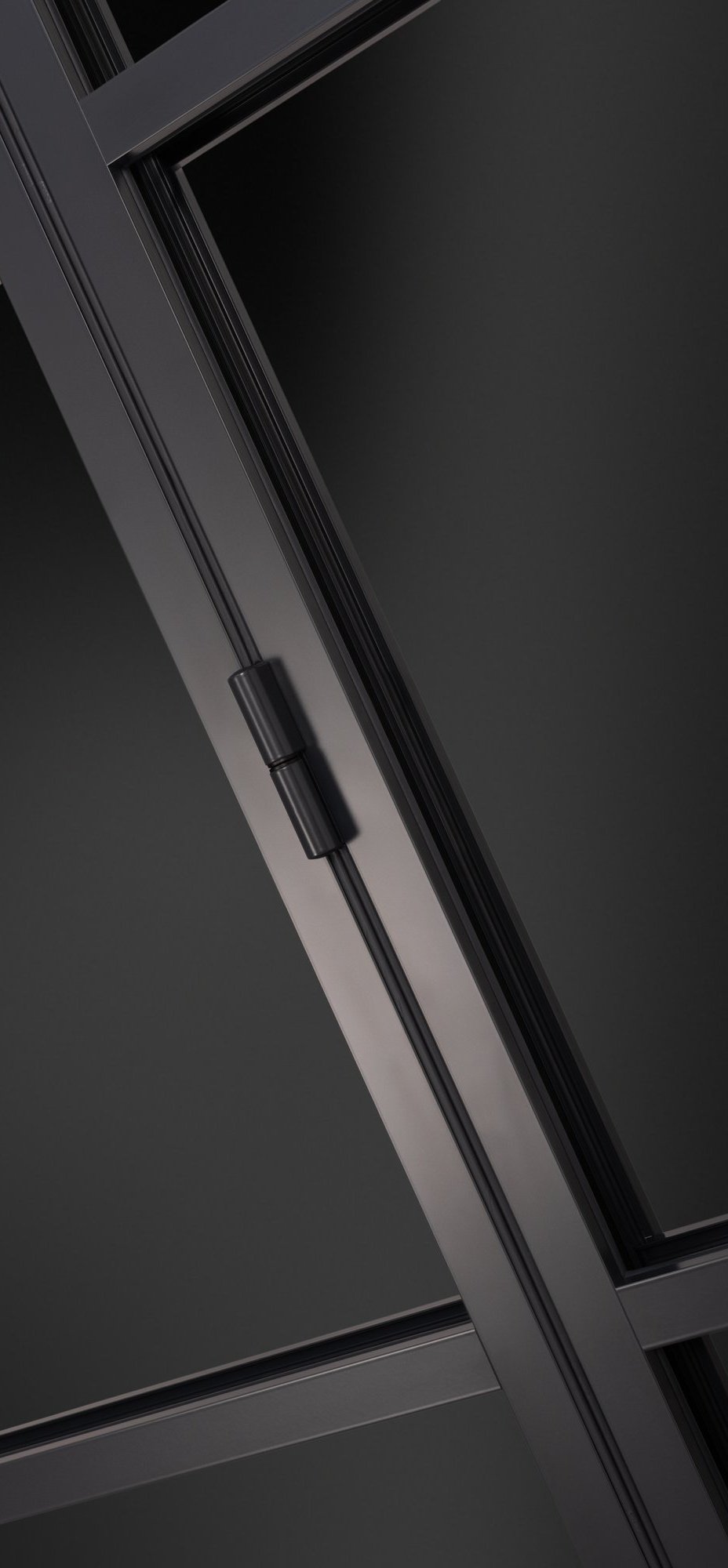

11.1 Open the doors and locate the missing centre hinges
11.2 Making sure the two halves of the top and bottom hinges are together, install the centre hinge, being careful not to cross thread the screws
NOTE: All hinges will be found in the components box
12.1 Close all doors and fully engage the locks
12.2. Starting with the door next to the hinge jamb, remove the four glazing beads

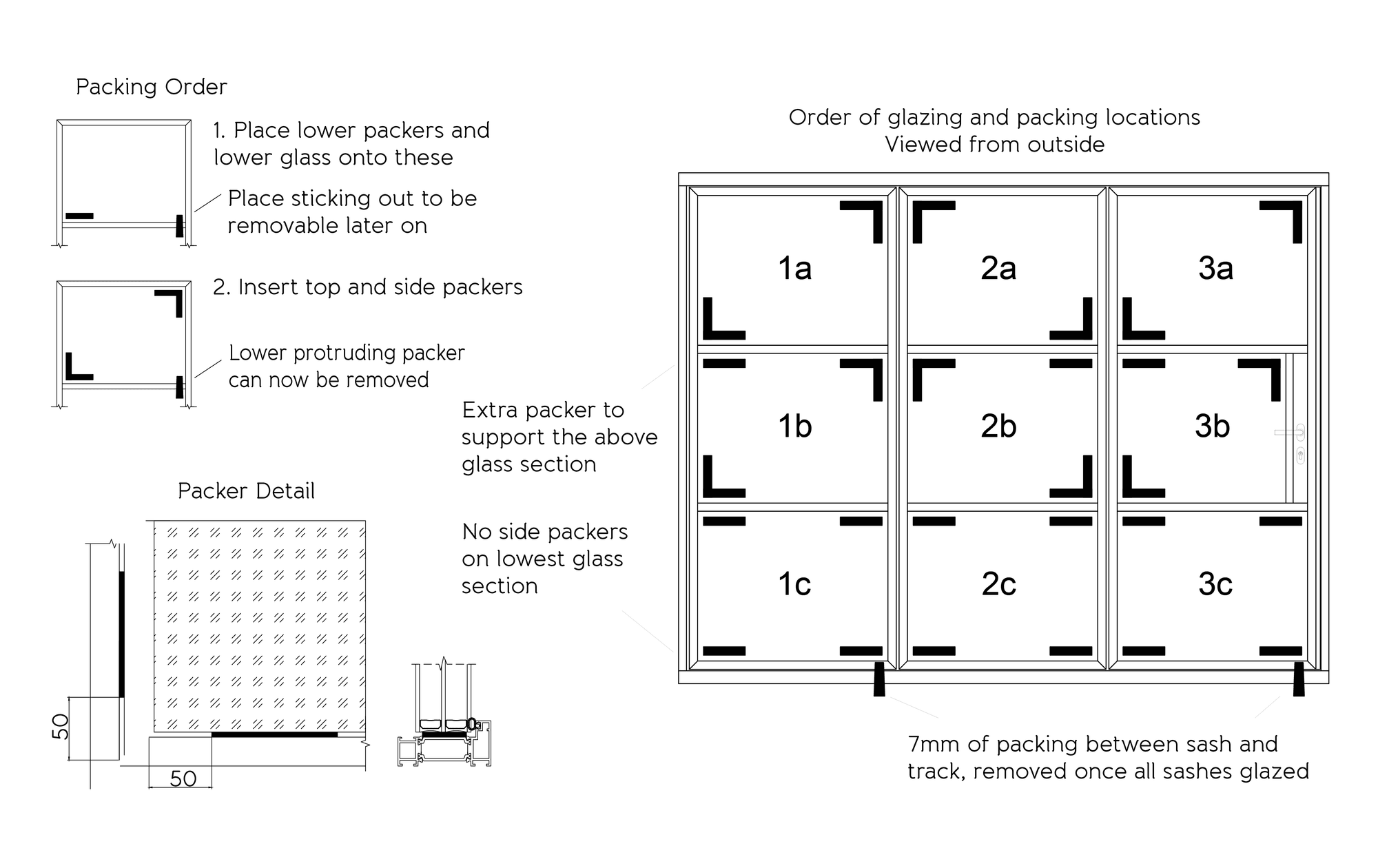

12.3. Place two 4mm packers (32mm wide minimum) in the bottom of the glazing chamber spaced approximately 50mm in from each corner at 90° to the door, as shown (FIG 12A)
12.4. Install the glass on to the packers, taking care not to pinch the gasket on the outside
12.5. Insert another 4mm packer (32mm wide minimum) to the side of the glass diagonally opposite the toe and heel plate about 50mm up from the corner, making sure to support the inner and outer layers of the glass, as shown (FIG 12A)
12.6. Using a glazing paddle at the bottom, lift the glass and turn the packer which is diagonally opposite the toe and heel plate so it is in line with the glass, making sure inner and outer layers are supported, as shown (FIG 12A)
Note: For Fixed Sashes refer to section 15 (adjustment) prior to glazing as fixed sashes cannot be adjusted once glazed.
12.7. Remove the second packer from under the glass and insert into the side, at the top of the door diagonally opposite the first two packers, making sure inner and outer layers of glass are supported
12.8. Using the glazing paddle, lever the door up and place a 4mm glazing packer (32mm wide minimum) between the top of the glass and the toe and heel plate, making sure both inner and outer layers of the glass are supported
12.9. Reinstall all four glazing beads starting with the top and bottom
12.10. Repeat all steps until all the glazing is in place
Note: If the glass is not square or stepped, it may be necessary to use a thinner packer - these should always be a minimum of 32mm wide
13.1 Starting with the bottom bead, use the glazing paddle to gently lever the bead away from the glass and into the correct position whilst lifting the side beads
13.2 Place the gasket between the glass and bead with the concave side against the glass
13.3 Feed the gasket behind the side bead until it stops and then continue along the bottom bead compressing the gasket towards the start point
13.4 Repeat steps above with the top bead
13.5 Cut a slight angle on the end of the gasket and insert behind the side bead pushing up to meet the top gasket
13.6 Continue to feed the gasket along the side bead, compressing towards the starting point
13.7 Once the bottom is reached, cut the gasket approximately 5mm past the bottom gasket again with a slight angle to meet the bottom gasket
13.8 Repeat steps 13.5 to 13.7 with the remaining side
