Specification Overview

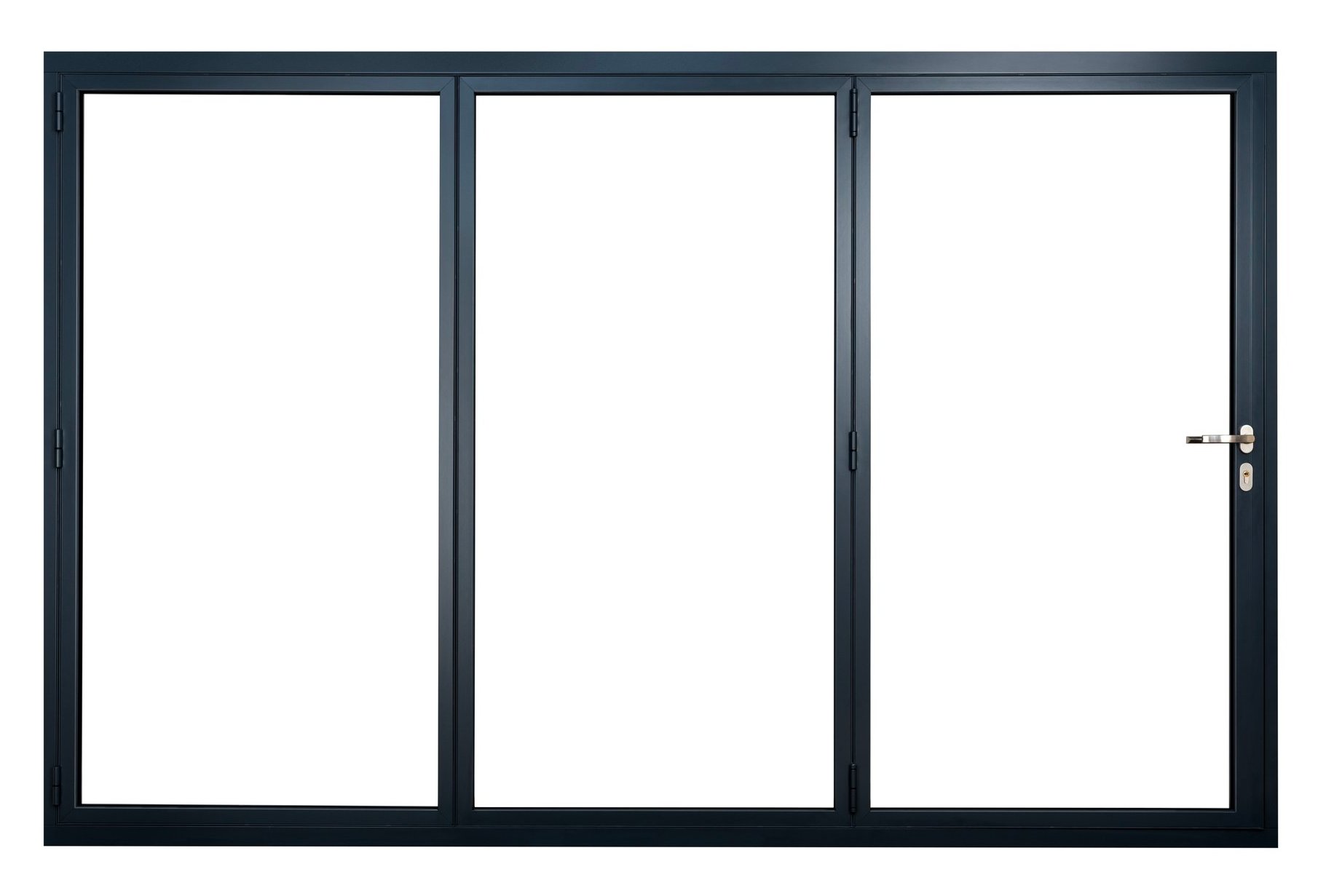

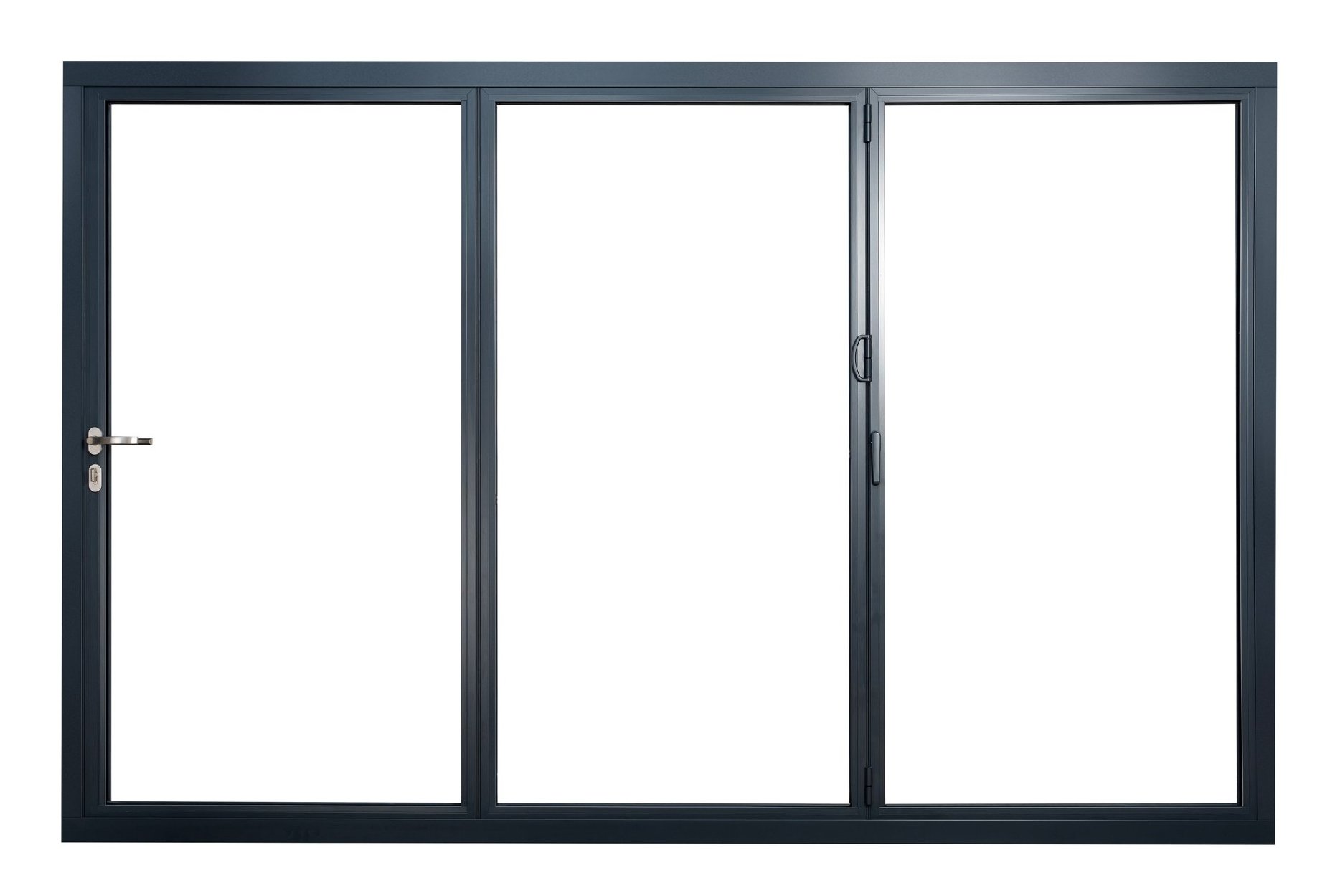

OB-36⁺ External Door

Open Out

Profile Specification
Frame Depth	82mm
Hinge Jamb	53mm
Sash Depth	74mm
Sash Width	36mm
Hingestile Glass-to-Glass Sightline	84mm
Track Height (not including rebate)	56mm
Low Threshold Height	30mm
Non-Weathered Threshold Height	56mm
Weathered Threshold Height	69mm
Glazing Options	28, 28.8, 44 and 46.8 mm

Features

The features of the OB-36⁺ External Door are really what makes it a design statement, as well as the right choice when it comes to thermal performance.

Modern look with sleek design
Exceptional performance, with U-Values as low as 0.78 W/m²K
Squared bead internally and square rebate externally
3-Star Diamond Cylinder with Multipoint lock
Open-in or open-out
Solid zinc hinges
Concealed running gear, featuring a unique freeglide carriage assembly, using acetal rollers with sealed stainless steal bearings on an 8mm hardened stainless steel axle
Colour-coded gaskets
Colour-coded metal interlock caps
Available in over 150 RAL Colours
Marine grade powder coating
Up to a 20-year guarantee on parts*

*Guarantee based on installation location.
Visit origin-global.com for Terms and Conditions.

Colours

OB-36⁺ is available in the following popular colours, along with Hipca White - 9910G, and in over 150 special RAL colours.

Anthracite - 7016M

Jet Black - 9005M

Textured Black - 9005T

Lead Time
Popular colours:	1-working day
Special colours	20-working days
Visit origin-global.com for up-to-date lead times.

Options and Extras

The OB-36⁺ External Door has an extensive selection of flexible design options to fully customise any living space.

Configure as a Bi-folding, Single, French and Fixed
Double and triple-glazing
Integral glazing divides
All Cills (inc. Face Drainage and Concealed Drainage)
Door-to-Window T-Coupler
Colour-coded gaskets
Keyed Alike
Fixing straps
Signature Knurled Handles in six PVD finishes
Stainless-steel or colour-coded running gear
Hinges in stainless steel finish or colour-coded
Door-to-window coupling available
Trickle vents available in either 4000EA or 5000EA
Door restrictors
Flat trim
Magnetic Keeps

Hardware Options

Handles
Signature Knurled	Antique Brass	Brushed Black	Brushed Bronze	Rose Gold	Satin Brass	Satin Stainless
Contemporary	Colour-coded			Stainless Steel
D-Handle	Colour-coded			Stainless steel finish
Slave Handle	Colour-coded			Stainless steel finish
*These are popular handles. Please see OSS for additional options, including thumbturn.

Hardware
Fork	Colour-coded		Stainless steel finish
Door Restrictors	90º		135º
Magnetic Keeps	Colour-coded
Trickle Vents	Anthracite	Black	White

Hardware Options…

System
Flat Trim	25mm	31mm		50mm
Concealed Drainage*	155mm		180mm
Dummy Lock Block	Yes
Kickplate	Yes
Frame Extender	35mm
Low Threshold (non-bi-folding configurations only)
*Only available with a cill

Thermal Matrix

Glazing	Centre Pane U-Value	Unit Width	Unit Make-Up	Weight (kg/m²)	Coating Example	U-Value (W/m²K)
Double	1.2	28	4 / 20 / 4	20	Planitherm Total +	1.4
Double	1.2	28	6 / 16 / 6	30	Planitherm Total +	1.4
Double	1.1	28	4 / 20 / 4	20	Planitherm ONE	1.2
Double	1.0	28	6 / 16 / 6	30	Planitherm ONE	1.2
Triple	0.9	44	4 / 16 / 4 / 16 / 4	30	Planitherm Total +	1.1
Triple	0.8	44	4 / 16 / 4 / 16 / 4	30	Planitherm ONE	1.0
Triple	0.6	46	4 / 16 / 4 / 16 / 4	30	2 x Total +	0.85
Triple	0.5	44	4 / 16 / 4 / 16 / 4	30	2 x ONE	0.78

Size Limitations
Min. Sash Height	1,100mm
Max. Sash Height	2,846mm
Min. Sash Width (Lead)	534mm
Min. Sash Width	325mm
Max. Sash Width	1,200mm
Max. N^o. Sashes	6
Max Set Width (without track connectors)	6,000mm
Max Set Width	15,000mm
Glazing Options	28, 28.8, 44 and 46.8 mm
Min. N^o. Glass Divides	0
Max. N^o. Glass Divides	4

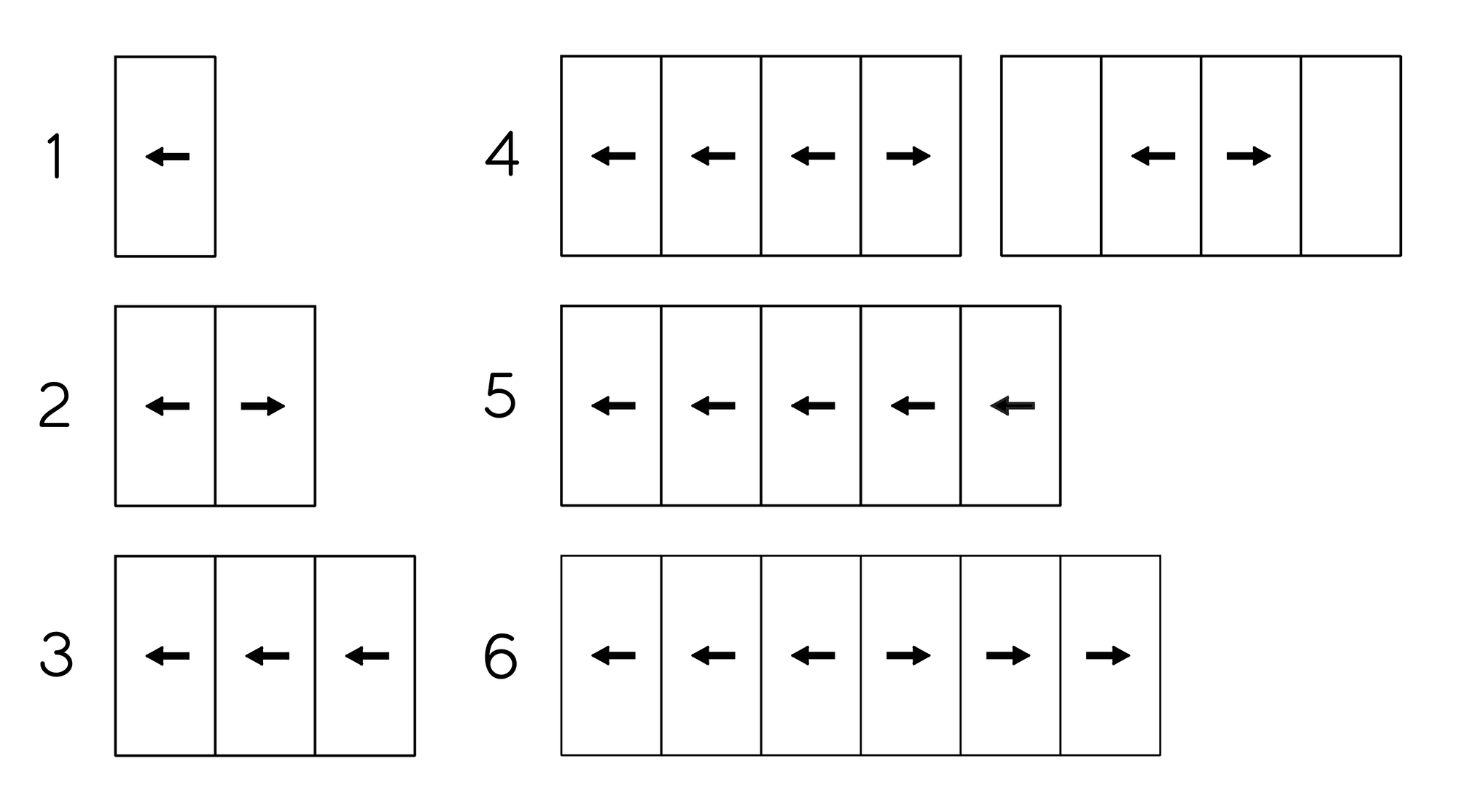

Configurations

OB-36⁺ is available in the following popular and special configurations.

Specials
1+FL
1+1+FL
1+FL+FL
3+FL
1+1+FL+FL
3+FL+FL
FL+1+1+FL+FL
