Technical Drawings...
Download the drawings
here

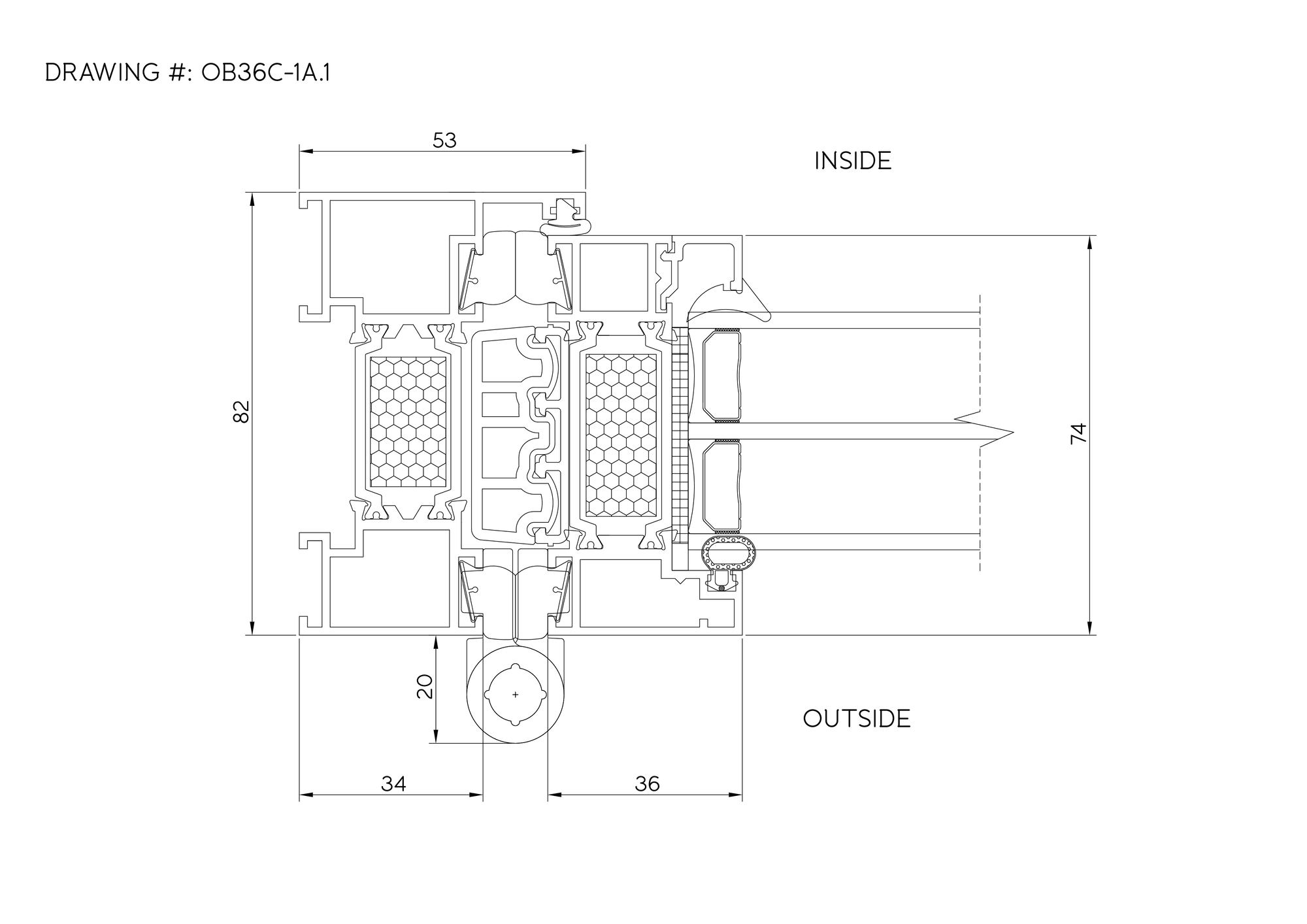

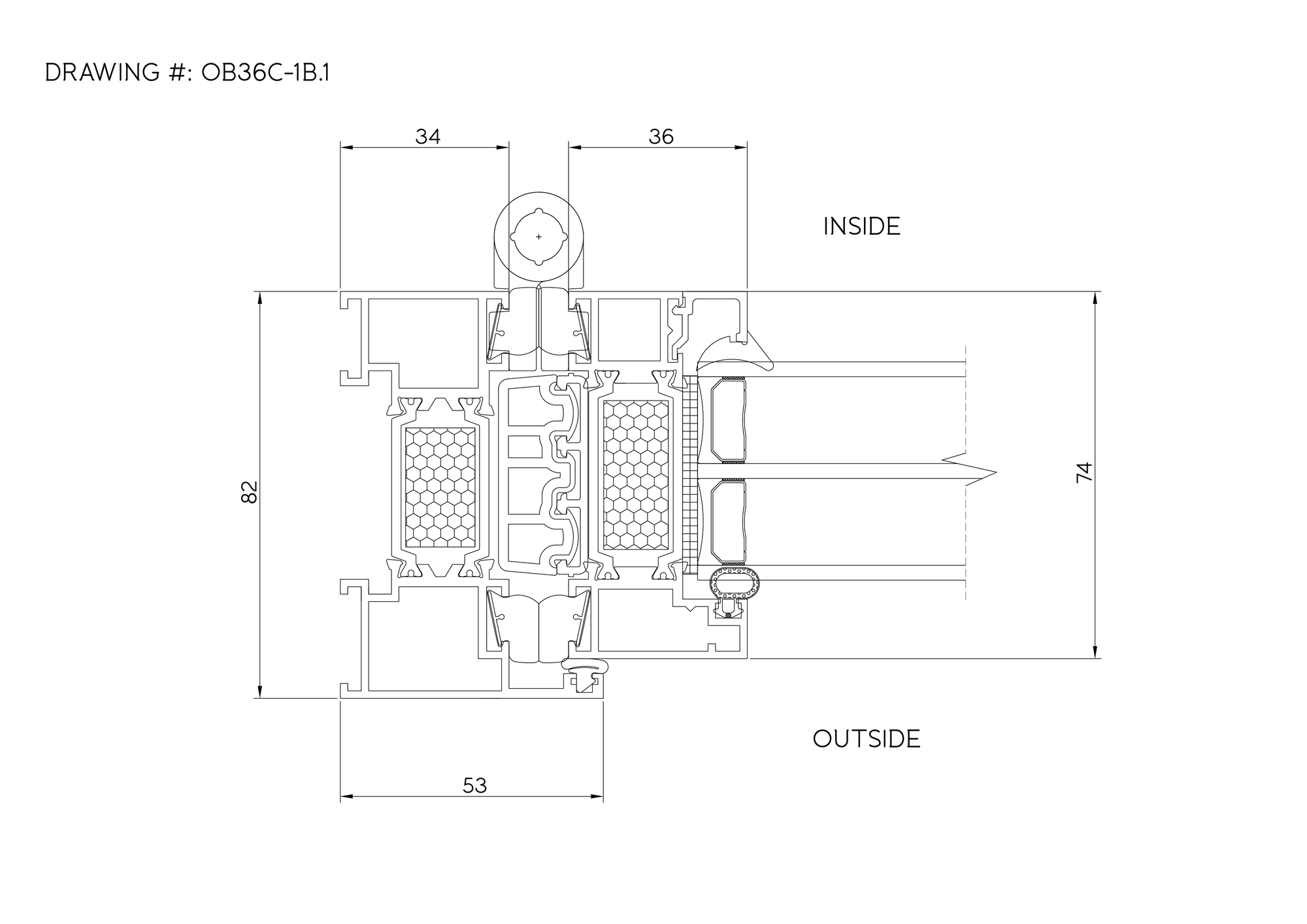

Technical Drawings | Detail 1A & 1B
Hinge Jamb
Open Out
Open In

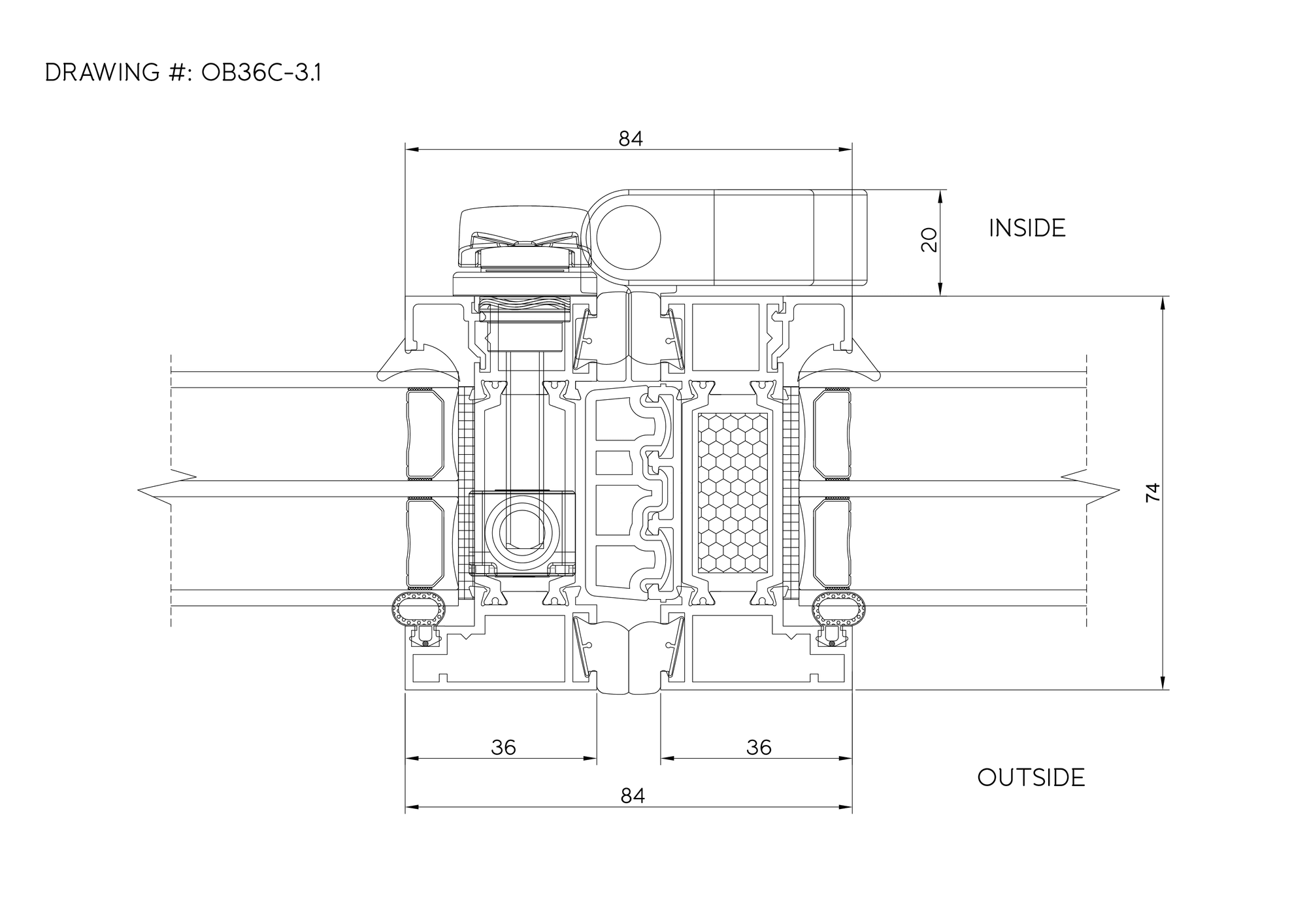

Technical Drawings | Detail 3
Outward Opening Stiles

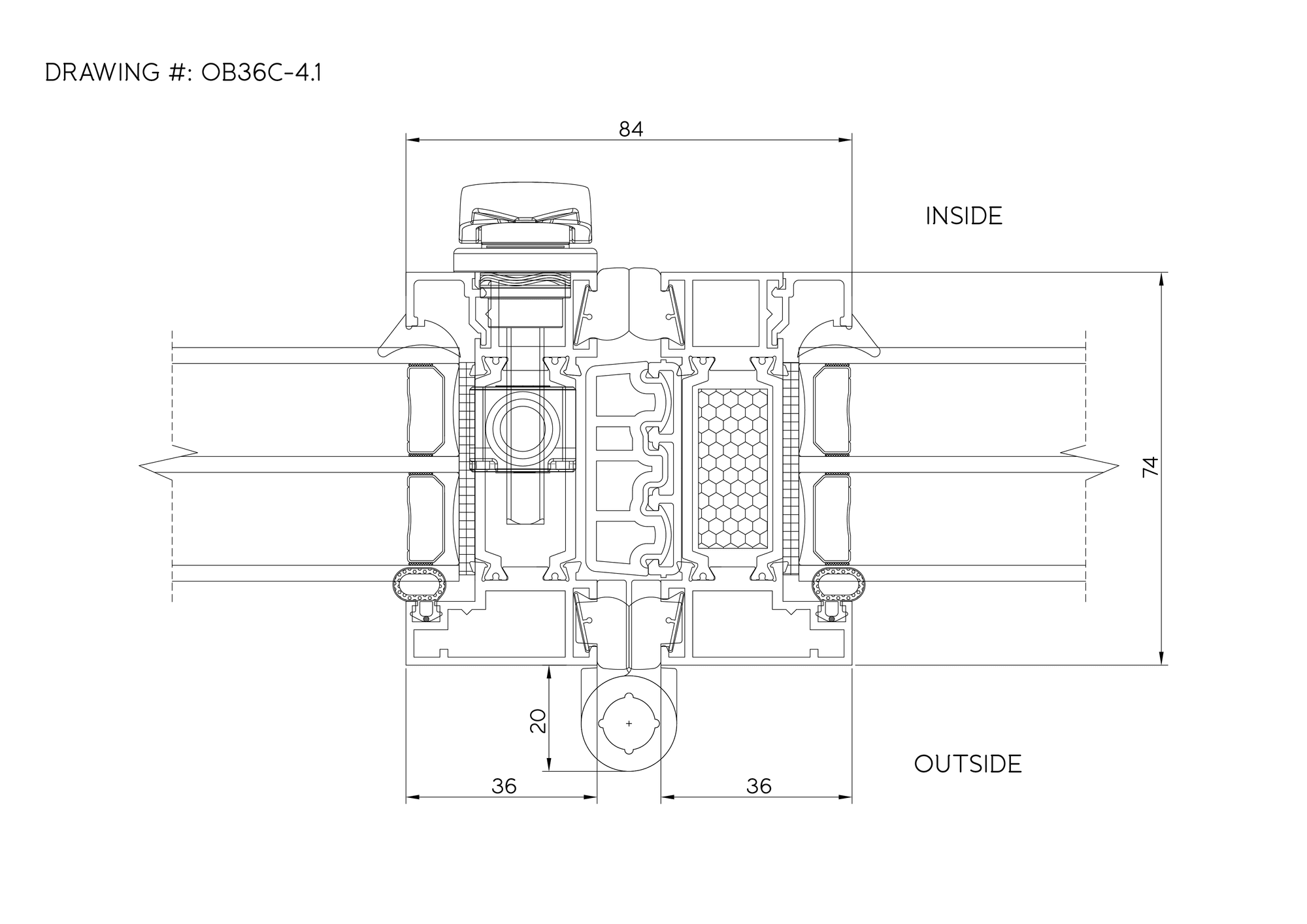

Technical Drawings | Detail 4
Inward Opening Stiles

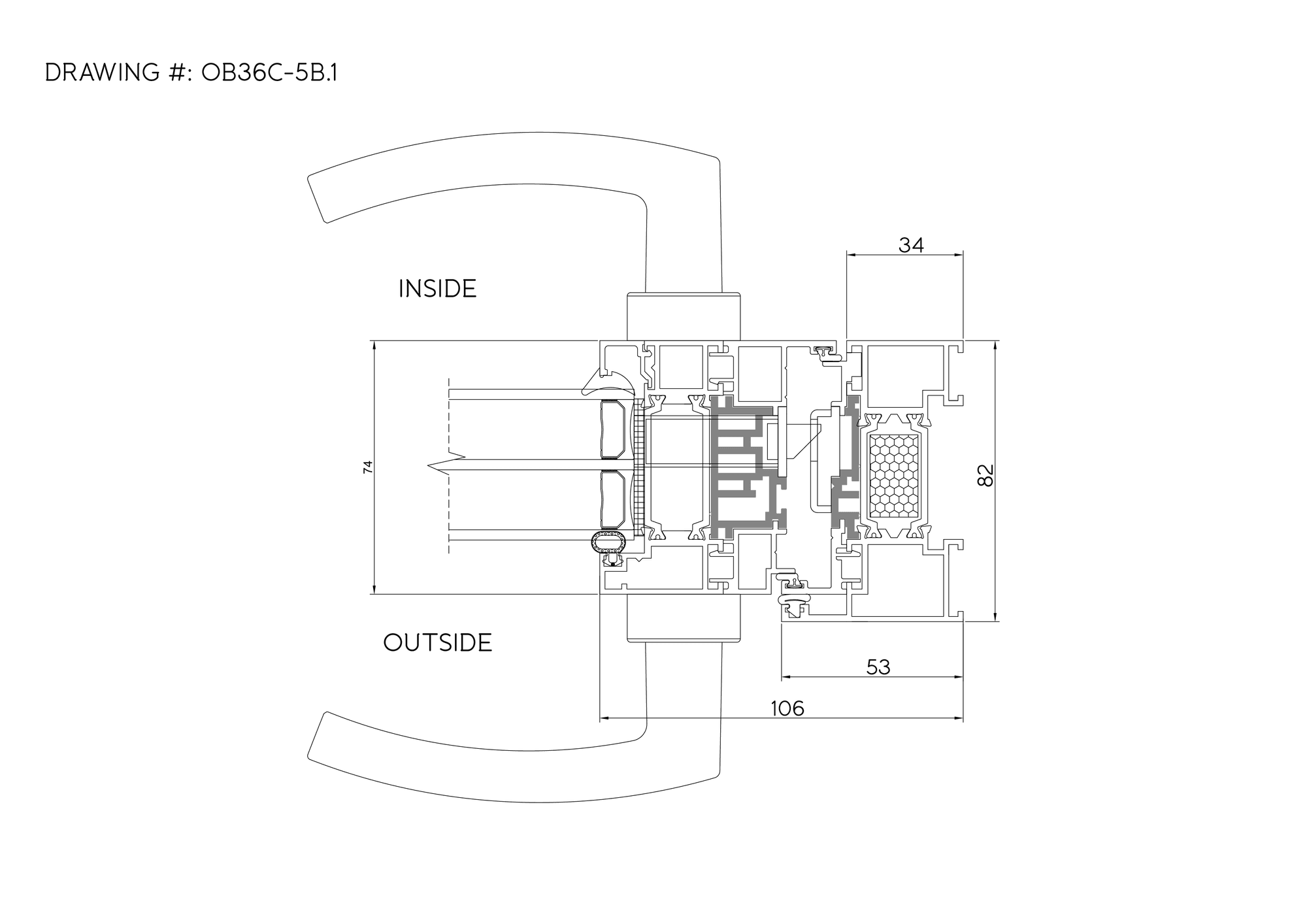

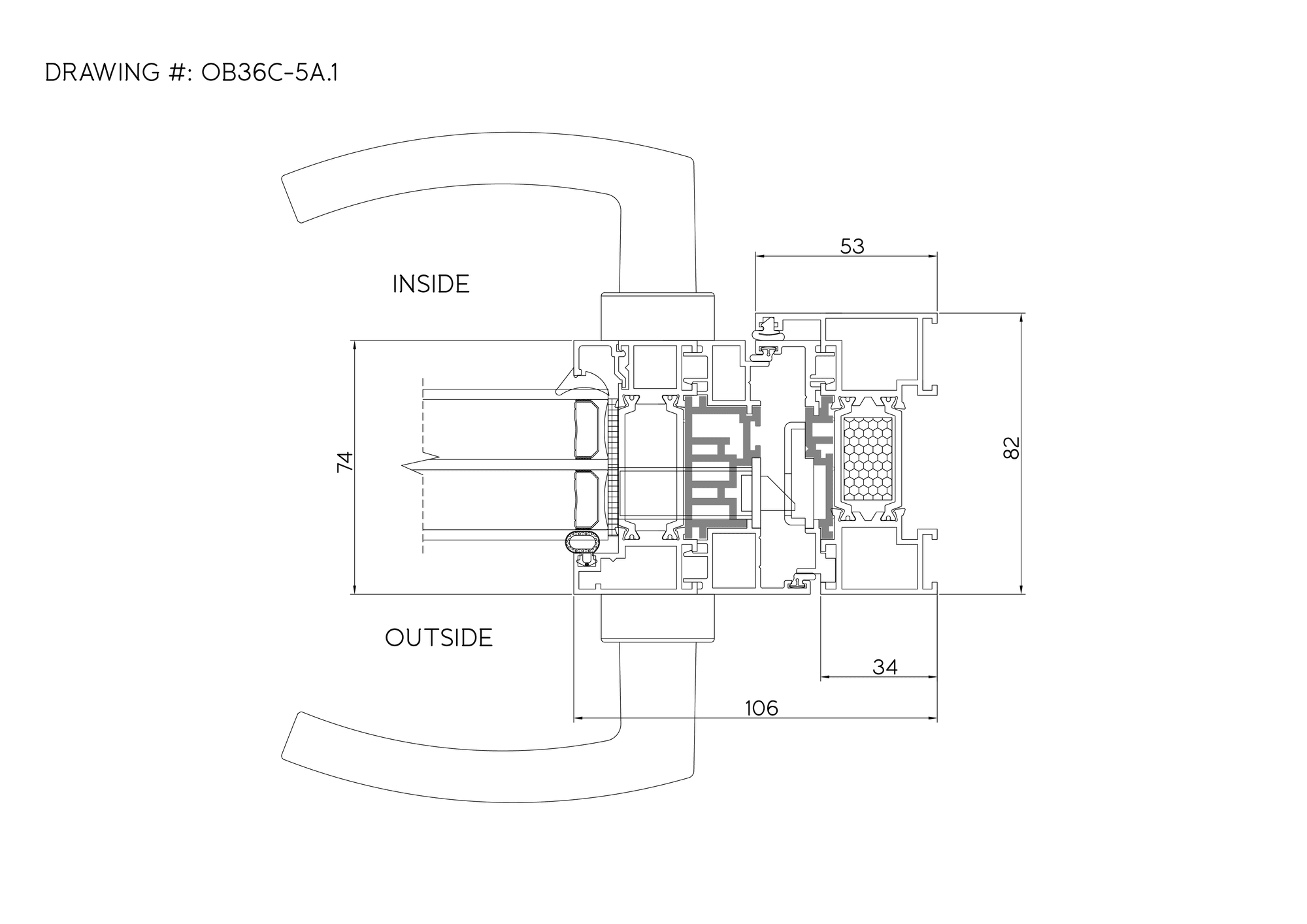

Technical Drawings | Detail 5A & 5B
Locking Jamb
Open Out
Open In

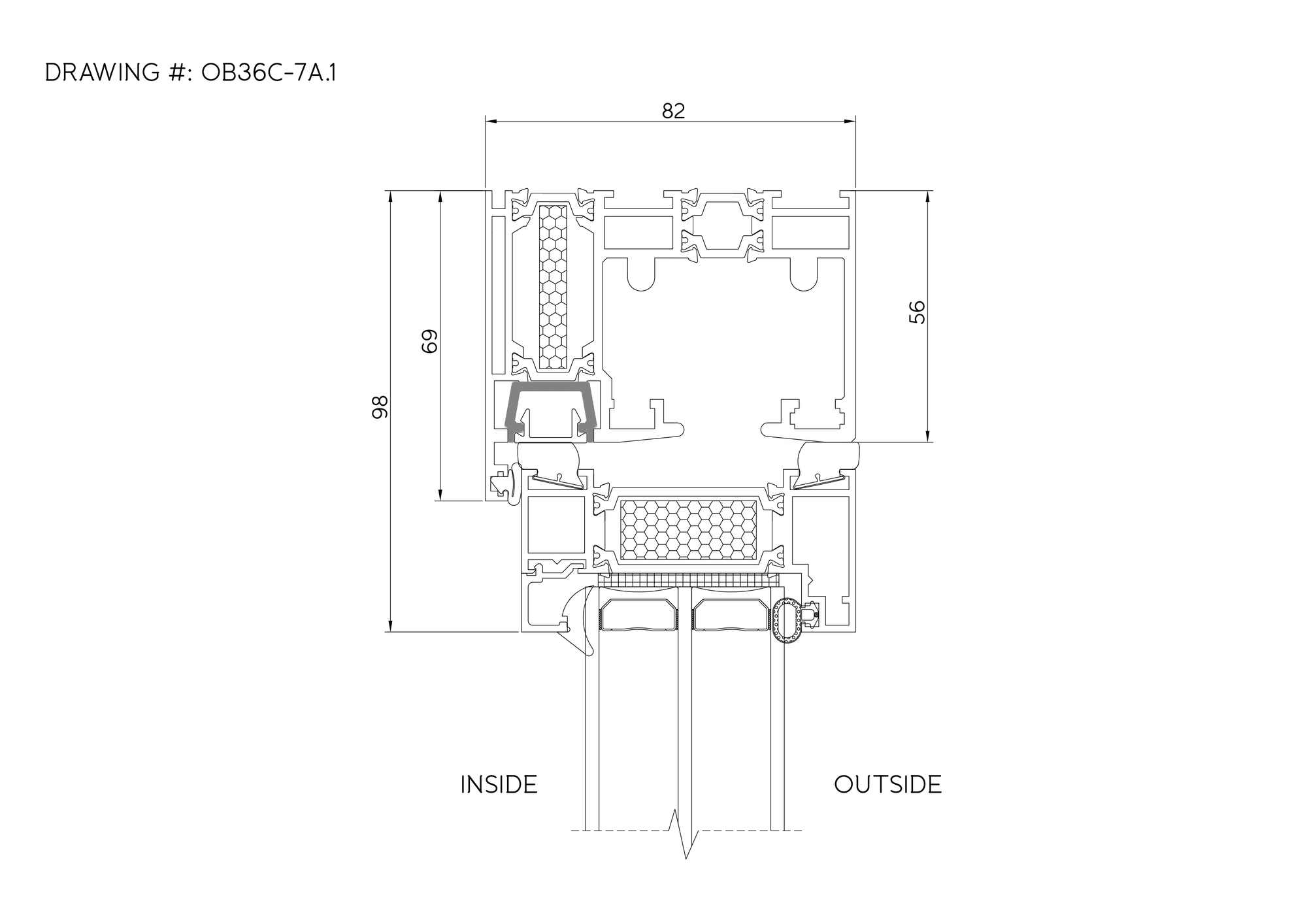

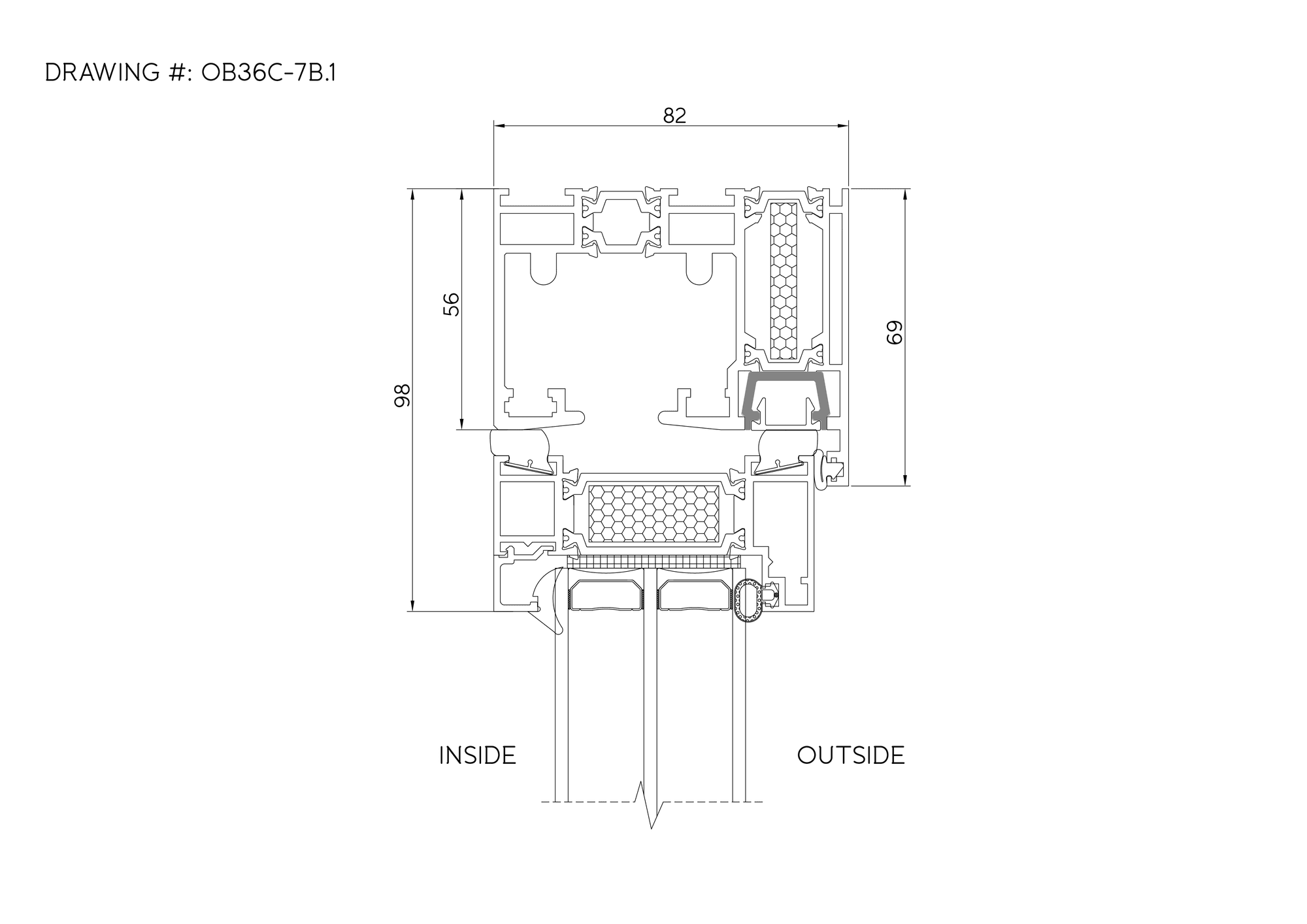

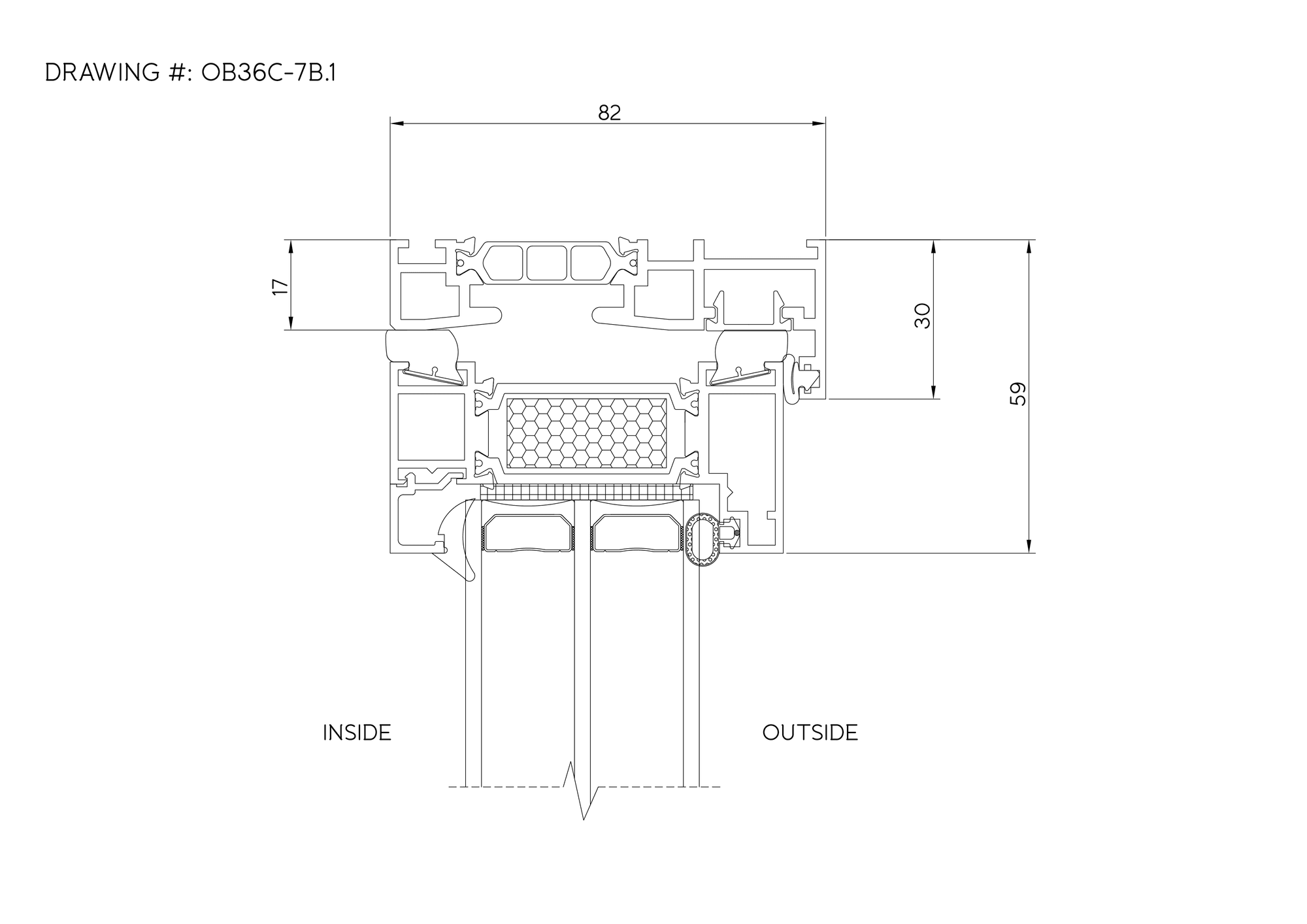

Technical Drawings | Detail 7A & 7B
Top Track
Open Out
Open In

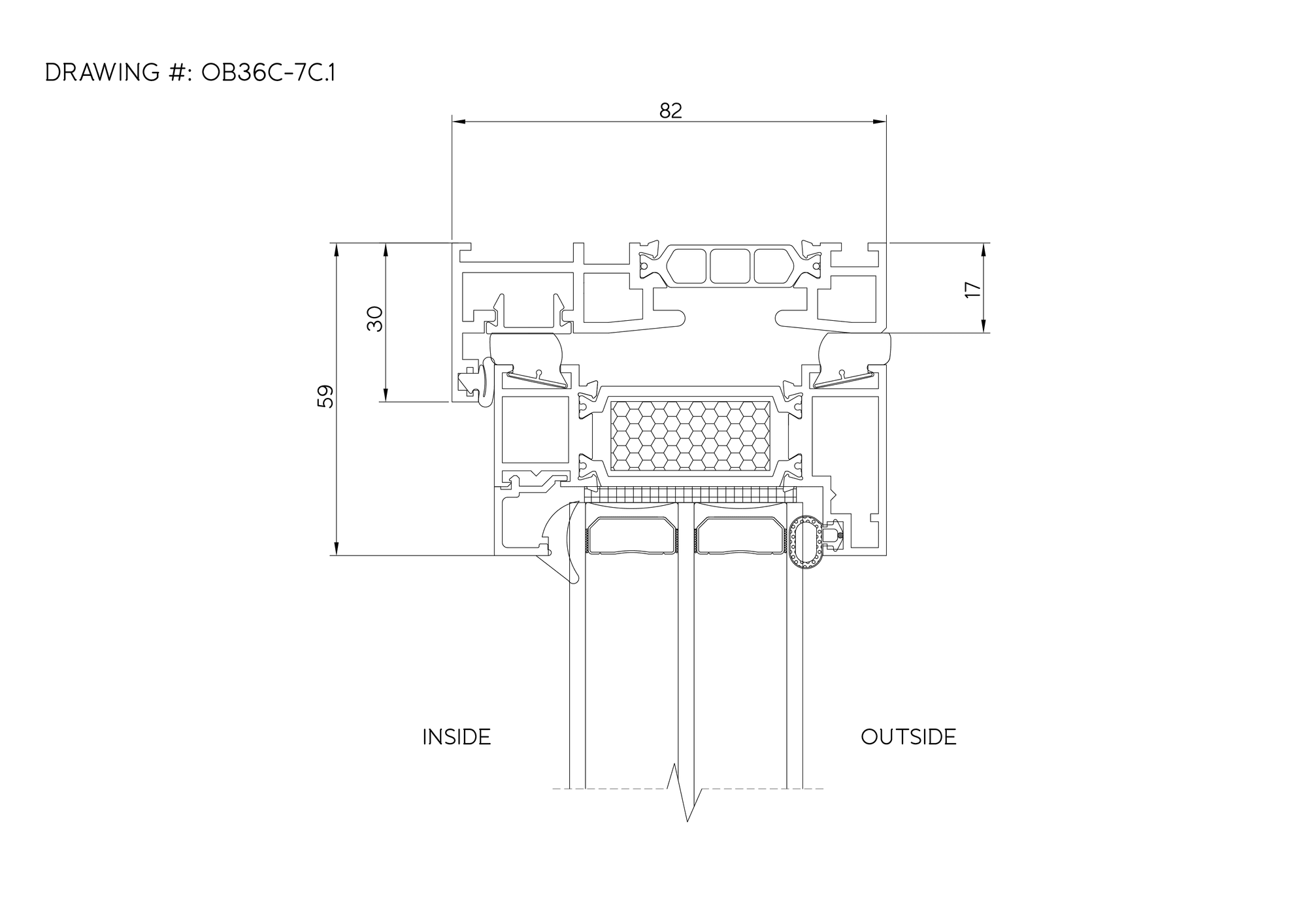

Technical Drawings | Detail 7C & 7D
Top Low Track
Open Out
Open In

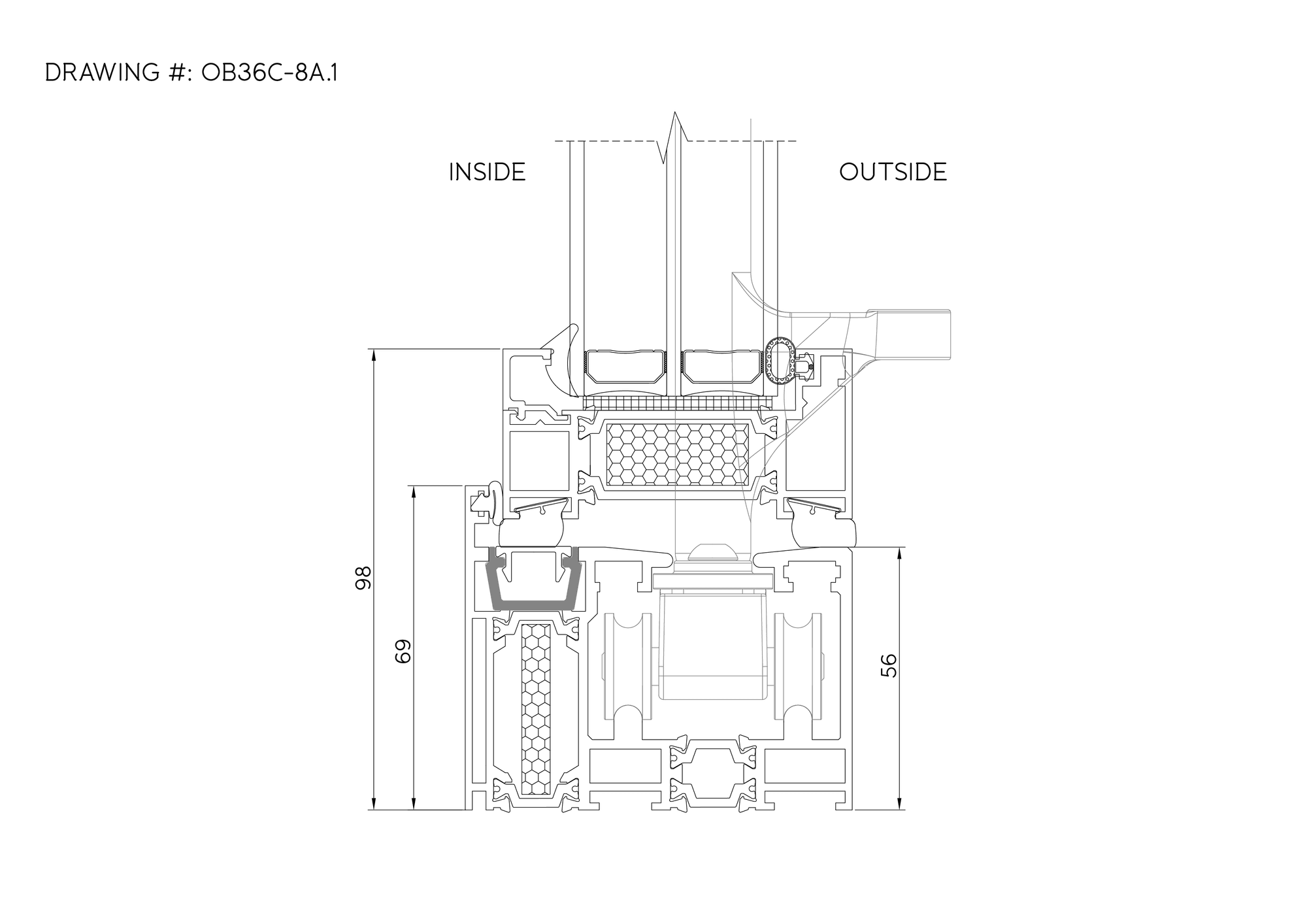

Technical Drawings | Detail 8A & 8B
Bottom Track
Open Out
Open In

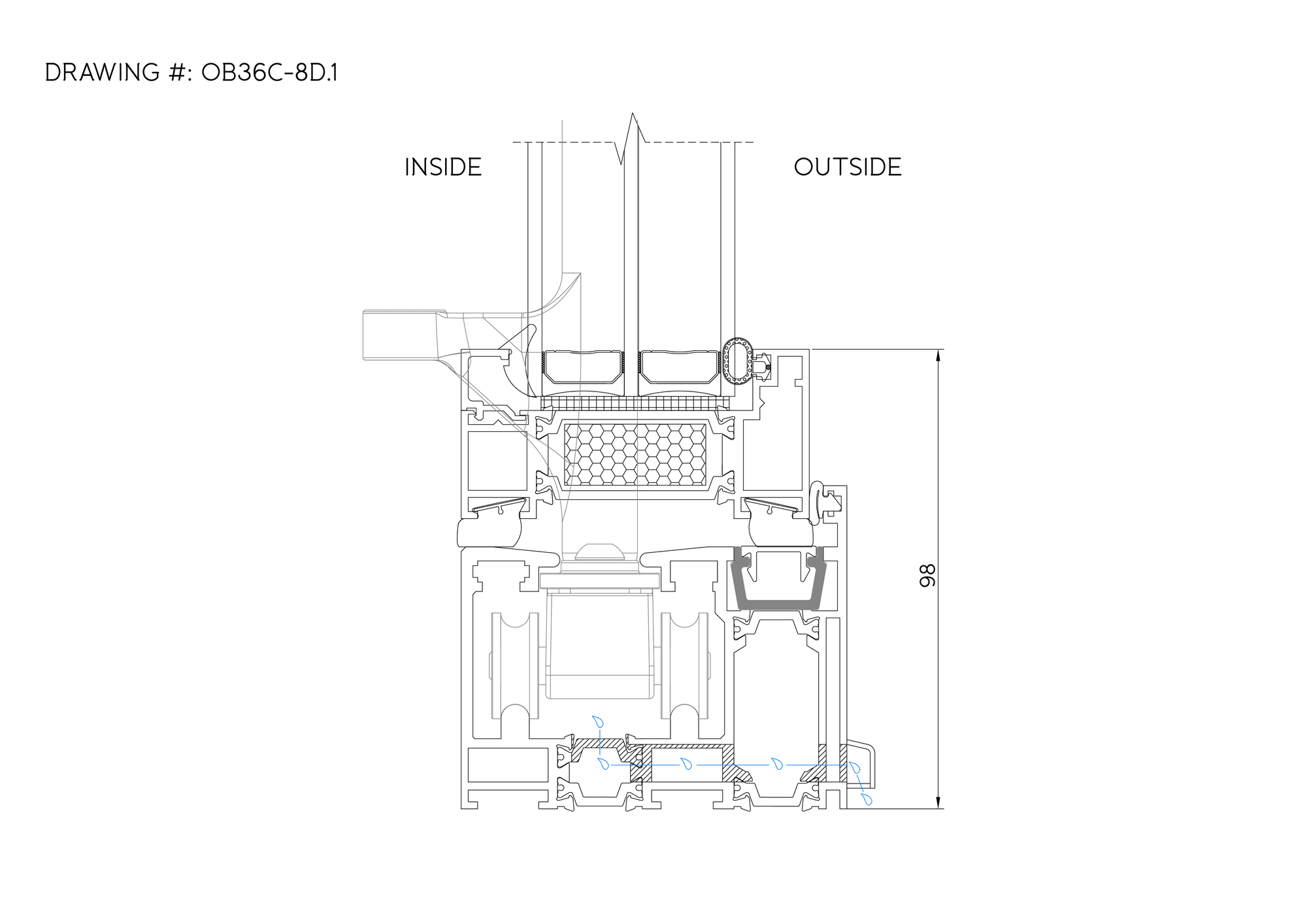

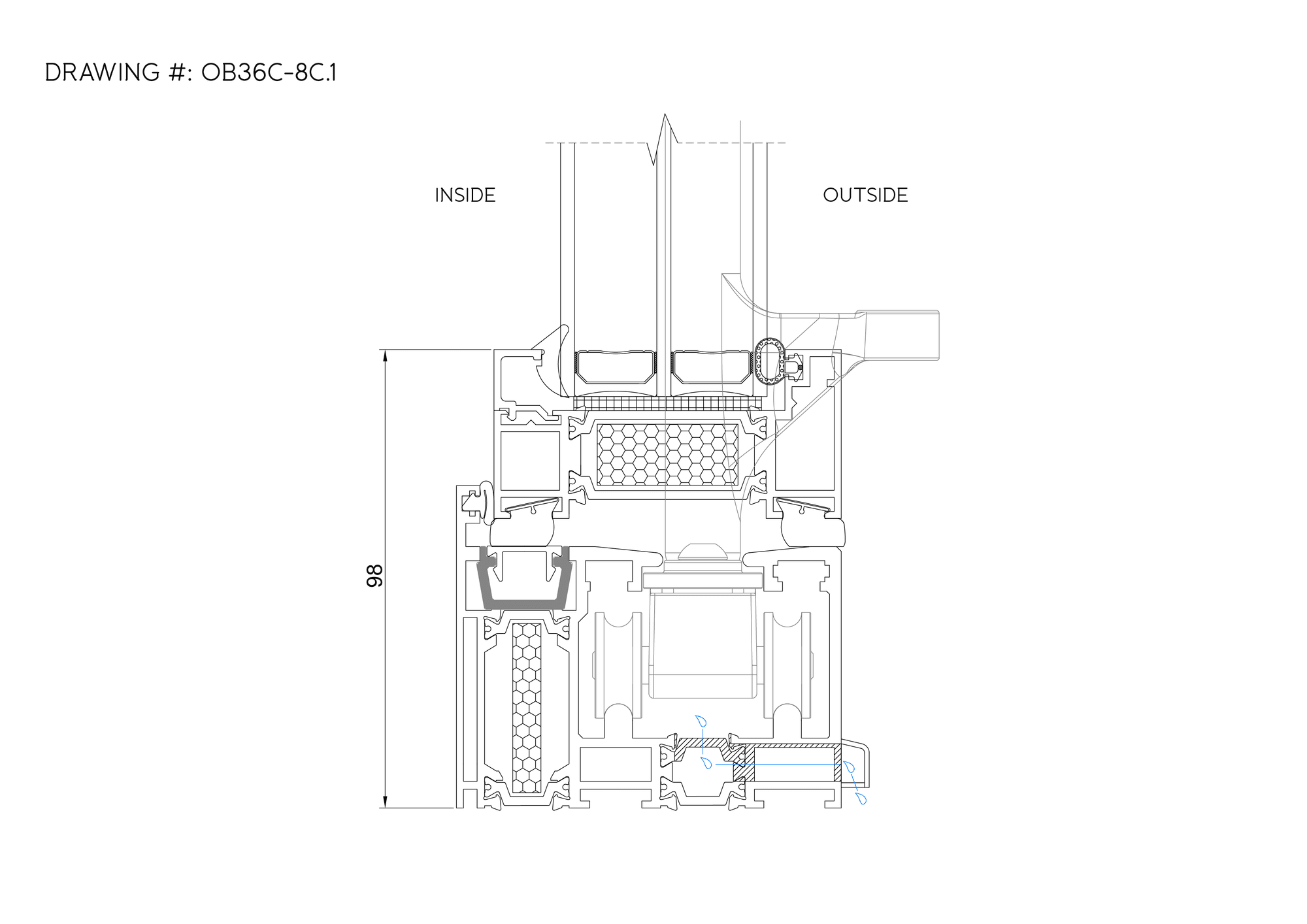

Technical Drawings | Detail 8C & 8D
Bottom Track - Face Drainage
Open Out
Open In

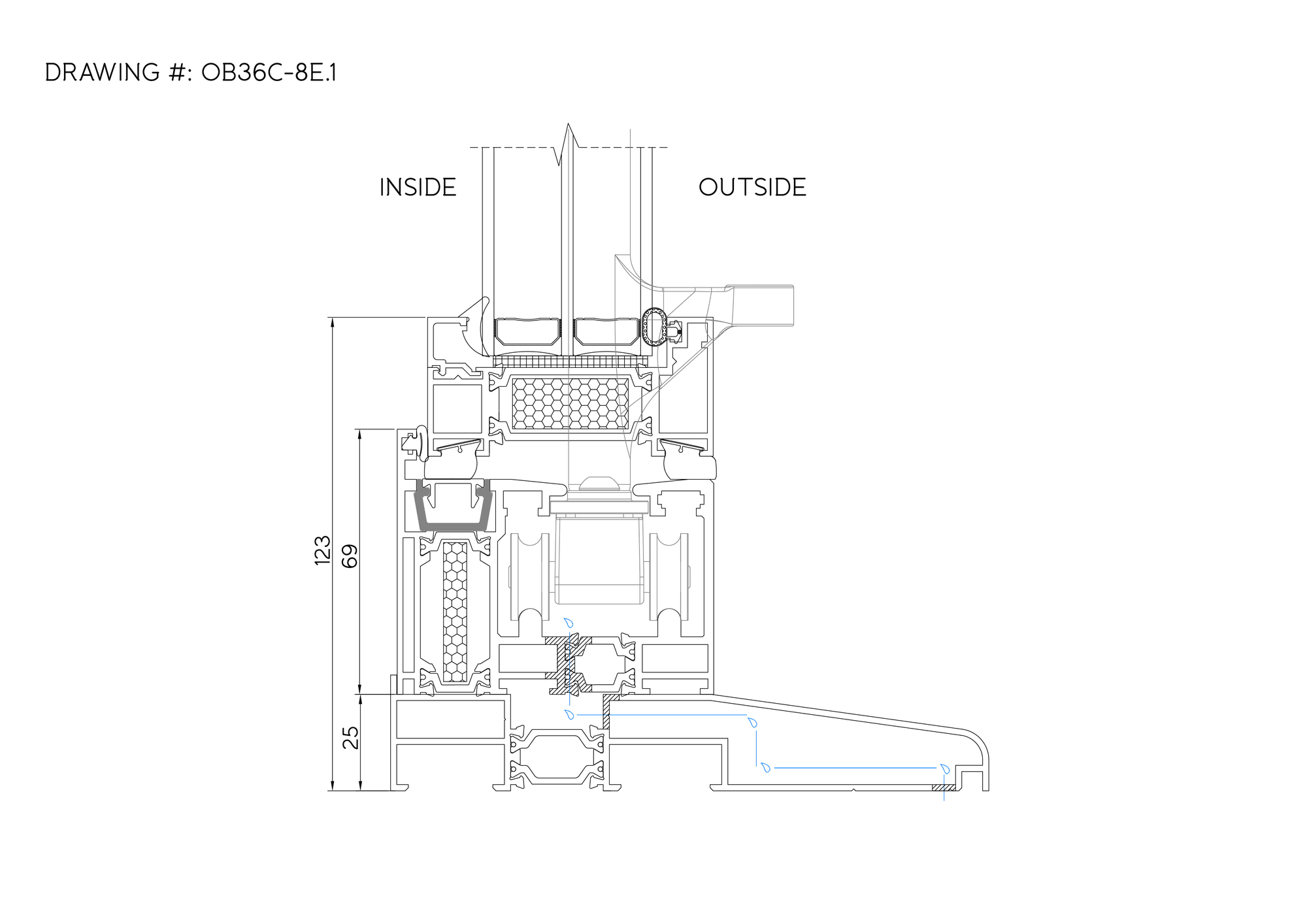

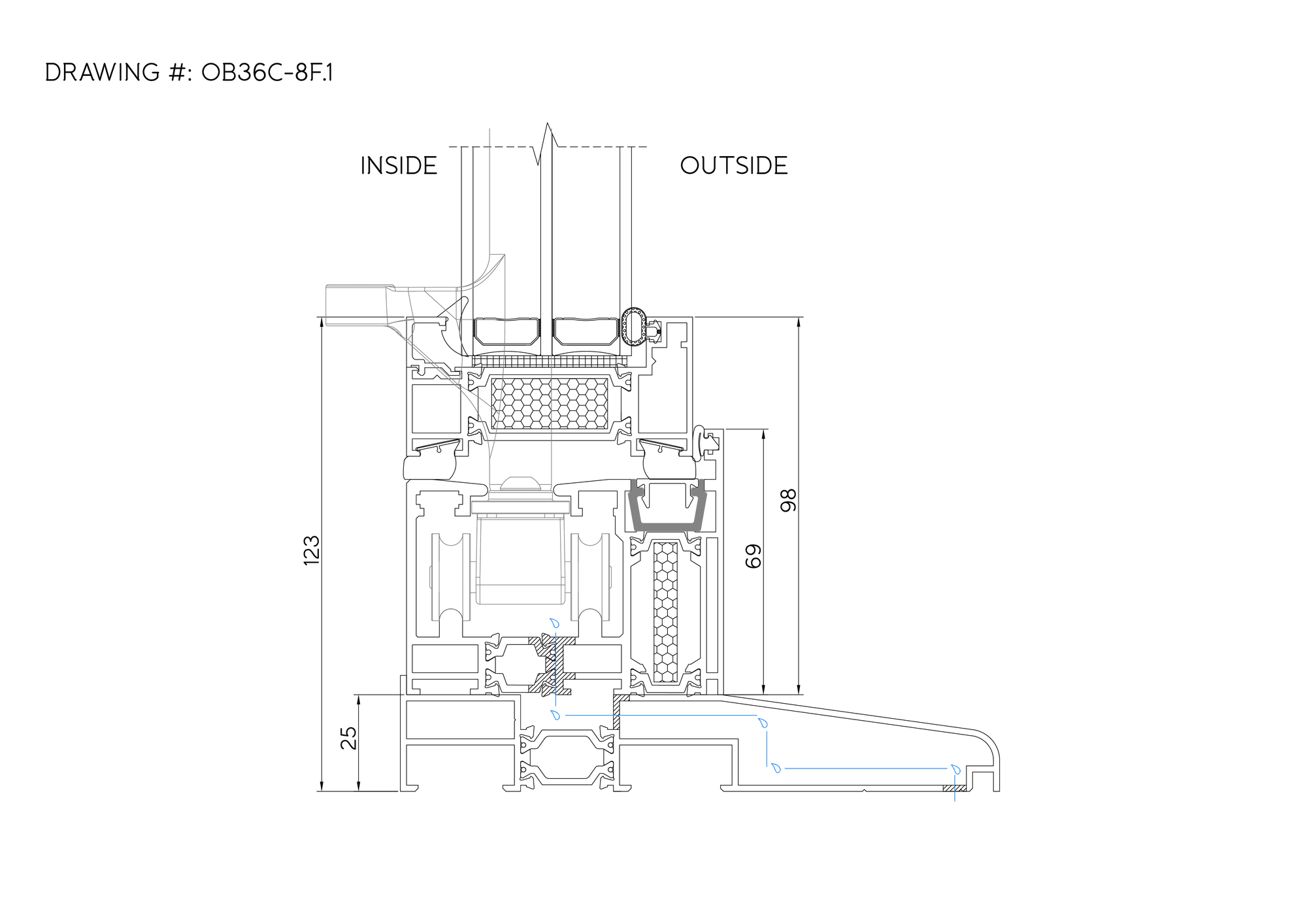

Technical Drawings | Detail 8E & 8F
Bottom Track - Concealed Drainage
Open Out
Open In

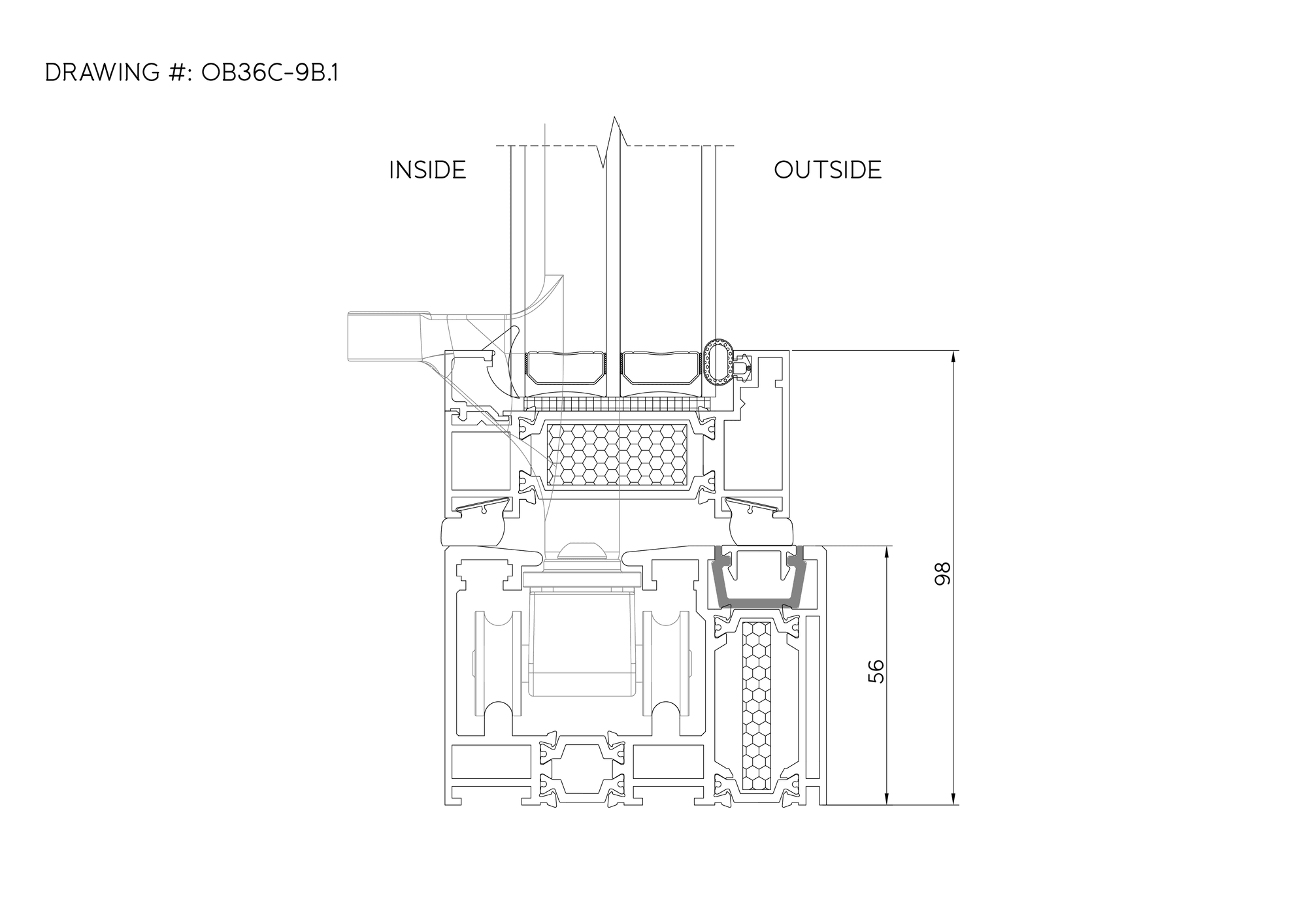

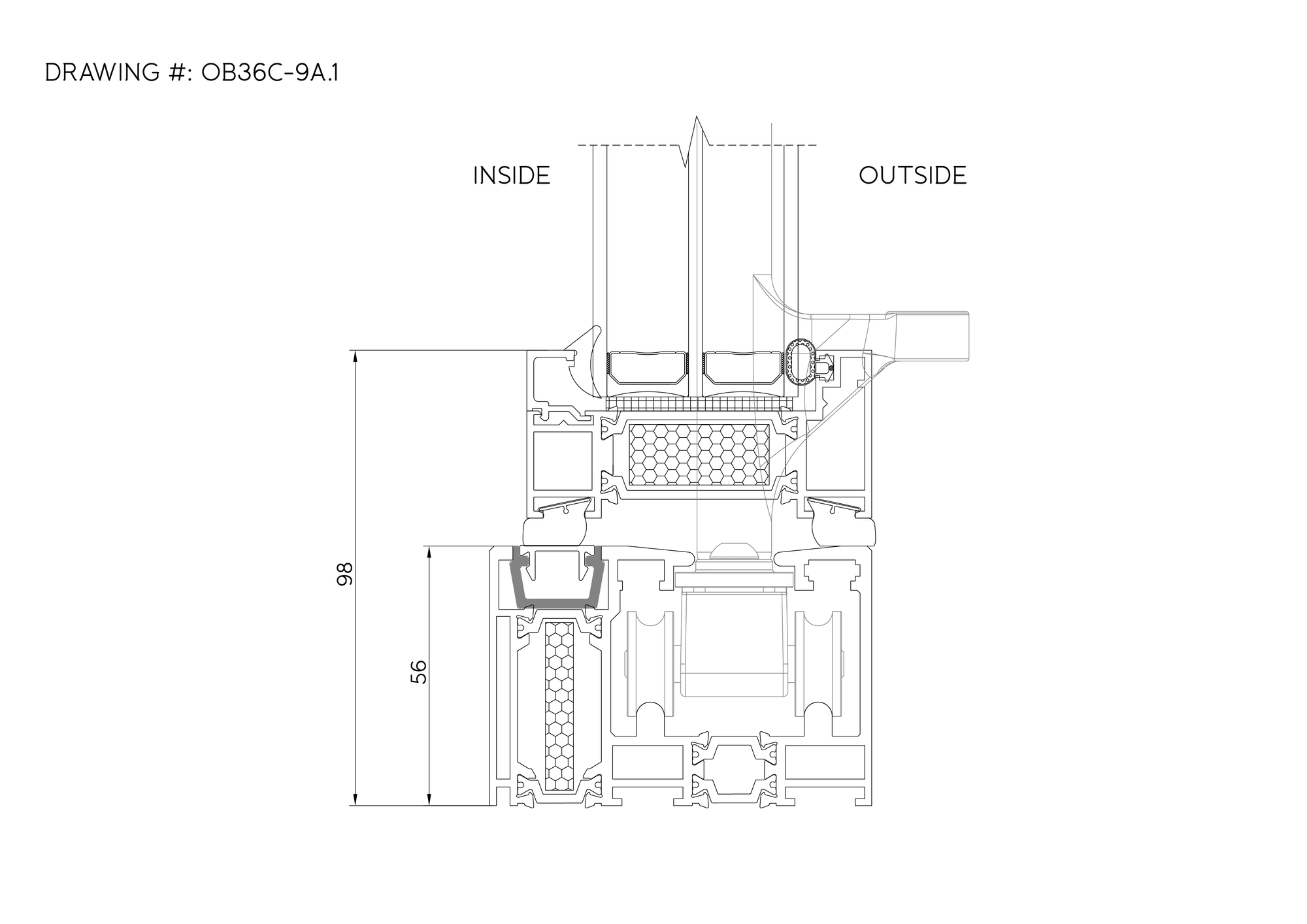

Technical Drawings | Detail 9A & 9B
Non-Weathered Threshold
Open Out
Open In

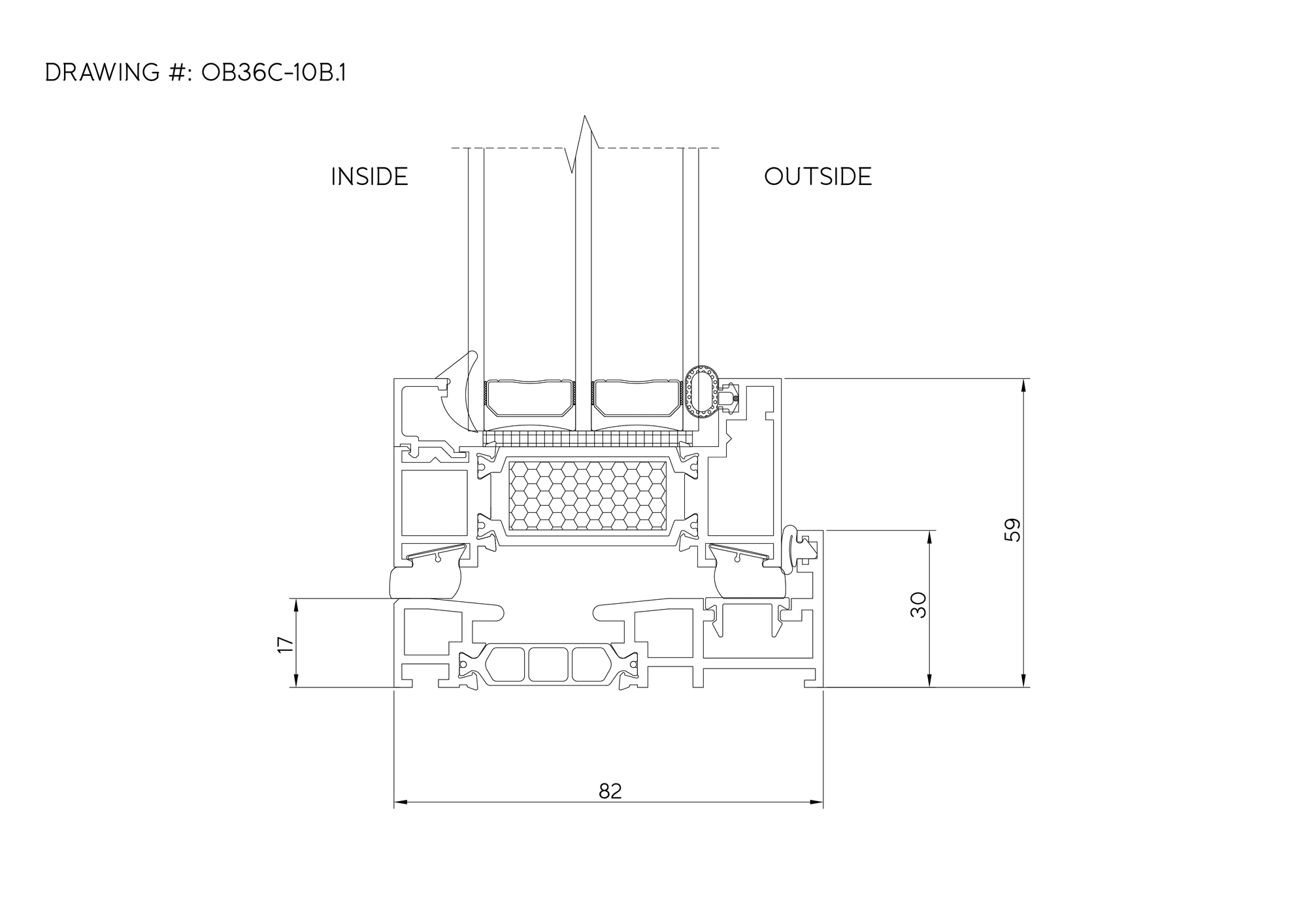

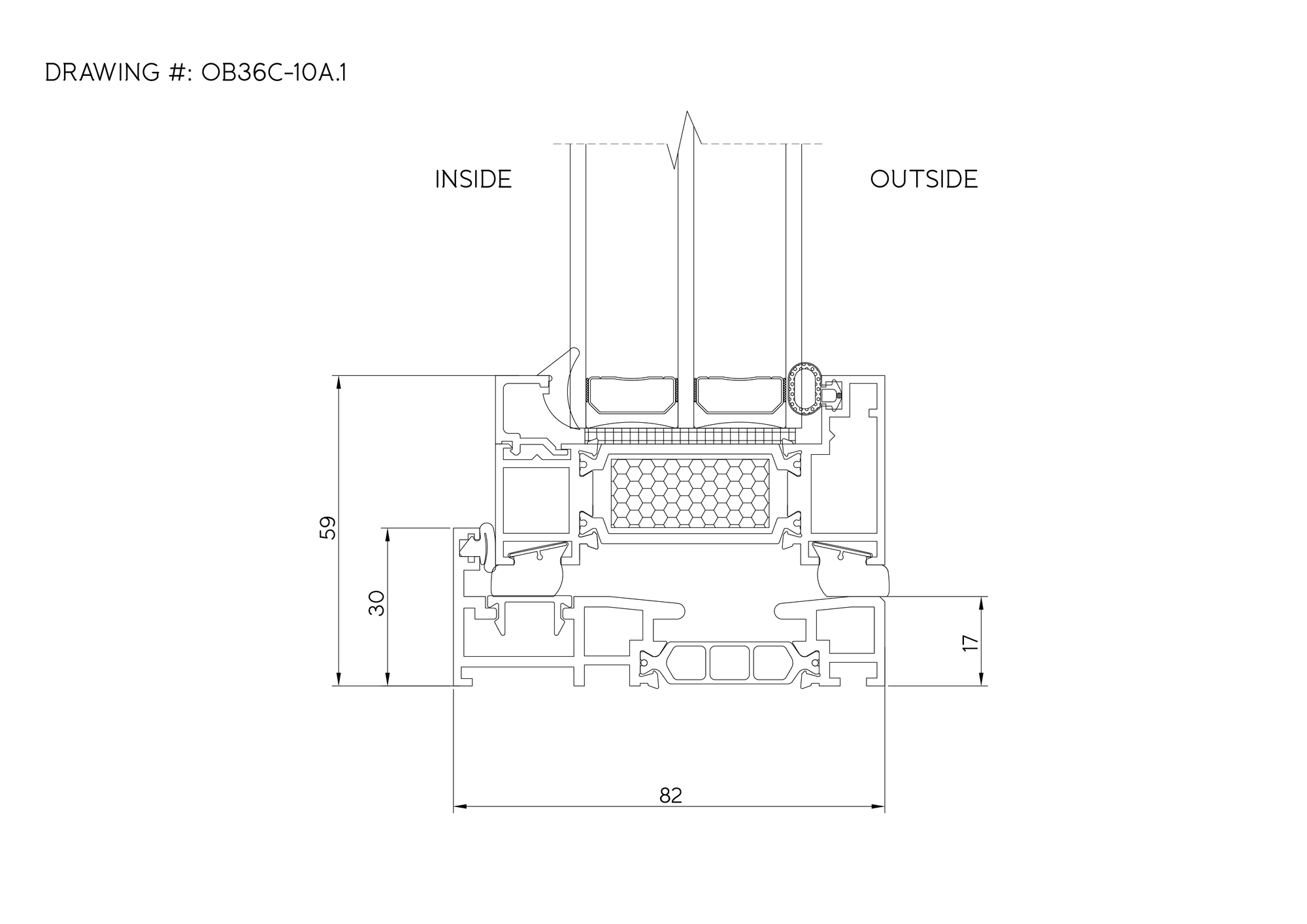

Technical Drawings | Detail 10A & 10B
Low Track
Open Out
Open In

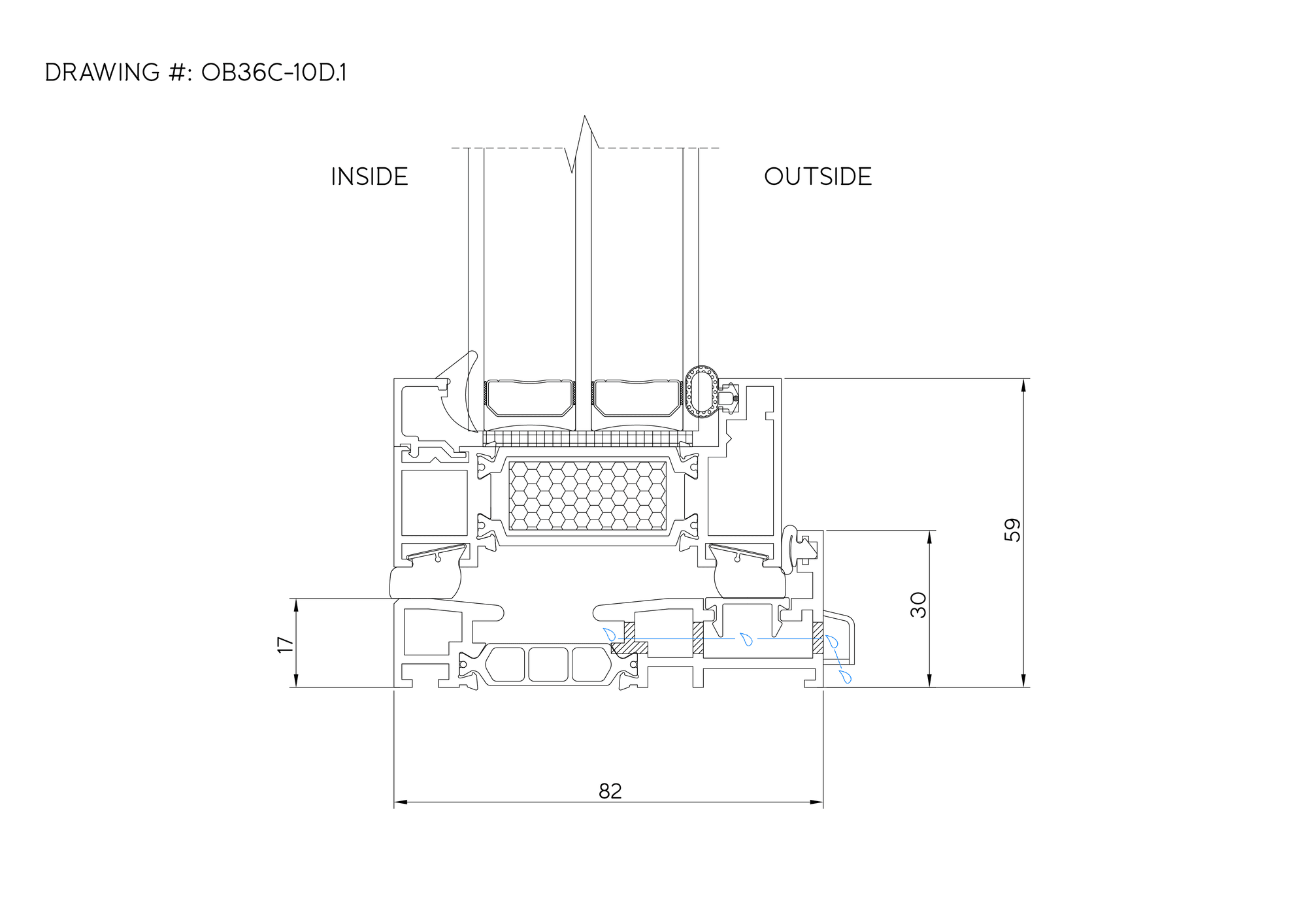

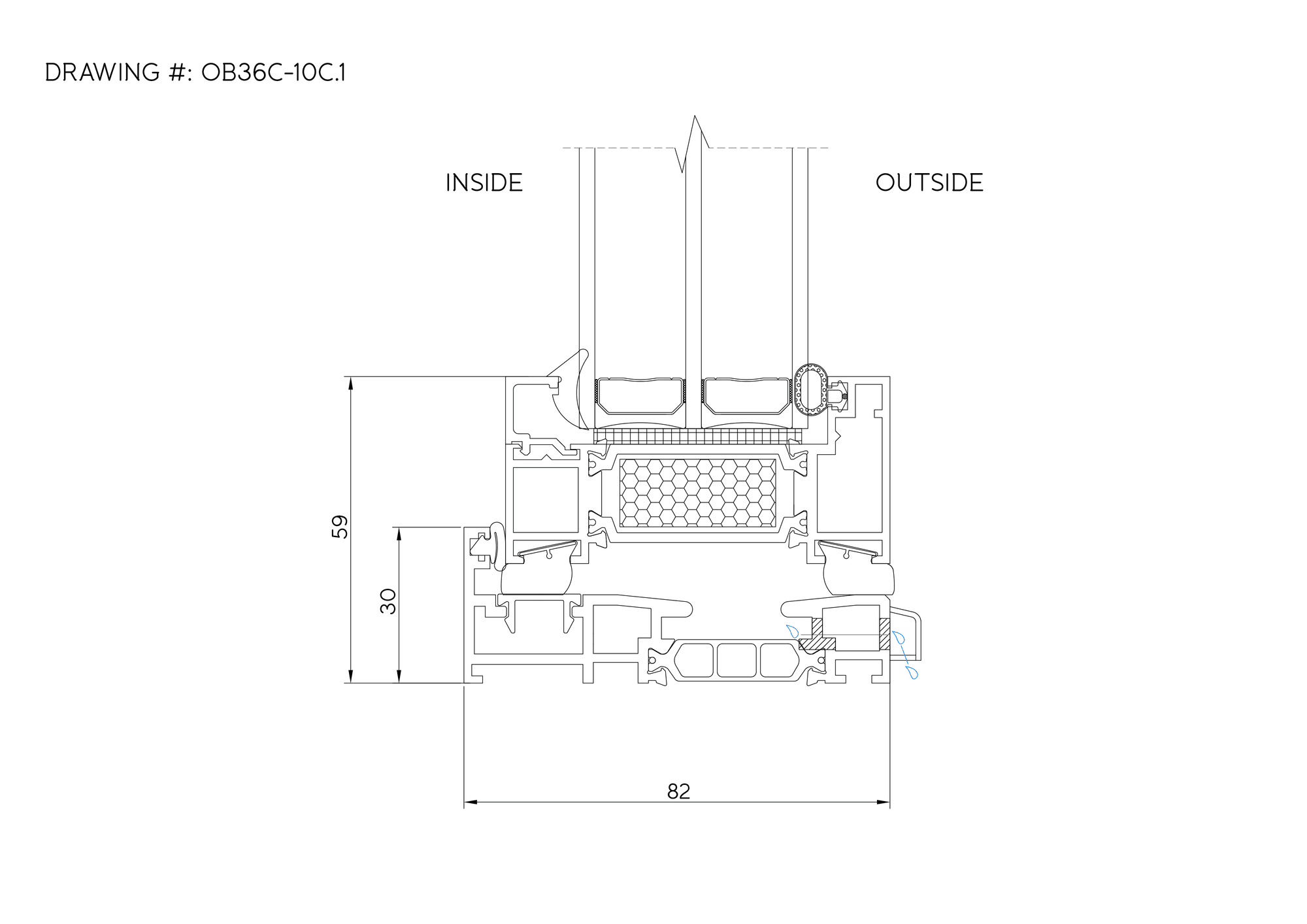

Technical Drawings | Detail 10C & 10D
Low Track Face Drainage
Open Out
Open In

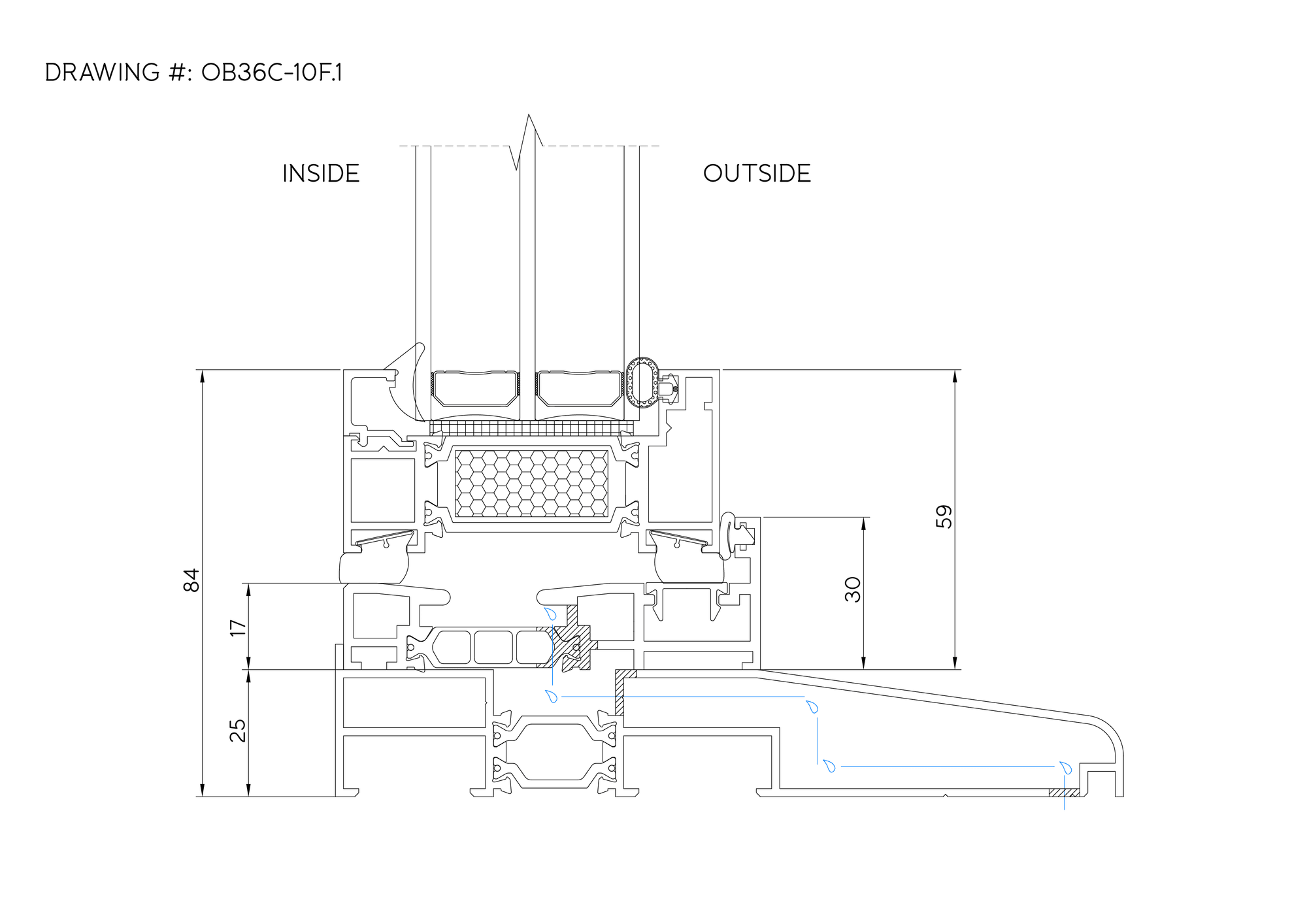

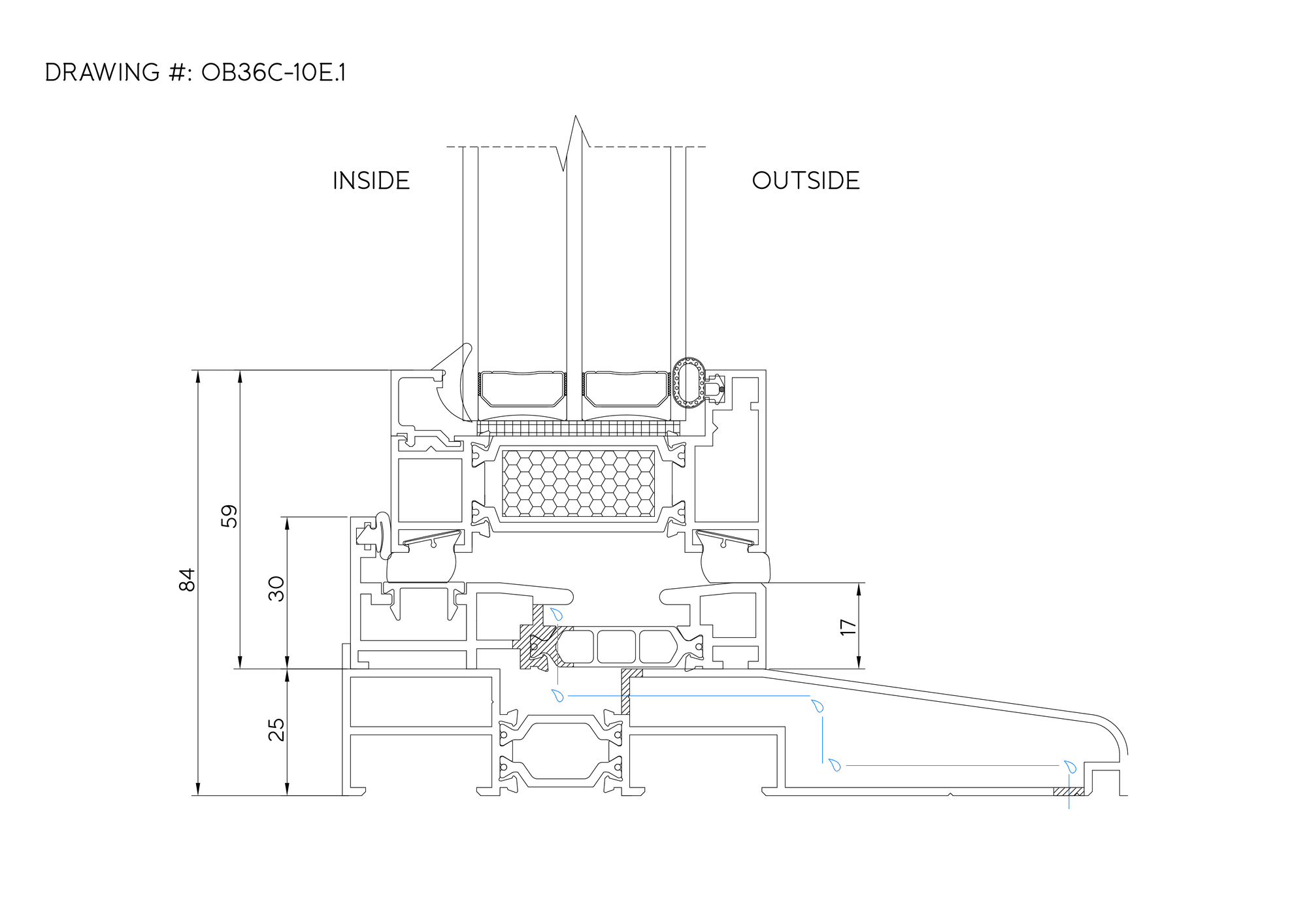

Technical Drawings | Detail 10E & 10F
Low Track Concealed Drainage
Open Out
Open In

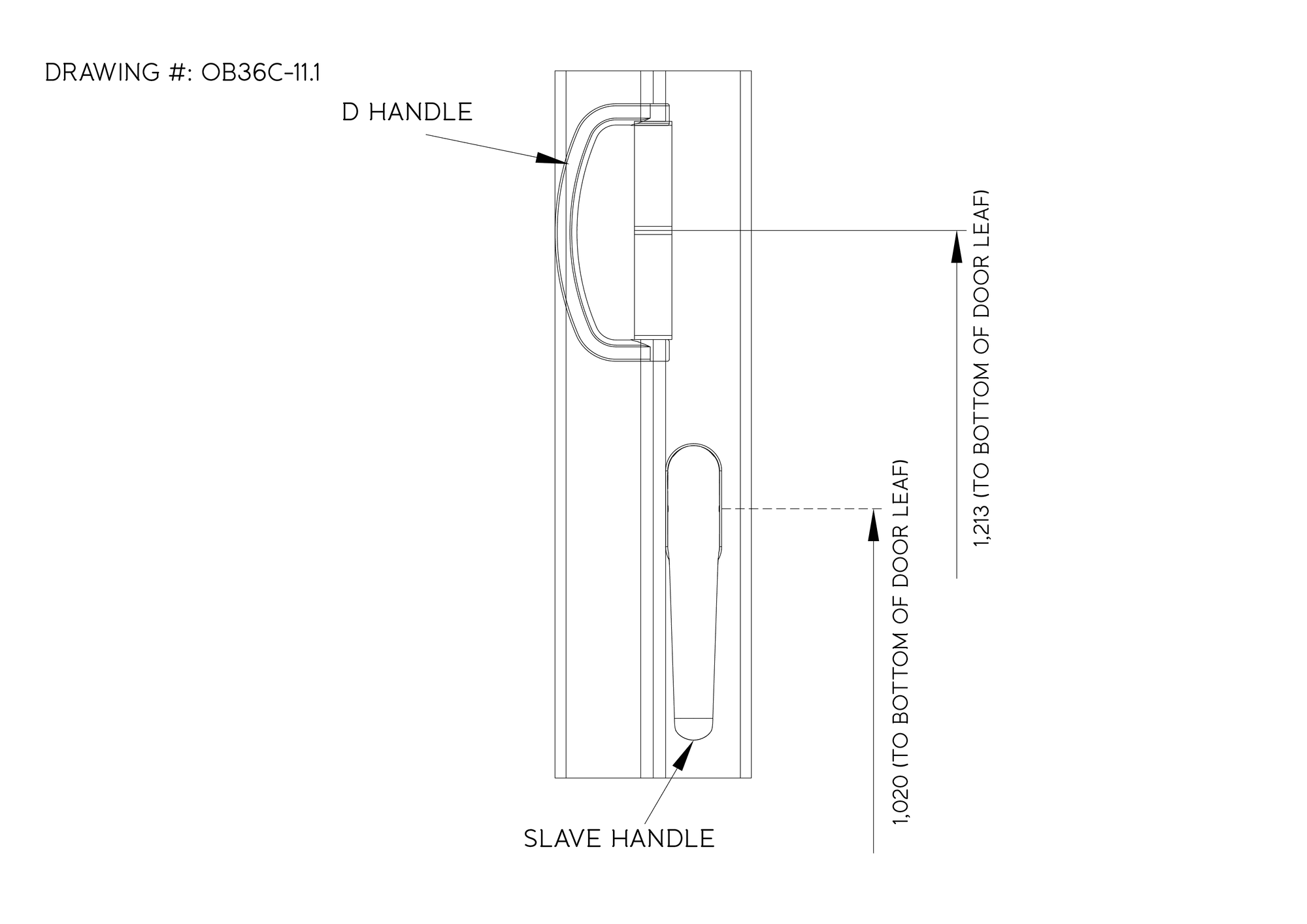

Technical Drawings | Detail 11
Slave Handle Layout

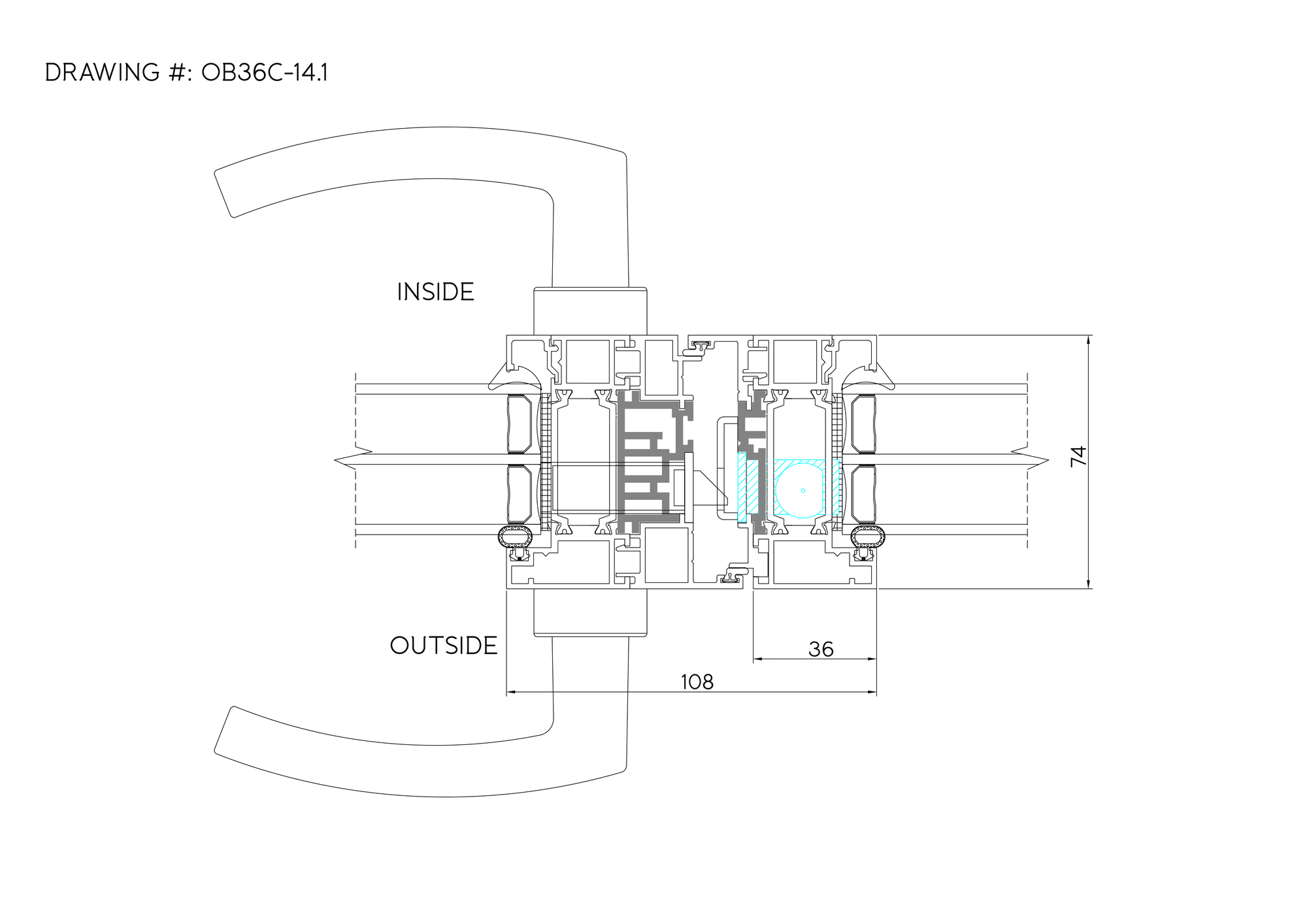

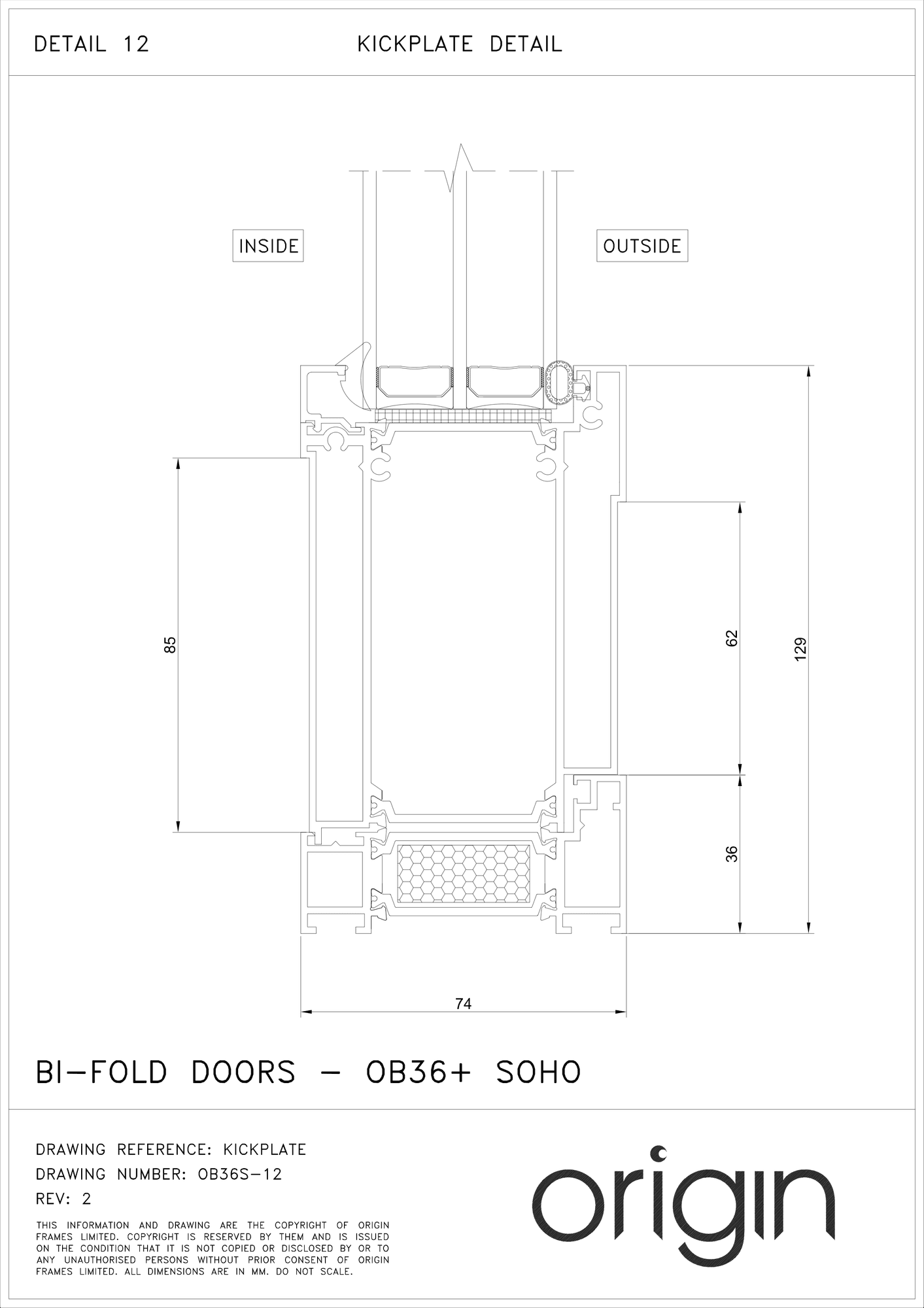

Technical Drawings | Detail 14
Locking Slave Fingerbolt

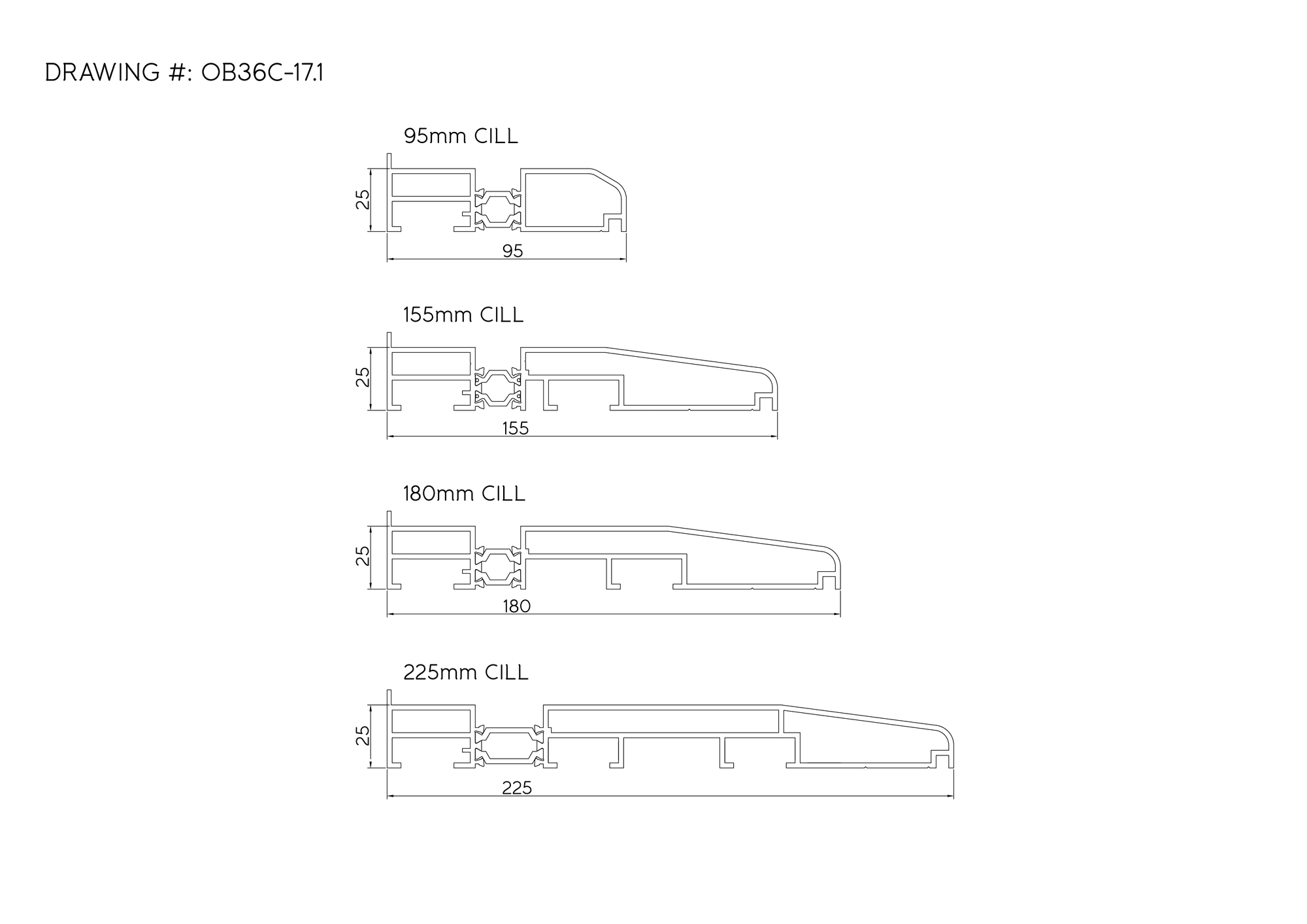

Technical Drawings | Detail 17
Cills

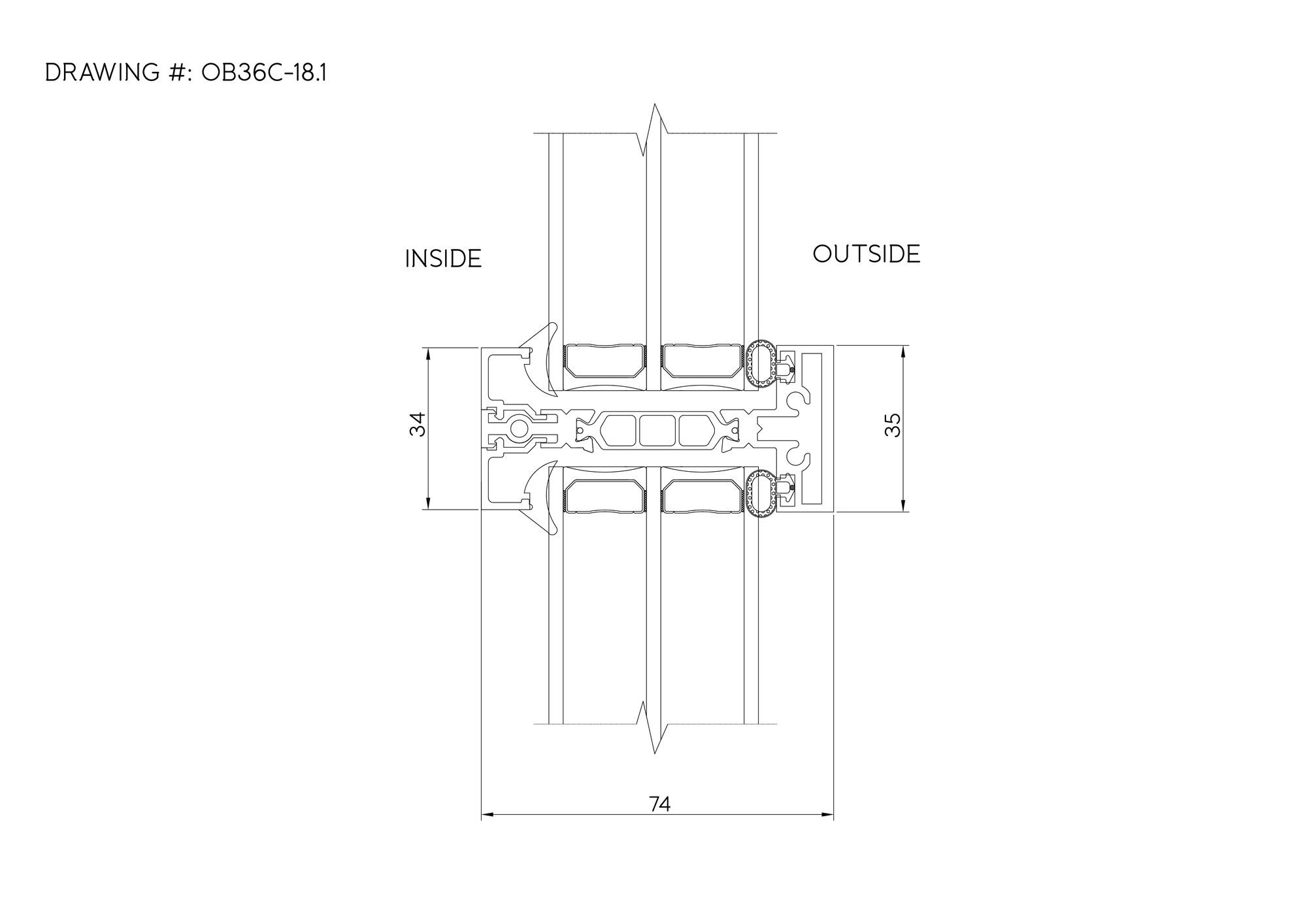

Technical Drawings | Detail 18
Glass Divide Glazing

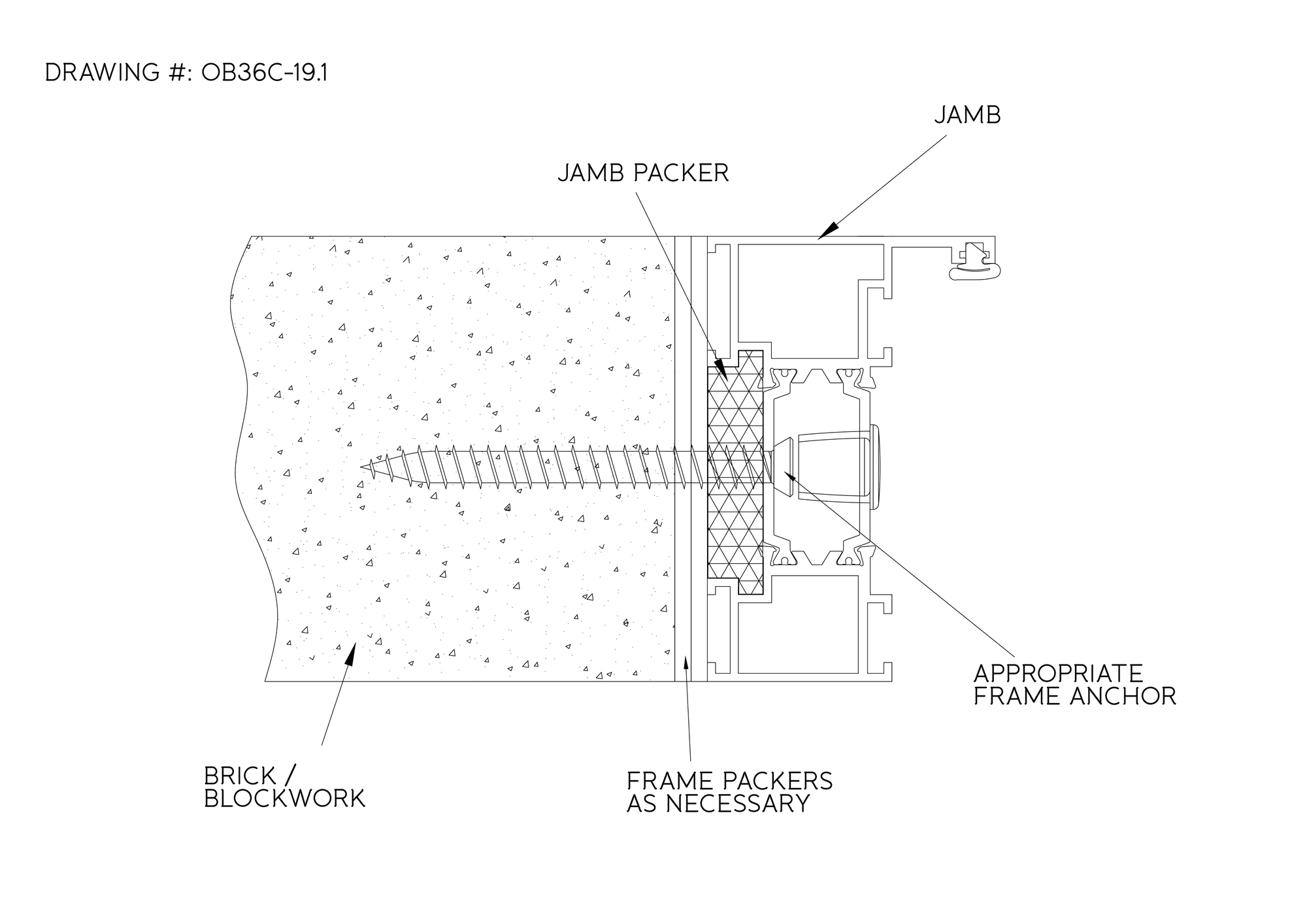

Technical Drawings | Detail 19
Jamb Fixing

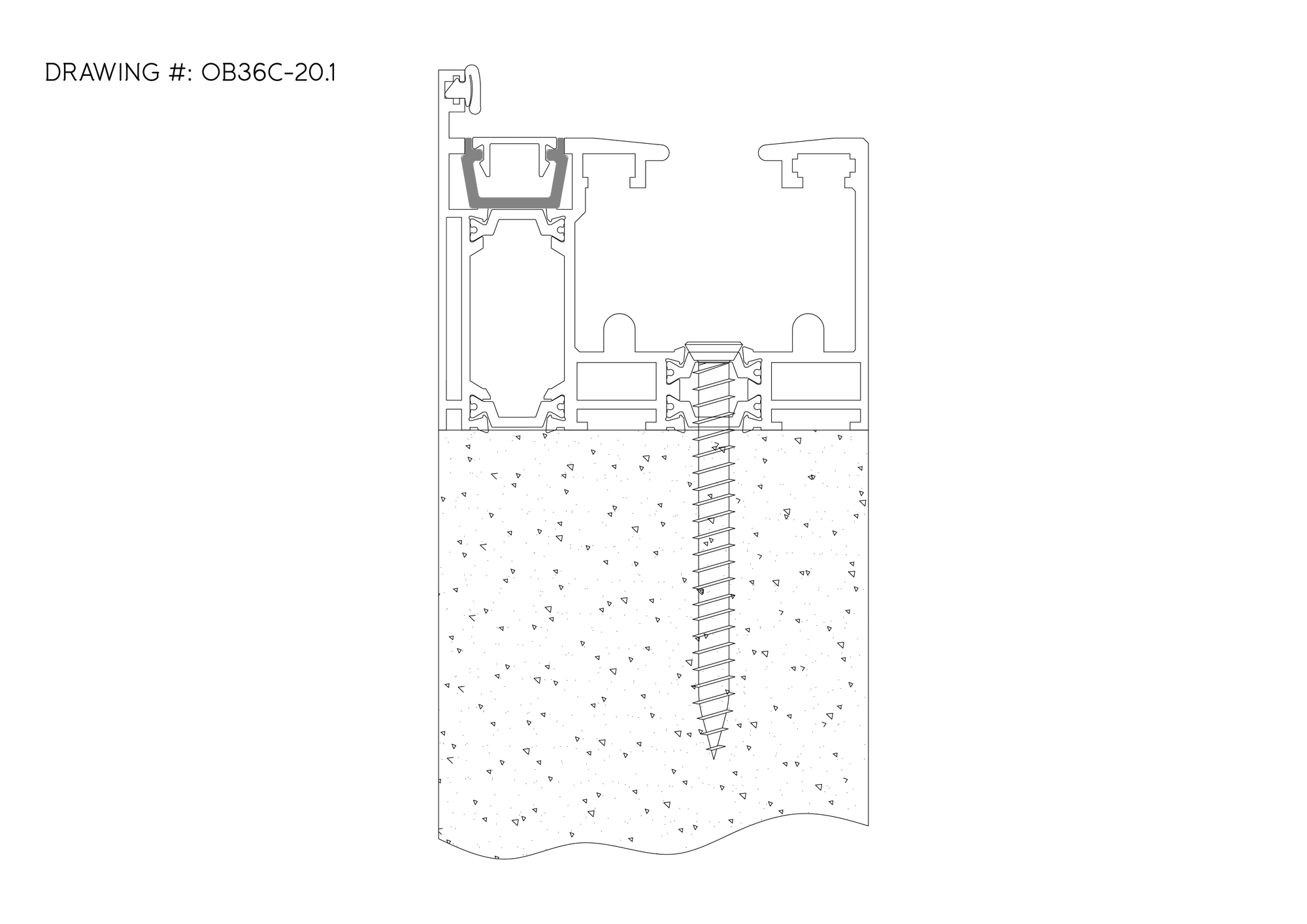

Technical Drawings | Detail 20
Bottom Fixing

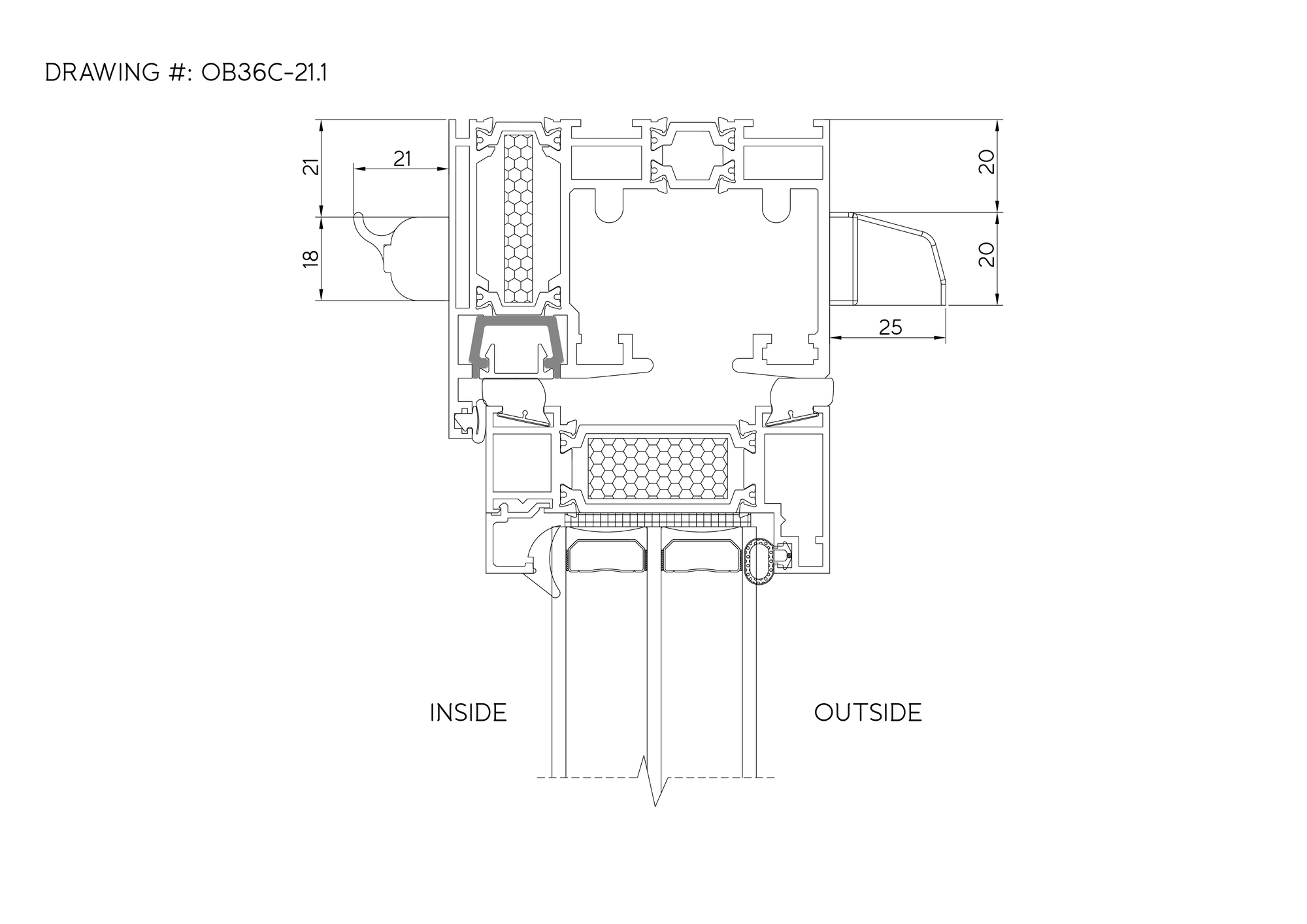

Technical Drawings | Detail 21
20mm Trickle Vent

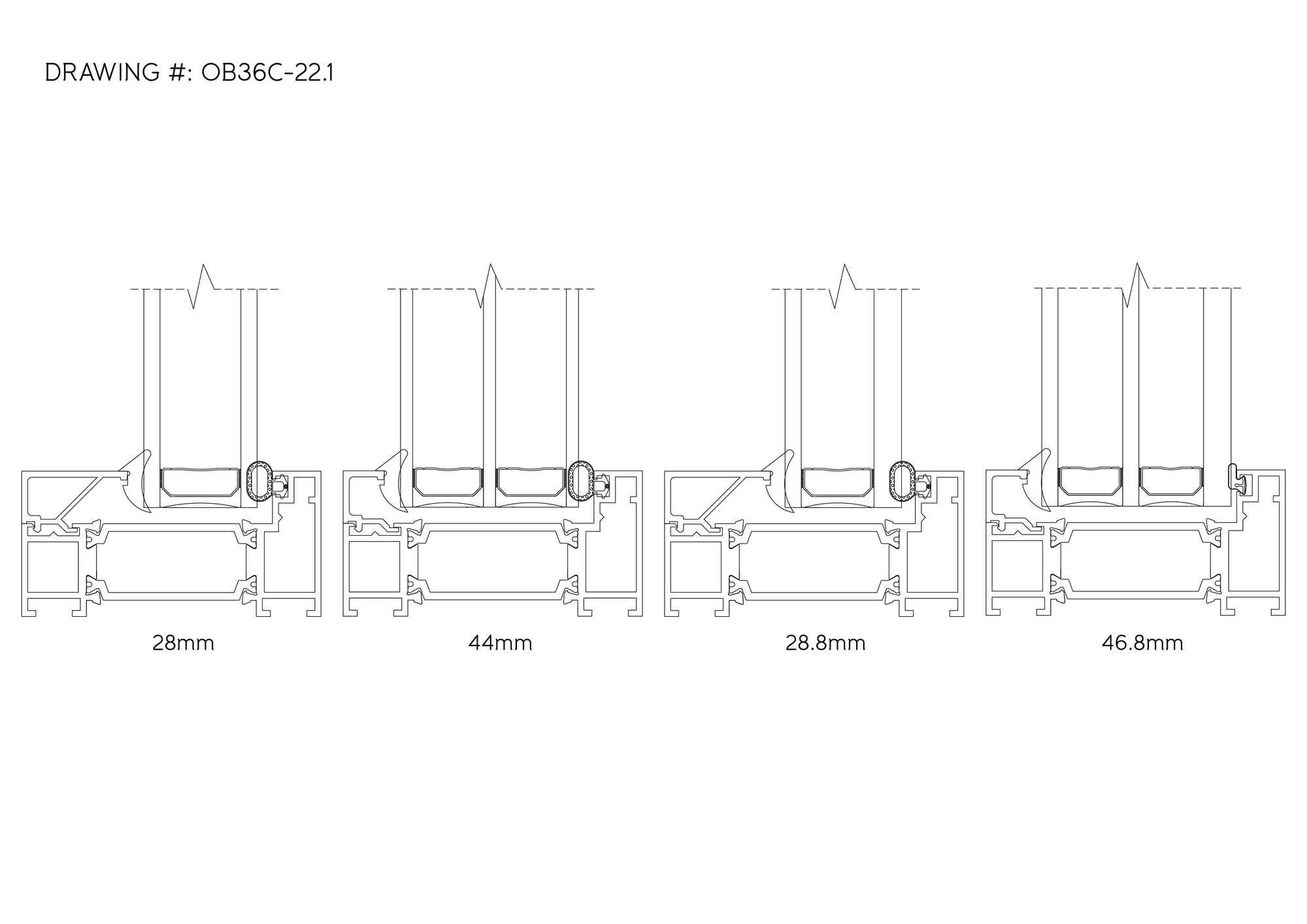

Technical Drawings | Detail 22
Glazing Options

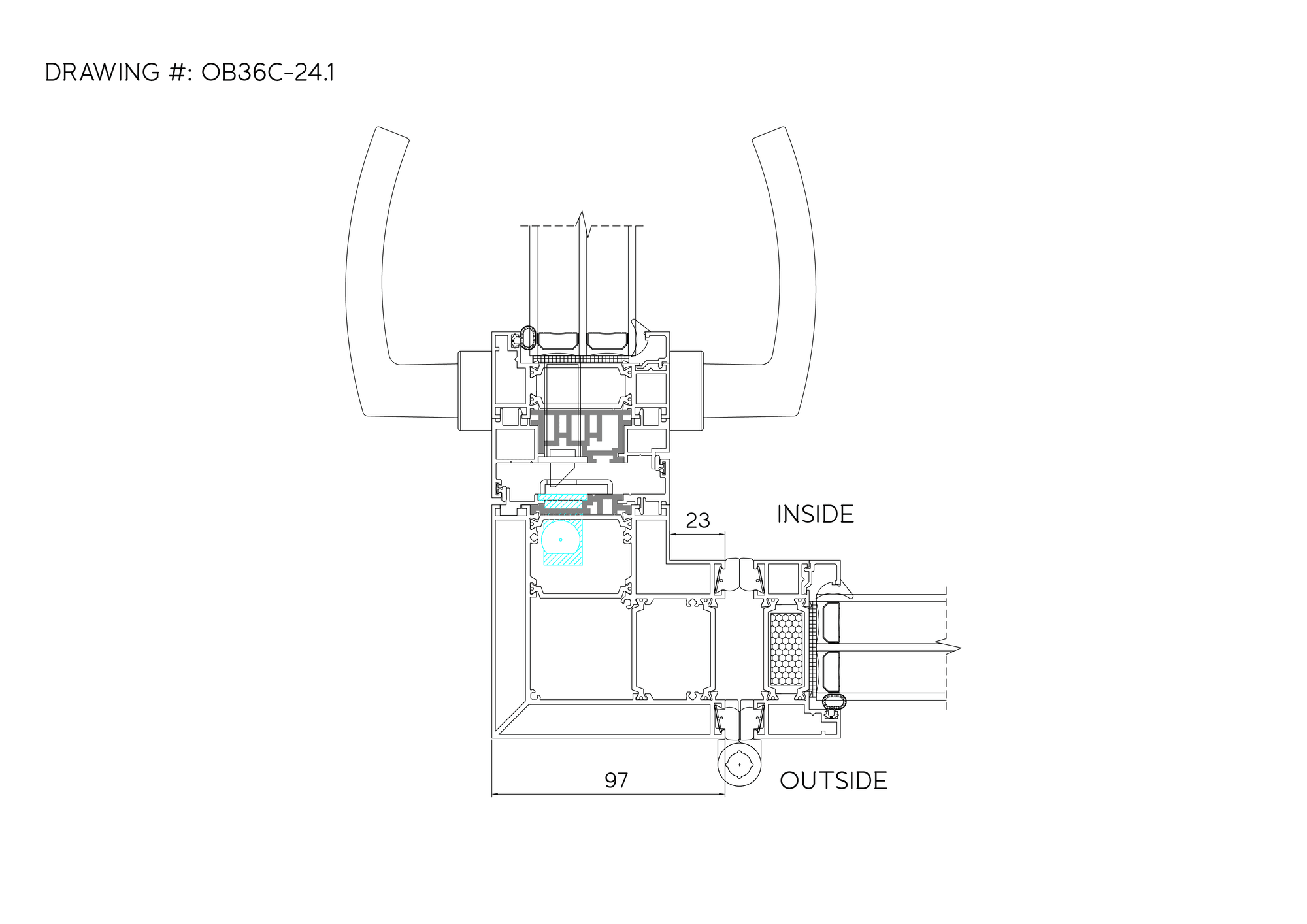

Technical Drawings | Detail 24
90° Moving Corner Post -
COMING SOON

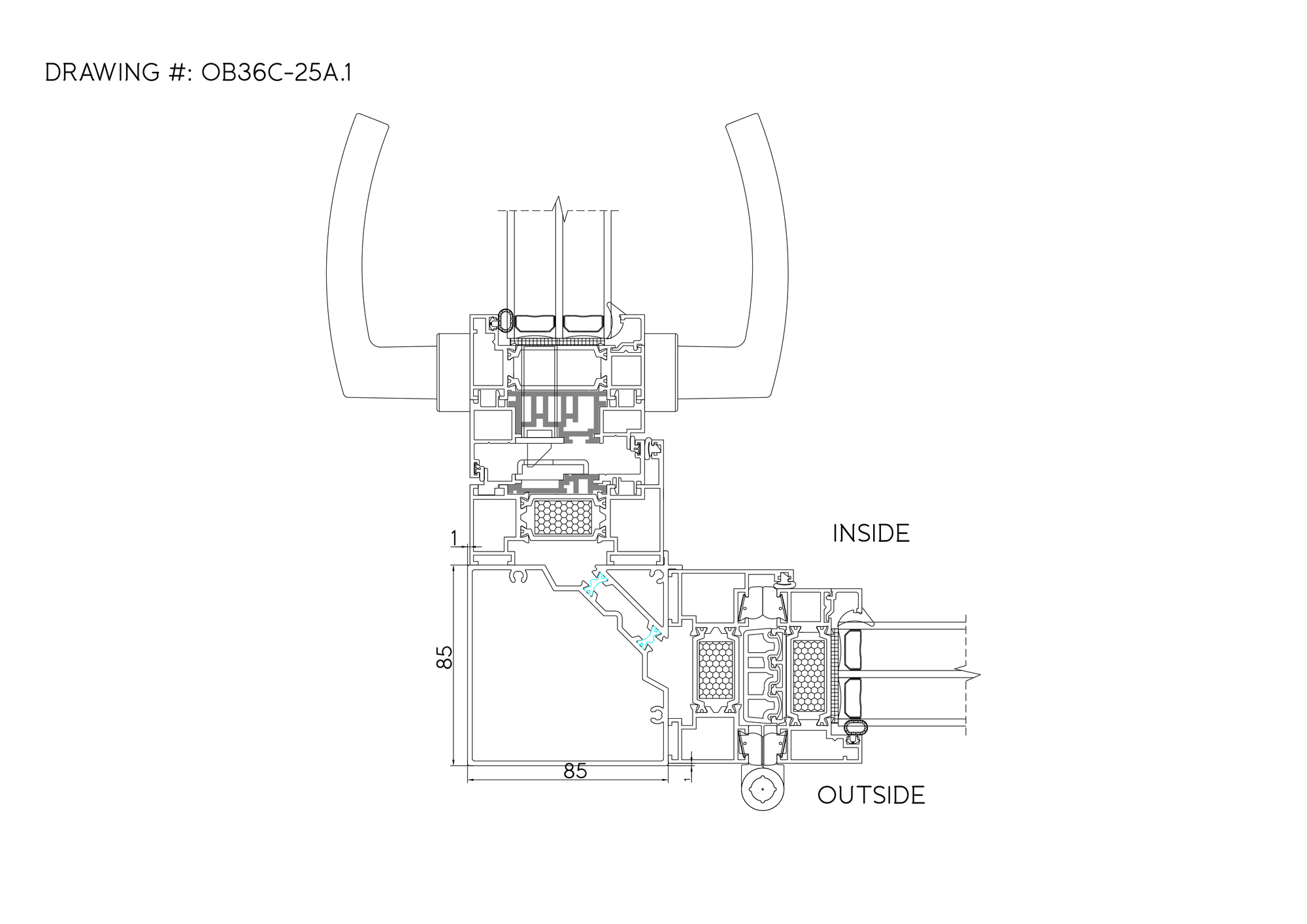

Technical Drawings | Detail 25A
90° Fixed Corner Post -
COMING SOON

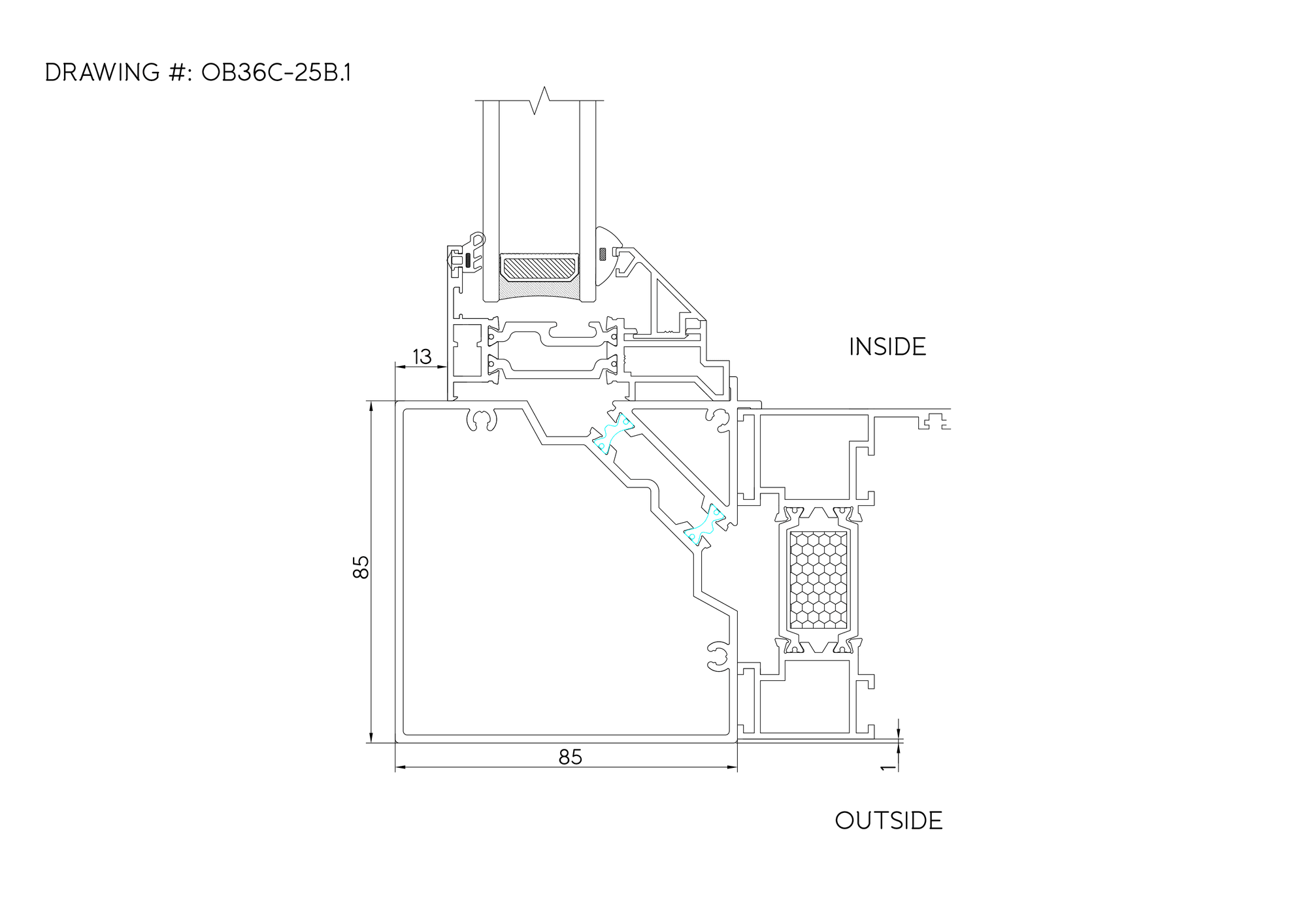

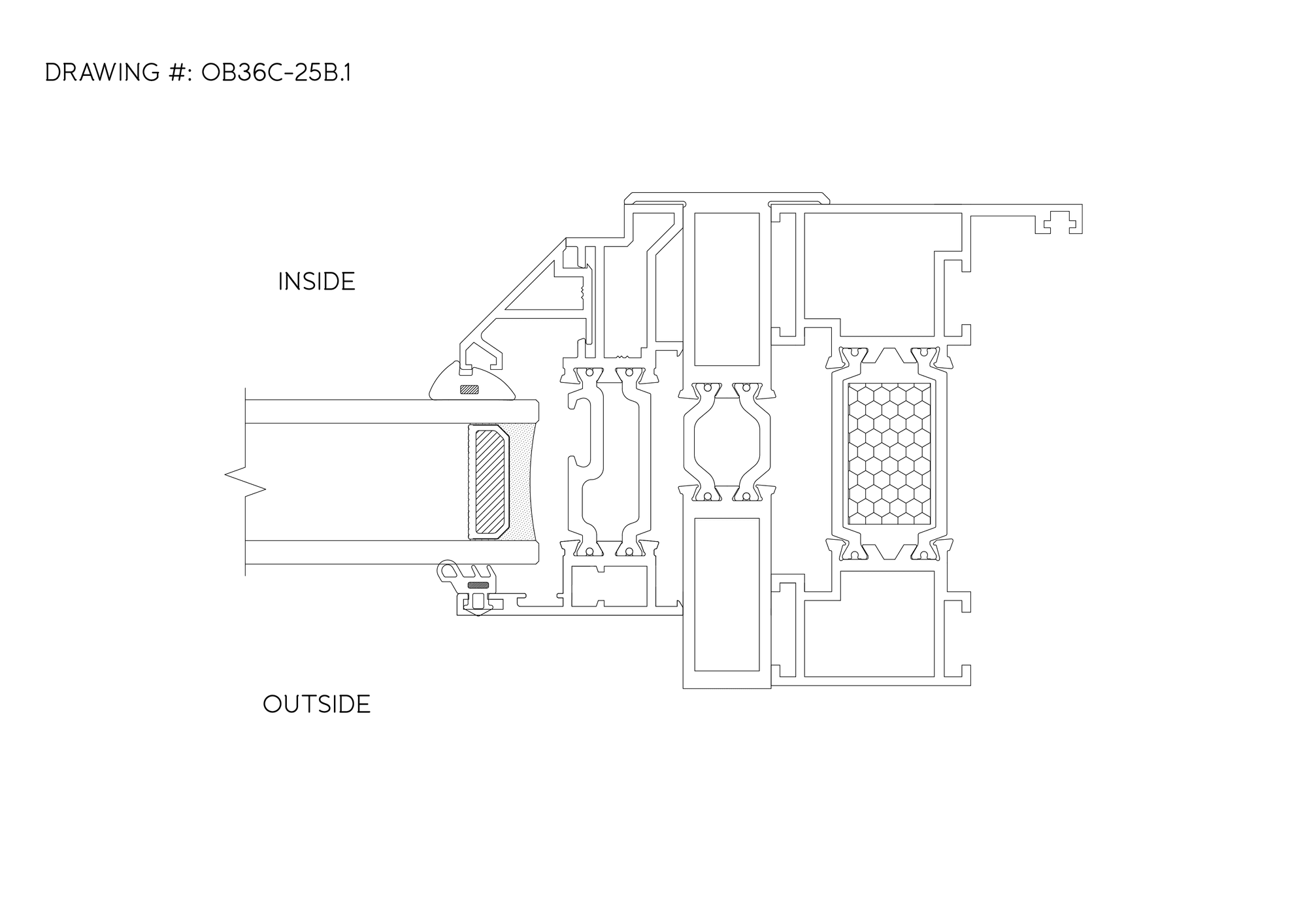

Technical Drawings | Detail 25B
Fixed Corner Post -
COMING SOON
Technical Drawings | Detail 26
Universal Coupler -
COMING SOON
