Door Leaves & False Mullion

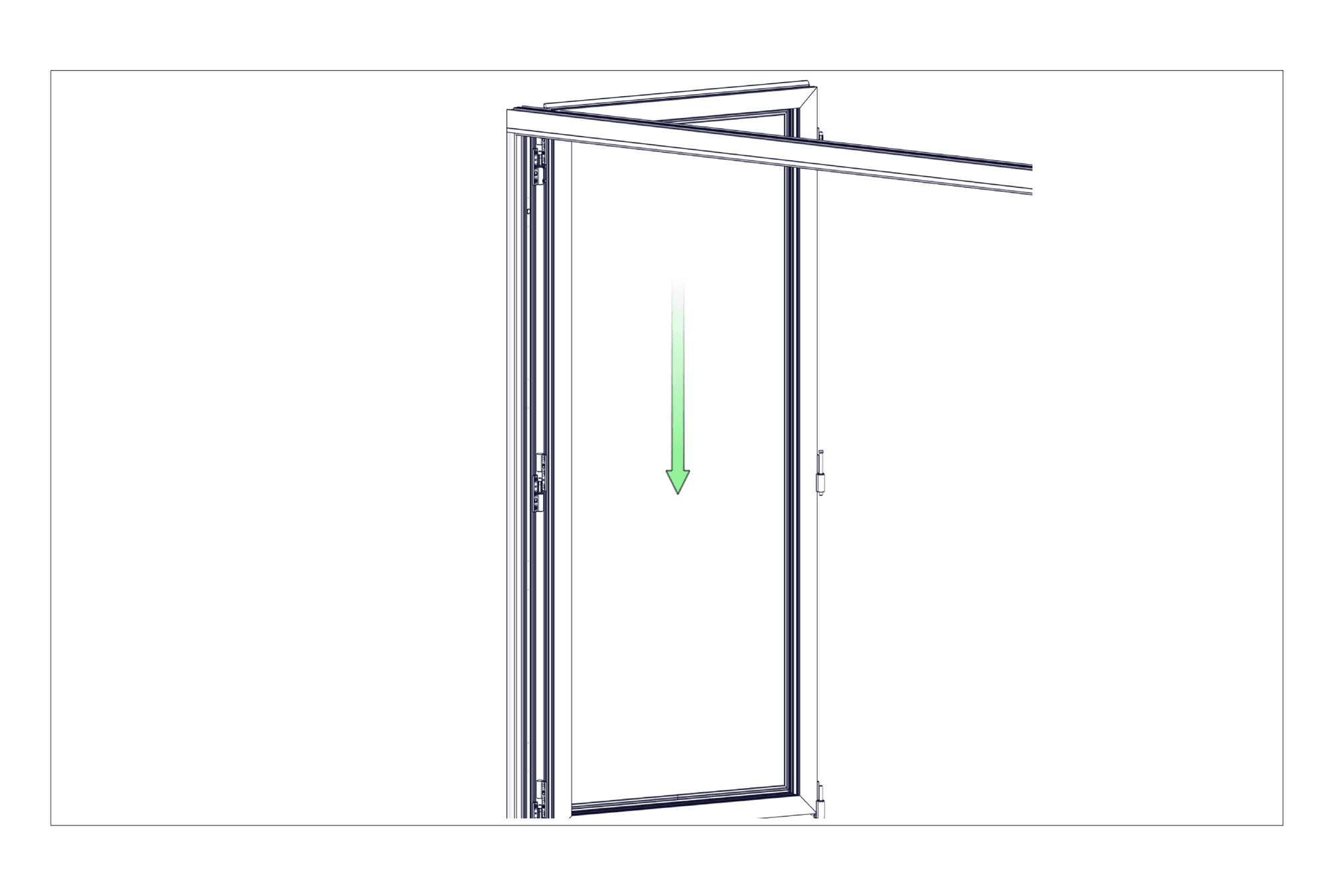

7.1 Hang the first door on the hinge jamb as shown (FIG 7A and FIG 7B) with the label at the top and facing out

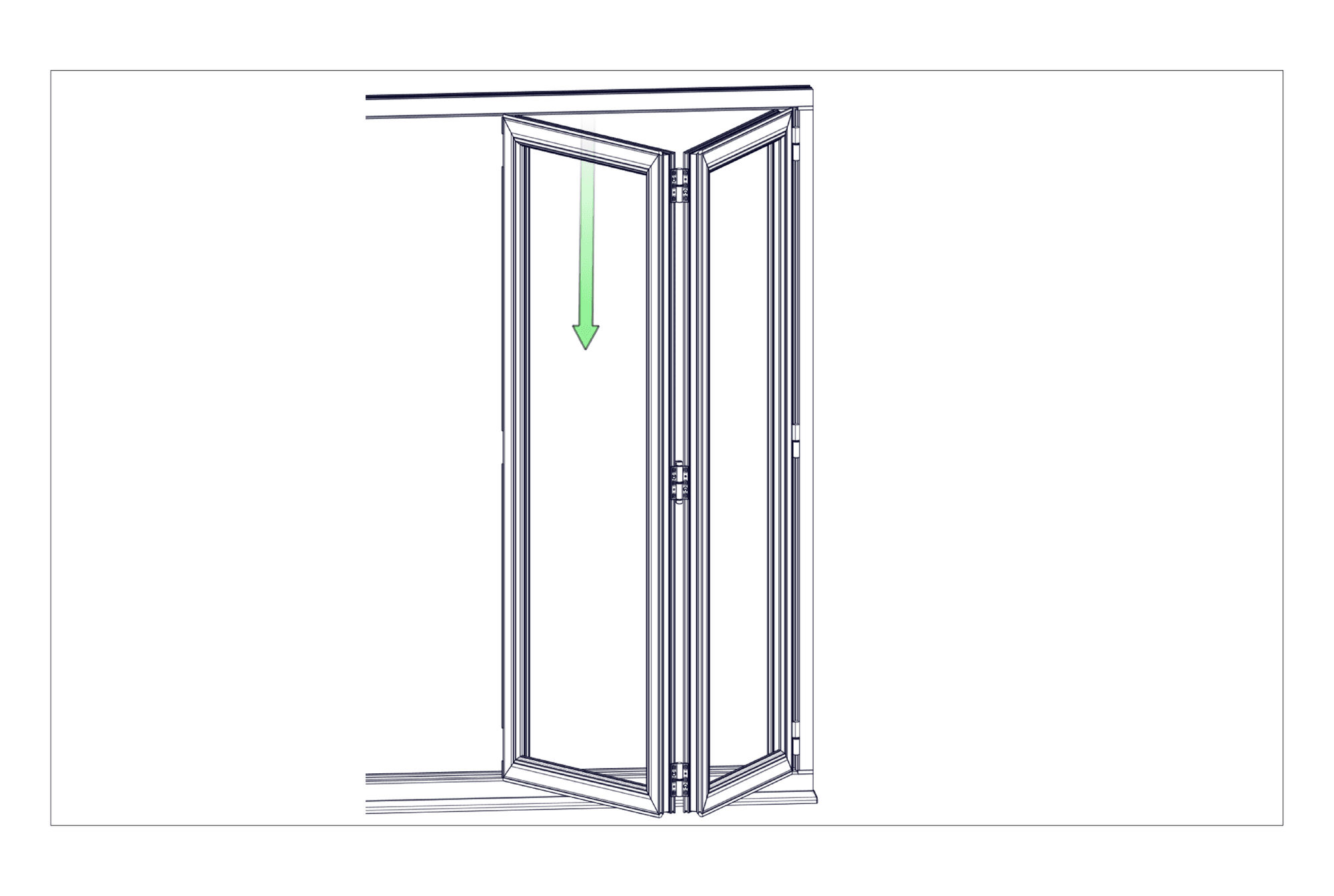

7.2 Hang the second door onto the hinges of the first door, again with the label at the top and facing out as shown (FIG 7C)
NOTE: When closing the master / lead door for the first time, ensure that contact with the locking jamb or stile does not occur (if contact occurs, adjust the doors - see Section 14)
7.4 Close the two doors across the track and lock into place with the slave handle, being careful not to scratch the track as the doors cross it

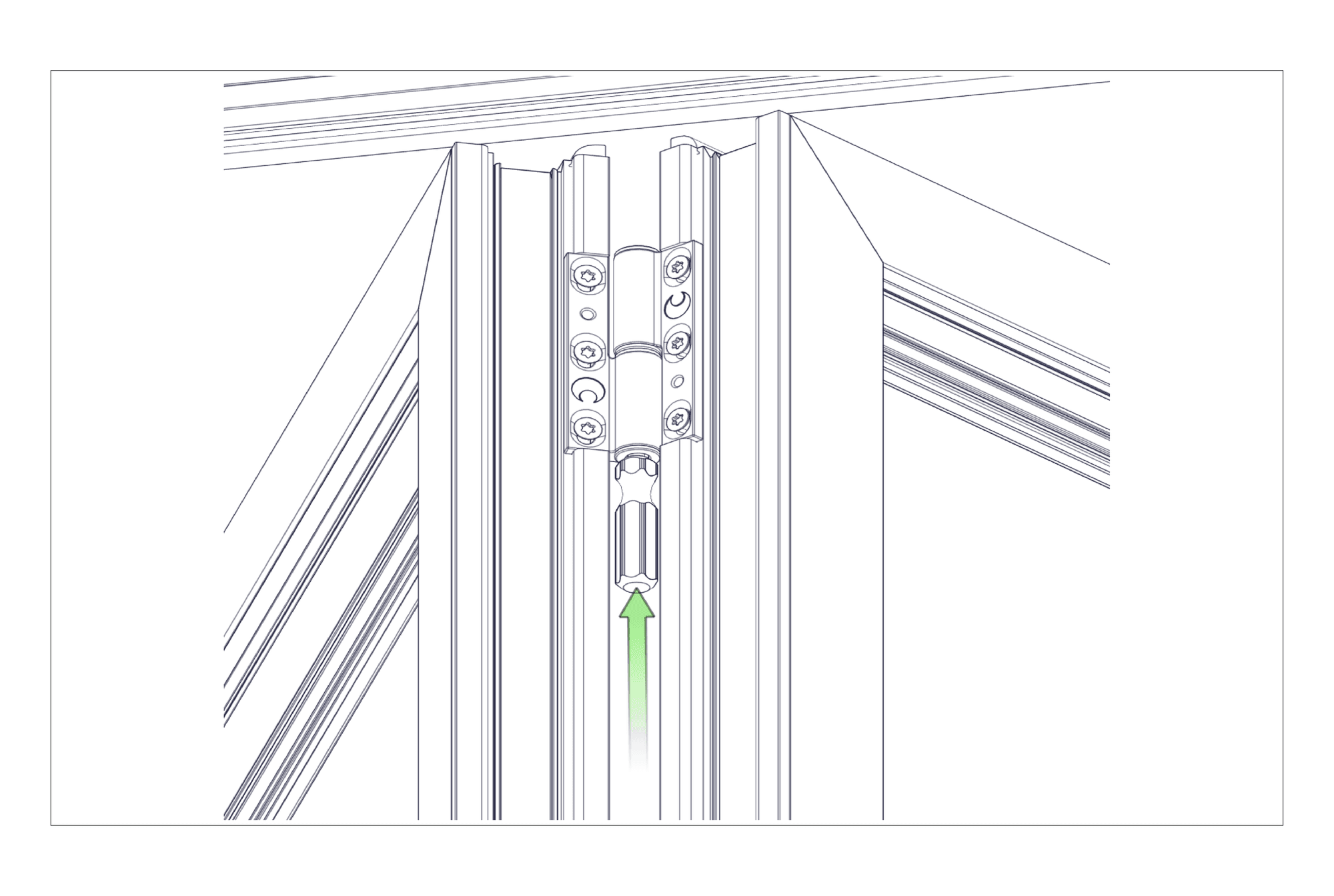

7.5 Hang the third door onto the centre hinge and insert a screwdriver through the top hinge; this will support the door whilst the forks are located as shown (FIG 7D)
7.6 With the third door completely open, locate the bottom fork around the bottom hinge between the second and third doors

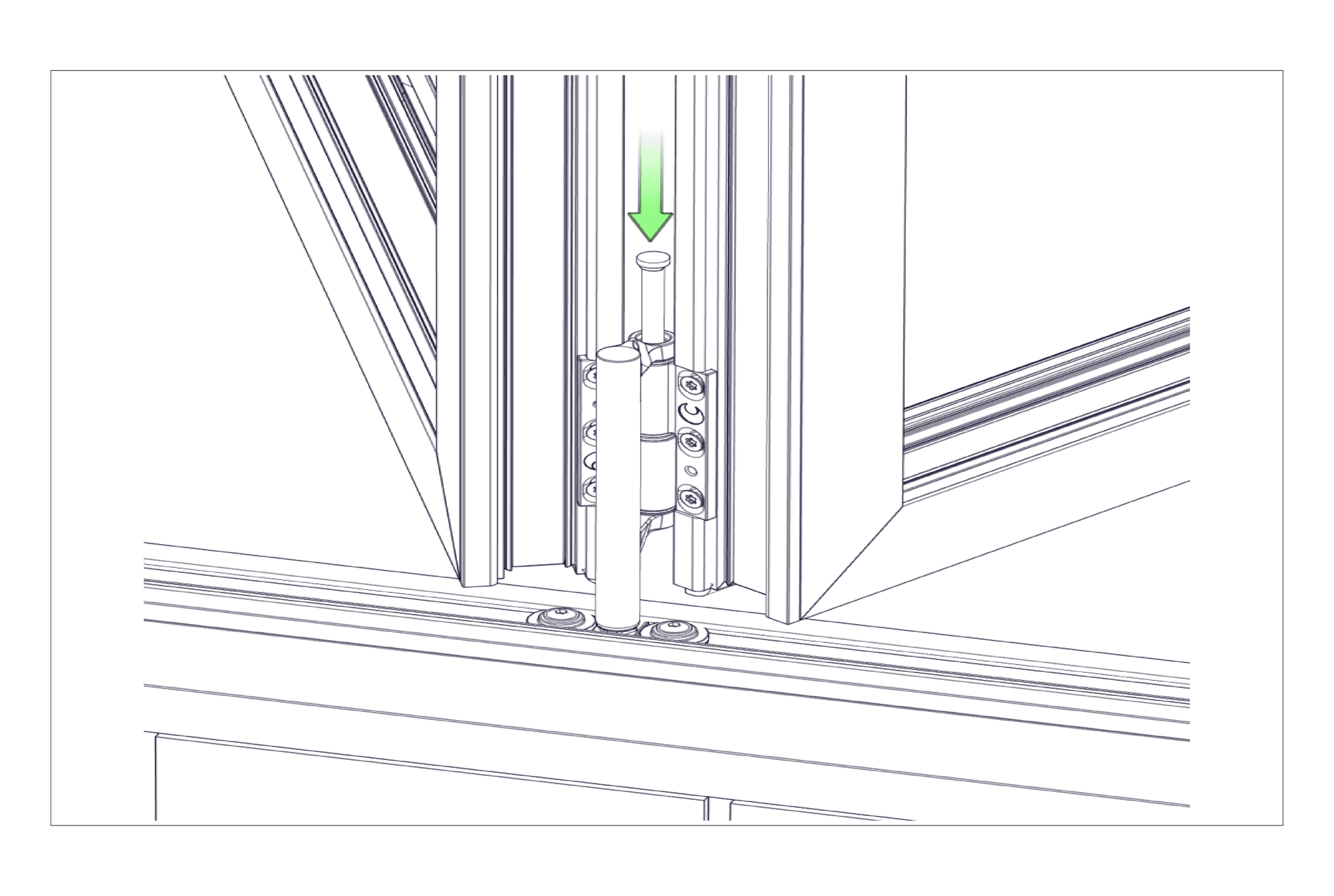

7.7 Remove the screw and insert the fork pin into the bottom fork and hinge using a plastic hammer to gently tap the pin in fully, being careful to align the hinge and fork as the pin goesthrough as shown (FIG 7E)
7.8 Reinstall the screw and tighten using a T30 Torx key
7.9 Remove the screwdriver from the top hinge and locate the top fork around the hinge

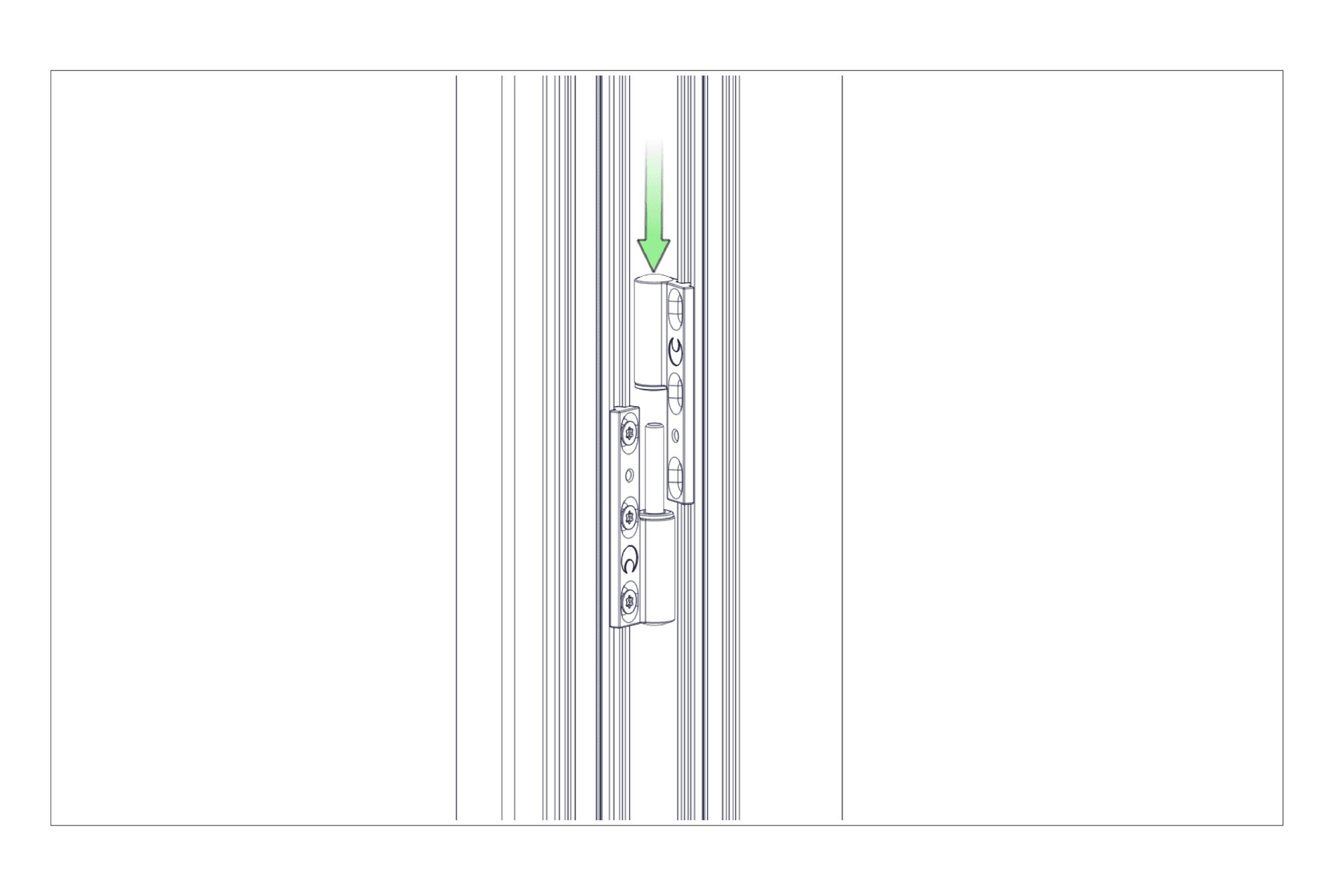

7.10 Insert the second fork pin bolt as described in the points above
7.11. Repeat steps until all door leaves are hung correctly
NOTE: For even number of doors moving in the same direction only
8.1 Remove the centre hinge from the mullion
8.2 With the last door at 90° to the tracks, locate the top and bottom trolleys around the hinges

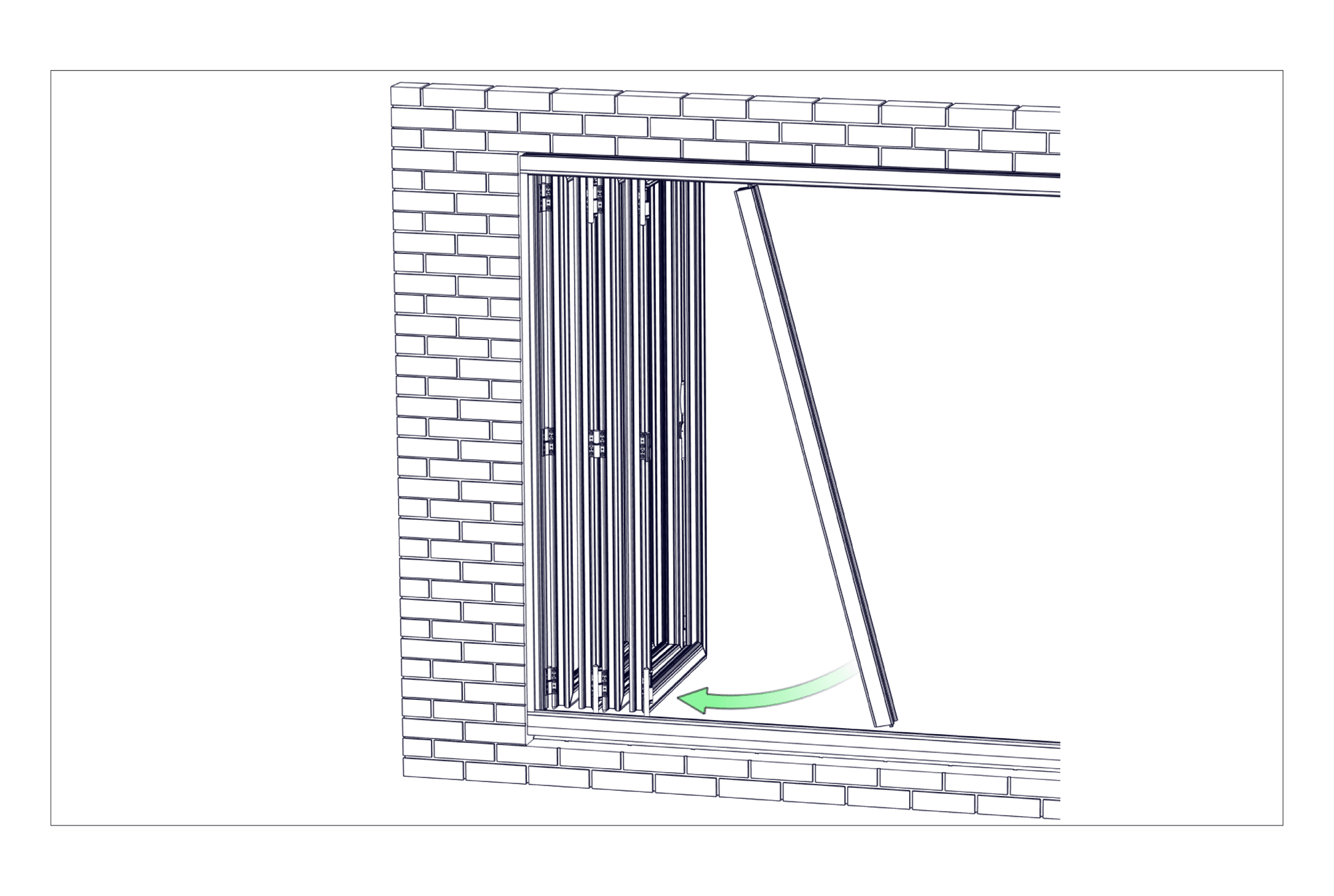

8.3 Position the mullion into the tracks and slide along to mate with the hinges and trolleys as shown in FIG 8A.
8.4 Insert both top and bottom trolley pins as described in the previous section
8.5 Replace the centre hinge and screws being careful not to cross thread the screws
