Handles

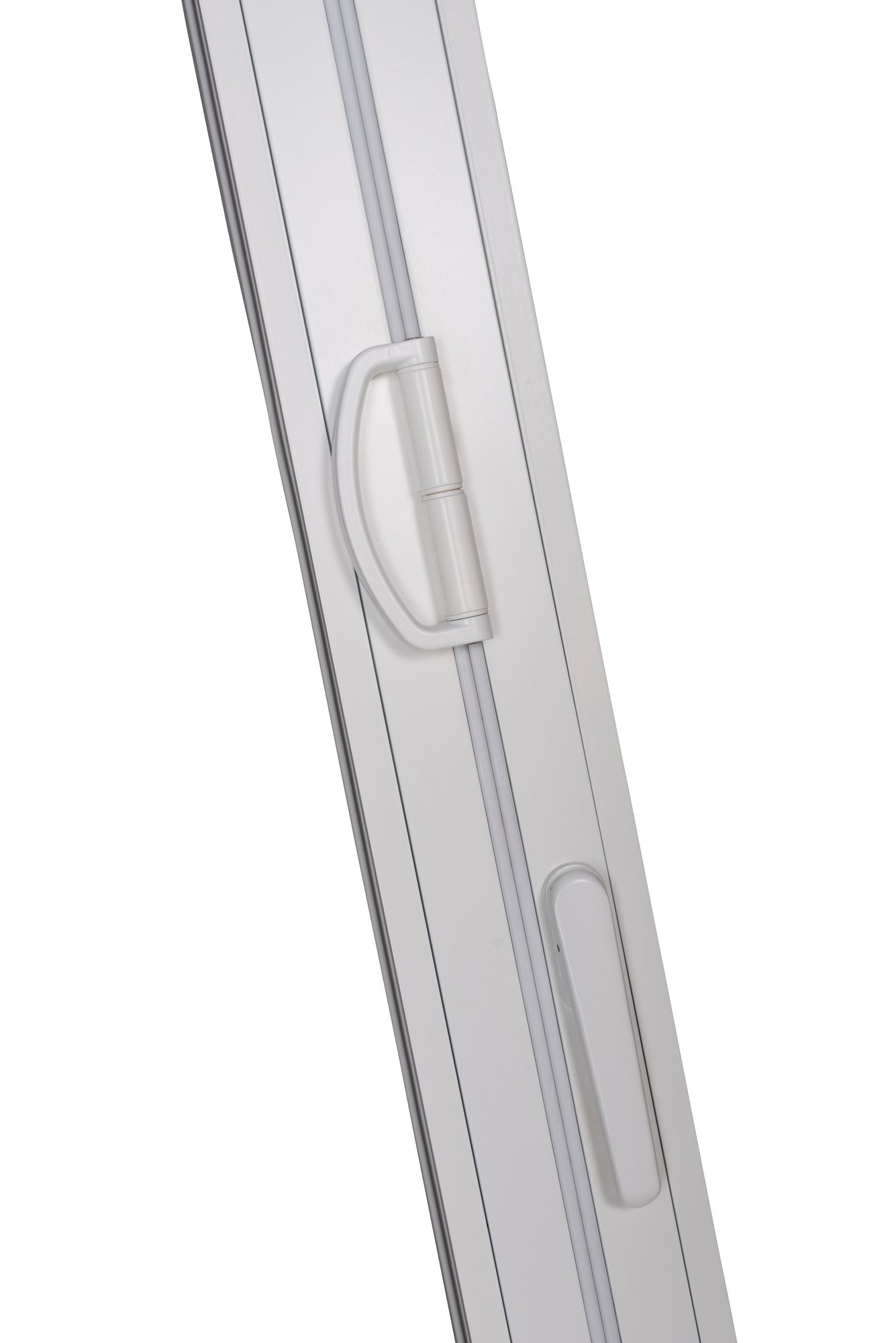

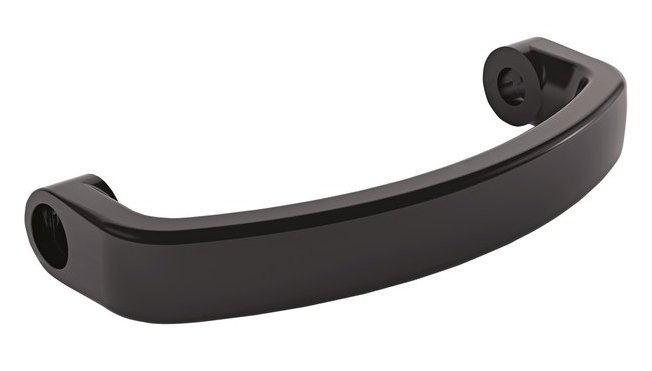

9.1 Position the D-handle over the centre hinge above the slave handle
9.2 Fix the handle top and bottom using the D-handle fixings. These may need a gentle tap to locate the thread

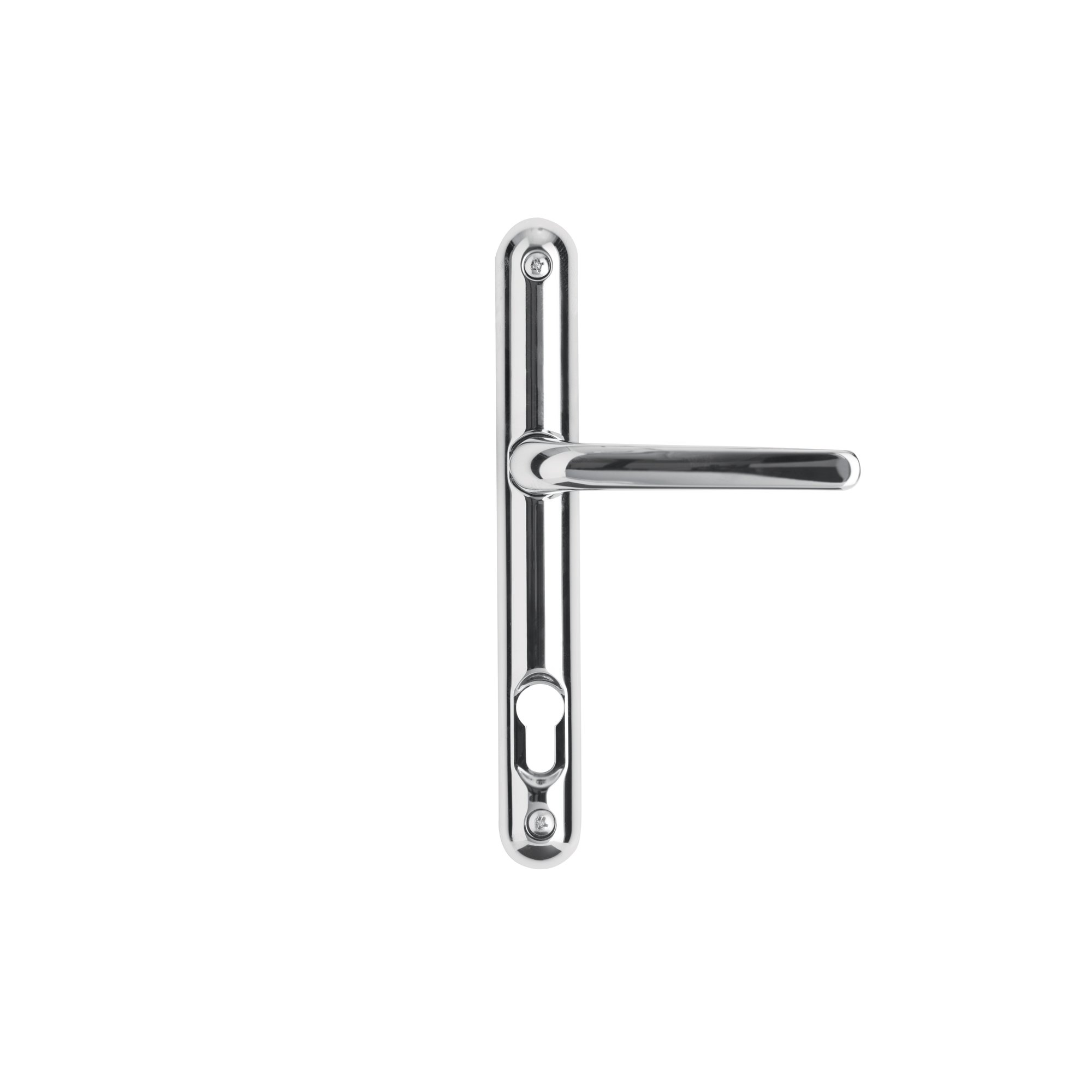

9.3 Remove the screws from the lever handle, allowing the two halves to be separated
9.4 Insert the spindle and a return spring (if supplied) into the outer part of the handle (the outer handle will have the thread for the handle screws)
9.5 Making sure the lever is across the glass, insert the spindle into the lock
9.6 Locate the handle around the barrel and flush against the door
9.7 Install the internal part of the handle and second return spring (if supplied), again with the lever across the glass
9.8 Install the two screws and carefully tighten with a hand screwdriver only
NOTE: Always keep a hand on the external handle to prevent damage. It may be also be necessary to slacken the retaining screw on the barrel to help alignment. Always re tighten.

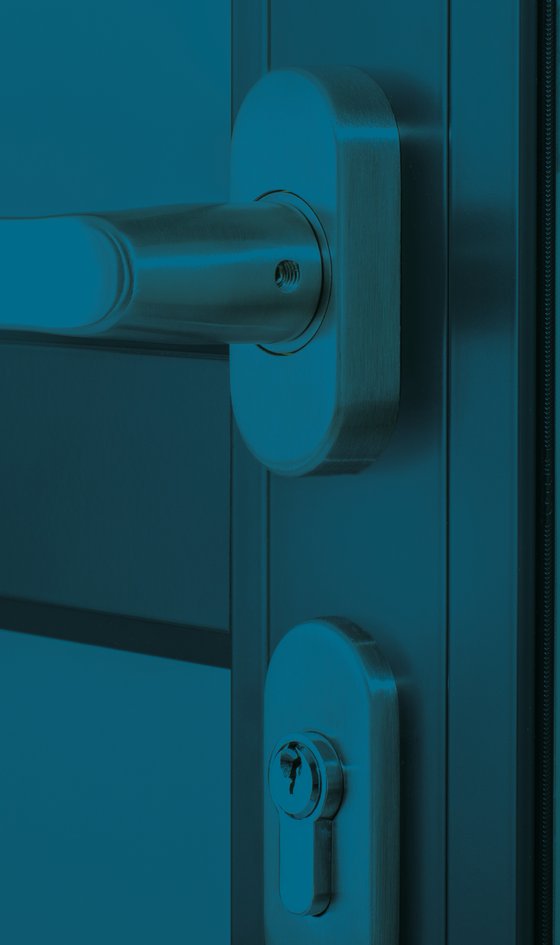

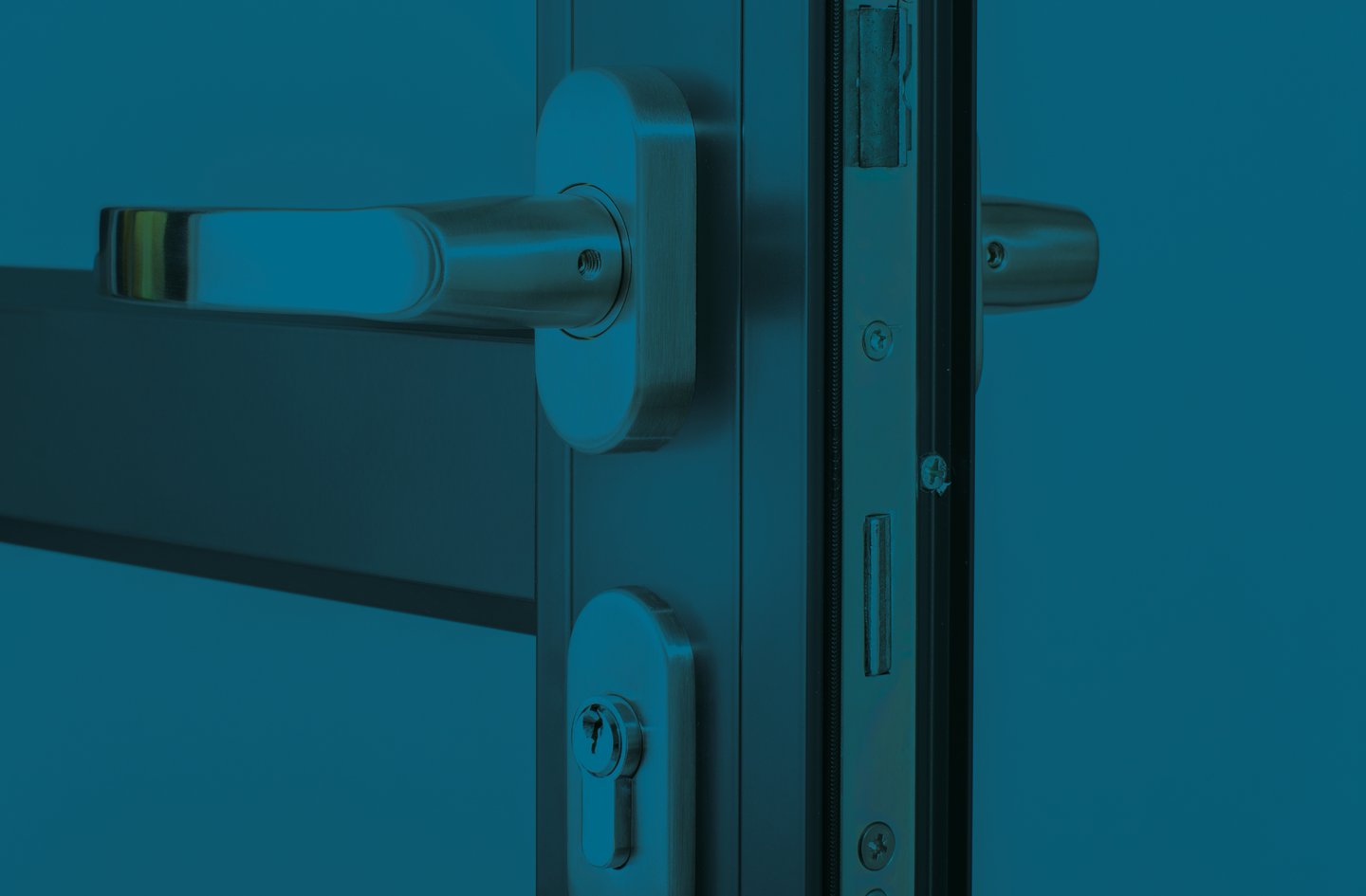

9.9 Locate the handles and 4no. 20mmxM5 screws from the components box
9.10 Remove the escutcheons from both handles
9.11 Insert the spindle into one lever and nip the grub screw using a 3mm Allen key
9.12 Install the handle and spindle into the door with the lever across the glass
9.13 Insert the 20mm x M5 screws and tighten using a Pozi 2 hand screwdriver only, being careful not to cross thread the screws
9.14 Install the remaining lever onto the door and secure in place, as described in the previous step and nip the remaining grub screw
9.15 Install both inner and outer escutcheons with the small cut out pointing down
NOTE: It may be necessary to use a rubber mallet to gently tap the escutcheons fully into position
