Specification Overview
Frame Depth
75mm
Hinge Jamb
45mm
Sash Depth
59mm
Sash Width
49mm
Hingestile Glass-to-Glass Sightline
110mm
Lockstile Glass-to-Glass Sightline
134mm
Mullion Sash and Lockstile Sightline
198mm
Non-Weathered Threshold Height
50mm
Mobility Threshold Height
20mm
Weathered Threshold Height
67mm
Glazing Options
28 and 32mm
The features of the OB49 External Door are really what makes it a design statement, as well as the right choice when it comes to thermal performance.
Modern look with sleek design
Exceptional performance, with U-Values as low as 1.1 W/m2K
Chamfered and square
3-Star Diamond Cylinder with Multipoint lock
Open-in or open-out
Solid zinc hinges
Concealed running gear, featuring a unique freeglide carriage assembly, using acetal rollers with sealed stainless steal bearings on an 8mm hardened stainless steel axle
Colour-coded gasket
Available in over 150 RAL Colours
Marine grade powder coating
Up to a 20-year guarantee on parts*
*Guarantee based on installation location.Visit origin-global.com for Terms and Conditions.
OB49 is available in the following popular colours, along with Hipca White - 9910G/M, and in over 150 special RAL colours. All colours are available with a Marine finish as an optional extra.
Slate Grey - 7015M
Anthracite - 7016M
Black Grey - 7021M
Jet Black - 9005M
Dark Metallic - 9007M
Dual - 9910G (in) 7016M (out)
Popular colours:
1-working day
Special colours
20-working days
Visit origin-global.com for up-to-date lead times.
The OB49 External Door has an extensive selection of flexible design options to fully customise any living space.
Configure as a Bi-folding, Single, French and Moving Corner Posts at 90º and 135º
Double and triple-glazing
Midrail glazing and glazing bars
All Cills (inc. Face Drainage and Concealed Drainage)
Door-to-Window T-Coupler
Keyed Alike
Fixing straps
Stainless-steel or colour-coded running gear
Hinges in stainless steel finish or colour-coded
Door-to-window coupling available
Trickle vents available in either 2500EA, 4000EA or 5000EA
Door restrictors
Flat trim
35mm Frame extender
Weather bar (available on open-in Single and French)
Premium Stainless Steel
Colour-coded
Stainless Steel

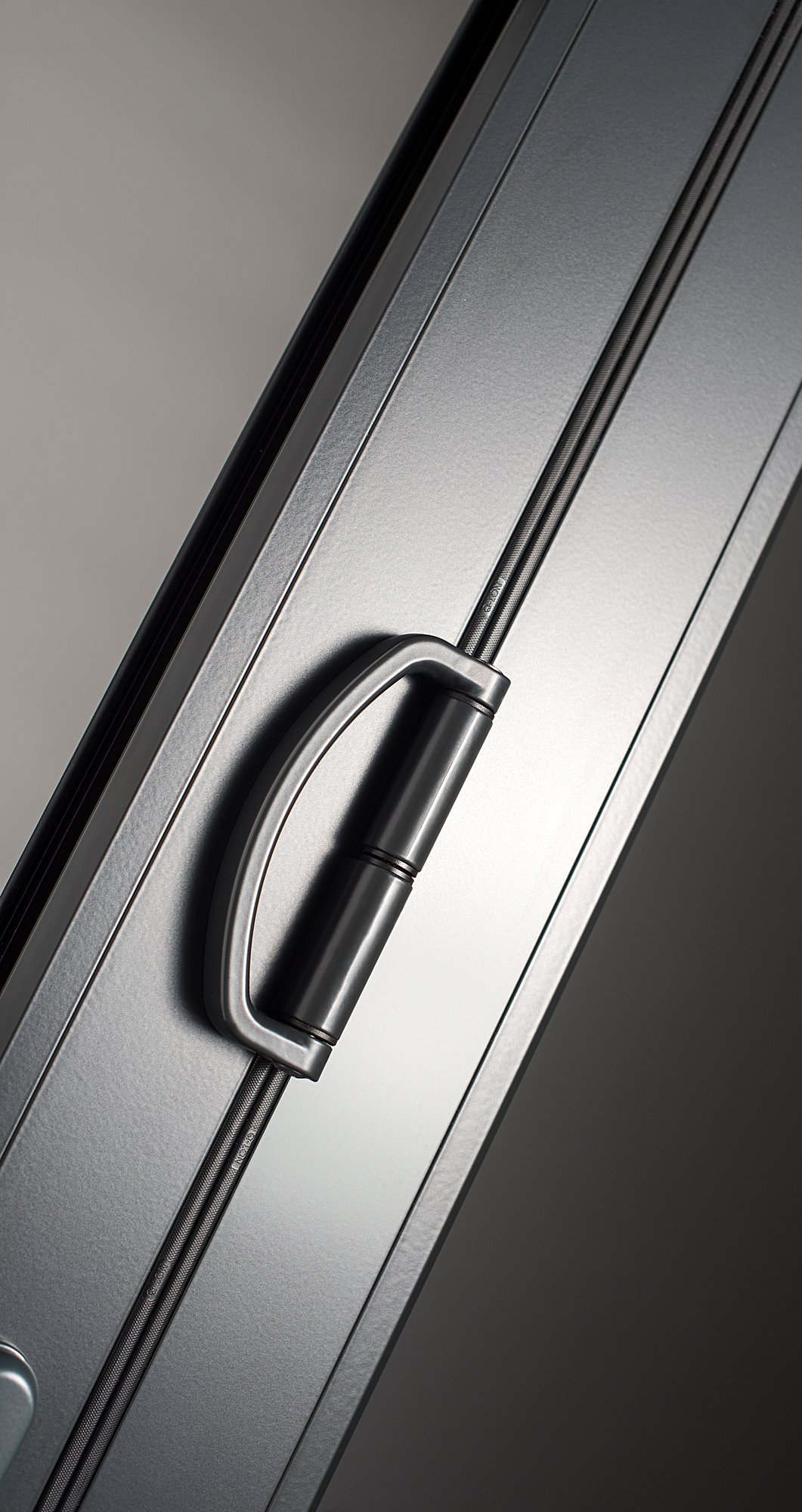

D-Handle
Stainless steel finish
Slave Handle
*These are popular handles. Please see OSS for additional options, including thumbturn.
Fork
Door Restrictors
90º
135º
Magnetic Keeps
Trickle Vents
Anthracite
Black
White
Flat Trim
25mm
31mm
Stepped Door to Window Trim
Concealed Drainage*
155mm
180mm
Frame Extender
35mm
Weather bar (non-bi-folding configurations only)
*Only available with a cill
Double
1.2
28
4 / 20 / 4
20
Planitherm Total +
1.5
6 / 16 / 6
30
1.1
Planitherm ONE
1.4
1.0
Triple
0.9
32
4 / 10 / 4 / 10 / 4
2 x Total +
1.3
0.8
2 x ONE
0.6
Jamb Render Margin (Open In / Open Out)
40mm / 25mm
25mm / 40mm
Non-Weathered (Open In / Open Out)
47mm / 47mm
Top Tracker Render Margin (Open In / Open Out)
47mm / 60mm
60mm / 47mm
Trickle Vent Plaster Margin (Open In / Open Out)
14mm / 18mm
18mm / 14mm
Trickle Vent in Add-On Render Margin (Open In / Open Out)
17mm / 17mm
15mm / 15mm
Trickle Vent Render Margin (Open In / Open Out)
12mm / 18mm
18mm / 12mm
Weathered (Open In / Open Out)
62mm / 47mm
47mm / 62mm
*For all bi-folding configurations excluding cills
Min. Sash Height (with Multi-Point Lock)
400mm (960mm)
Max. Sash Height (with Multi-Point Lock)
2,846mm (2,924mm)
Min. Sash Width
325mm
Max. Sash Width
1,200mm
Max. No. Sashes
12
Max Set Width (with track connectors)
6,000mm (27,600mm)
Min Set Height
524mm
Max Set Height
3,000mm

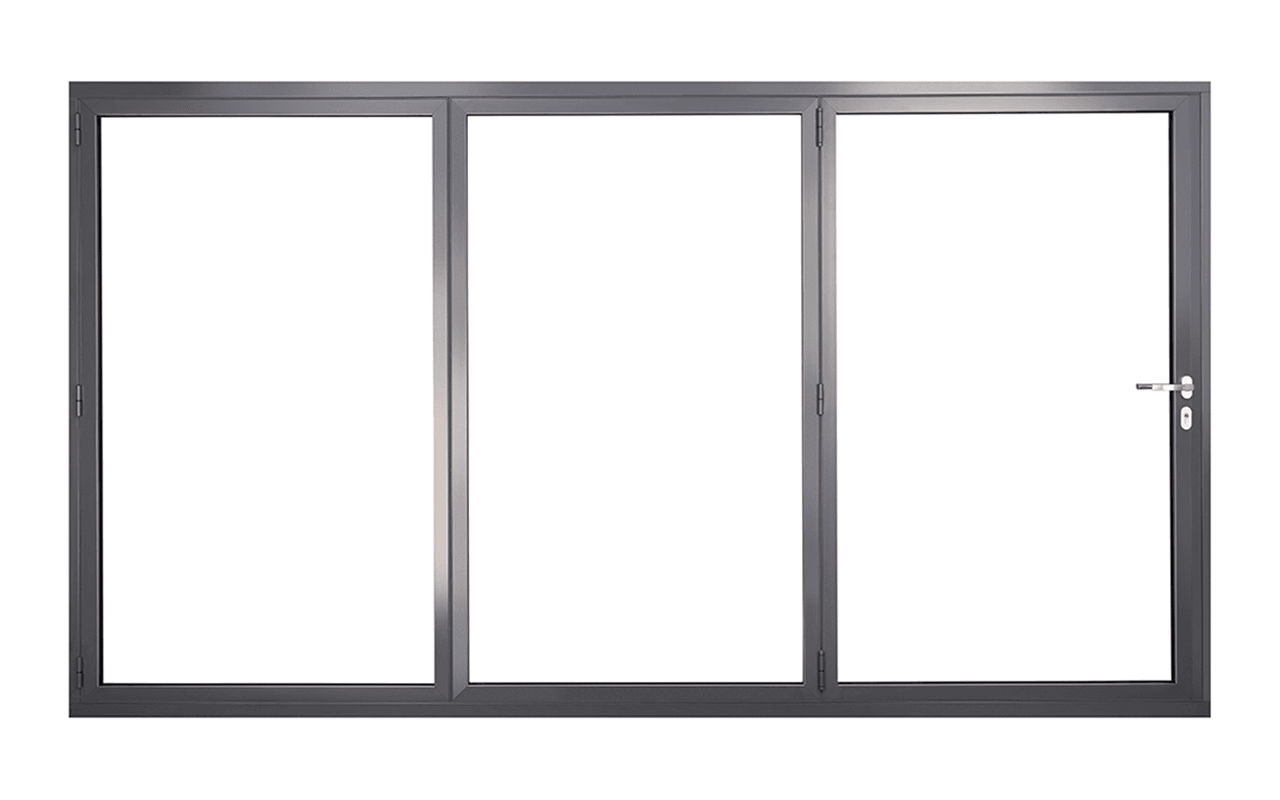

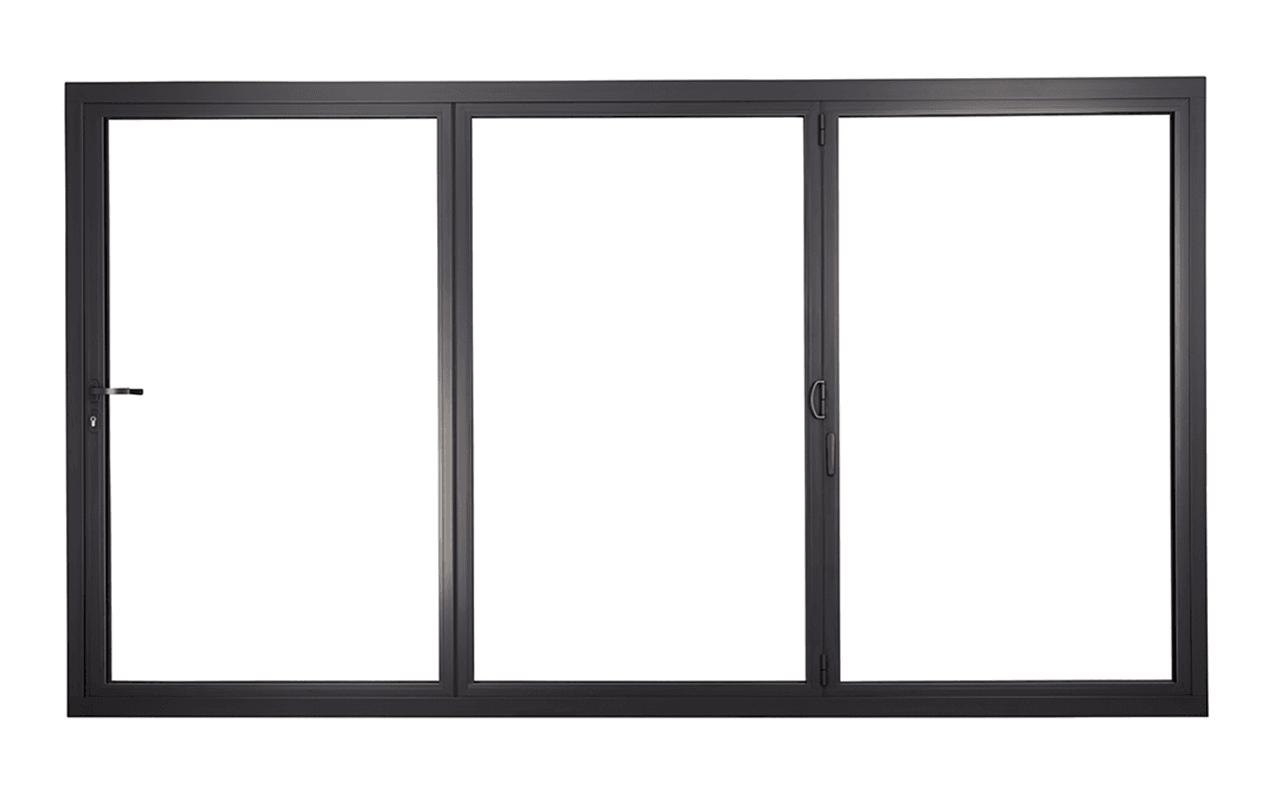

OB49 is available in the following popular and special configurations.
1+FL
1+1+FL
1+FL+FL
3+FL
1+1+FL+FL
3+FL+FL
FL+1+1+FL+FL
