Technical Drawings...
Download the drawings
here

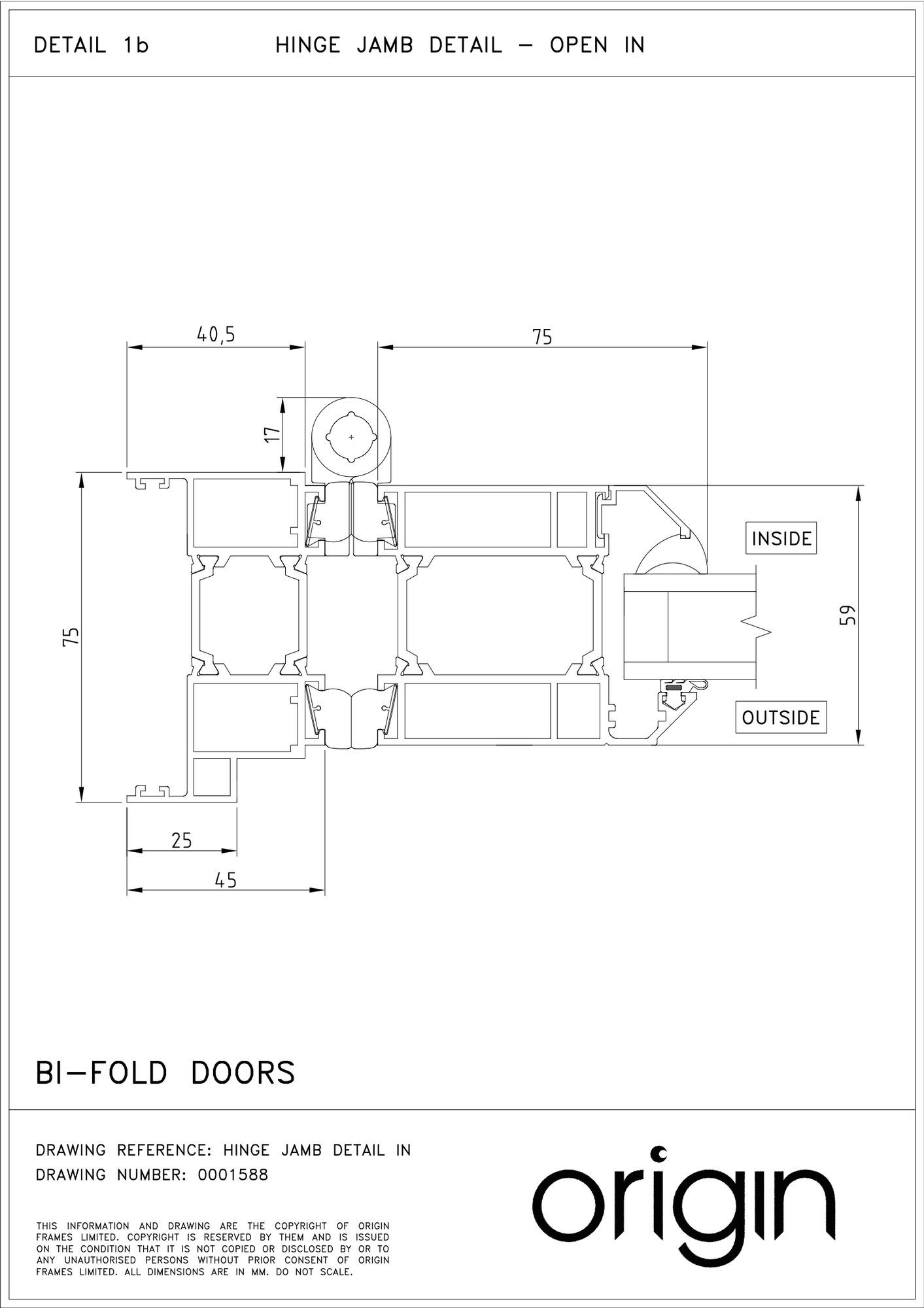

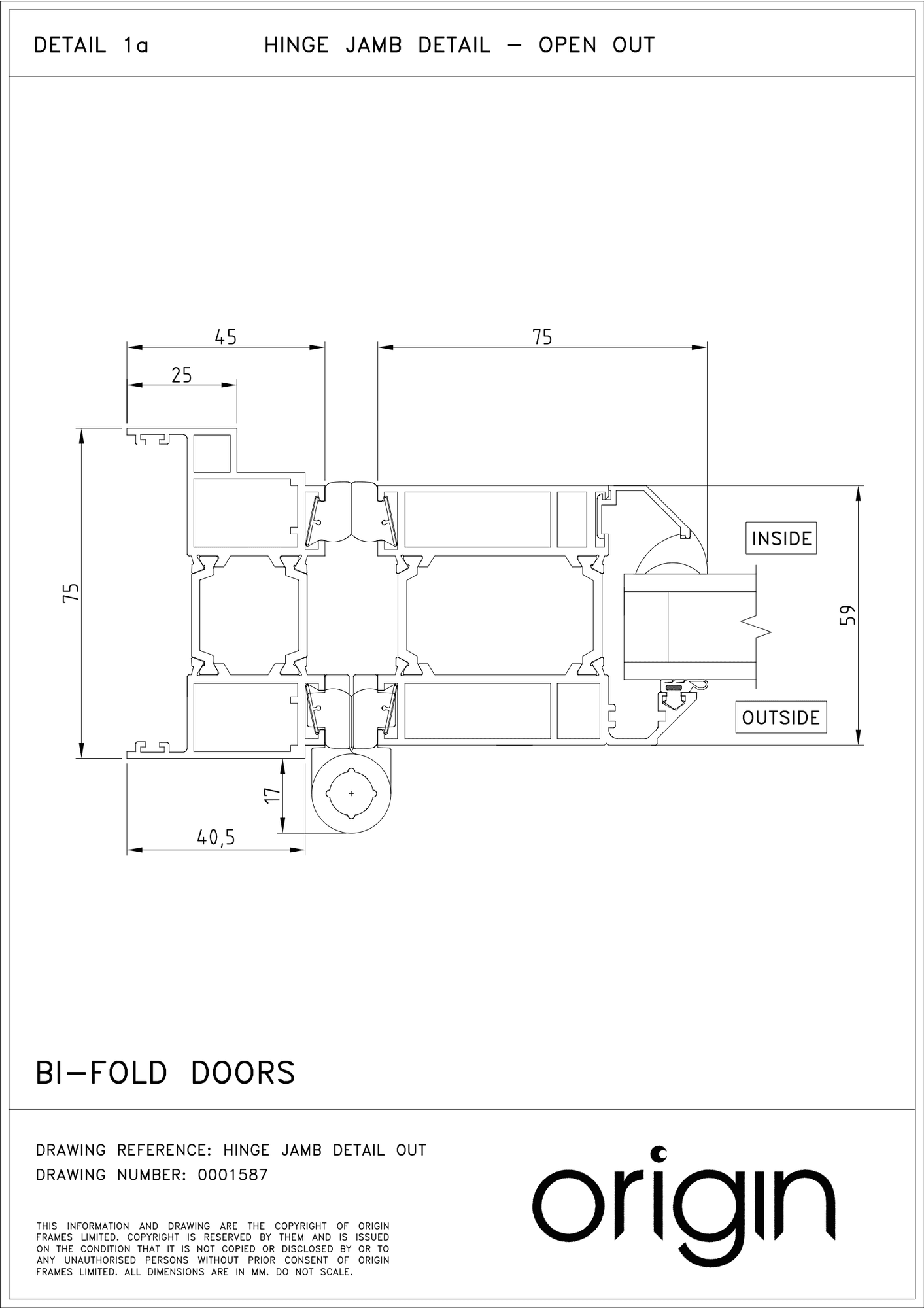

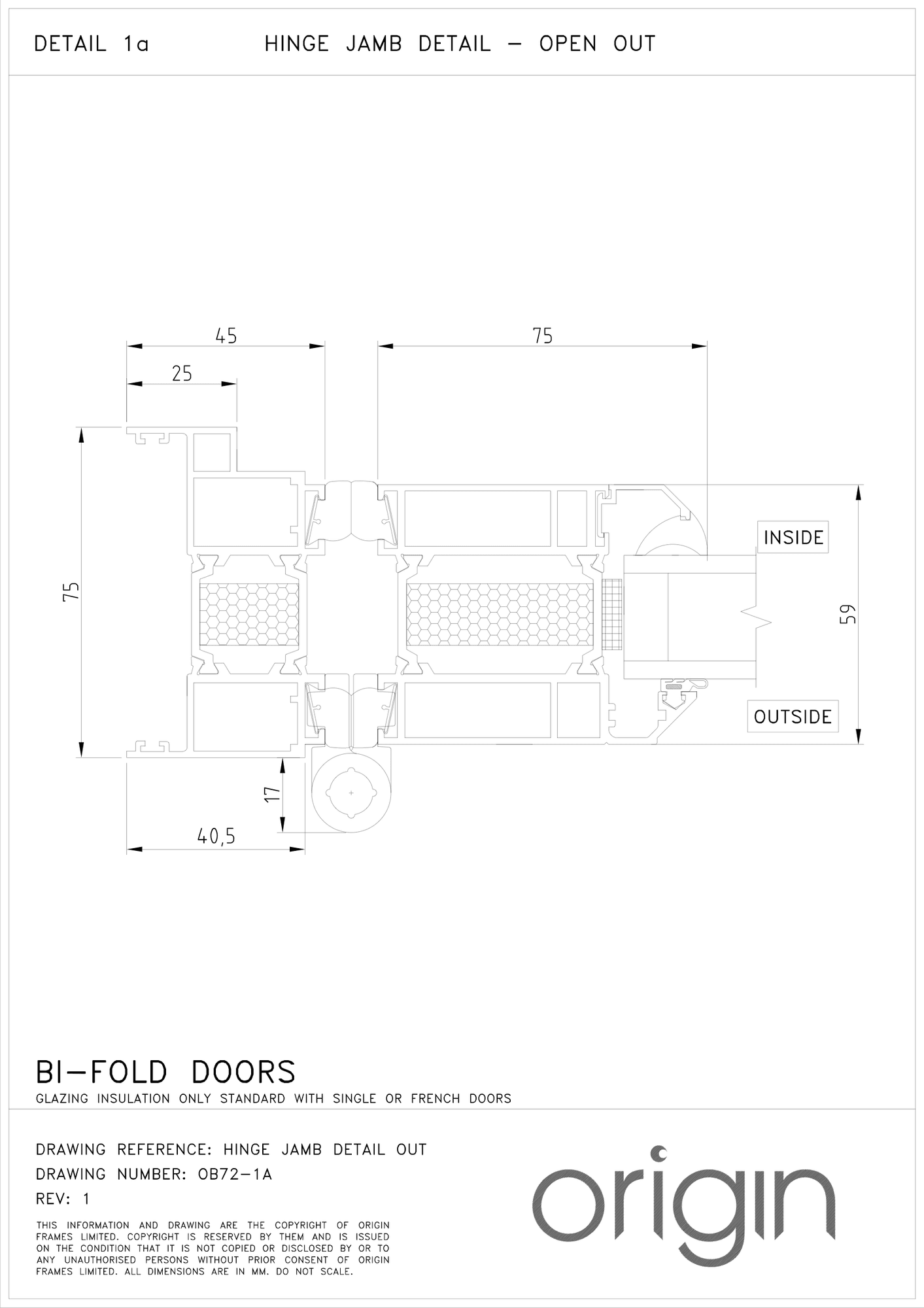

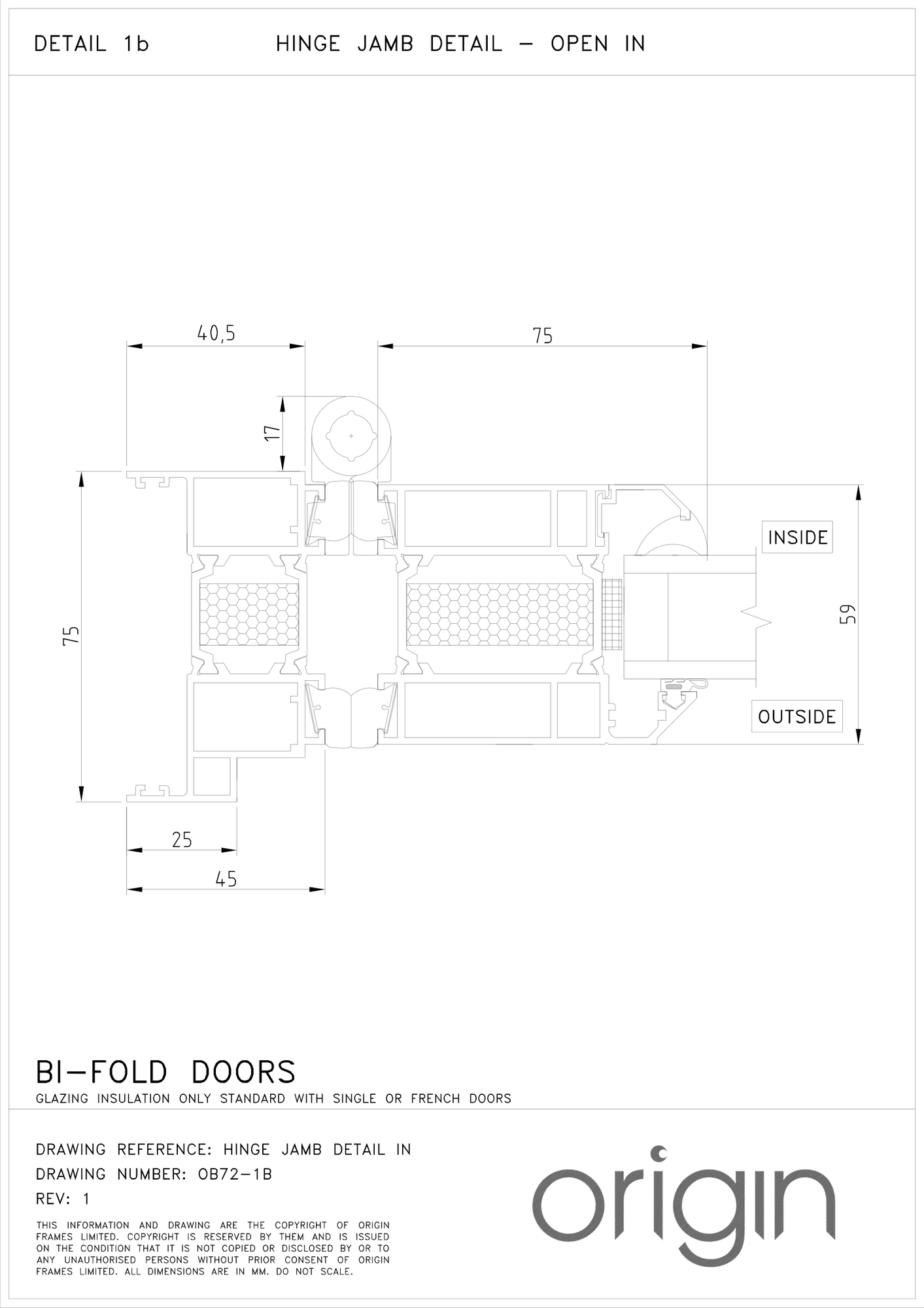

Technical Drawings | Detail 1A & 1B
Hinge Jamb

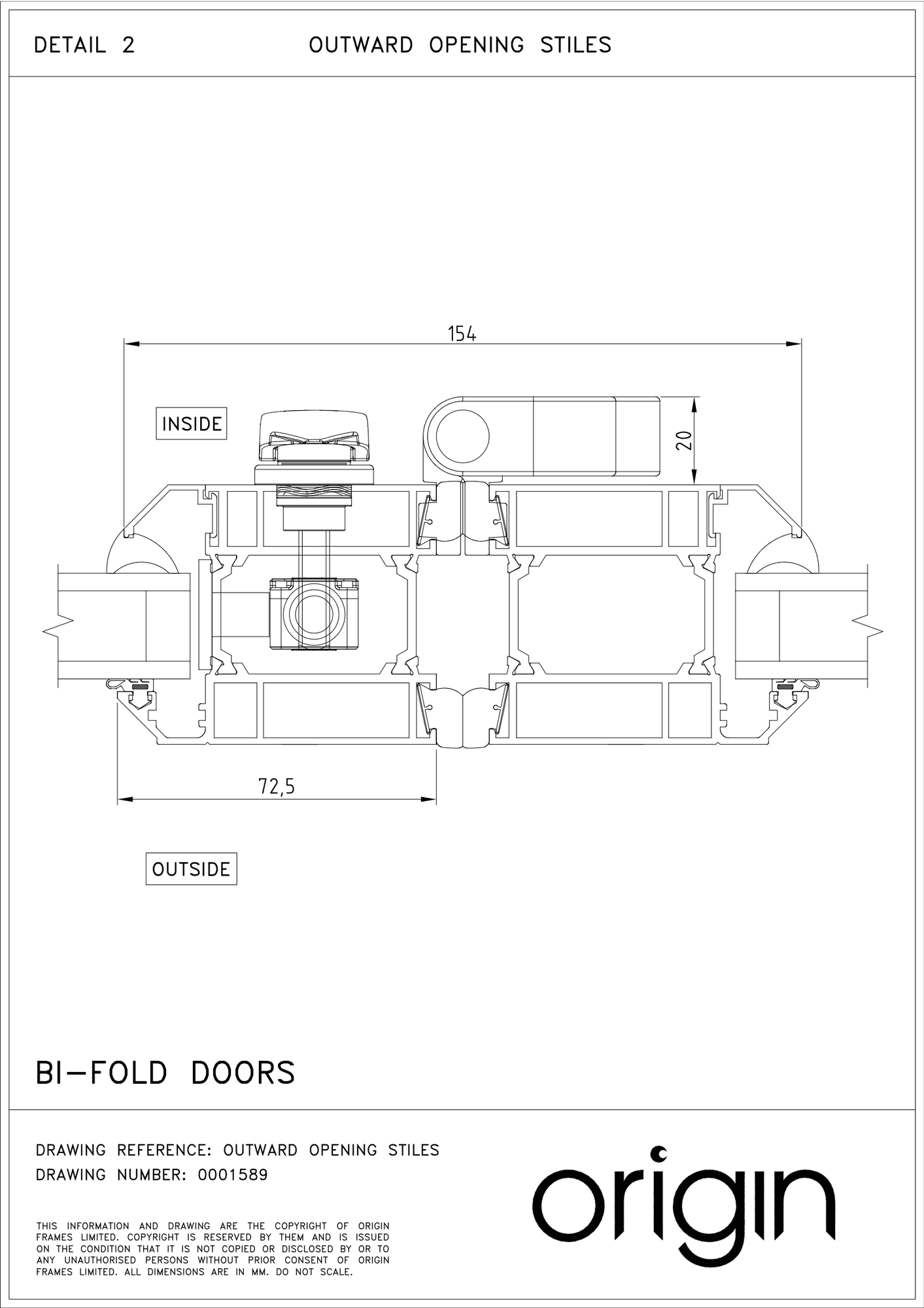

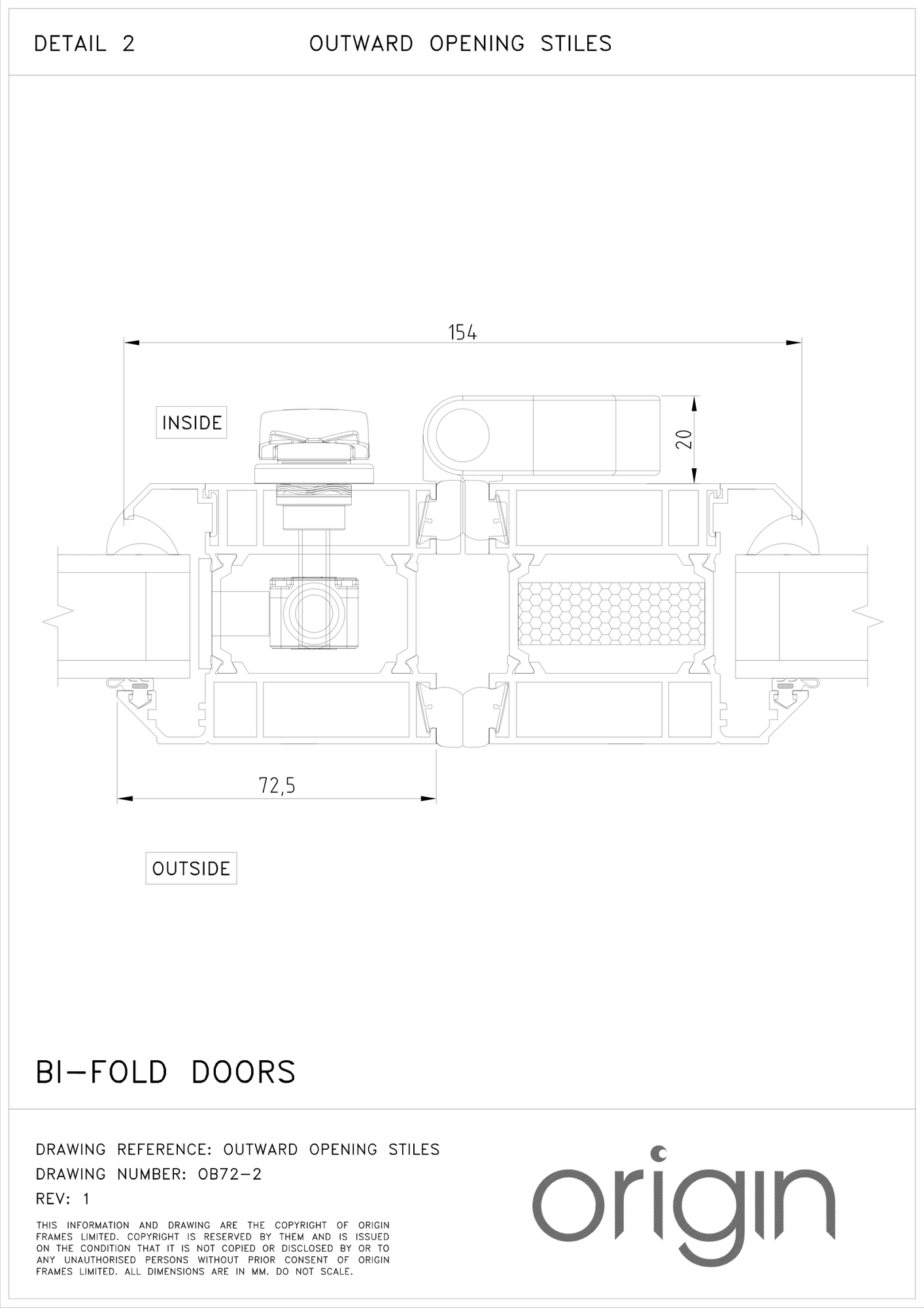

Technical Drawings | Detail 2
Outward Opening Stiles

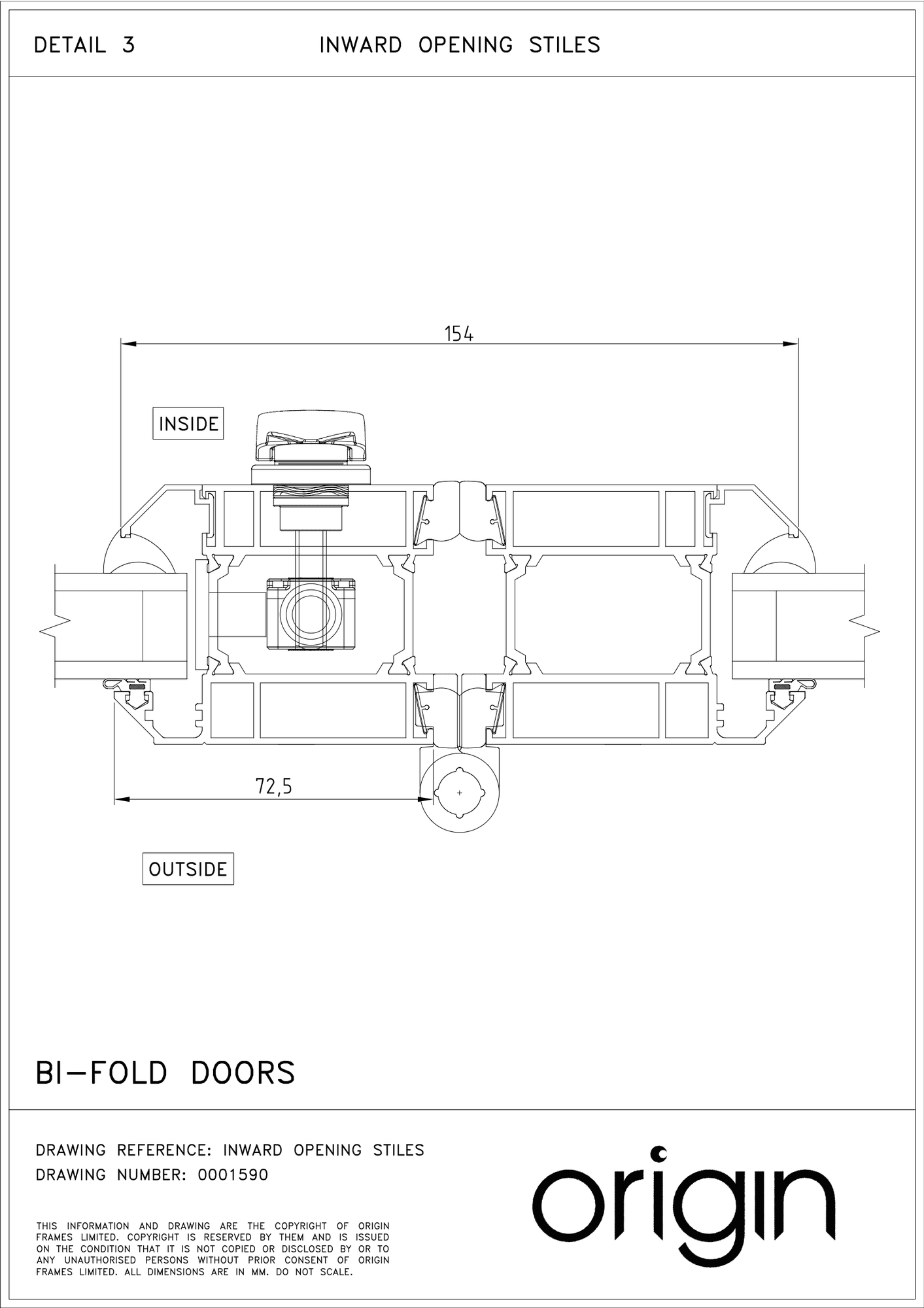

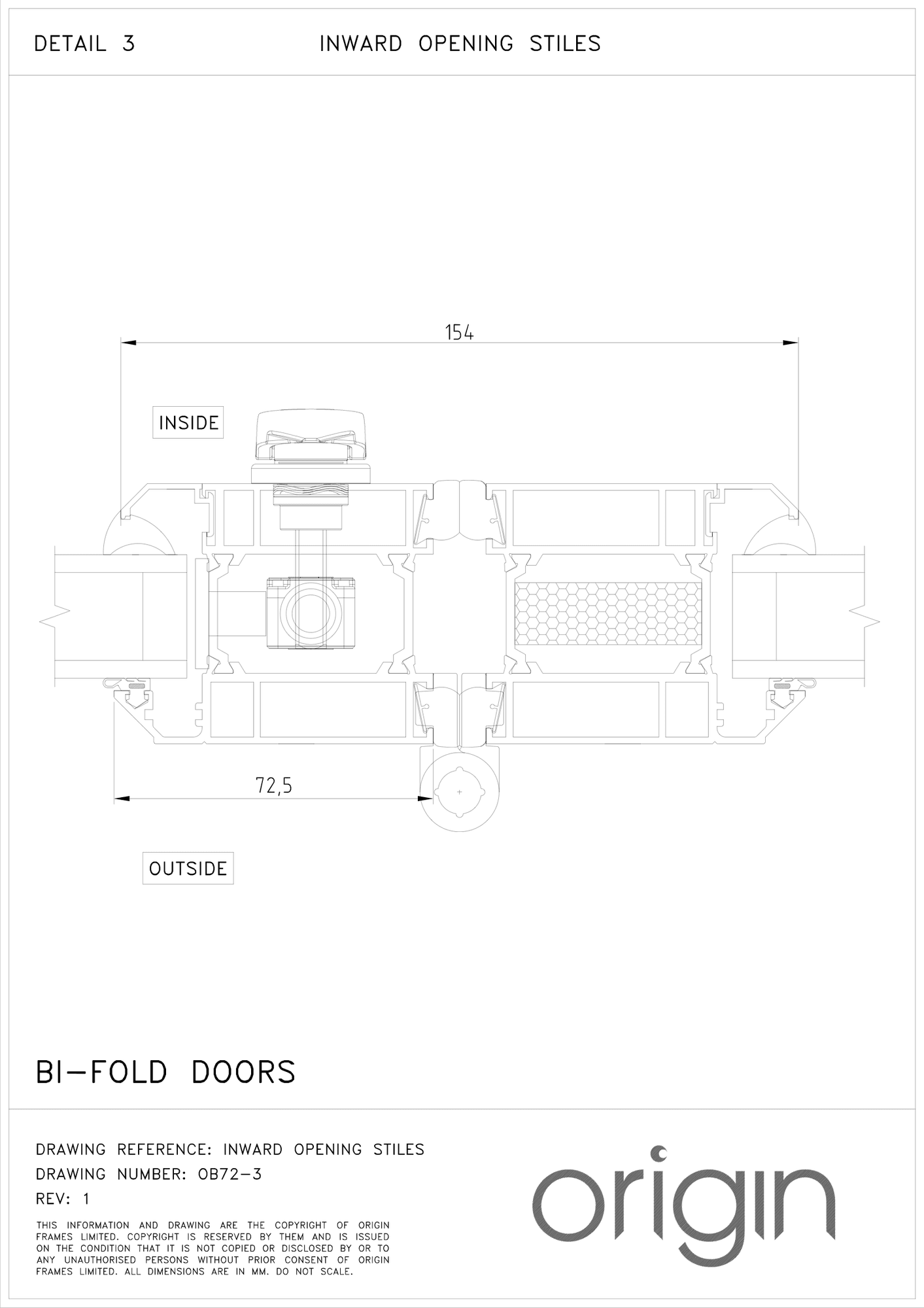

Technical Drawings | Detail 3
Inward Opening Stiles

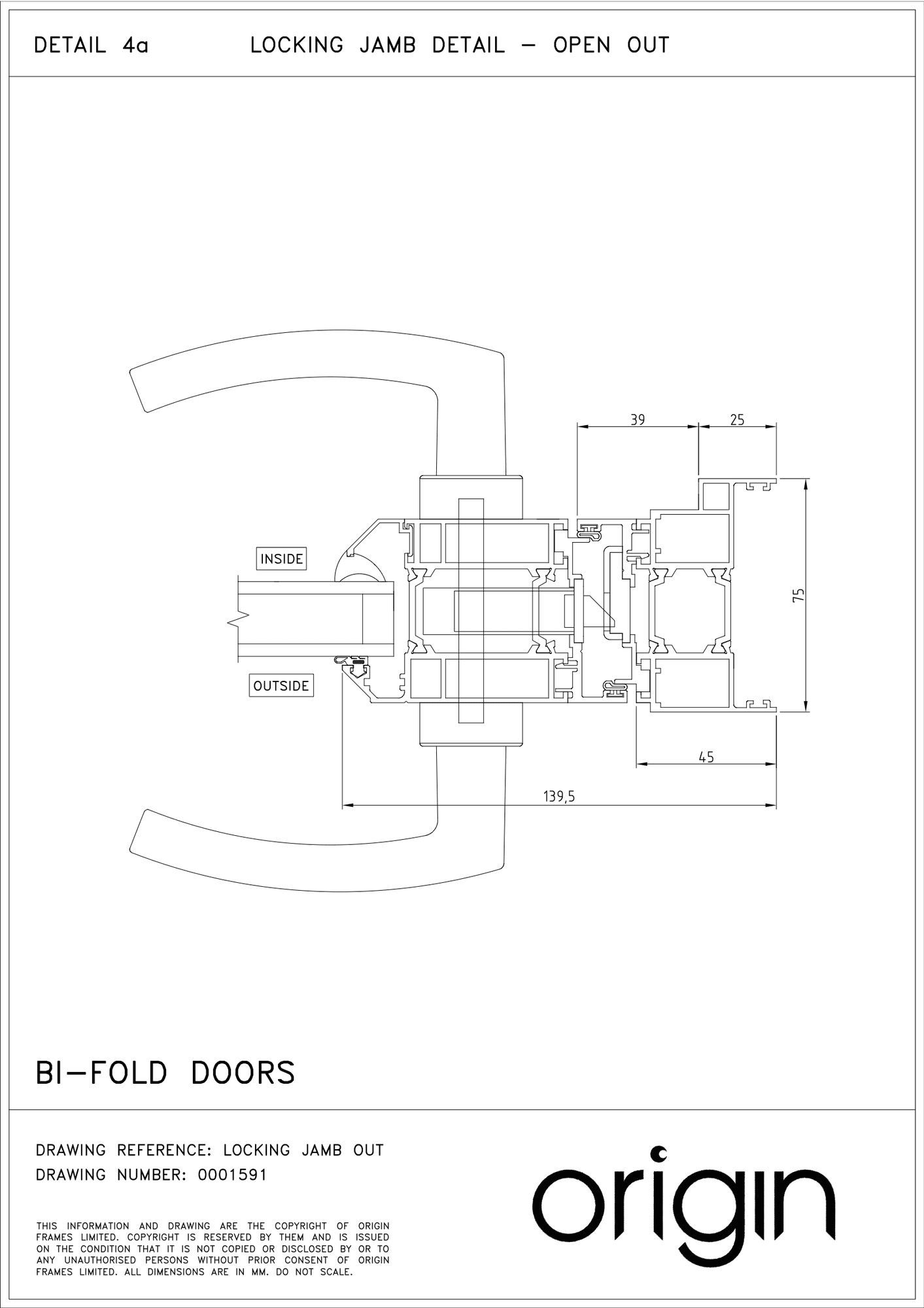

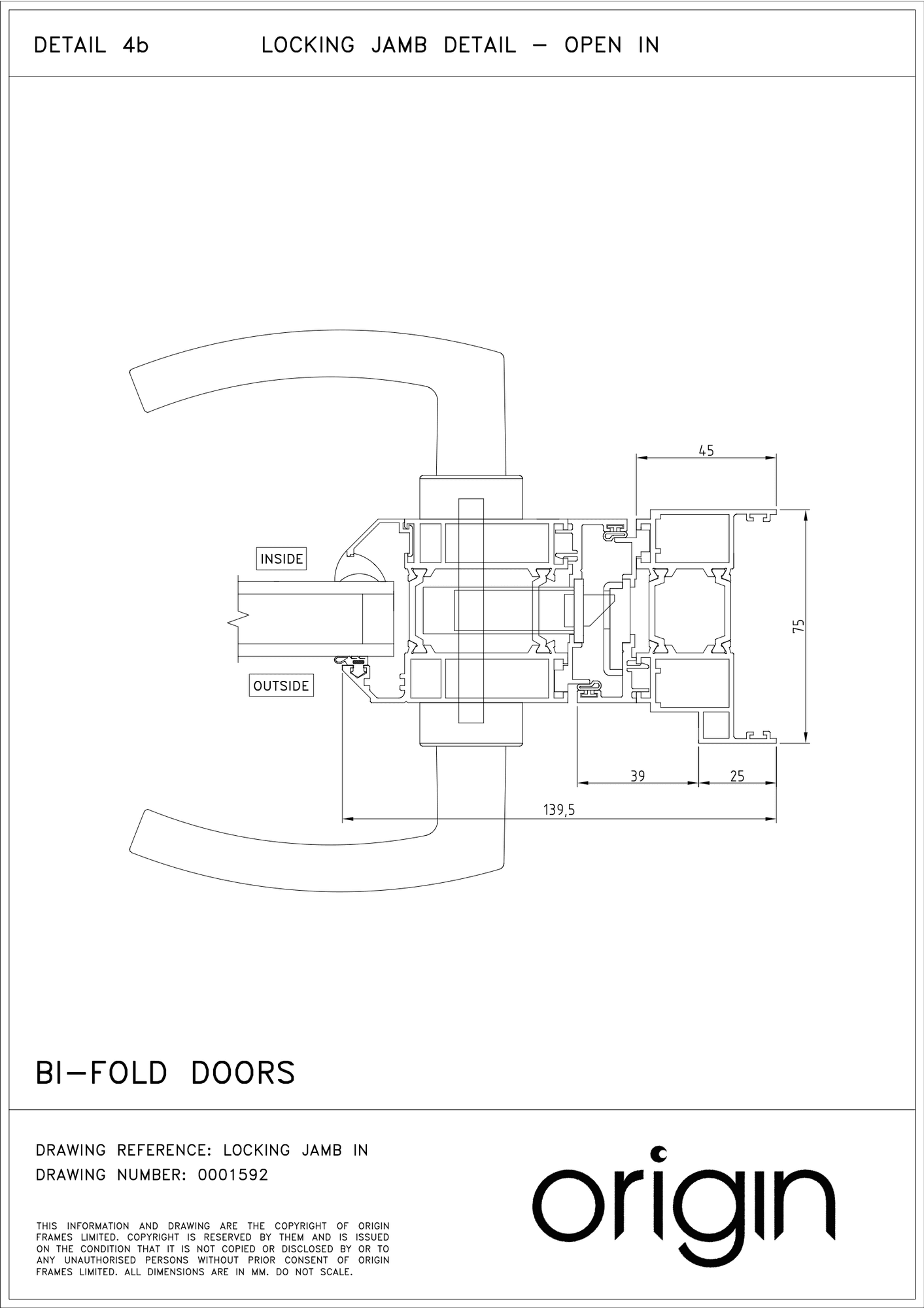

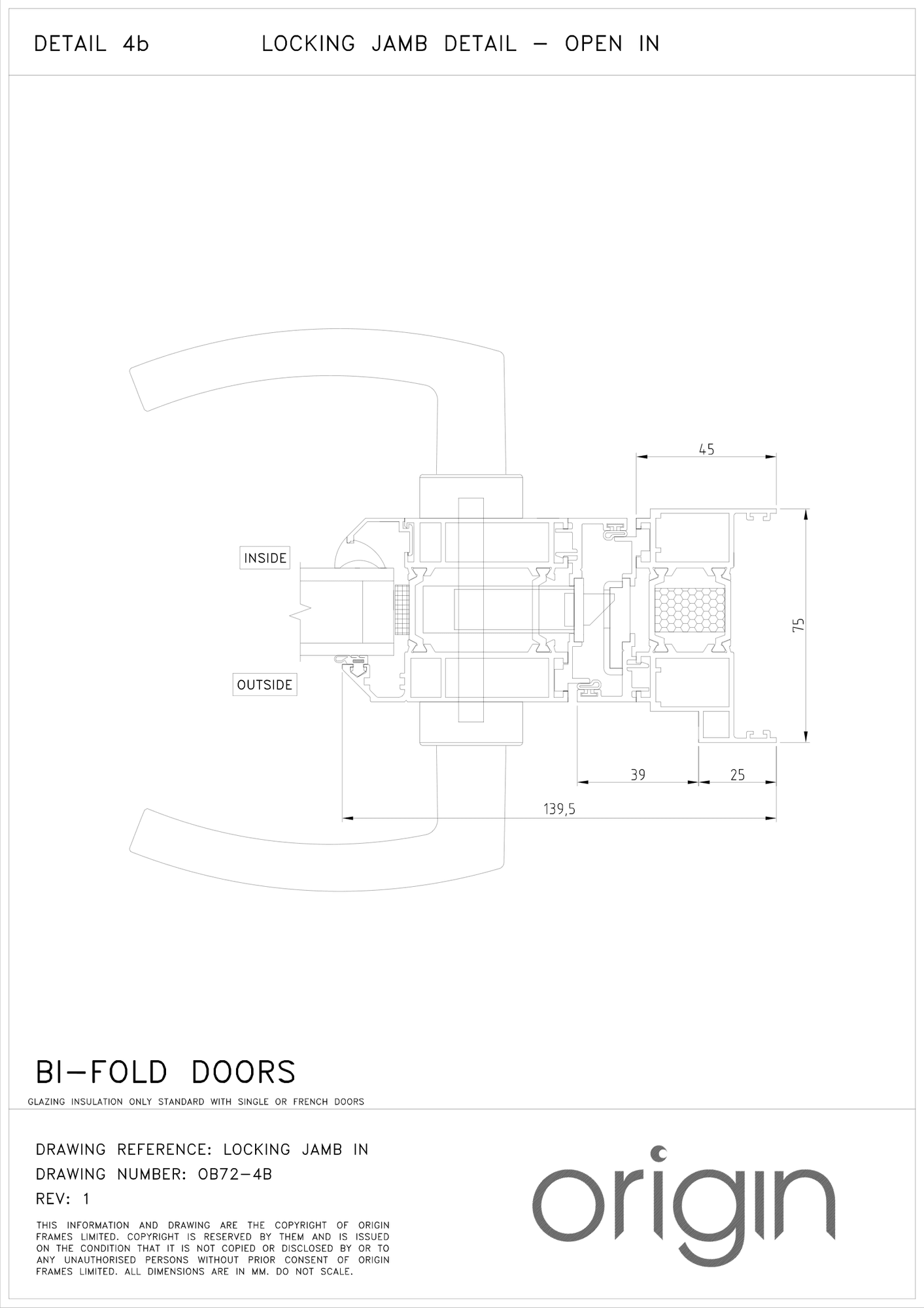

Technical Drawings | Detail 4A & 4B
Locking Jamb
n

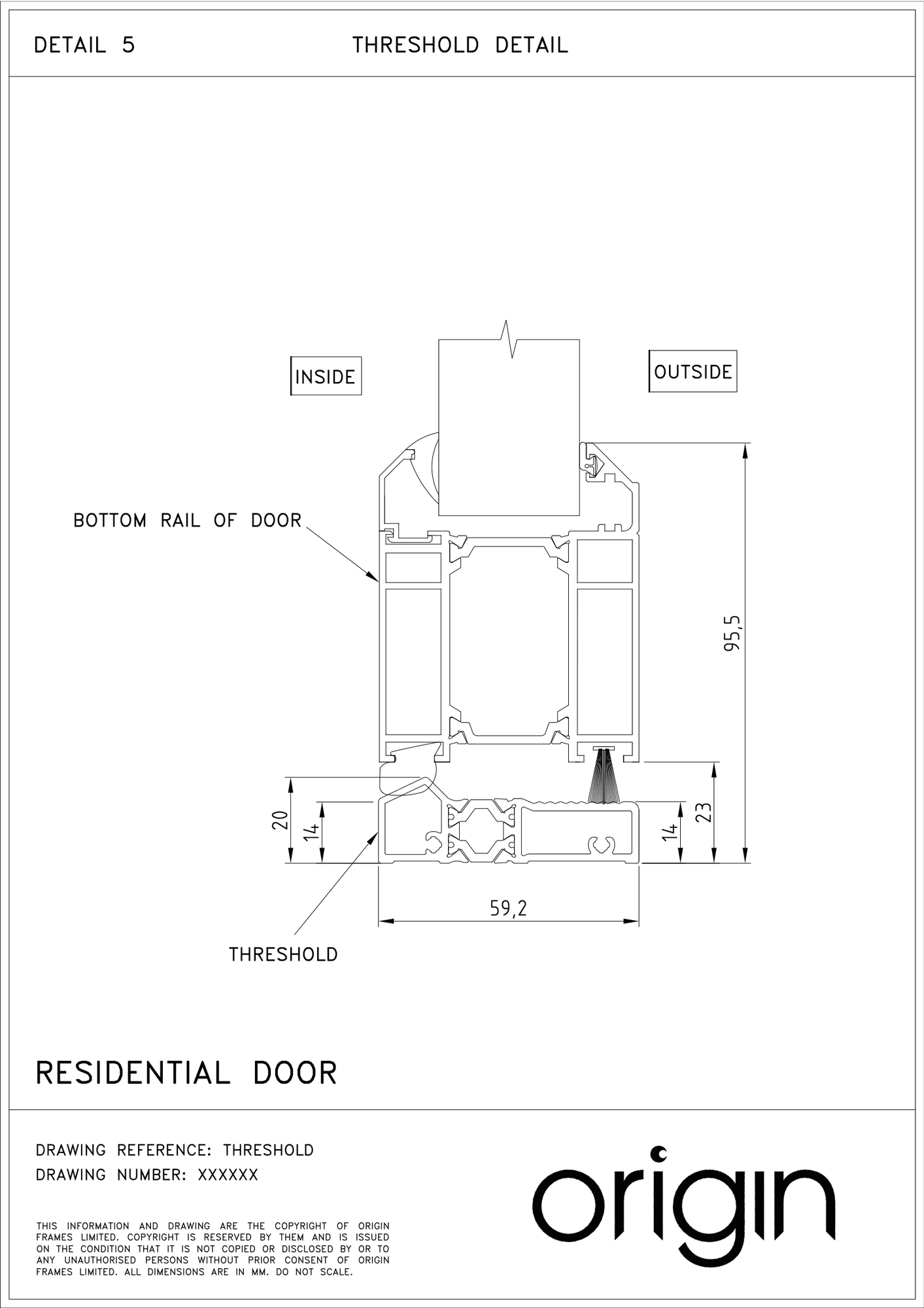

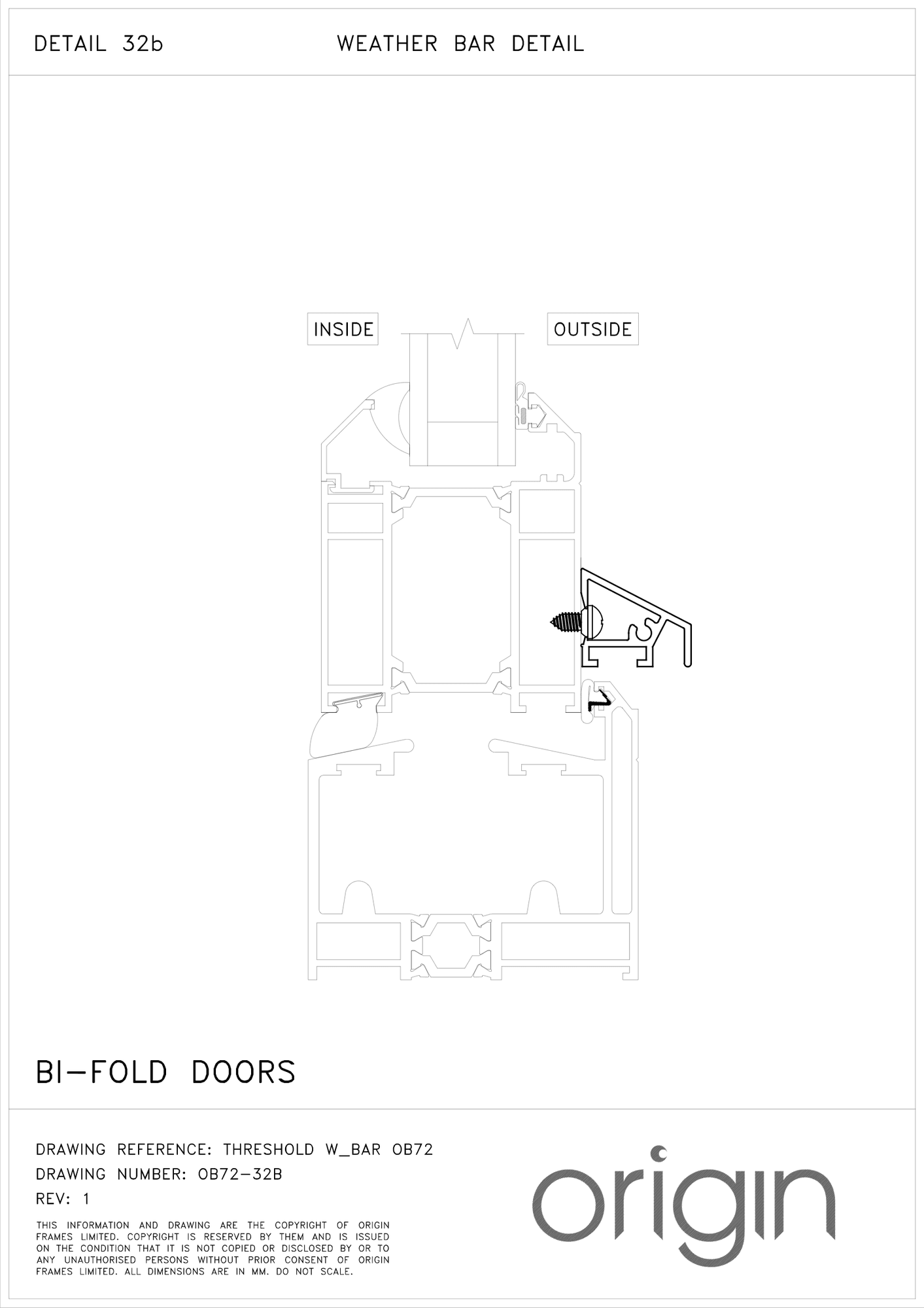

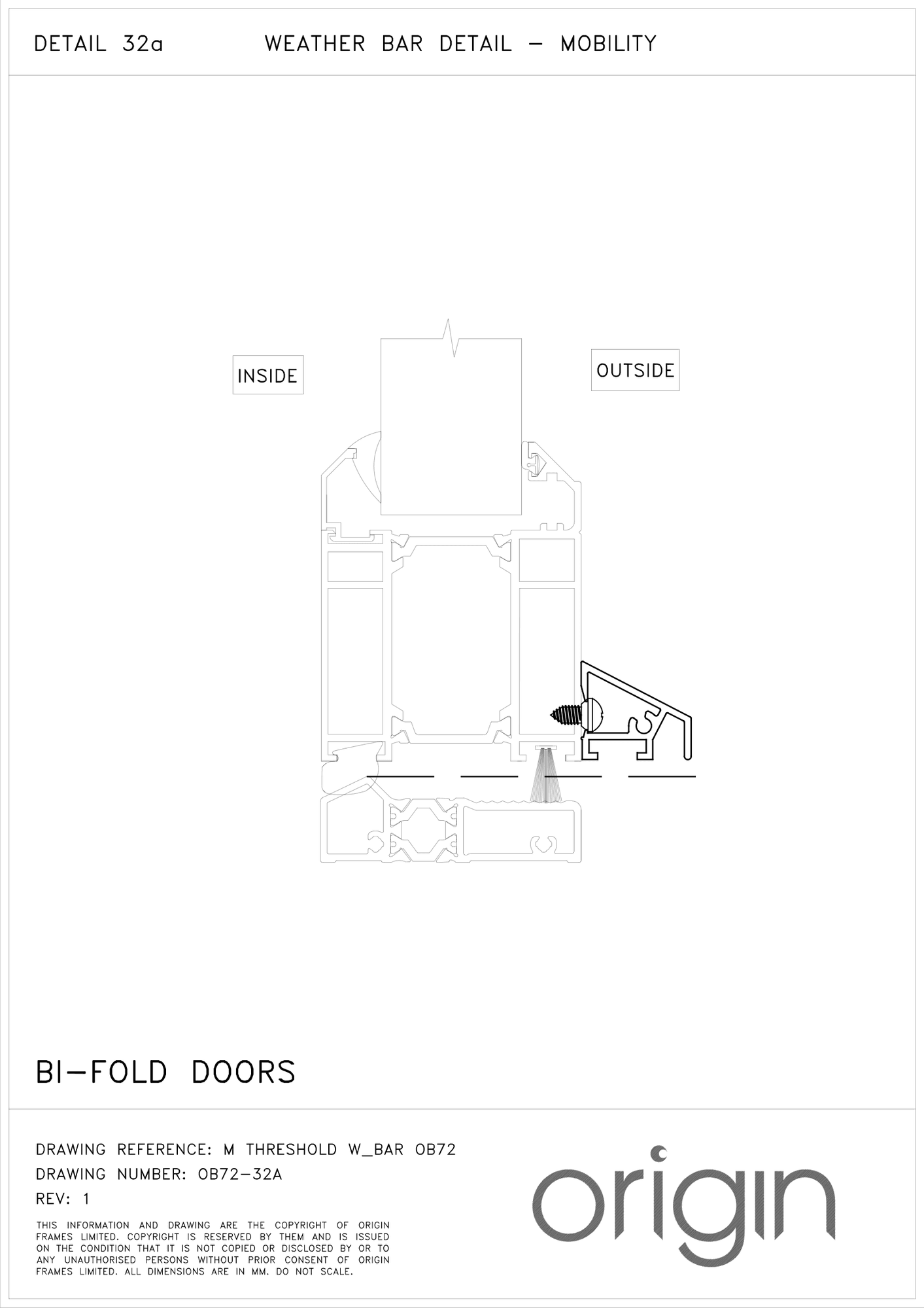

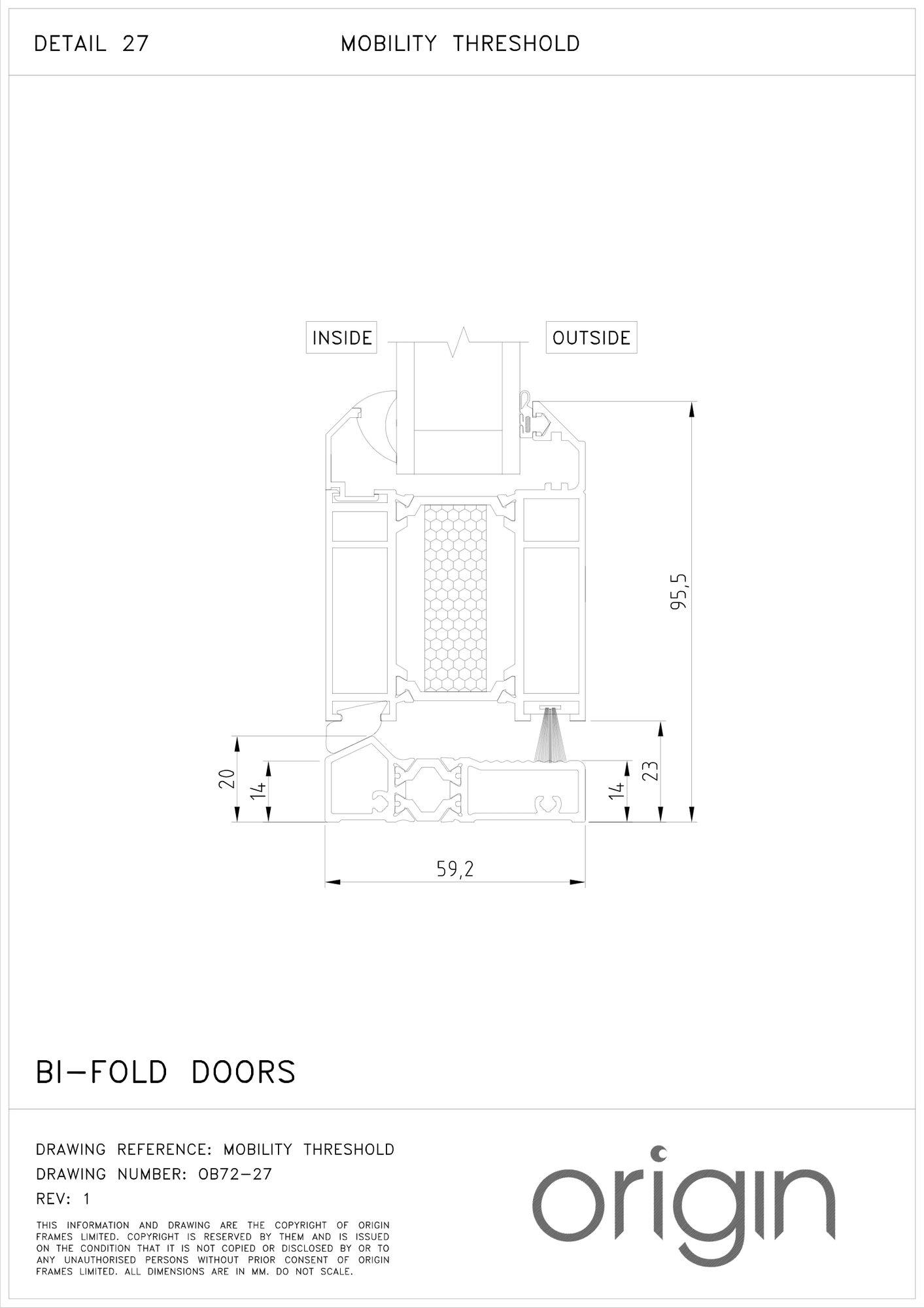

Technical Drawings | Detail 5
Entrance Door - Threshold

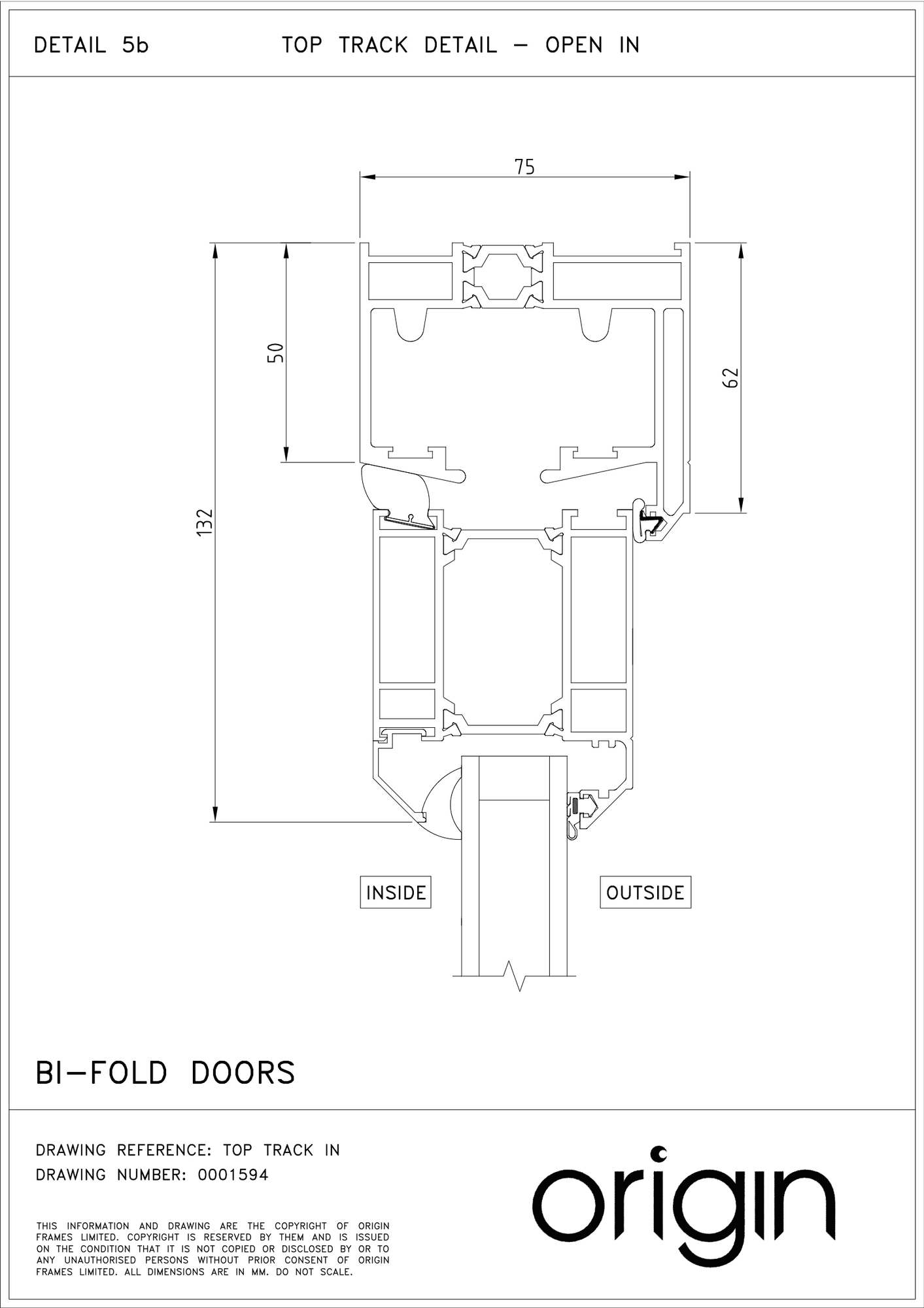

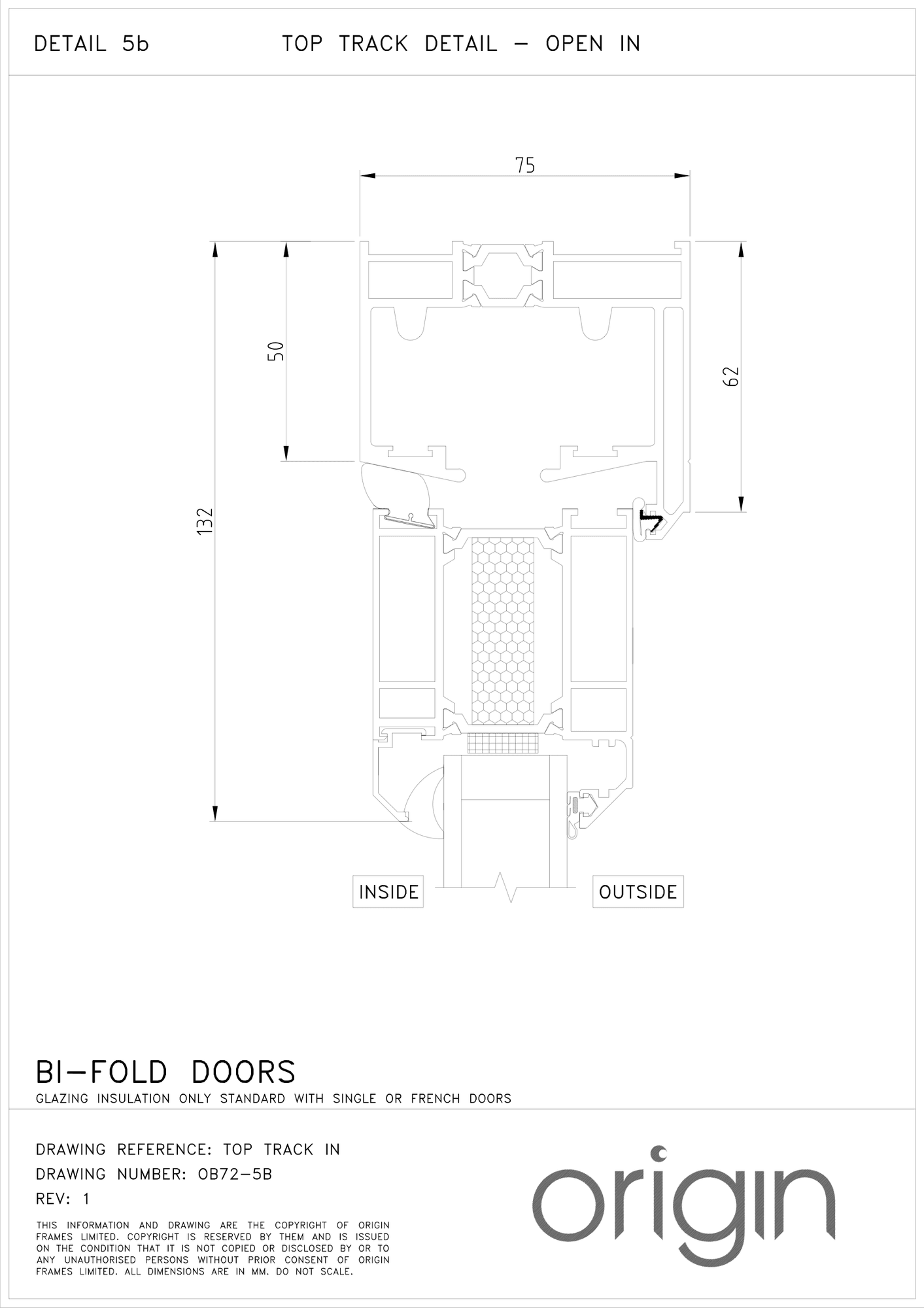

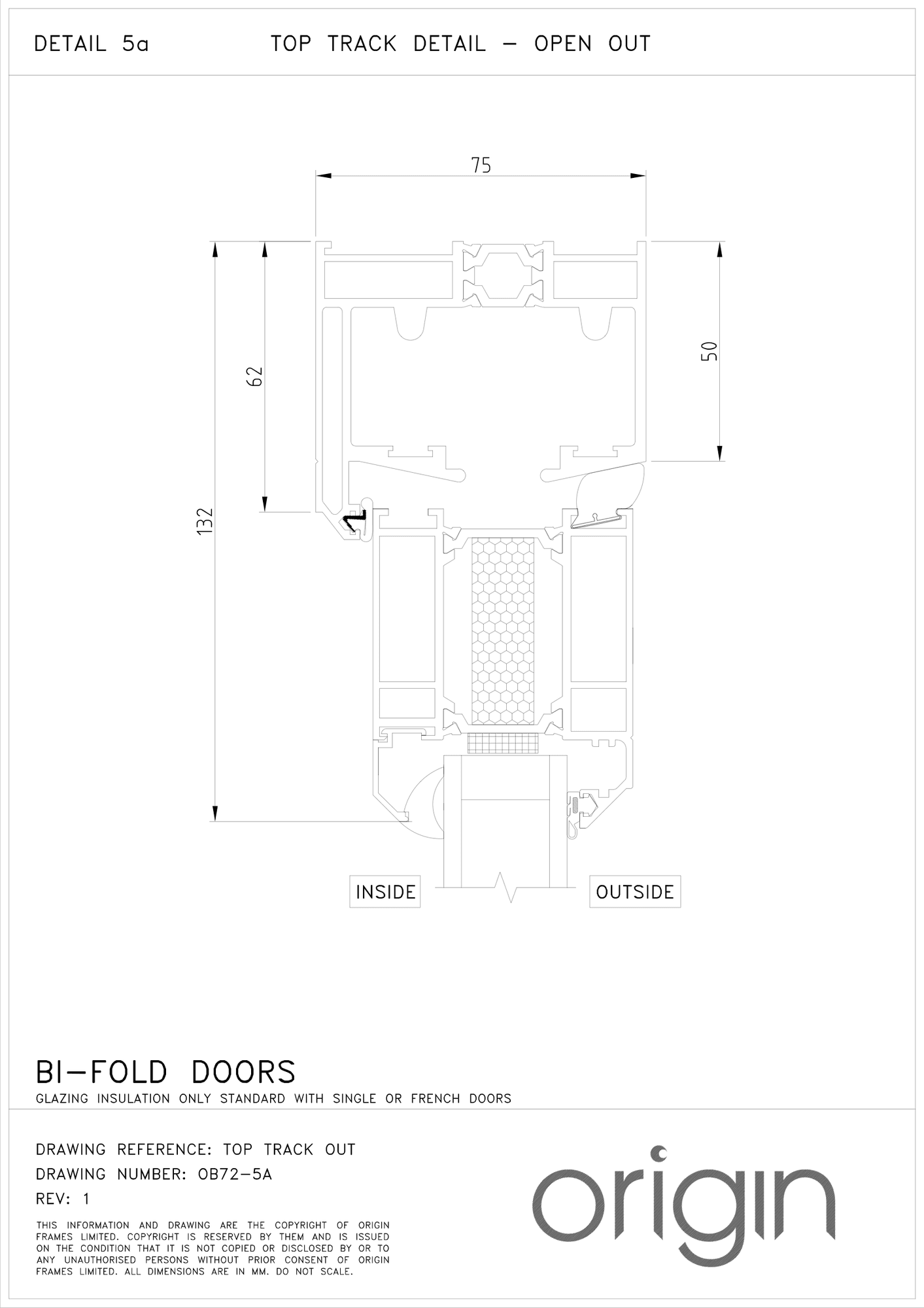

Technical Drawings | Detail 5B
Top Track - Open In

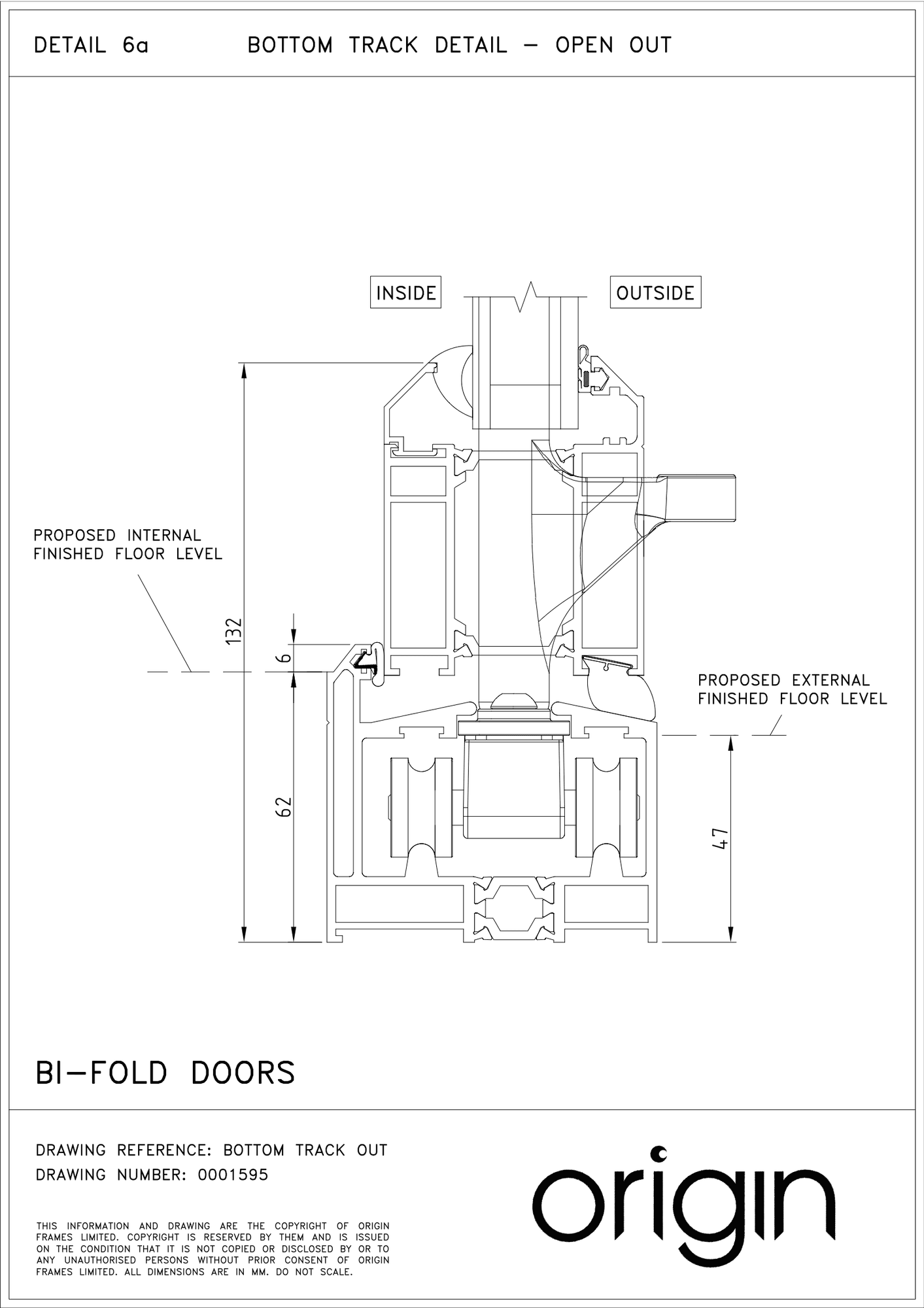

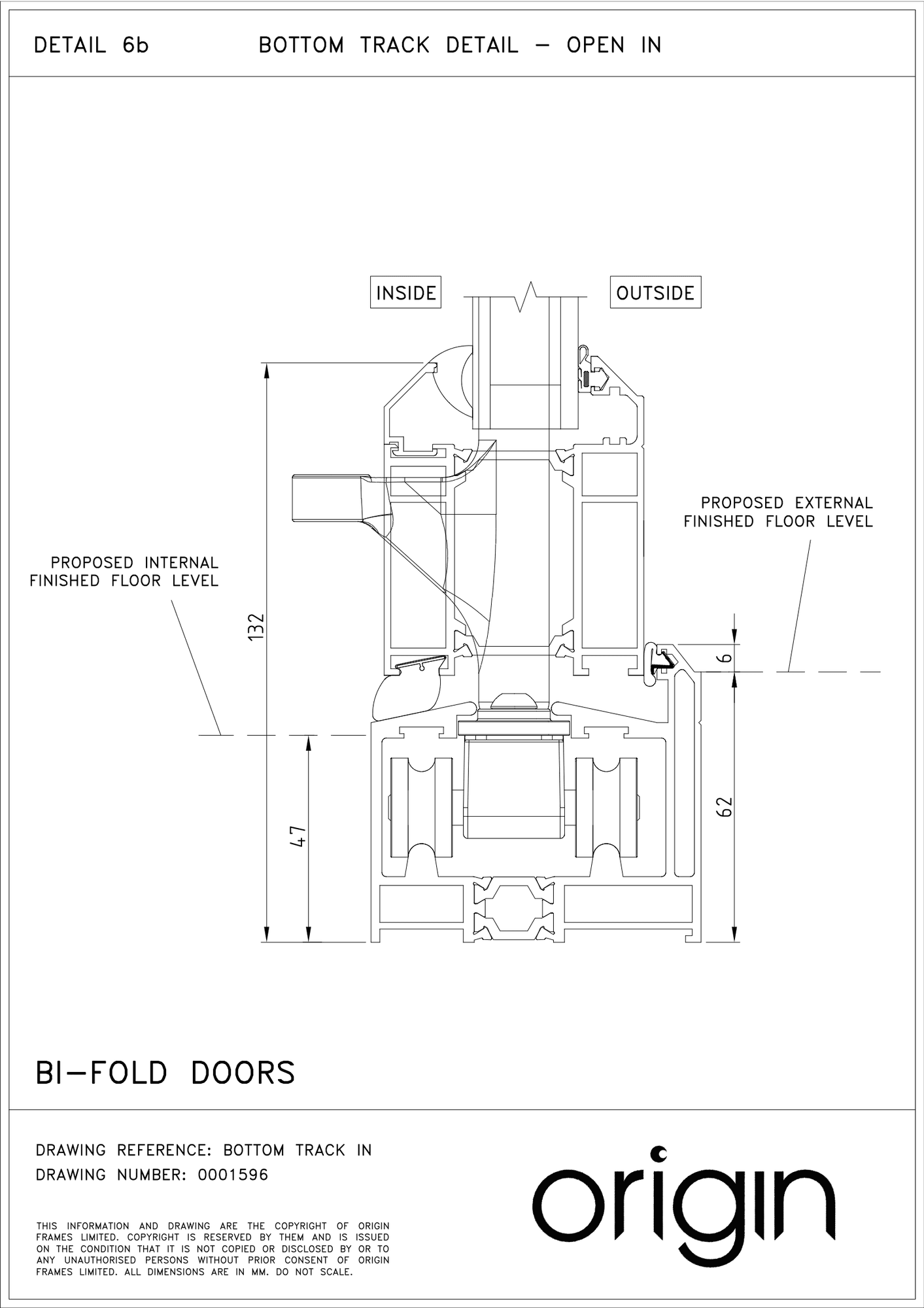

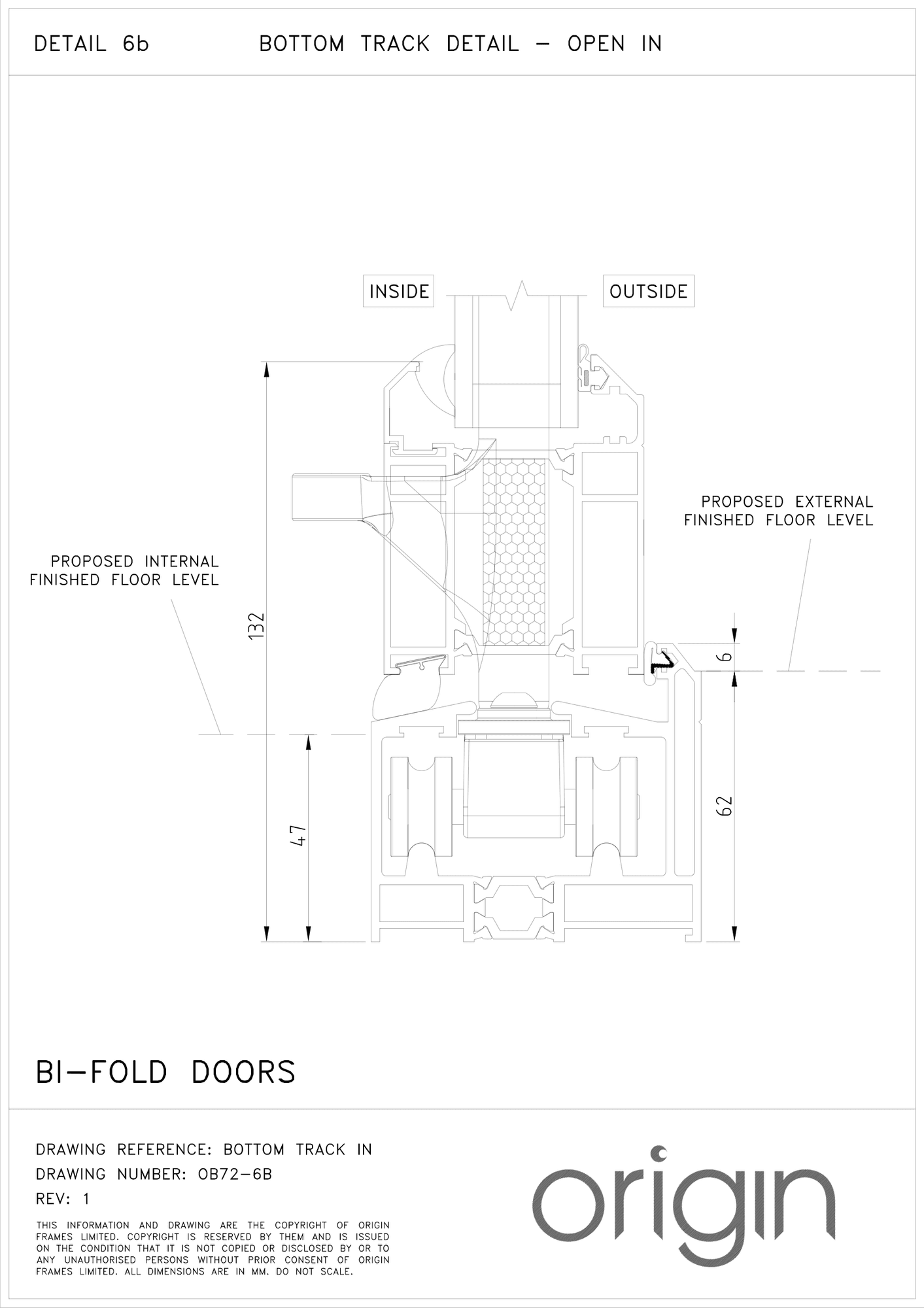

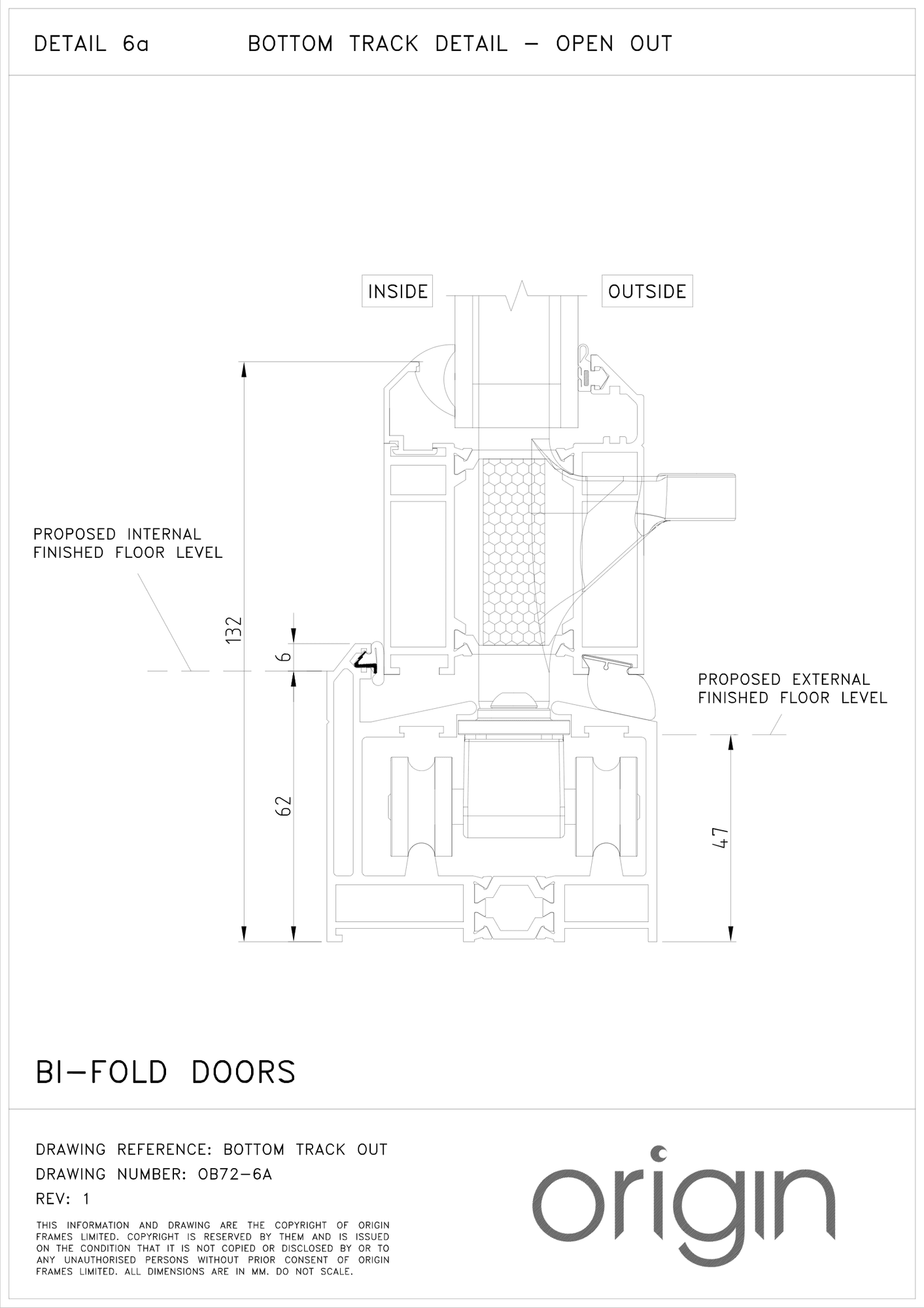

Technical Drawings | Detail 6A & 6B

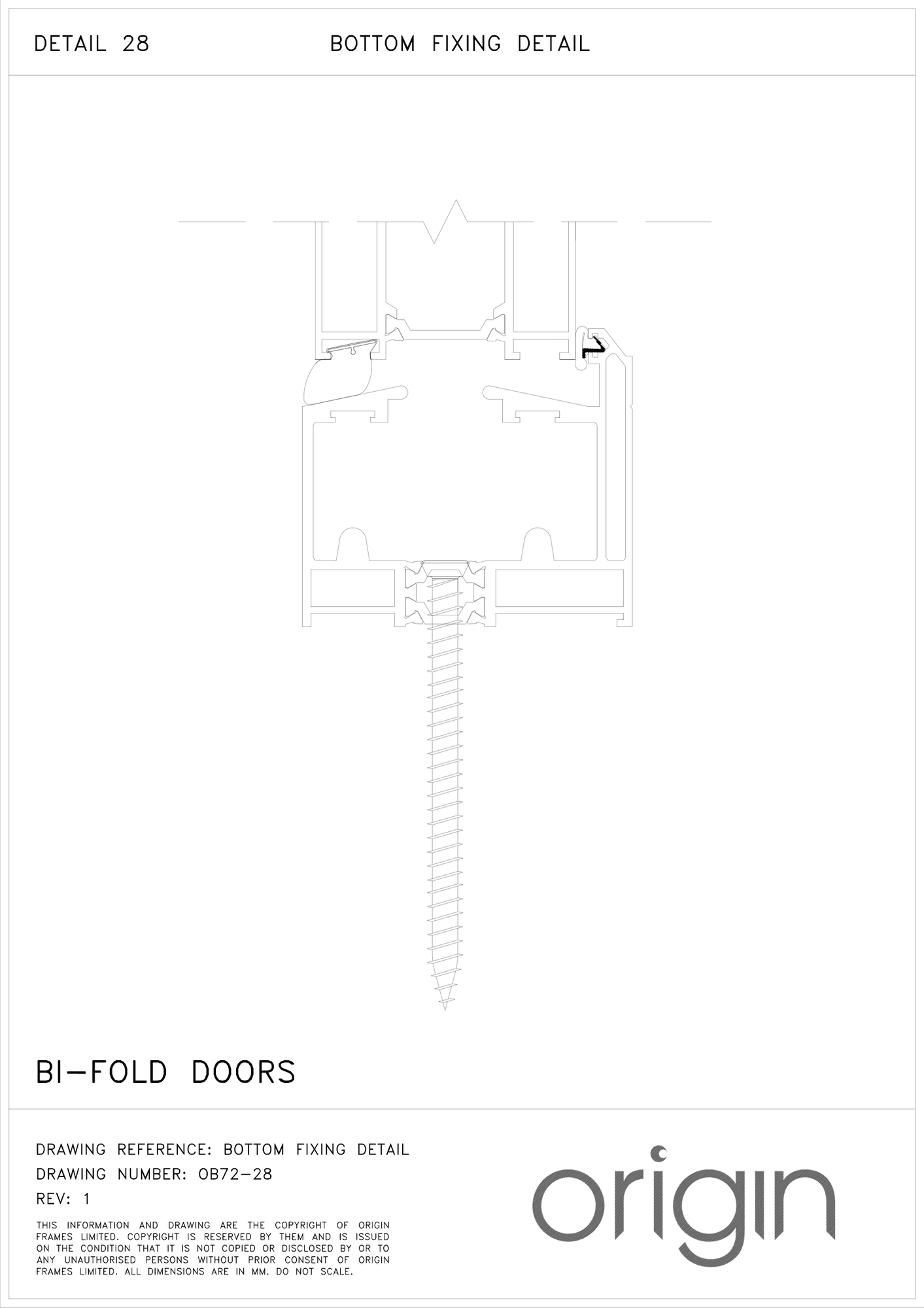

Bottom Track

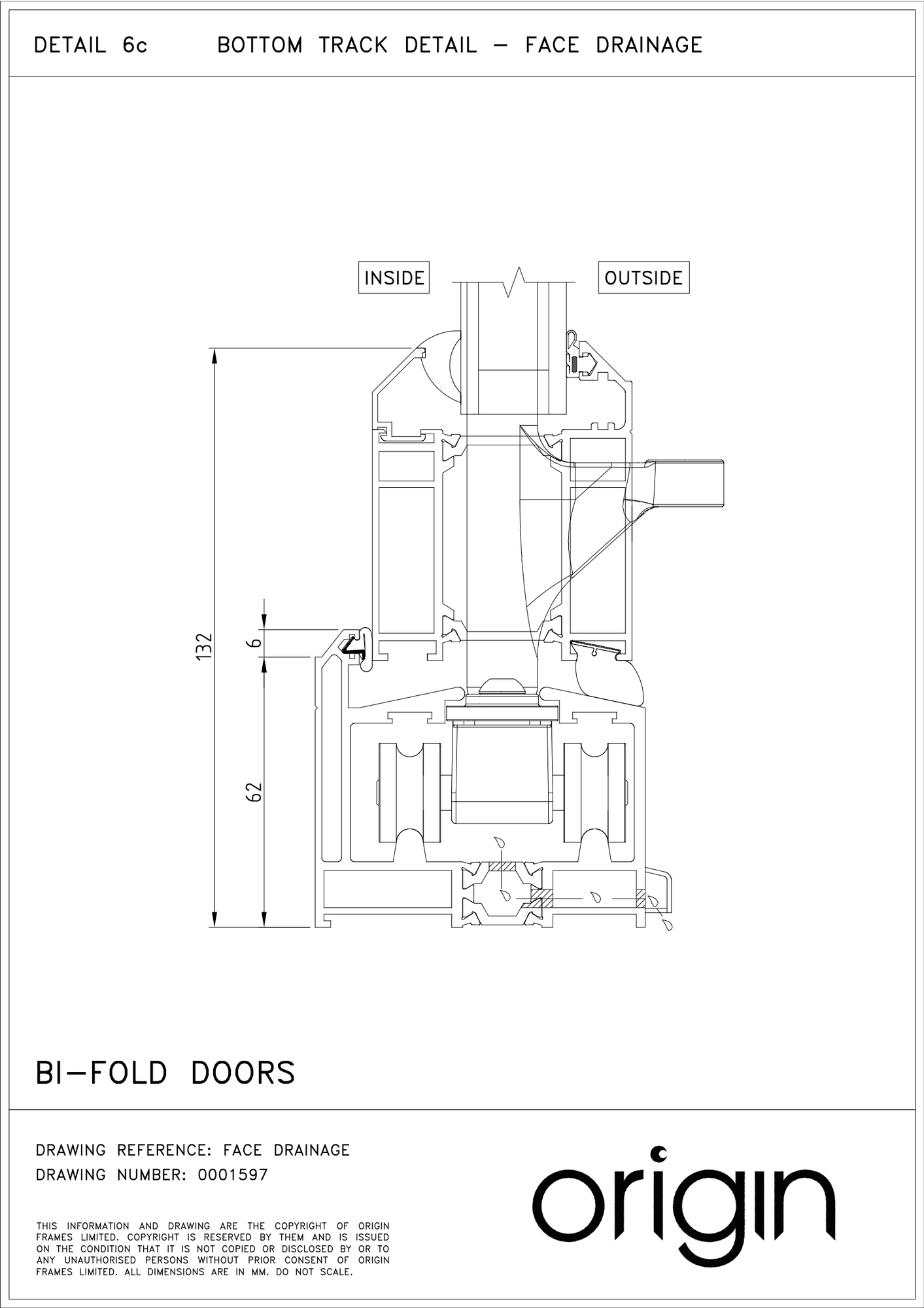

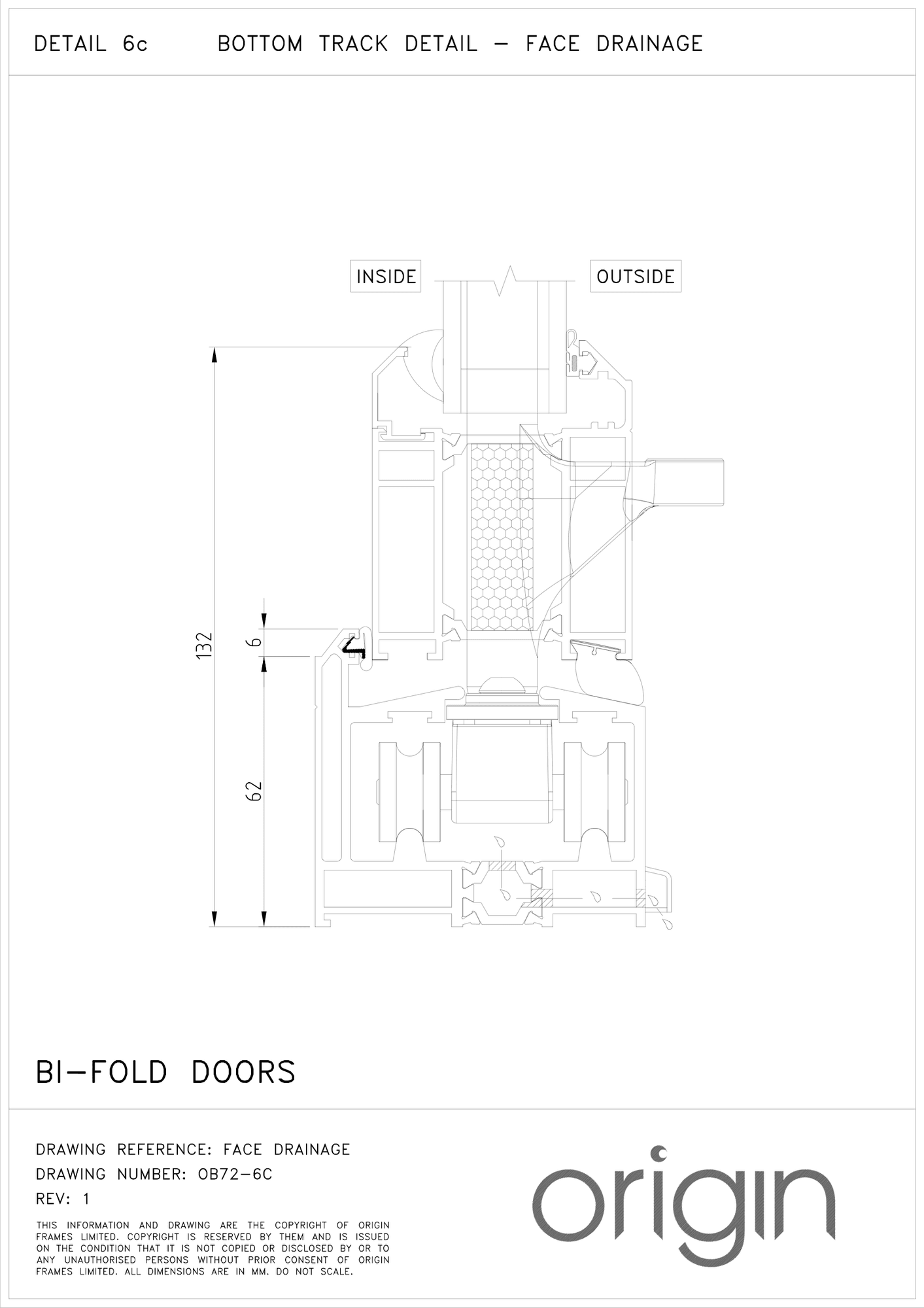

Technical Drawings | Detail 6C
Bottom Track - Face Drainage

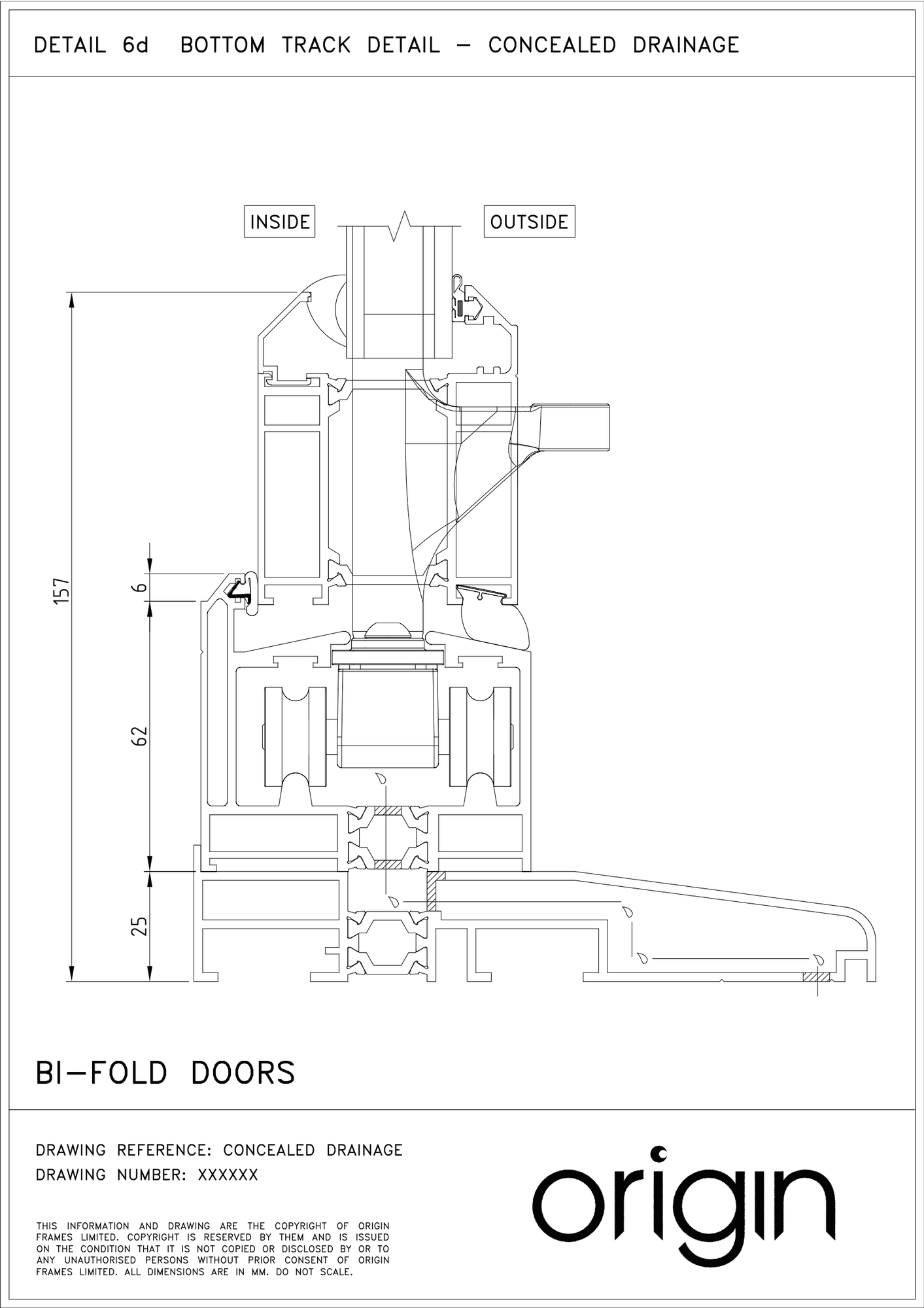

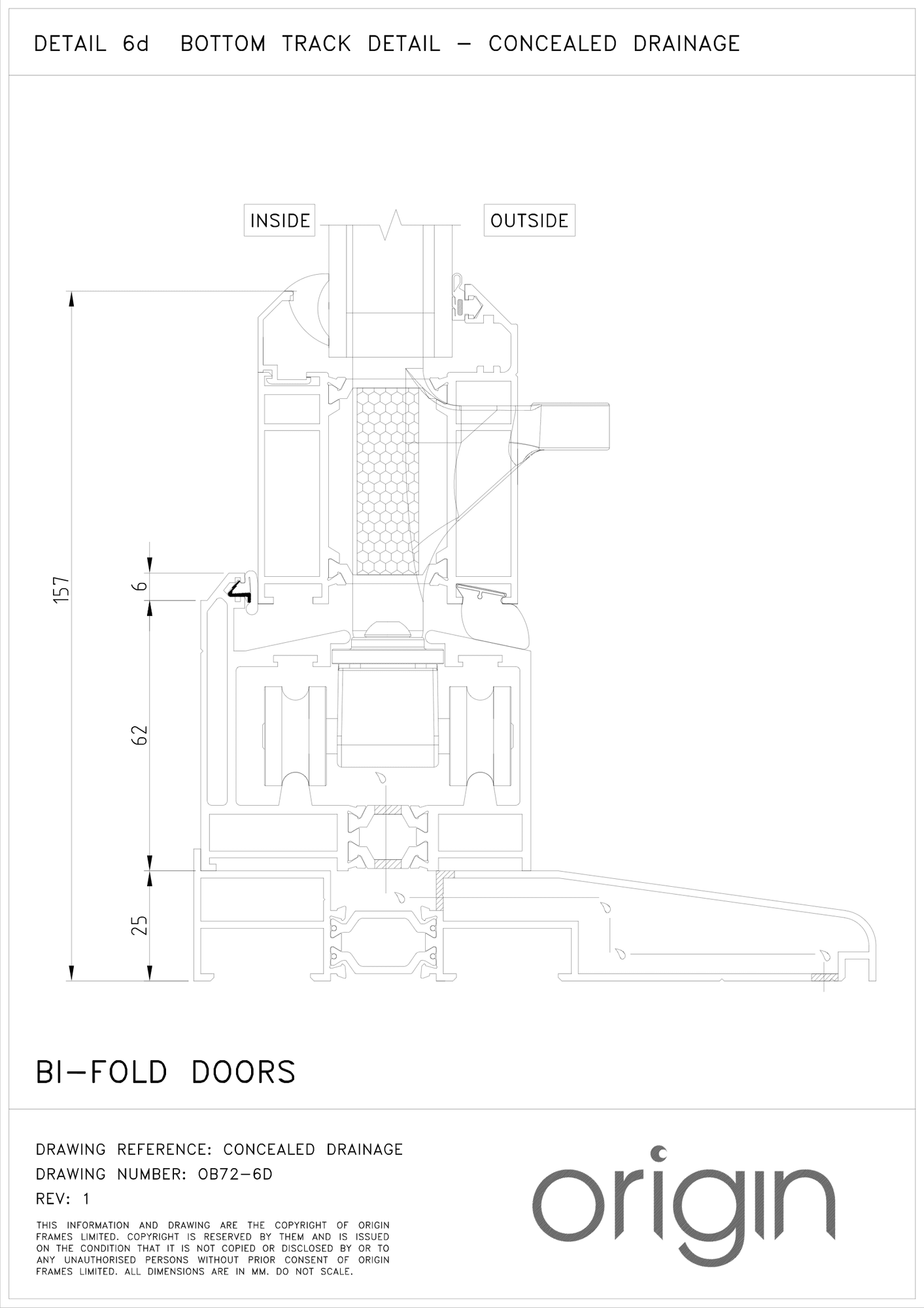

Technical Drawings | Detail 6D
Bottom Track - Concealed Drainage

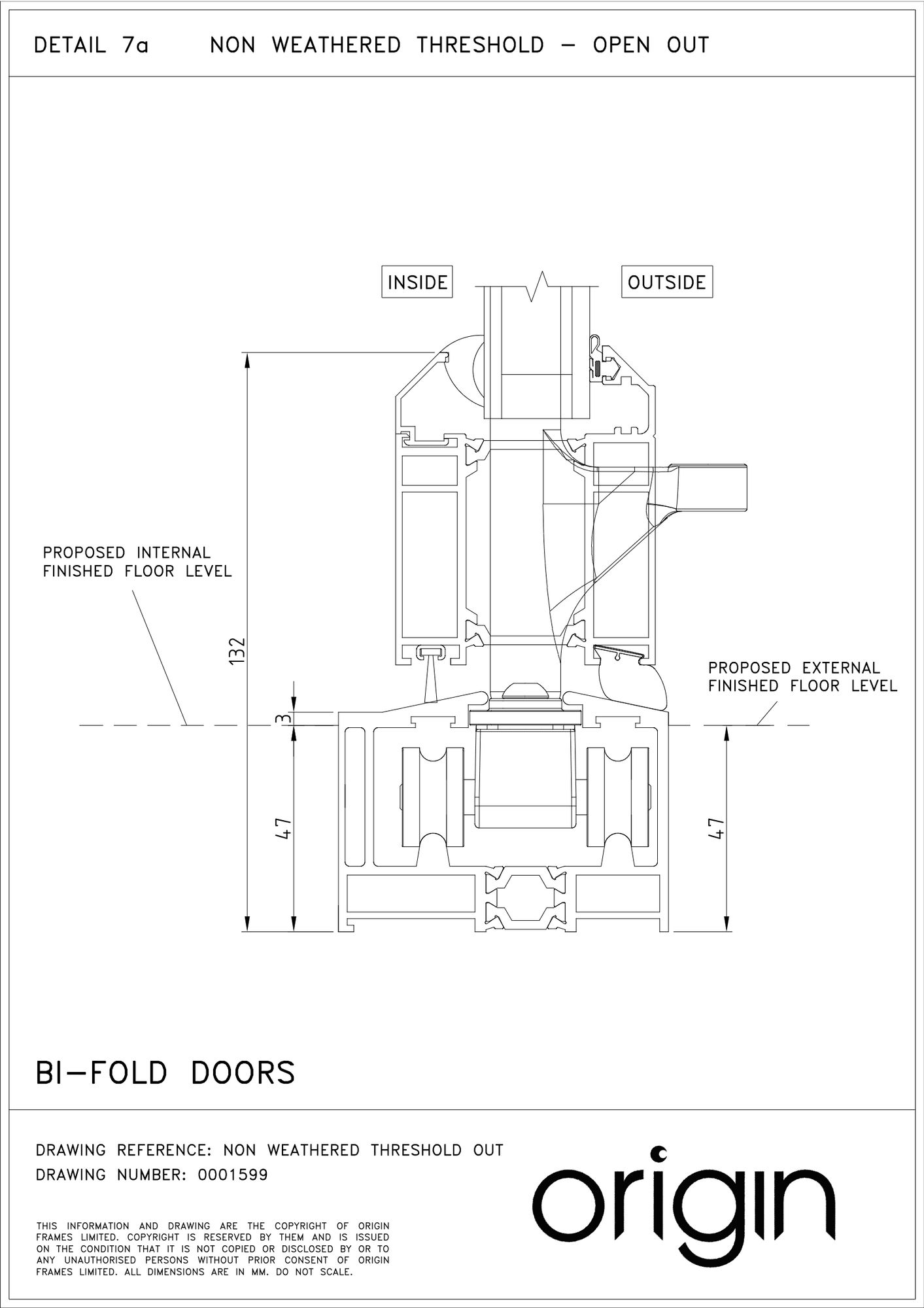

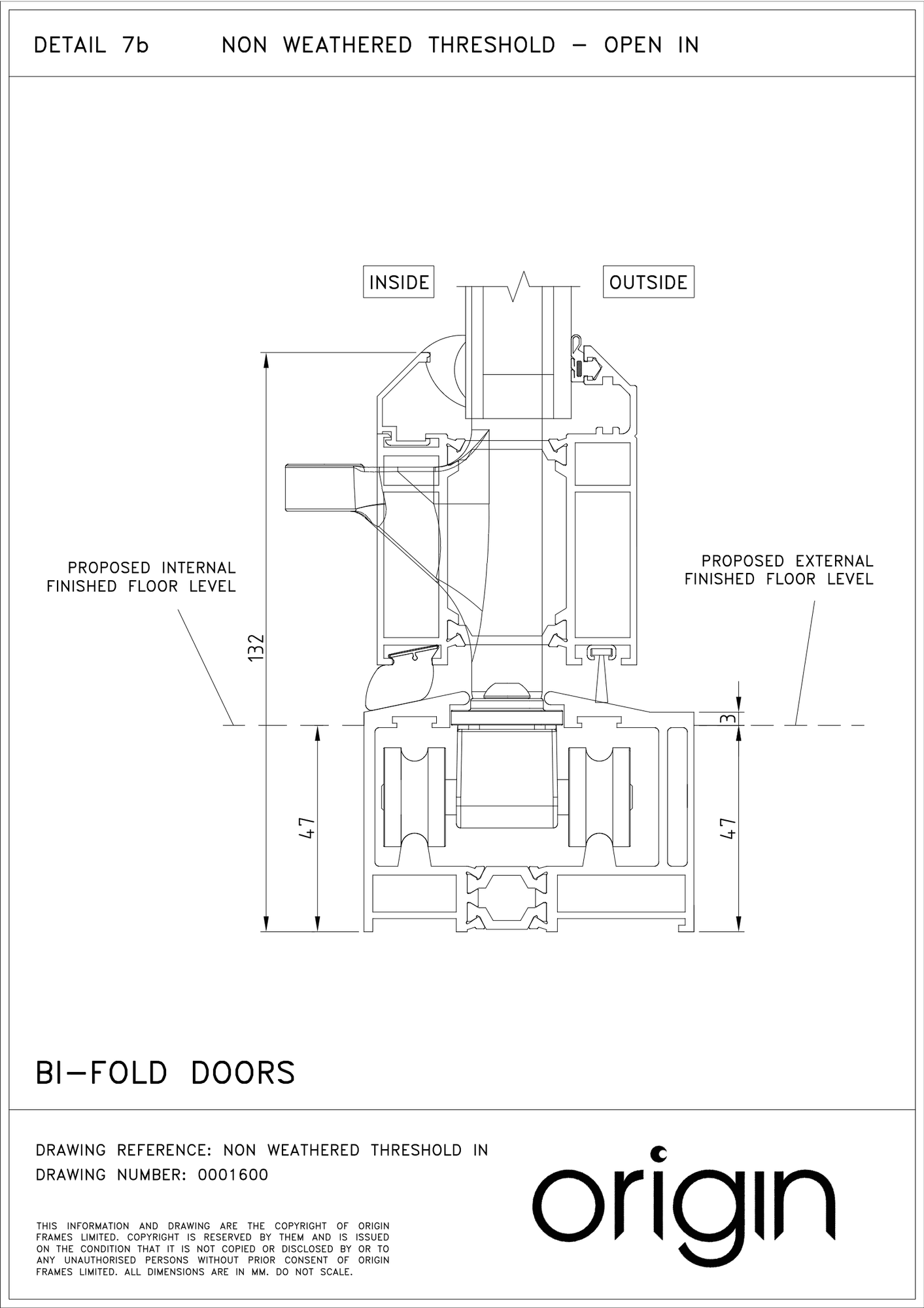

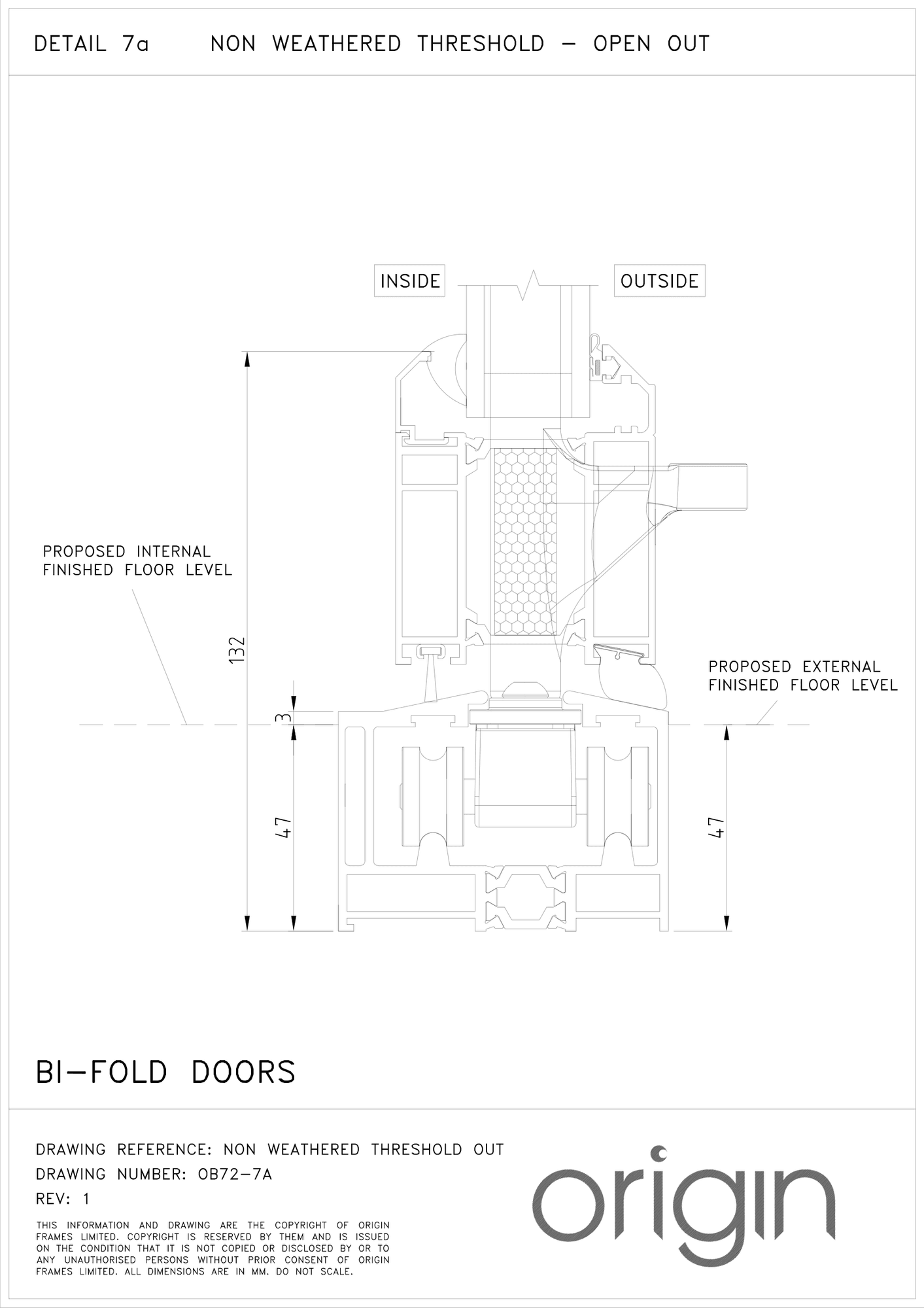

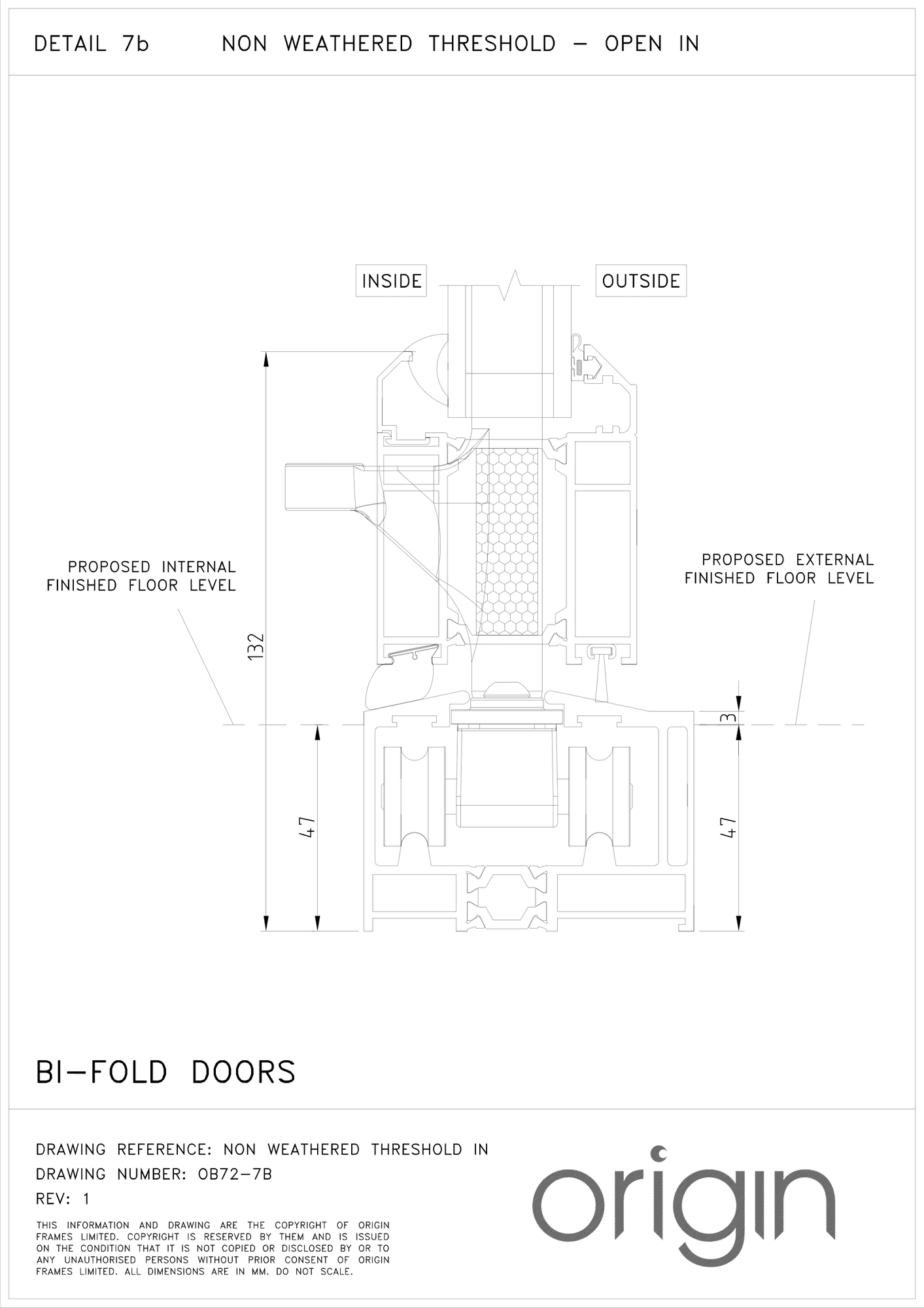

Technical Drawings | Detail 7A & 7B

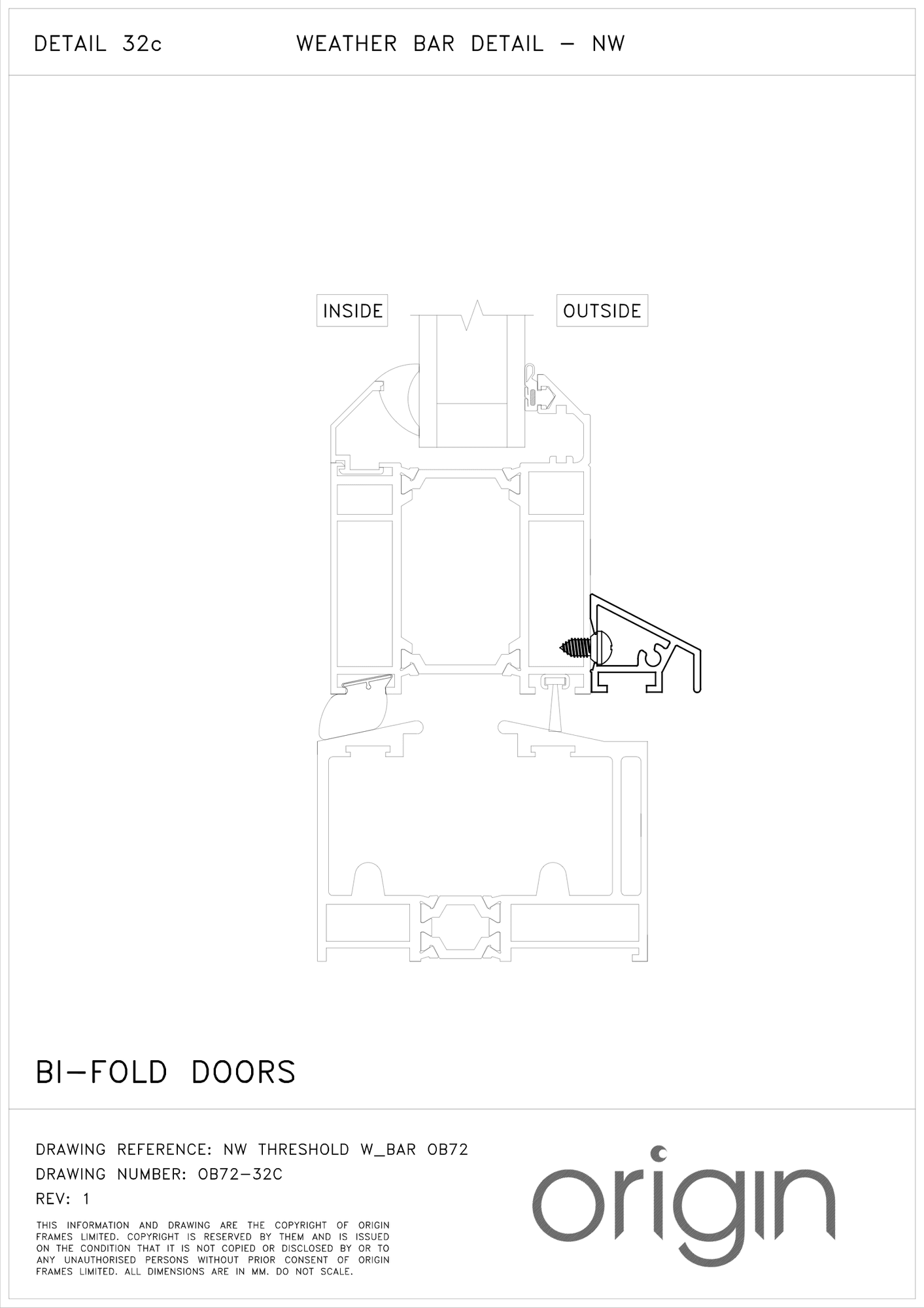

Non-Weathered Threshold

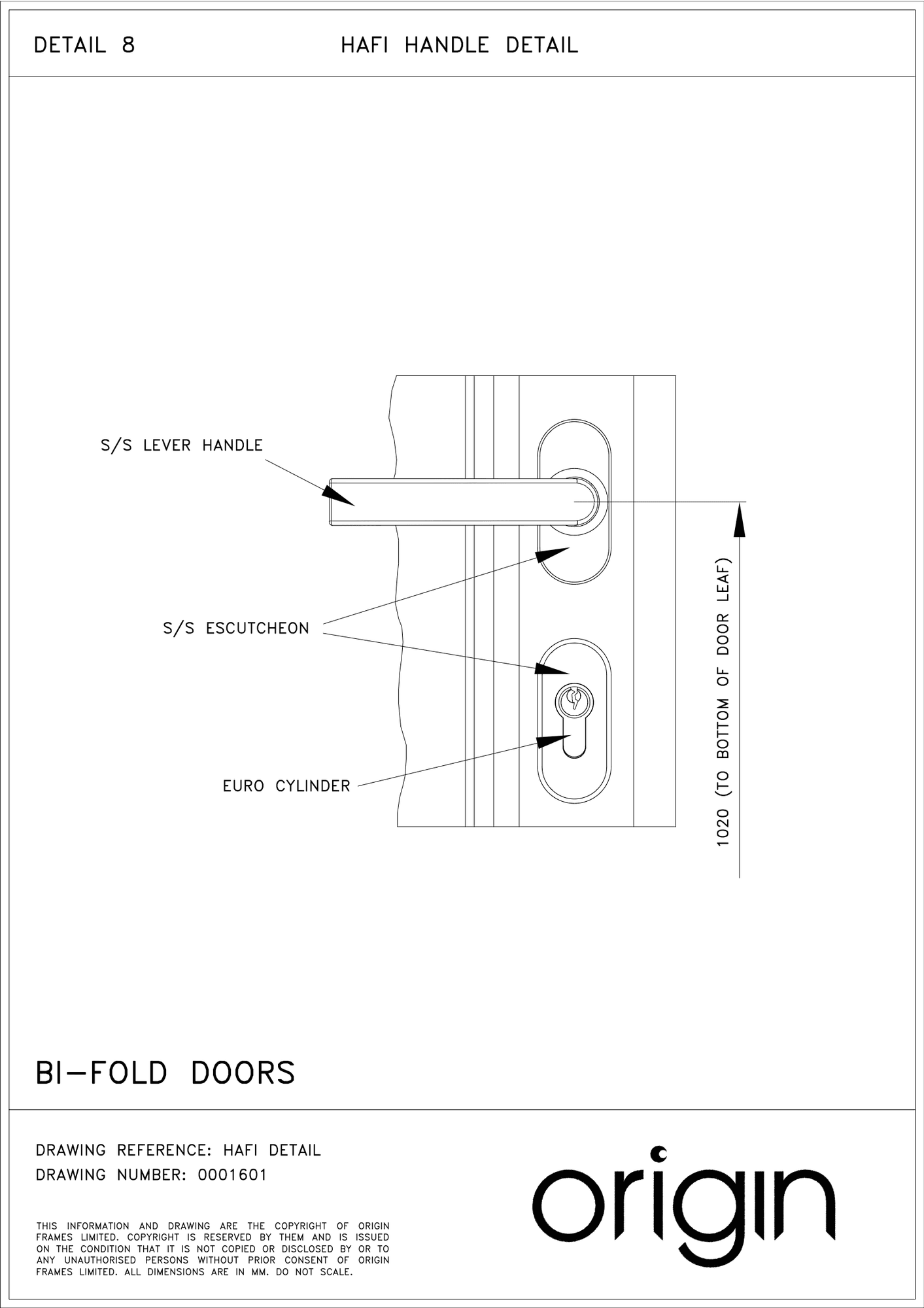

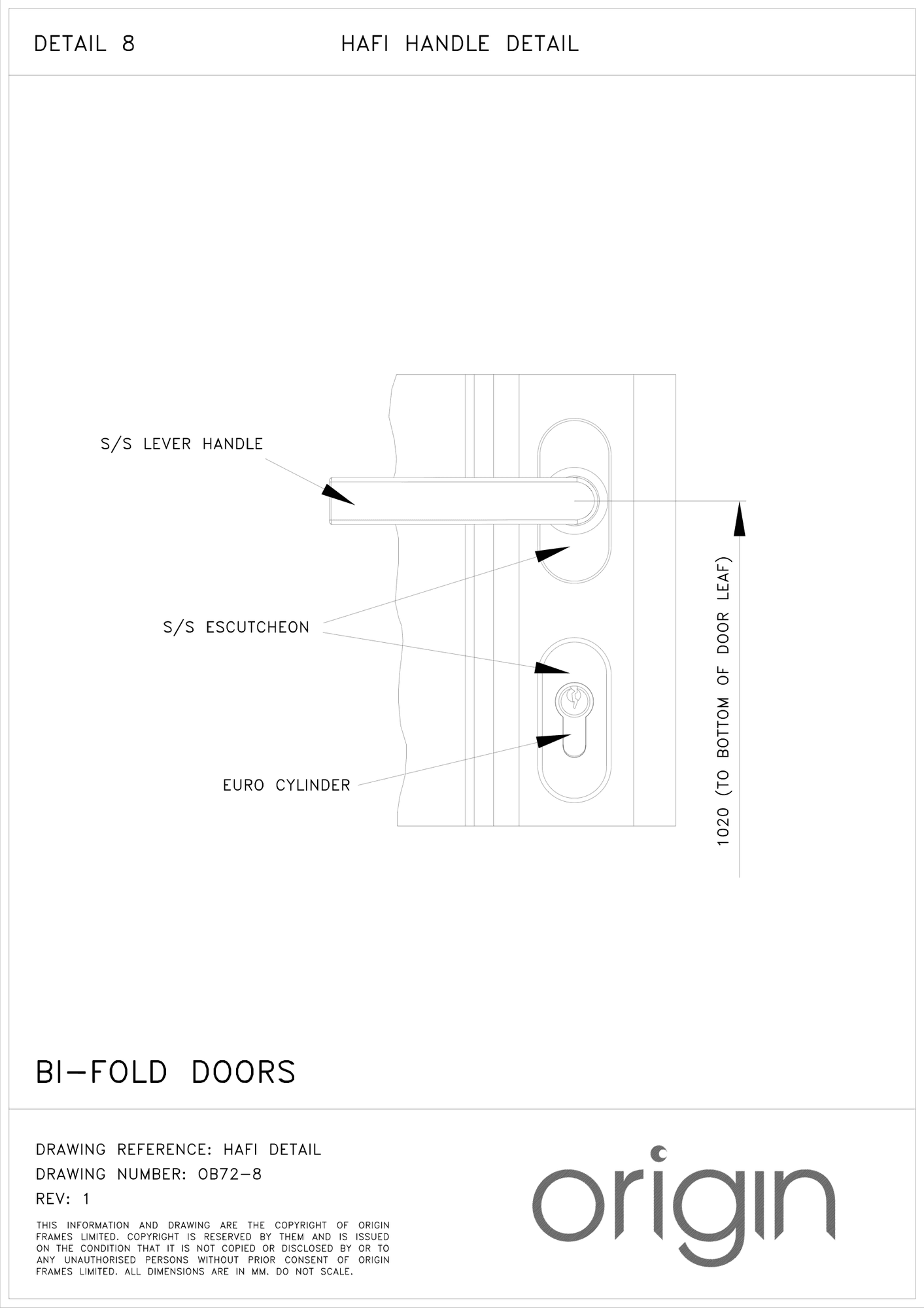

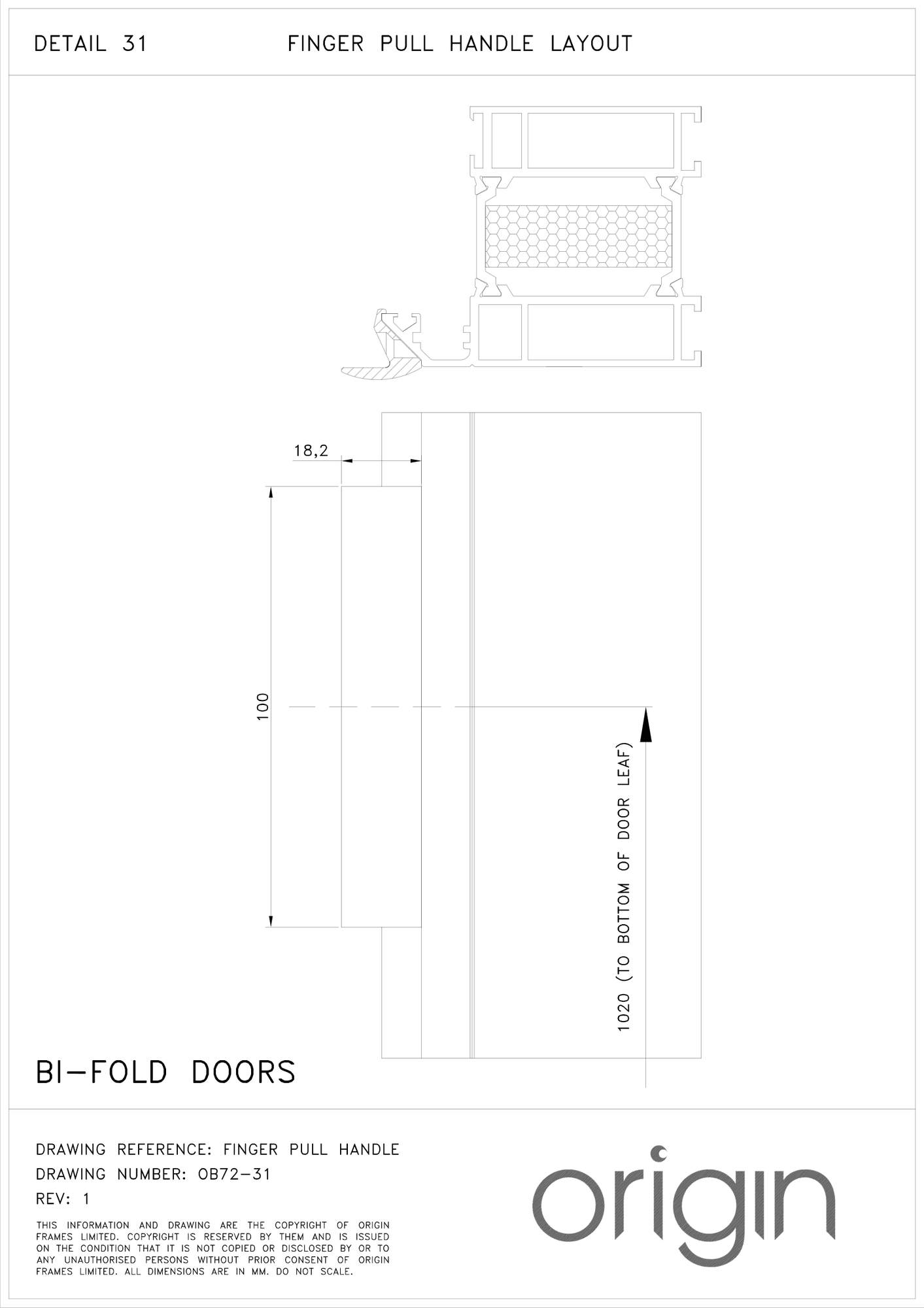

Technical Drawings | Detail 8
Handle Layout

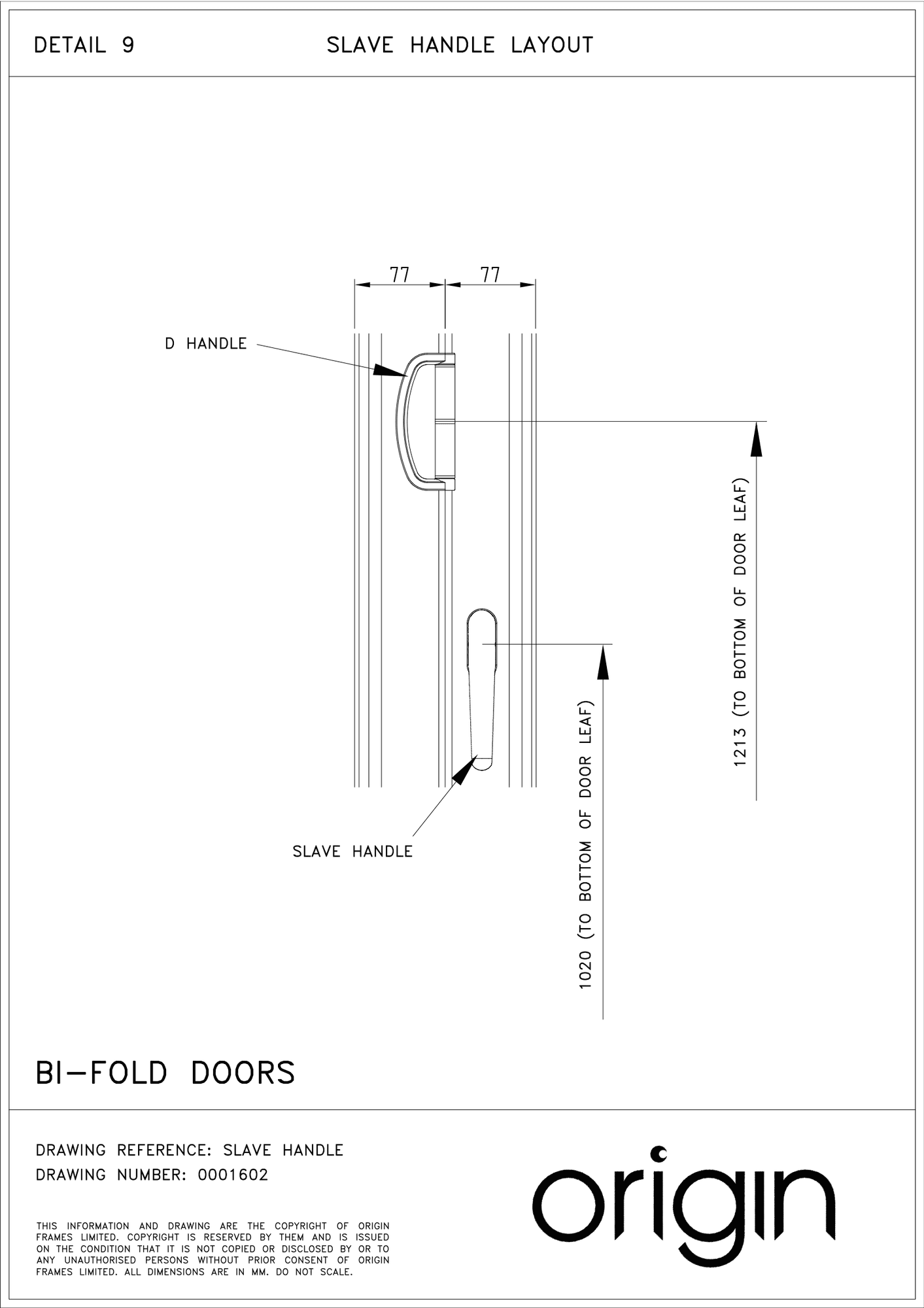

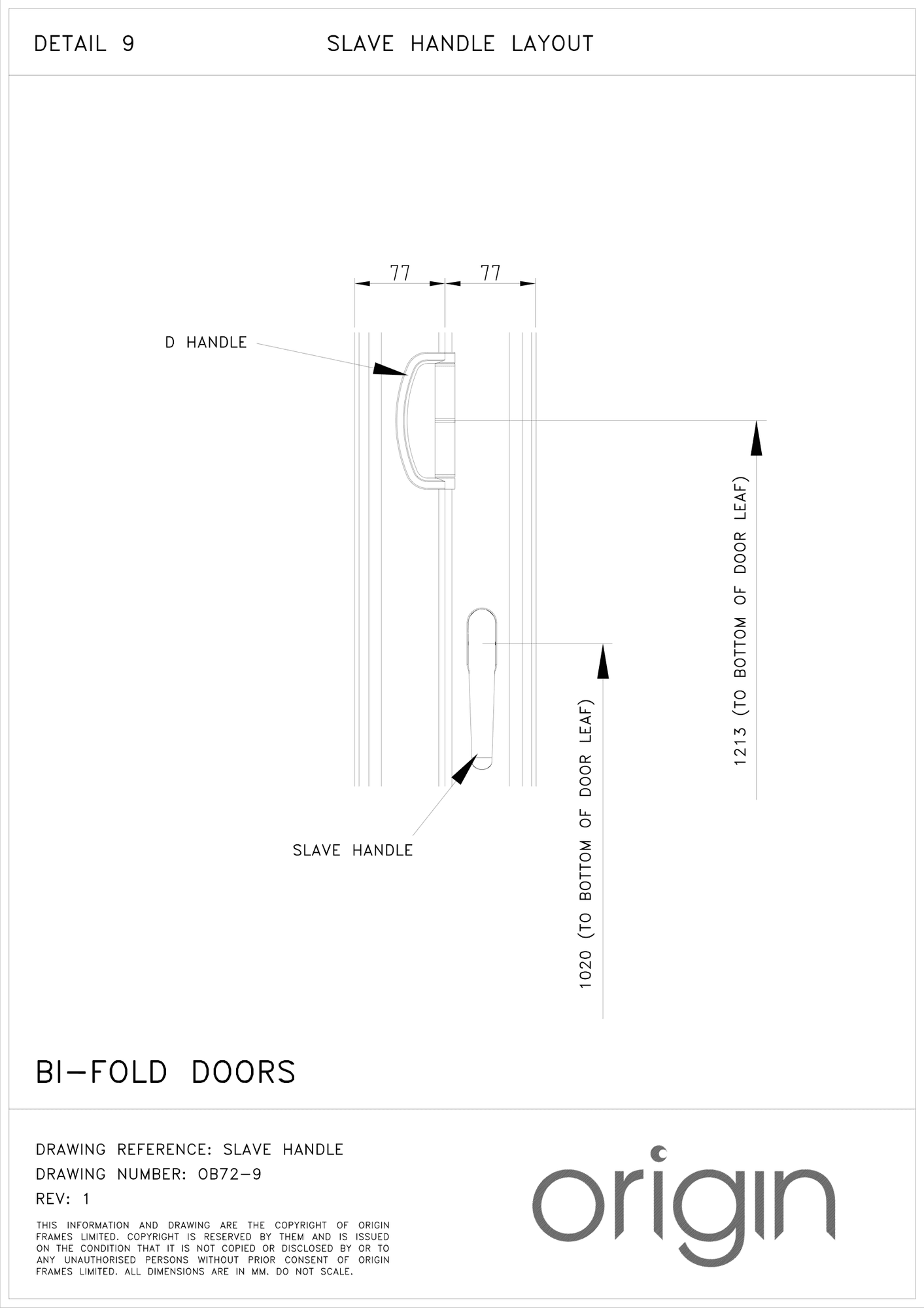

Technical Drawings | Detail 9
Slave Handle Layout

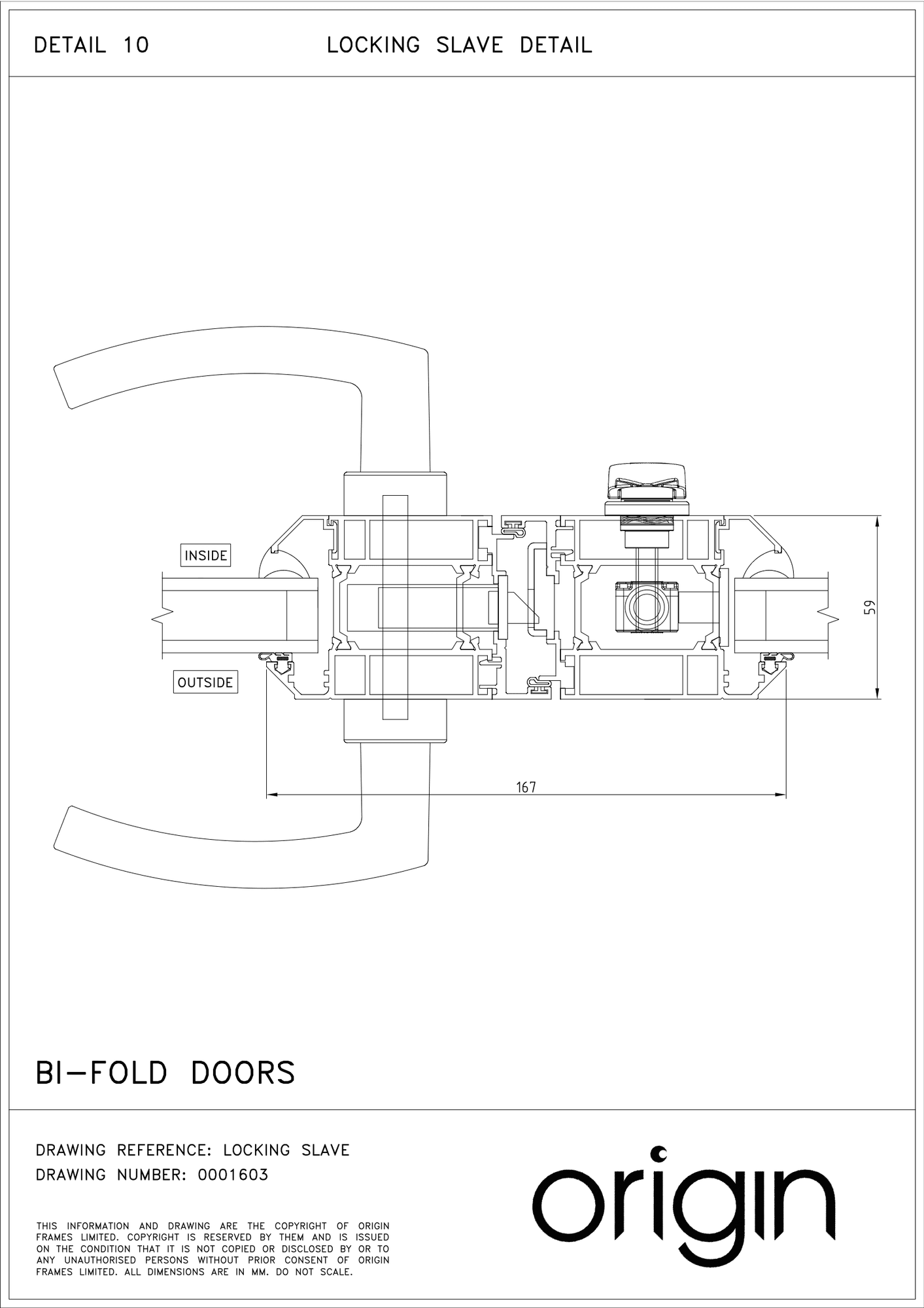

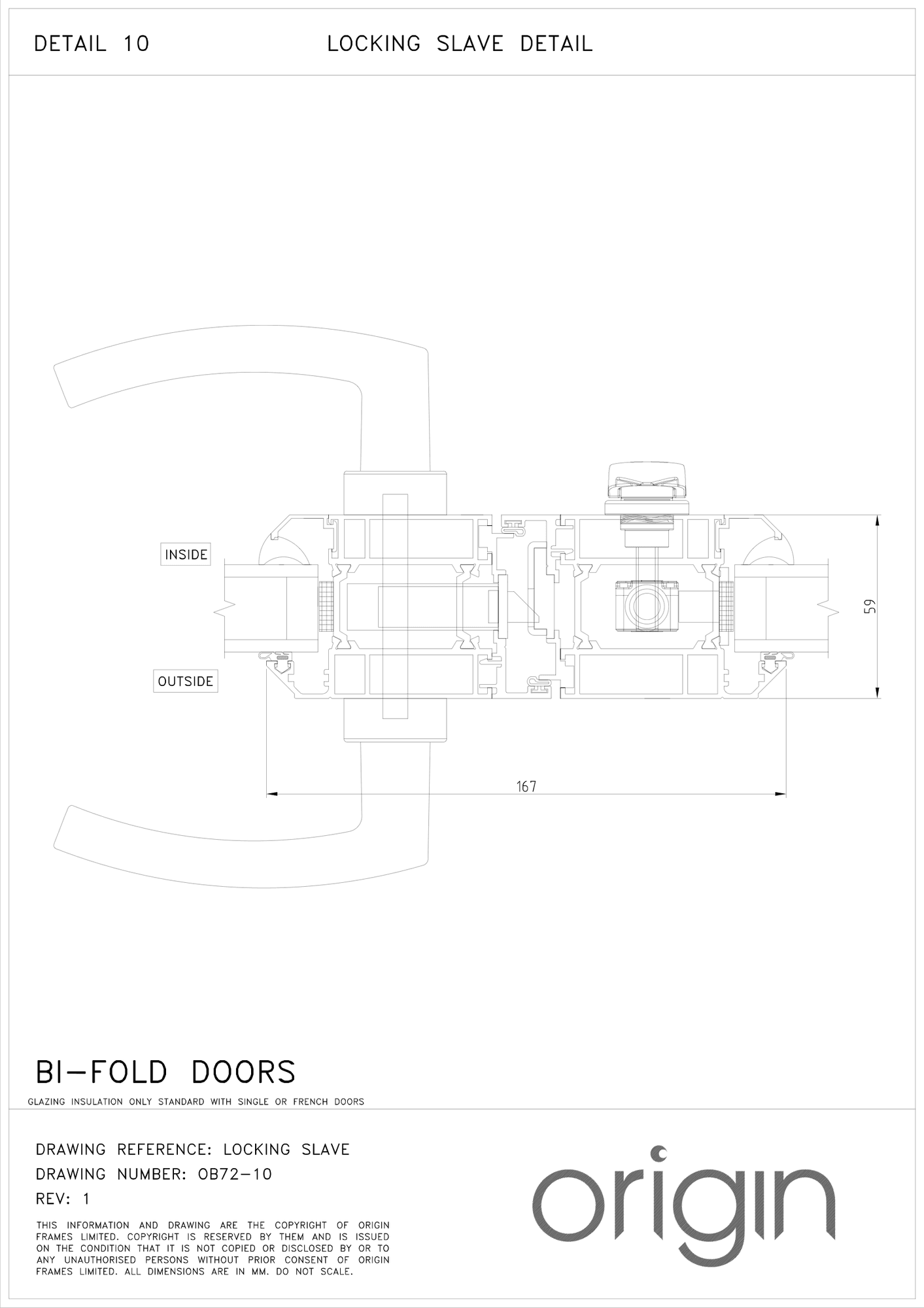

Technical Drawings | Detail 10
Locking Slave

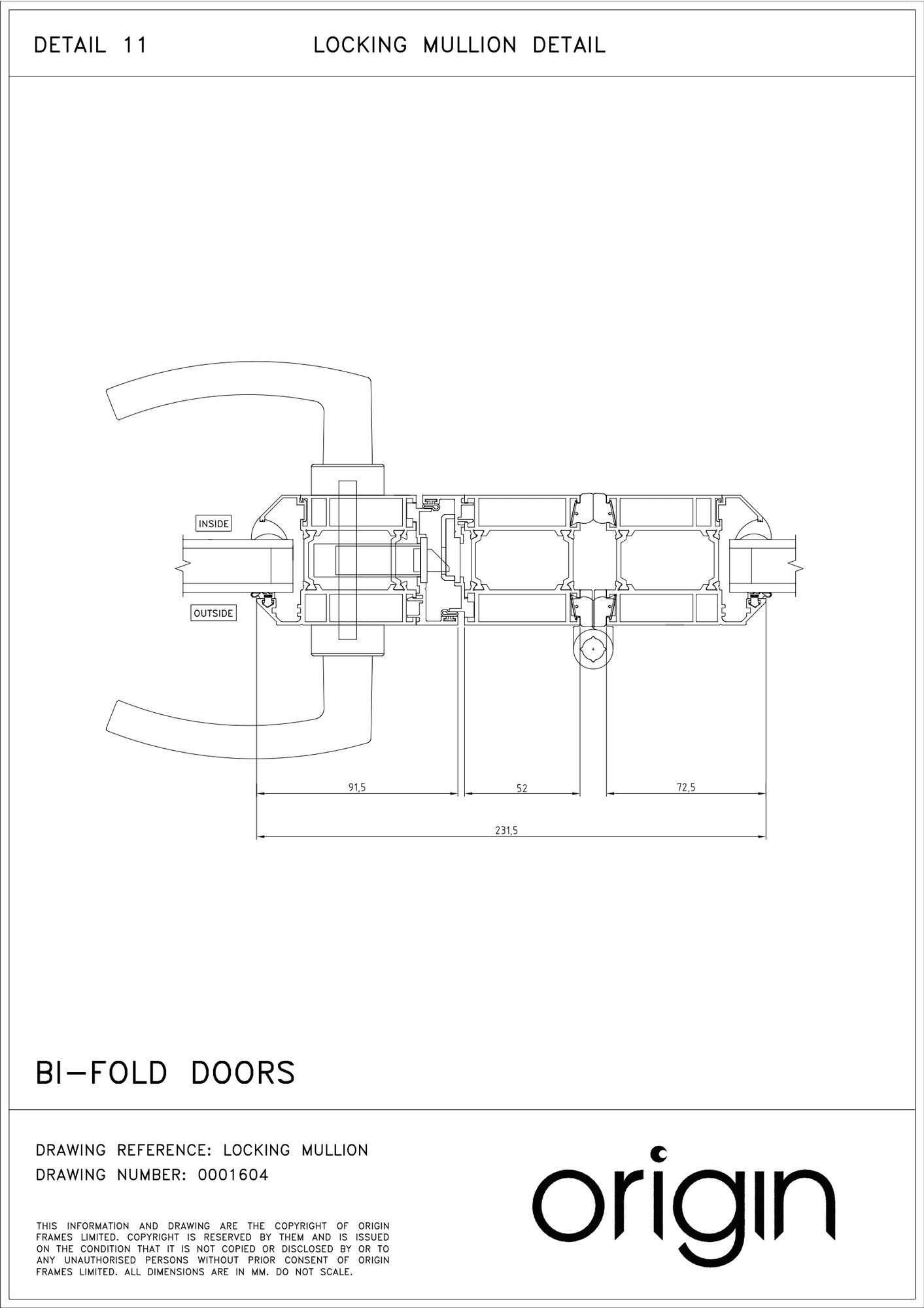

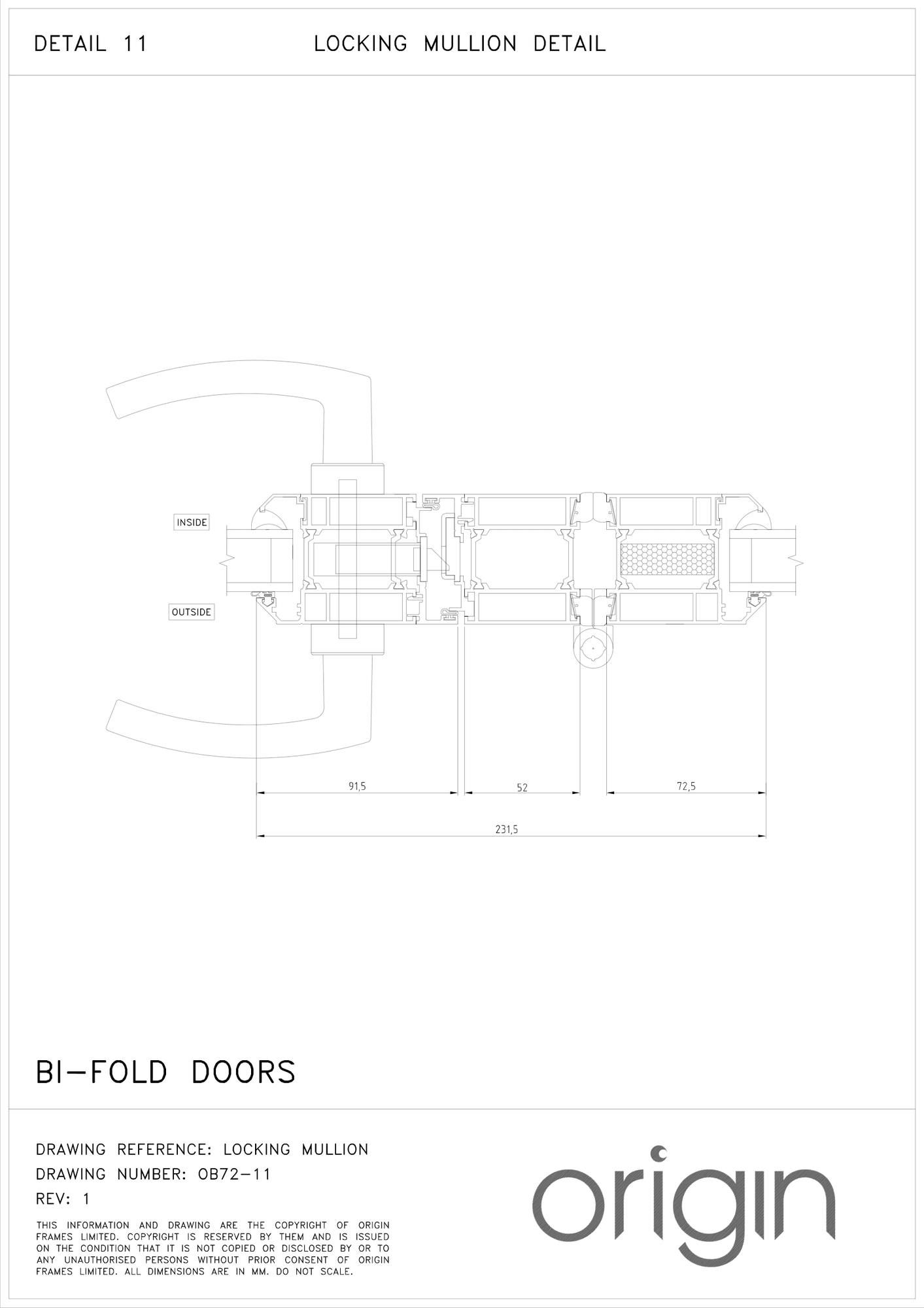

Technical Drawings | Detail 11
Locking Mullion

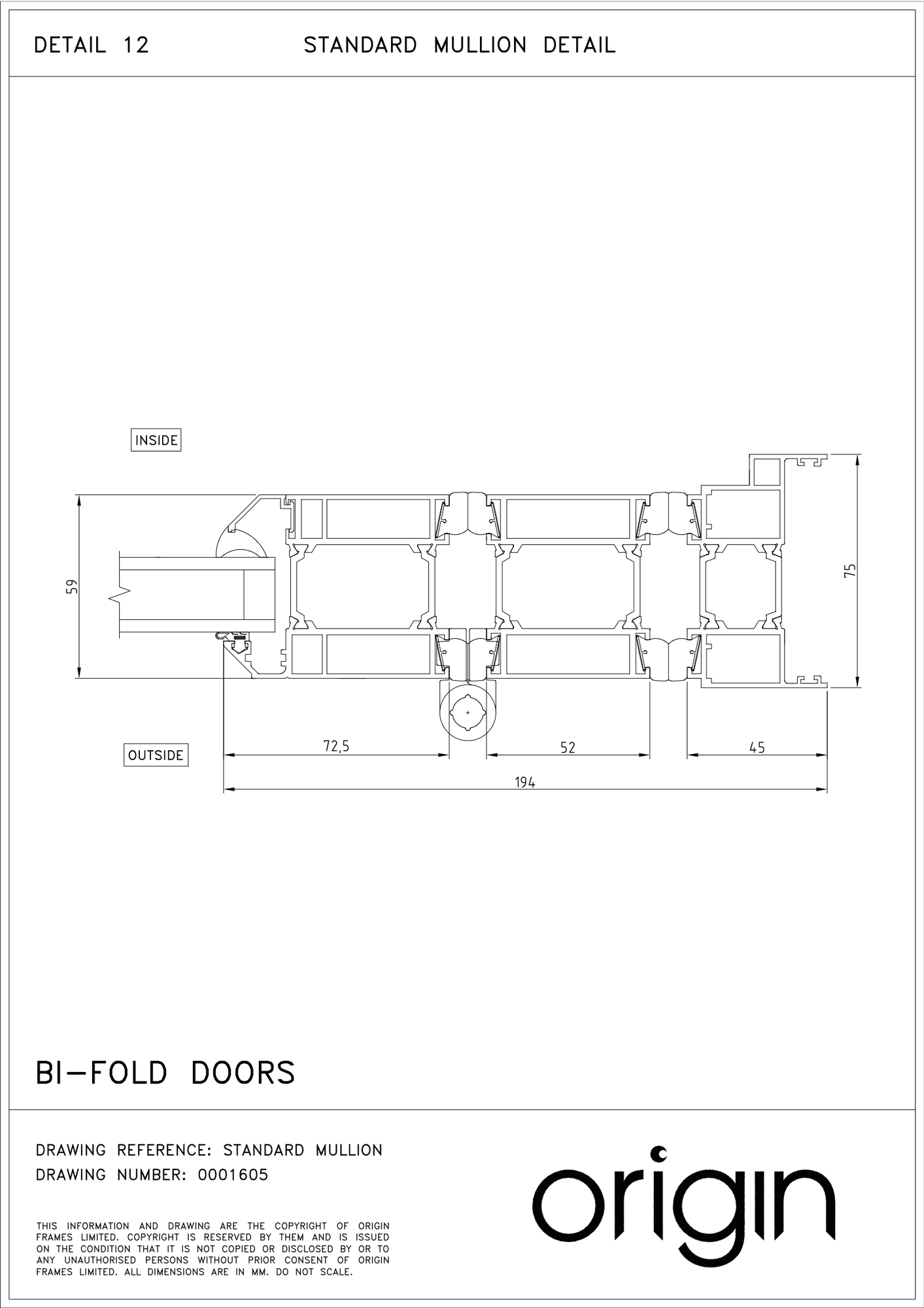

Technical Drawings | Detail 12
Standard Mullion

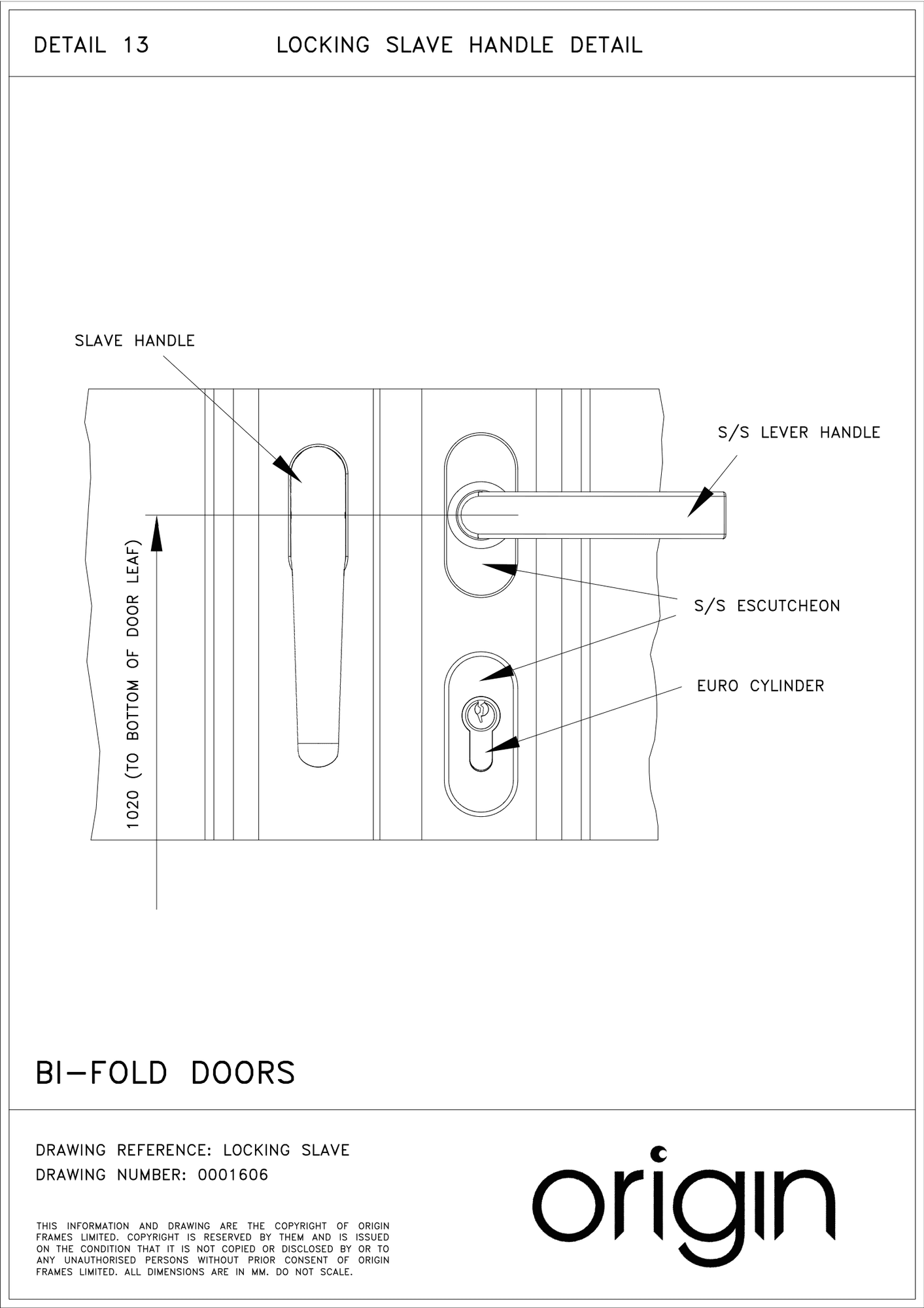

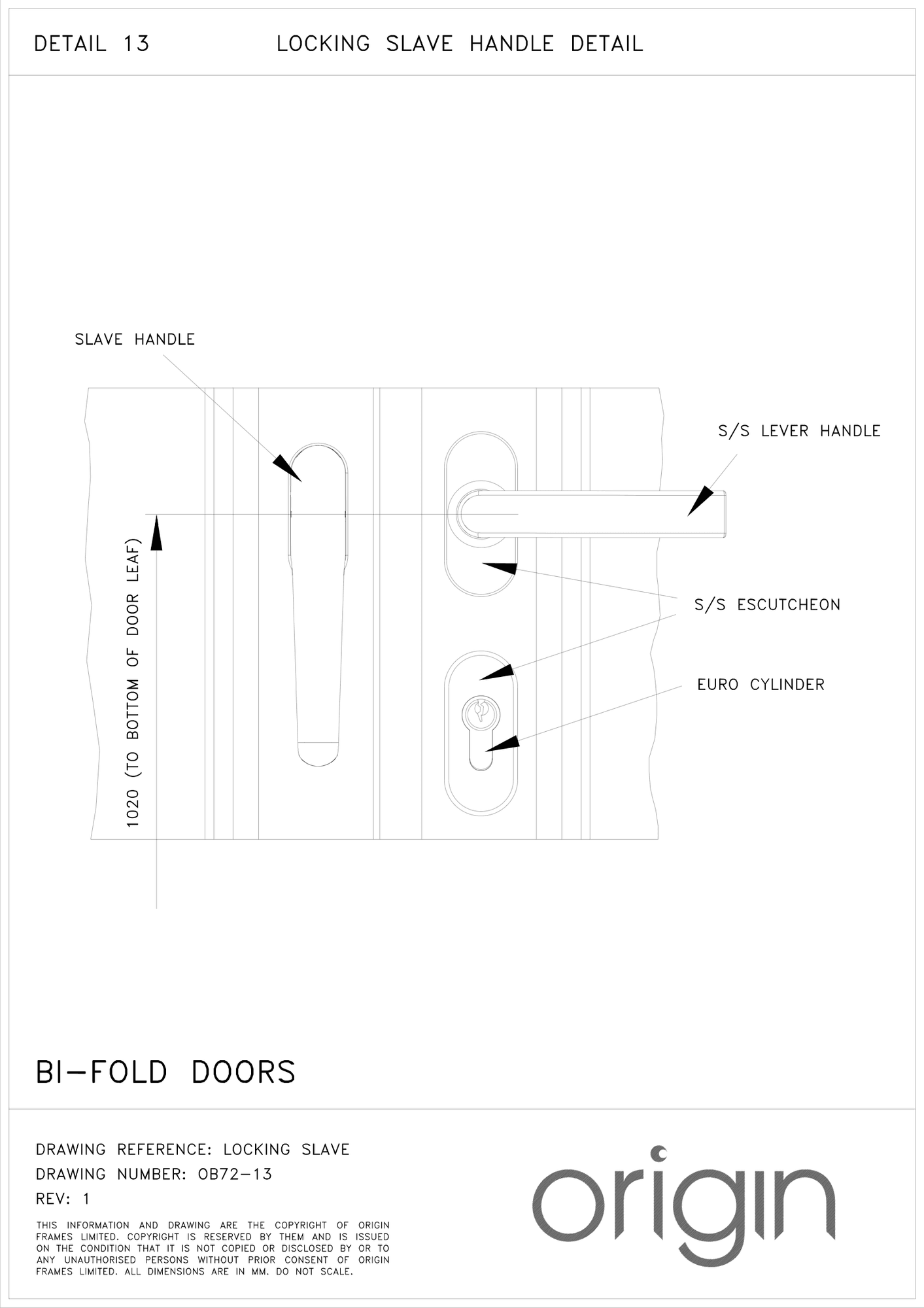

Technical Drawings | Detail 13
Locking Slave Handle
Midrail Glazing

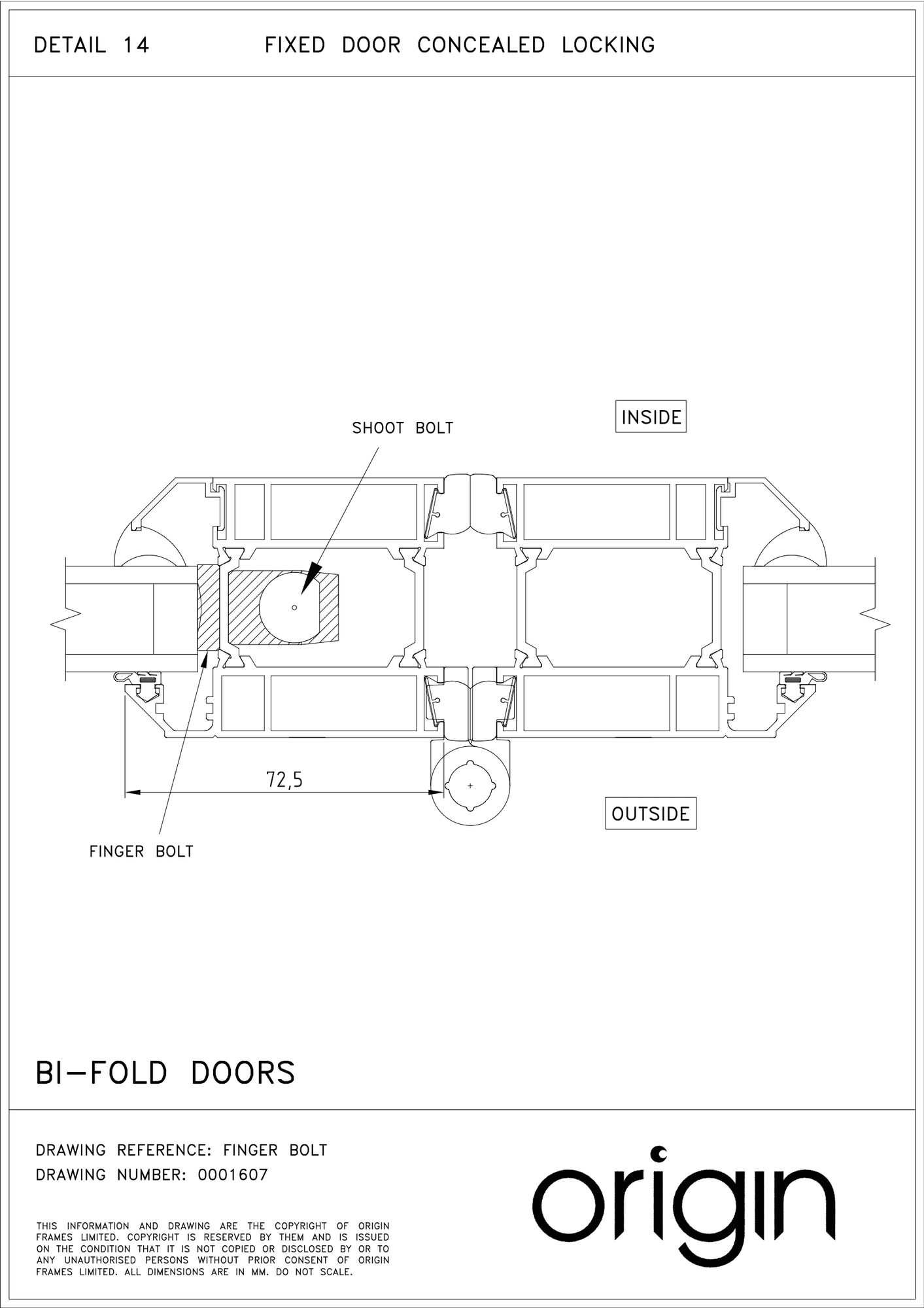

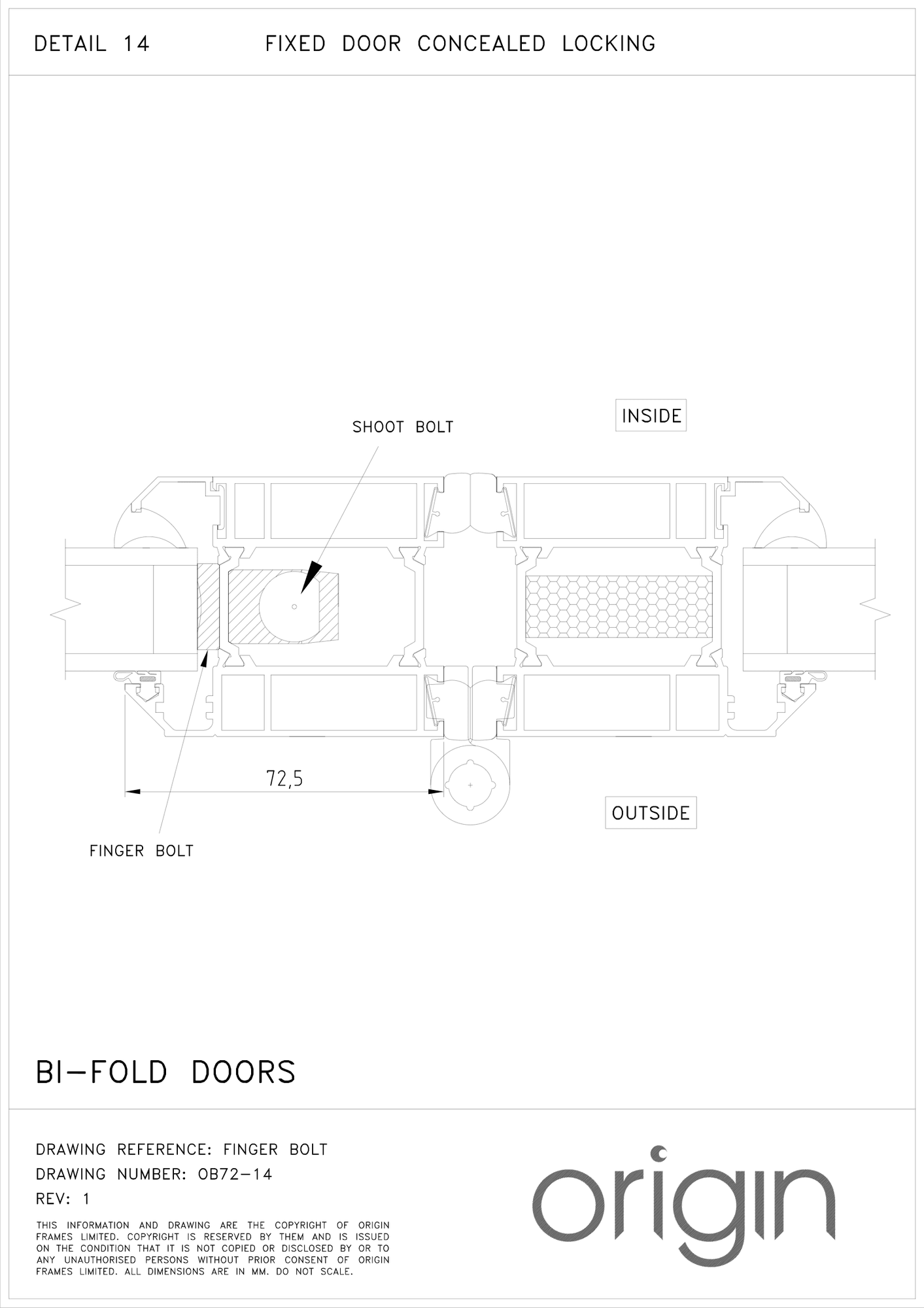

Technical Drawings | Detail 14
Fixed Door Concealed Locking
Midrail Glazing

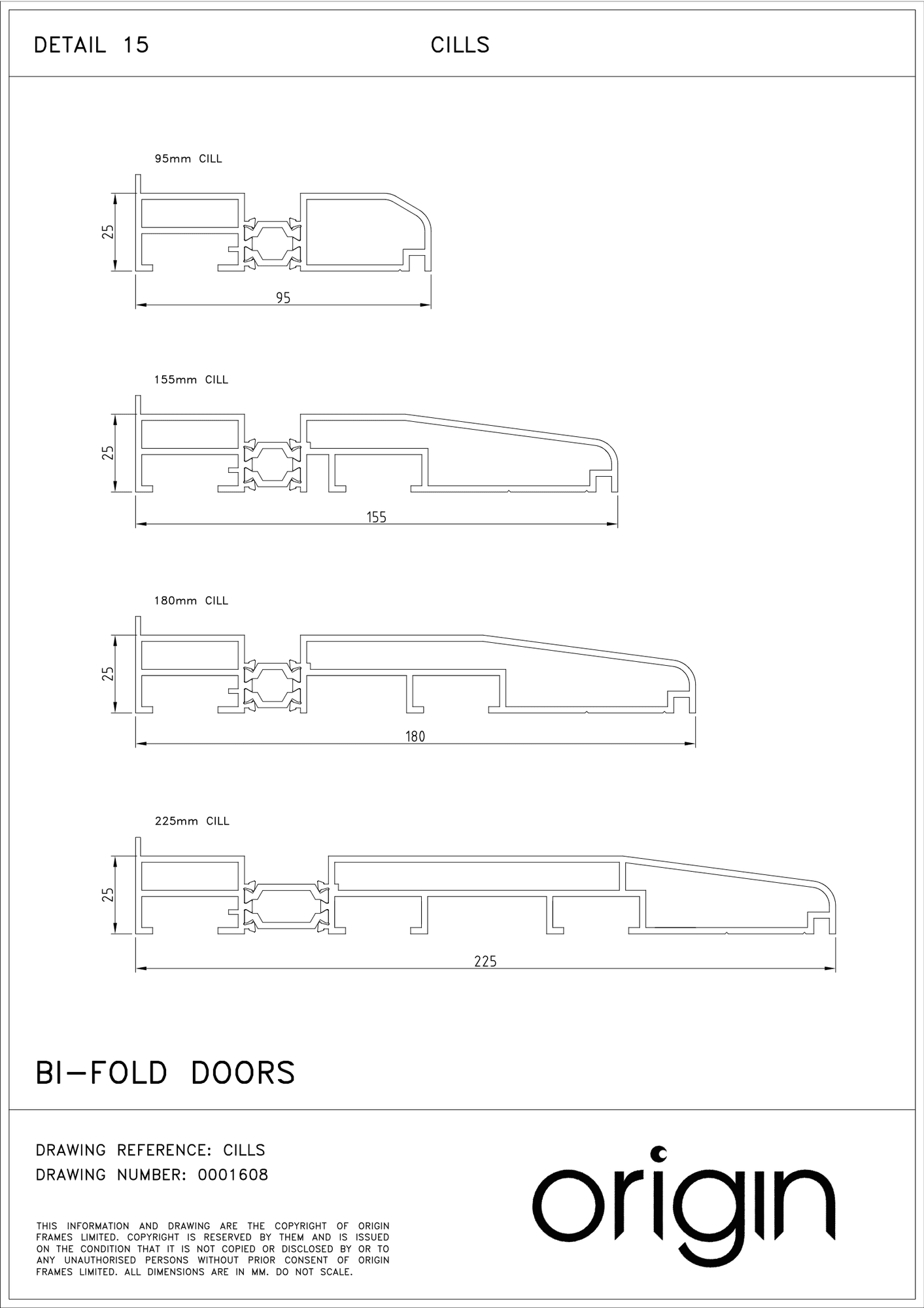

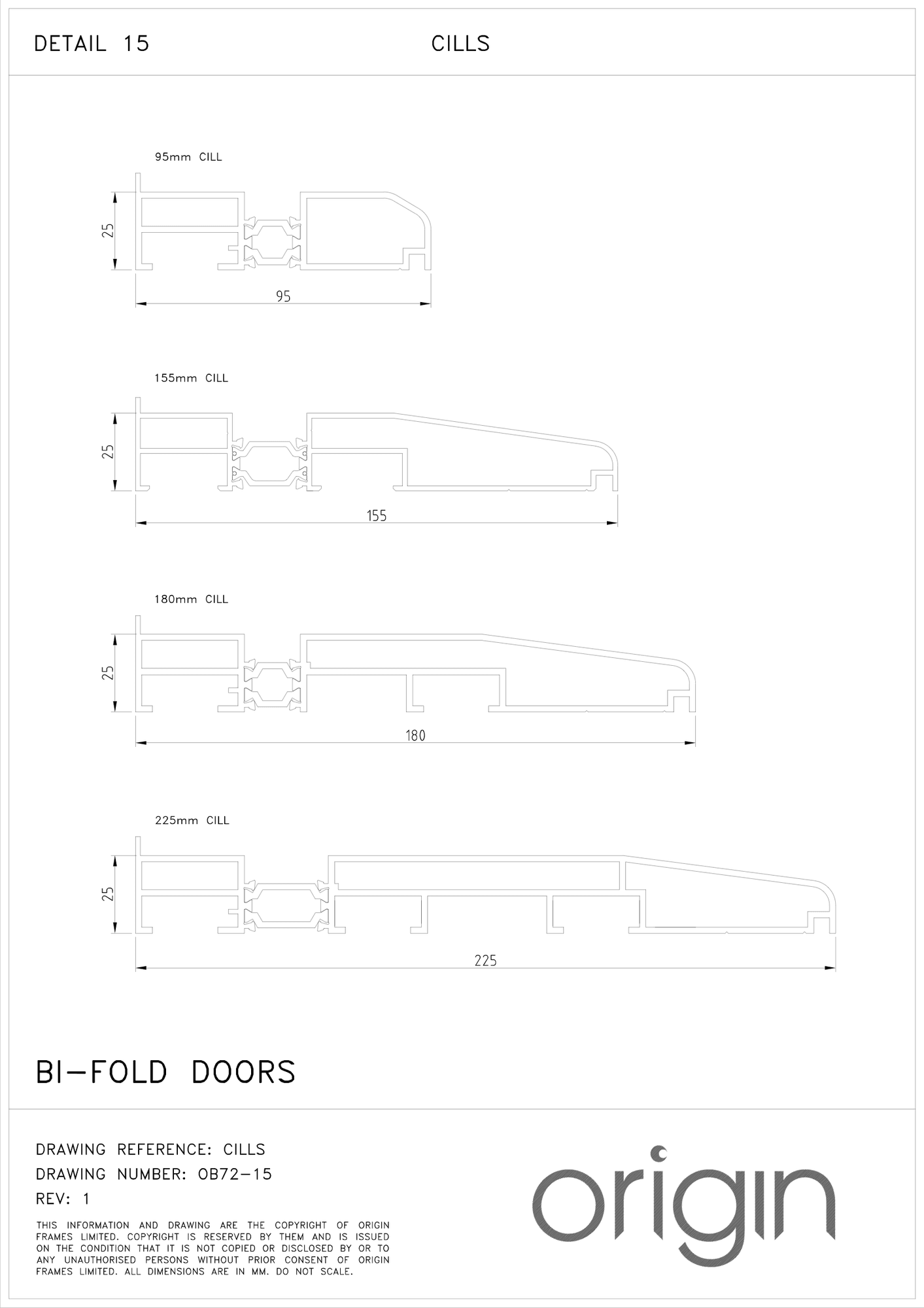

Technical Drawings | Detail 15
Cills
Midrail Glazing

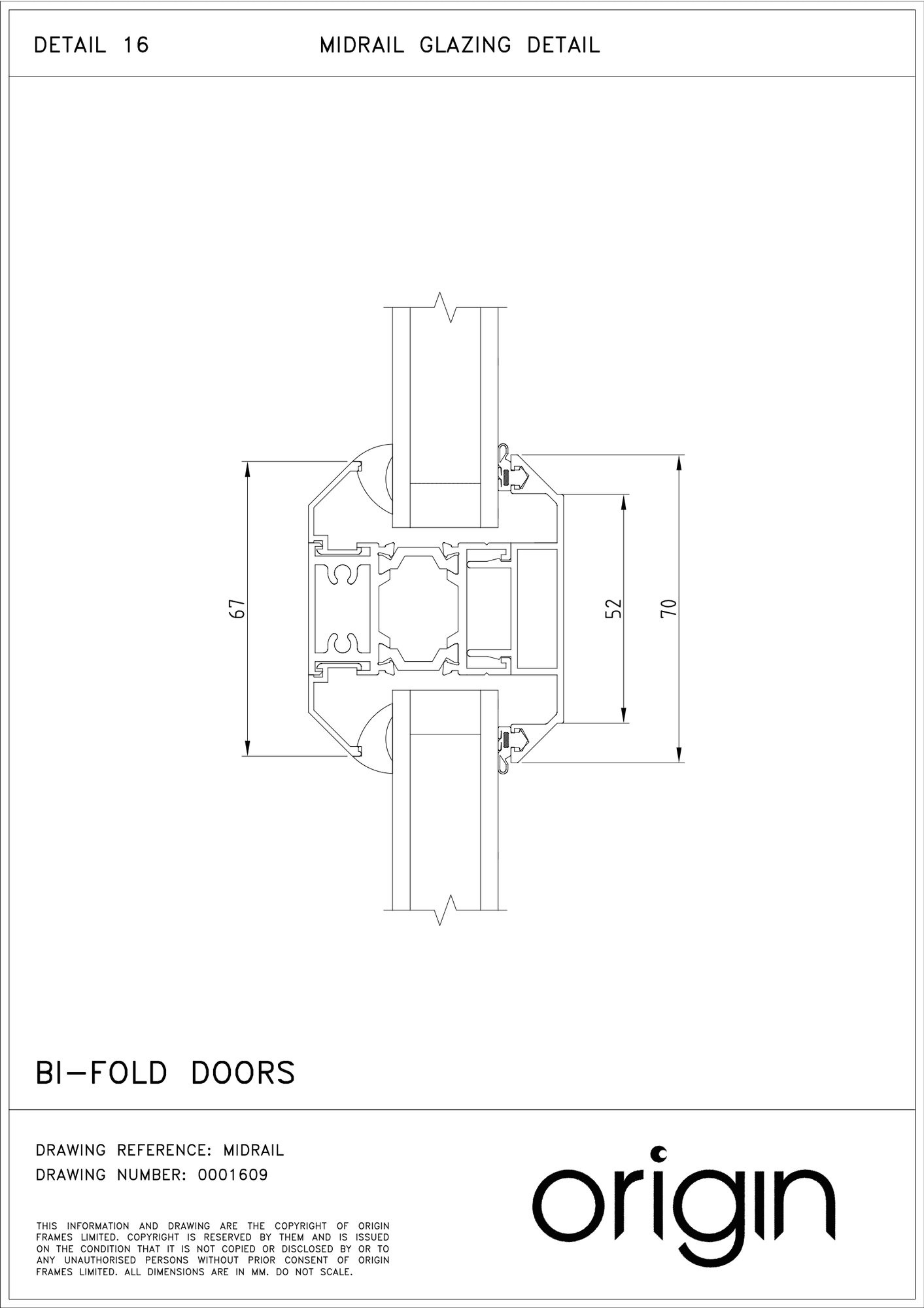

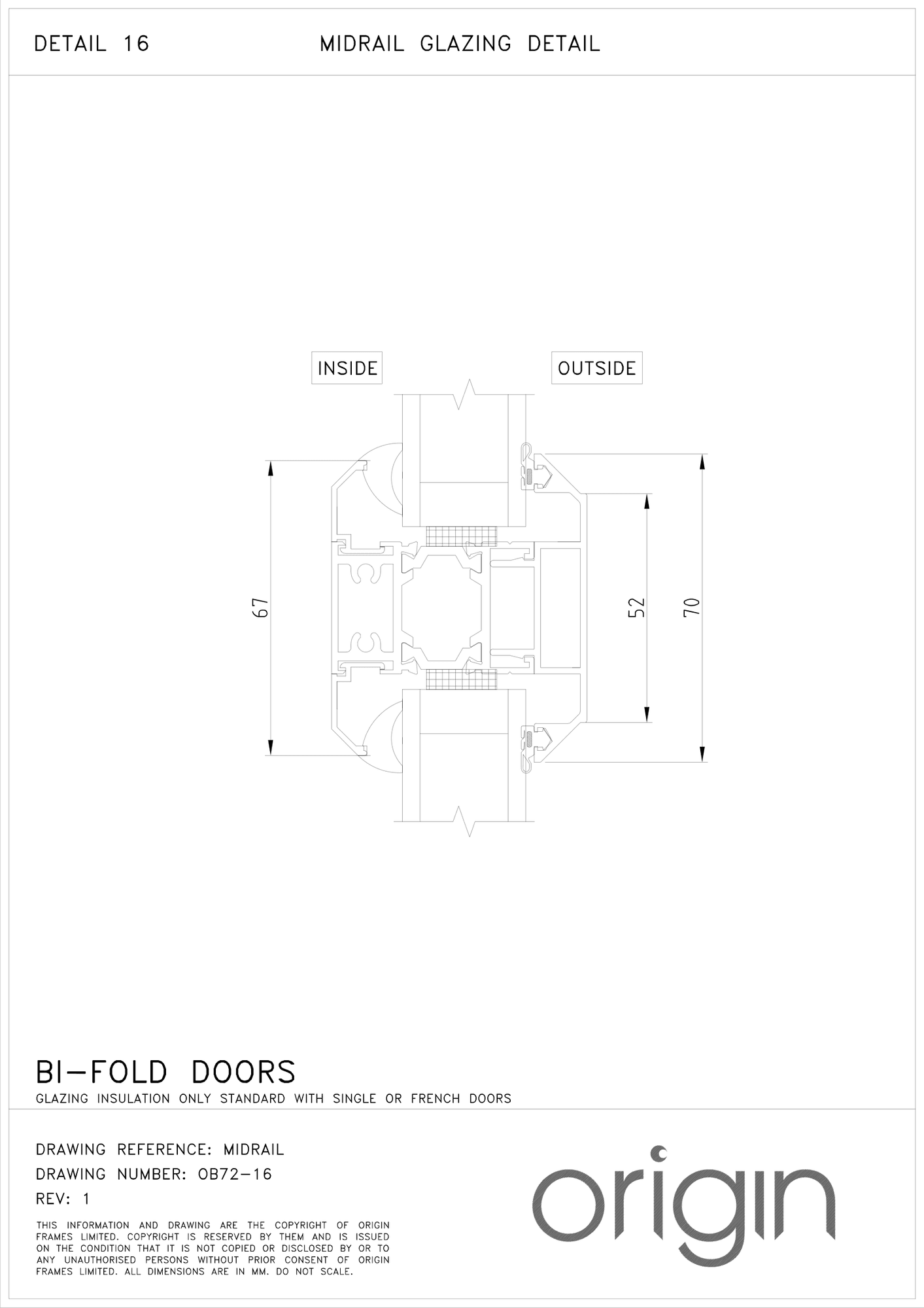

Technical Drawings | Detail 16
Midrail Glazing

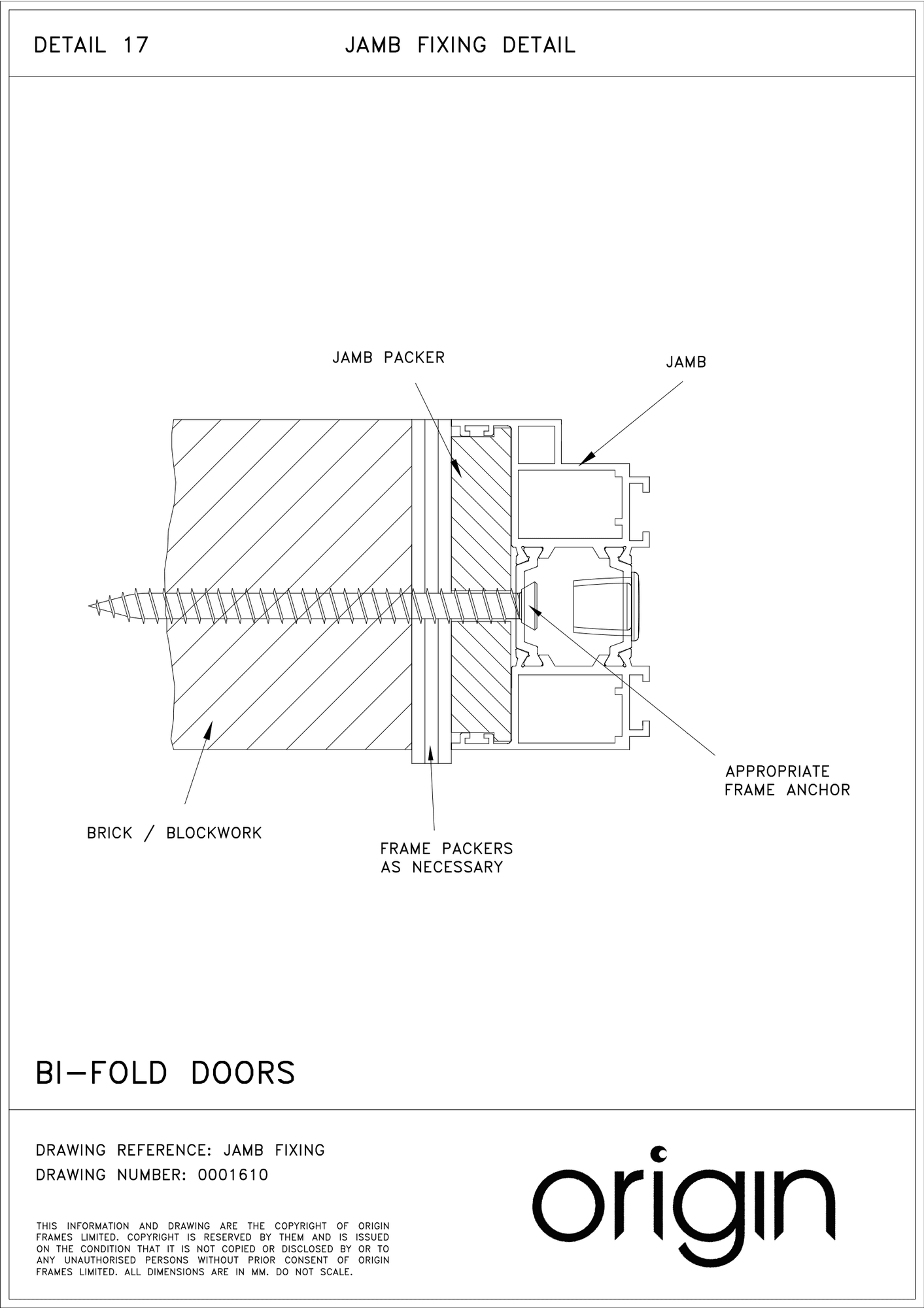

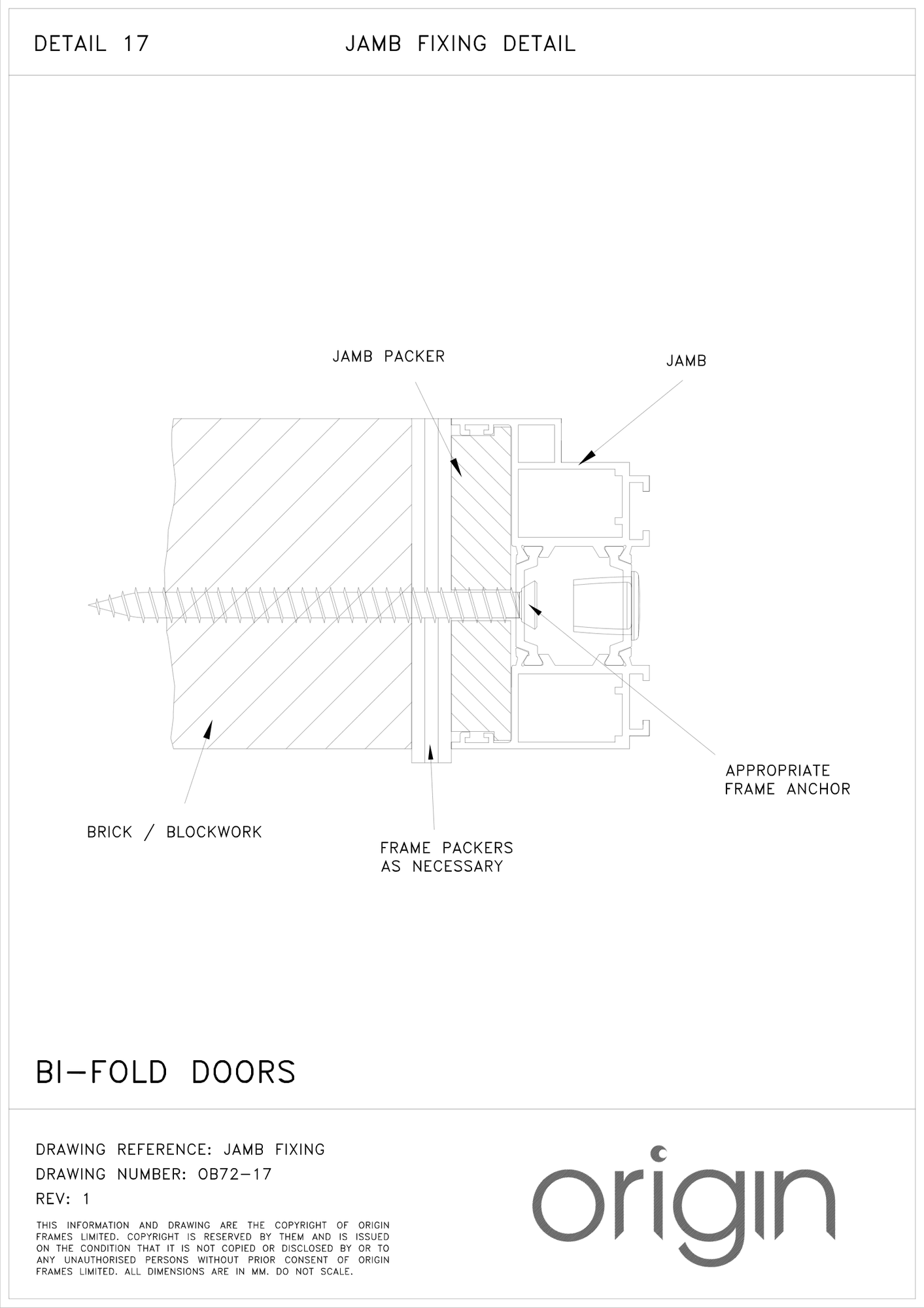

Technical Drawings | Detail 17
Jamb Fixing

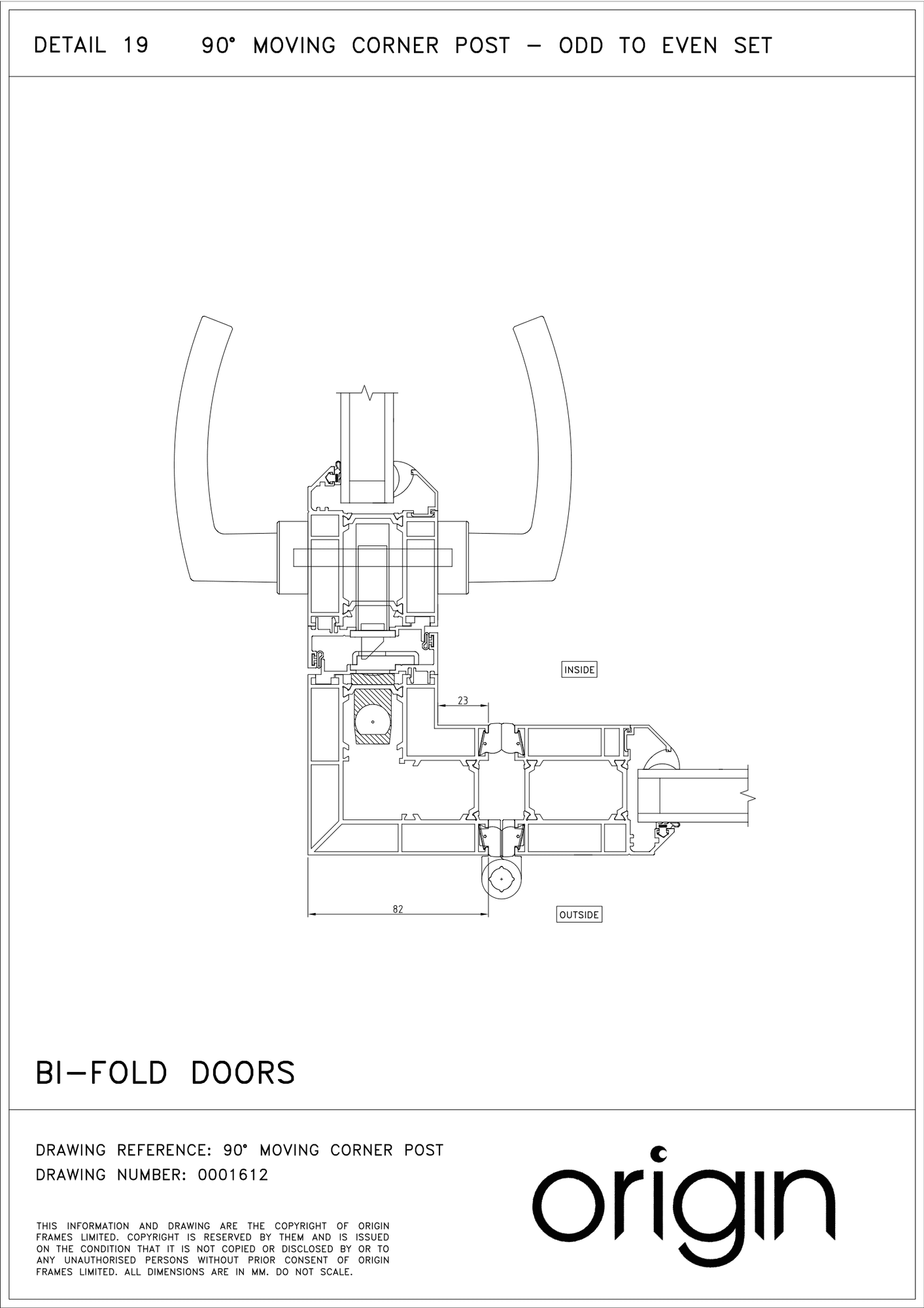

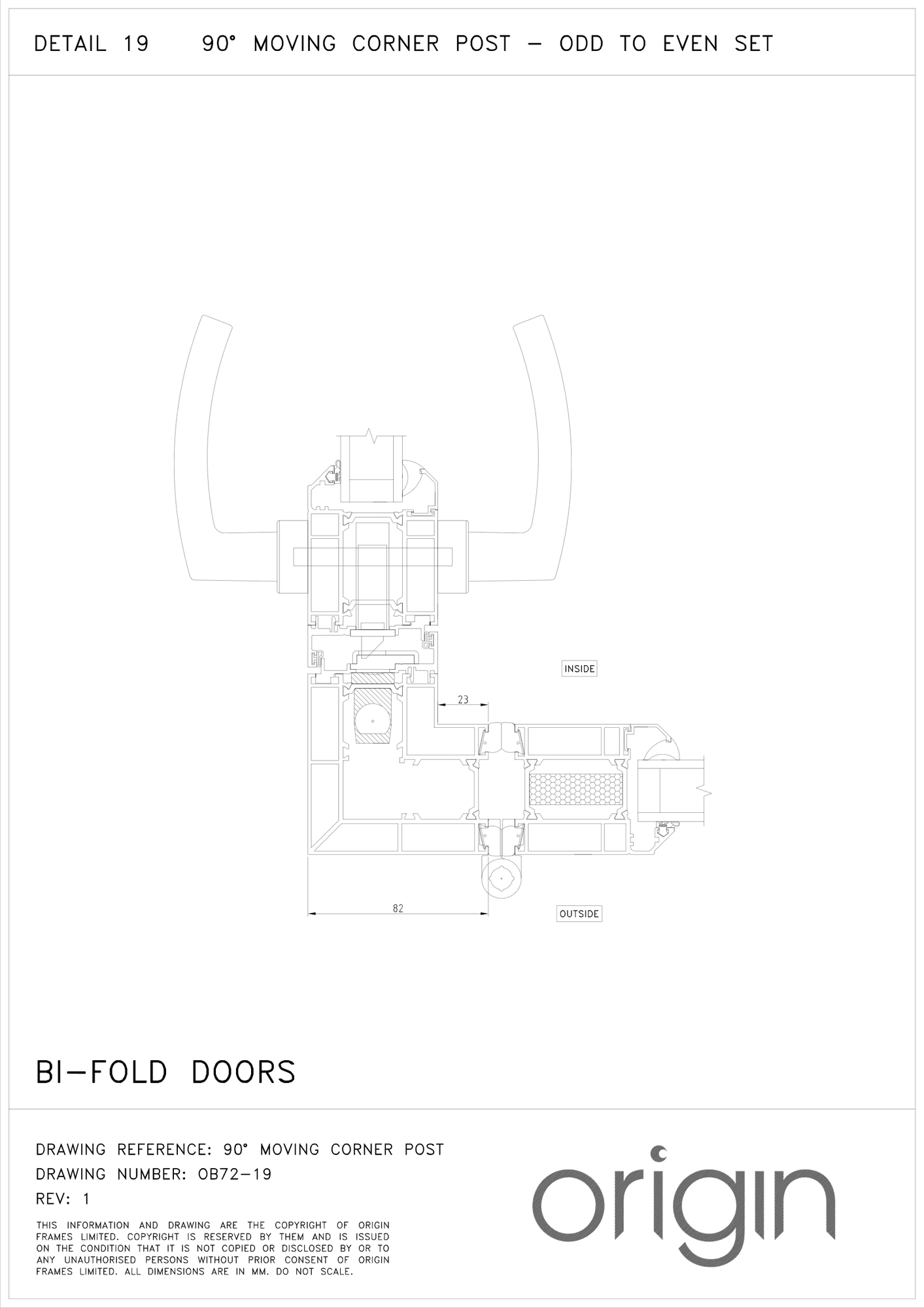

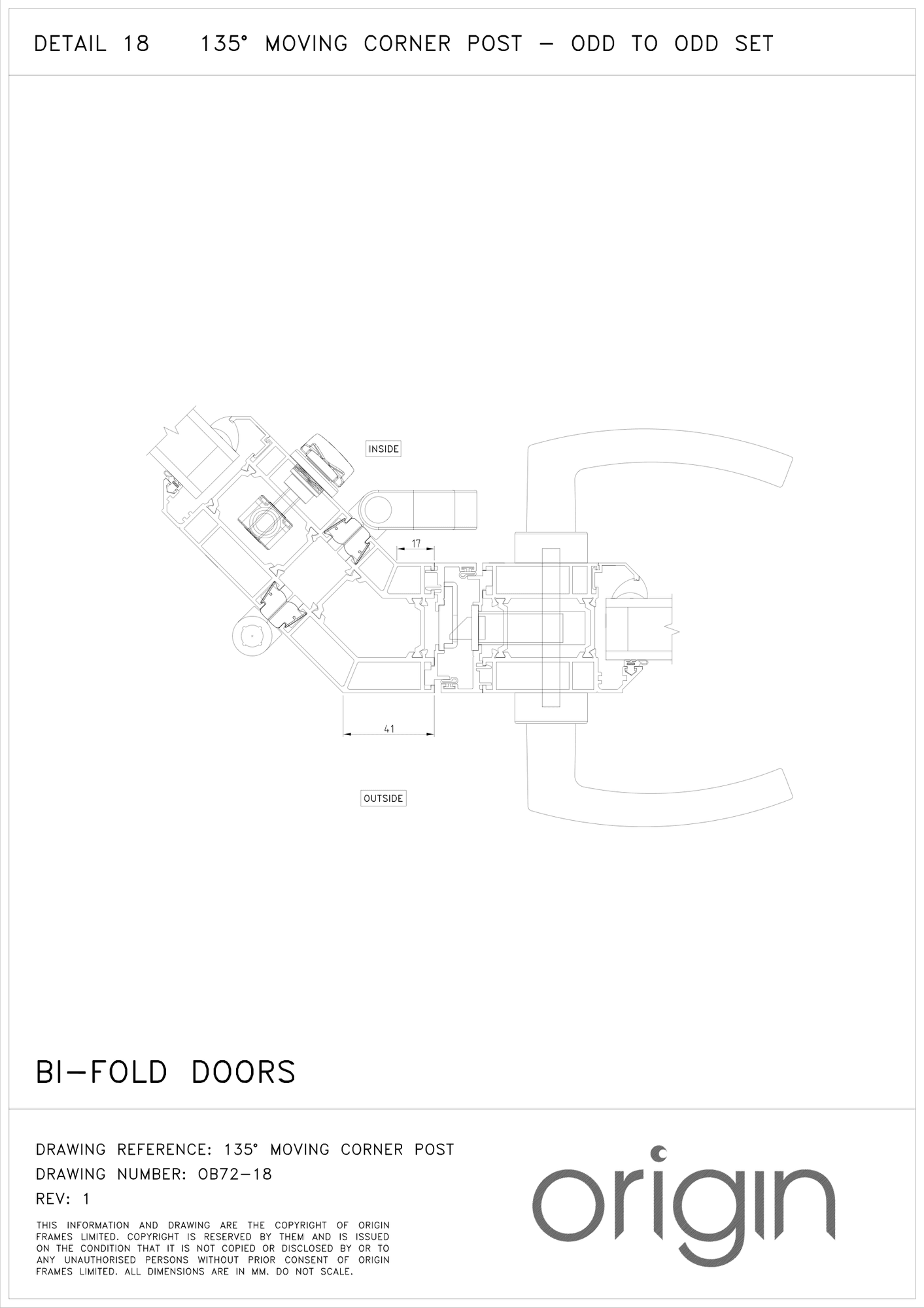

Technical Drawings | Detail 19
90° Moving Corner Post

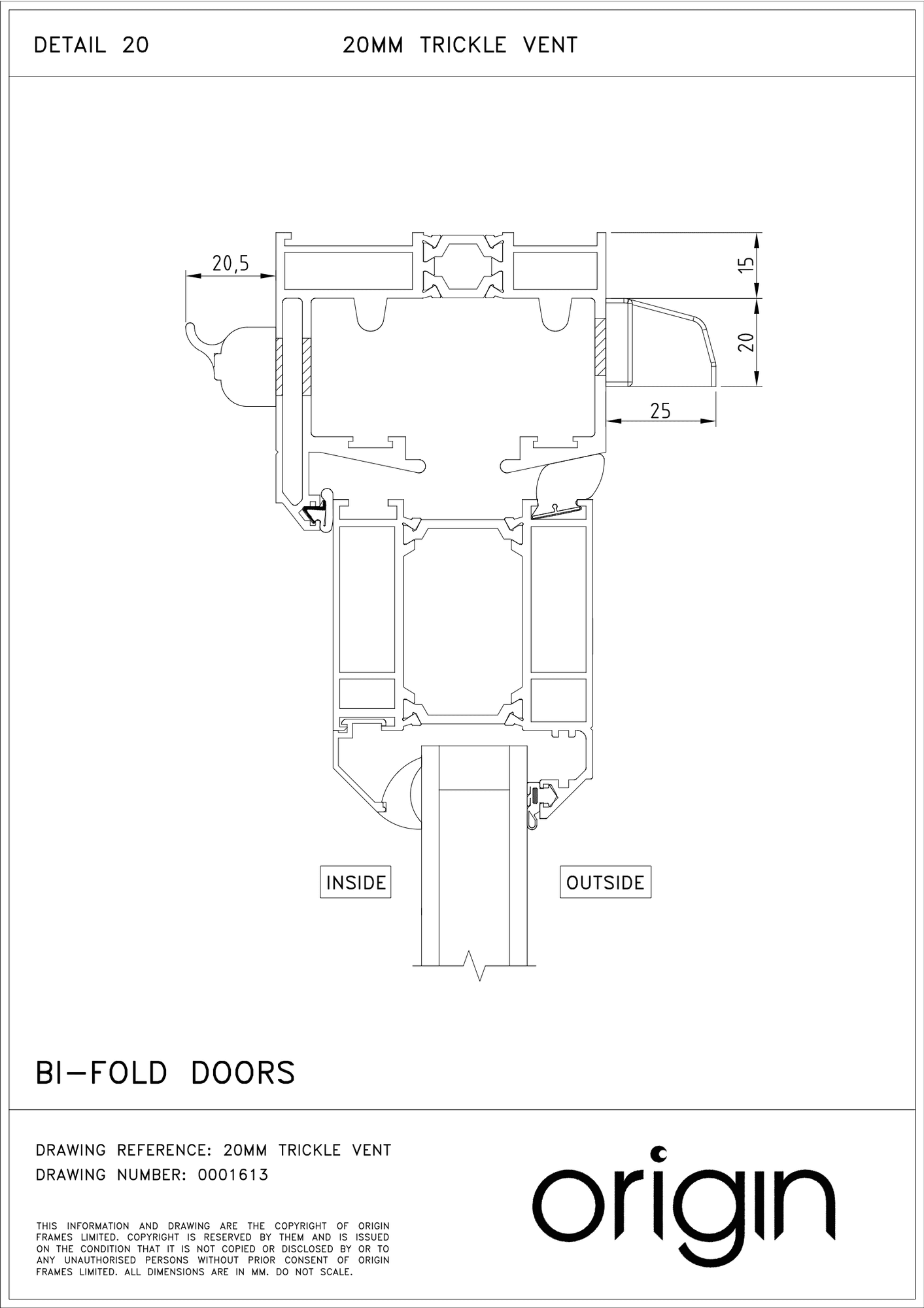

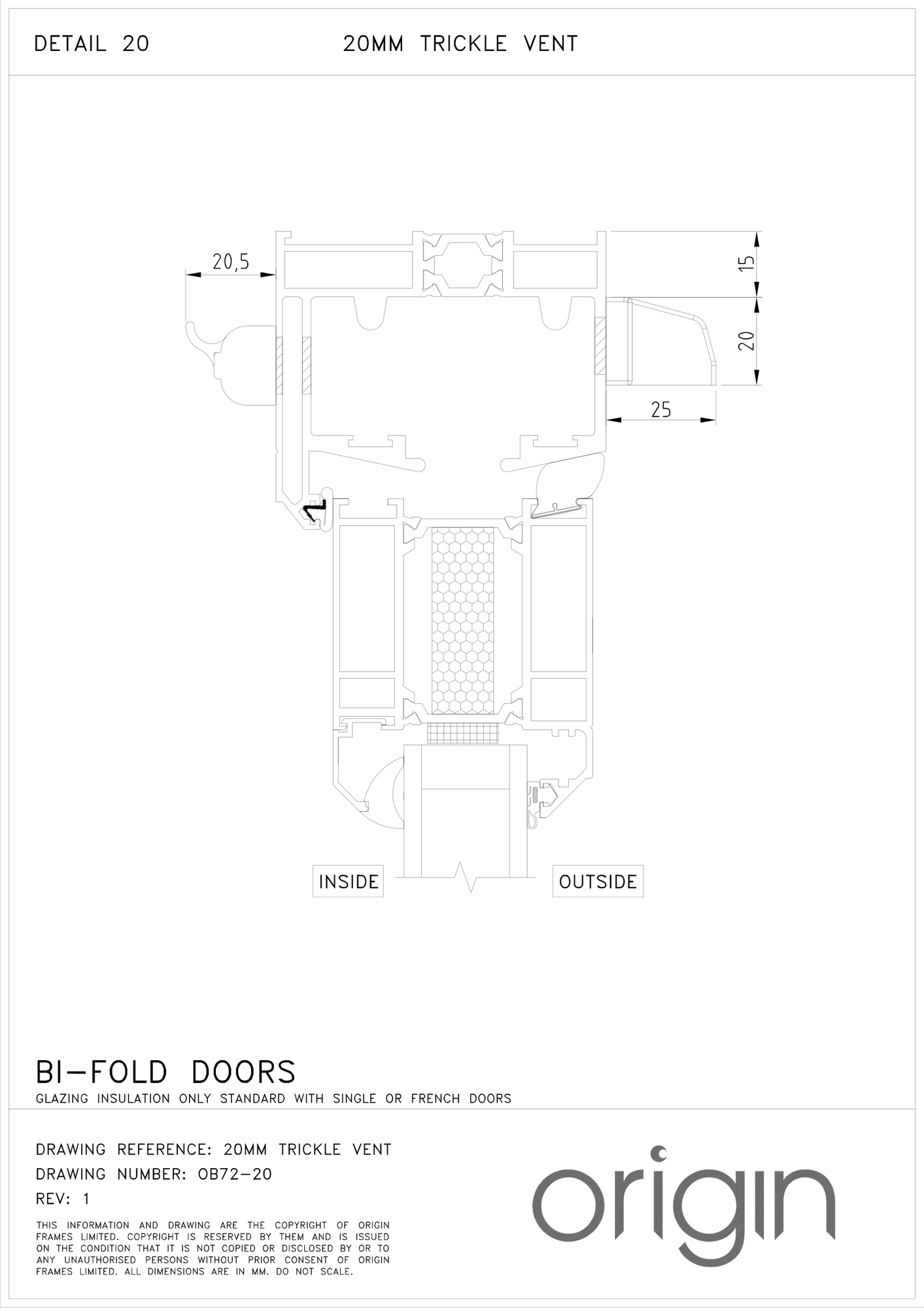

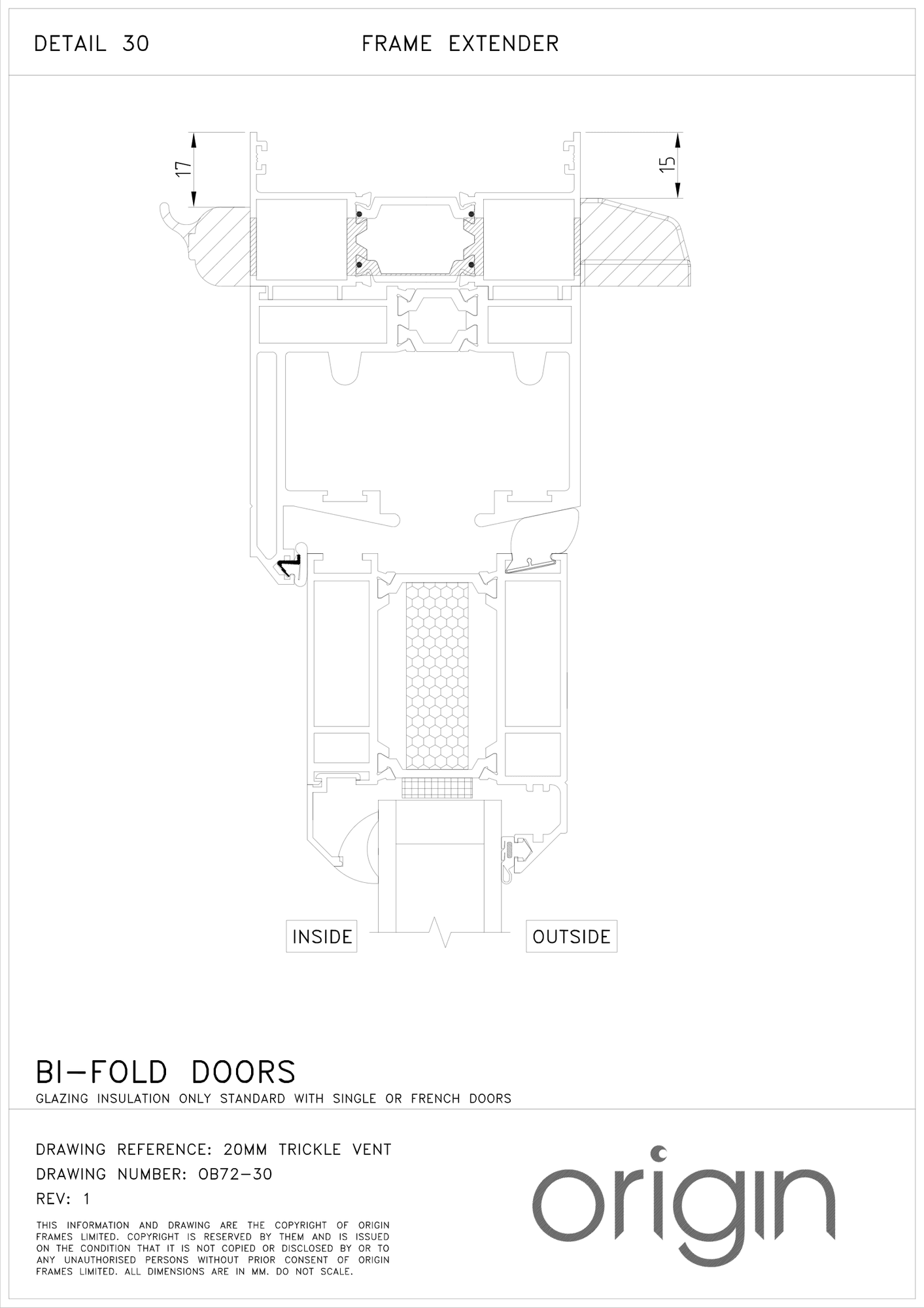

Technical Drawings | Detail 20
20mm Trickle Vent

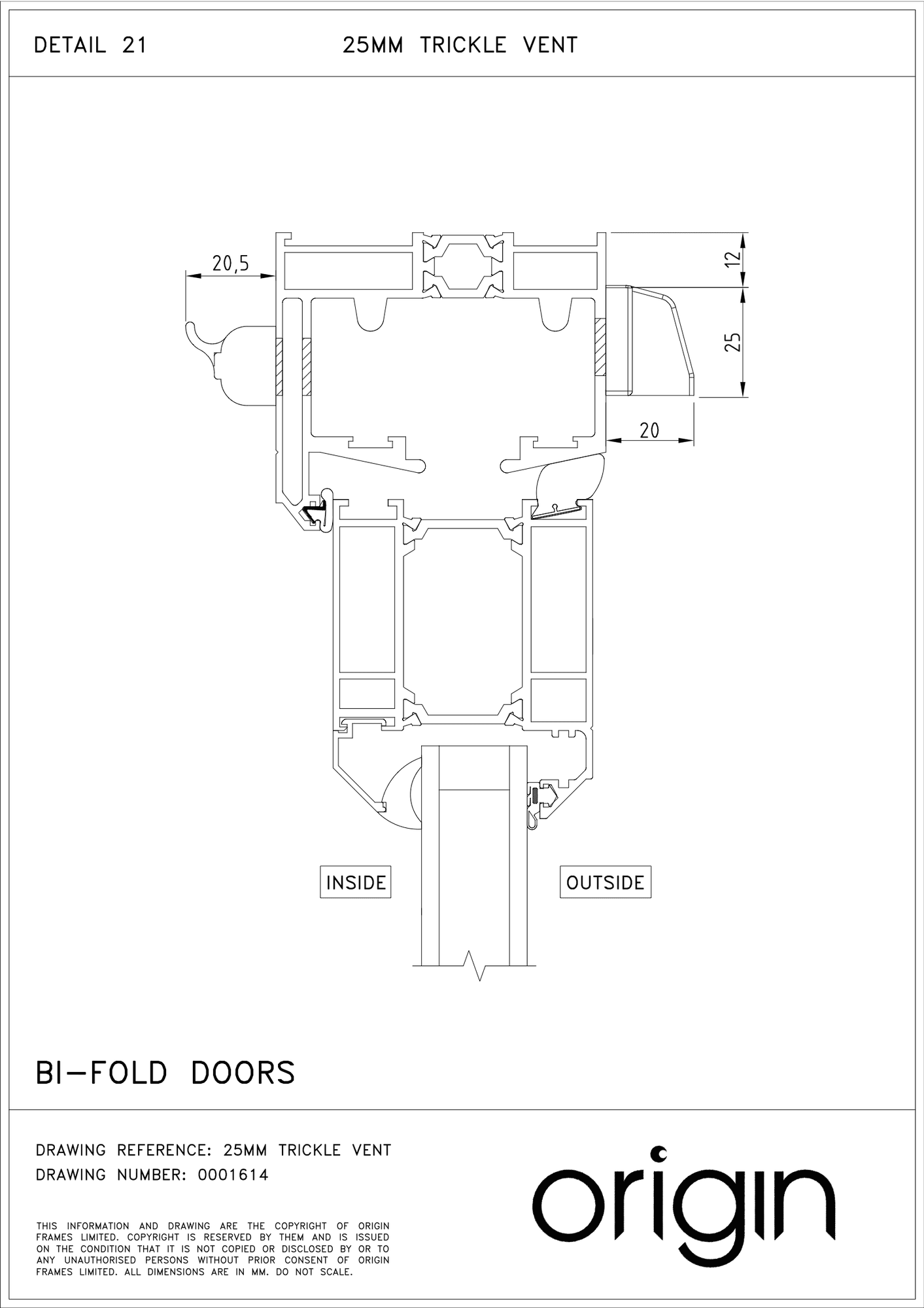

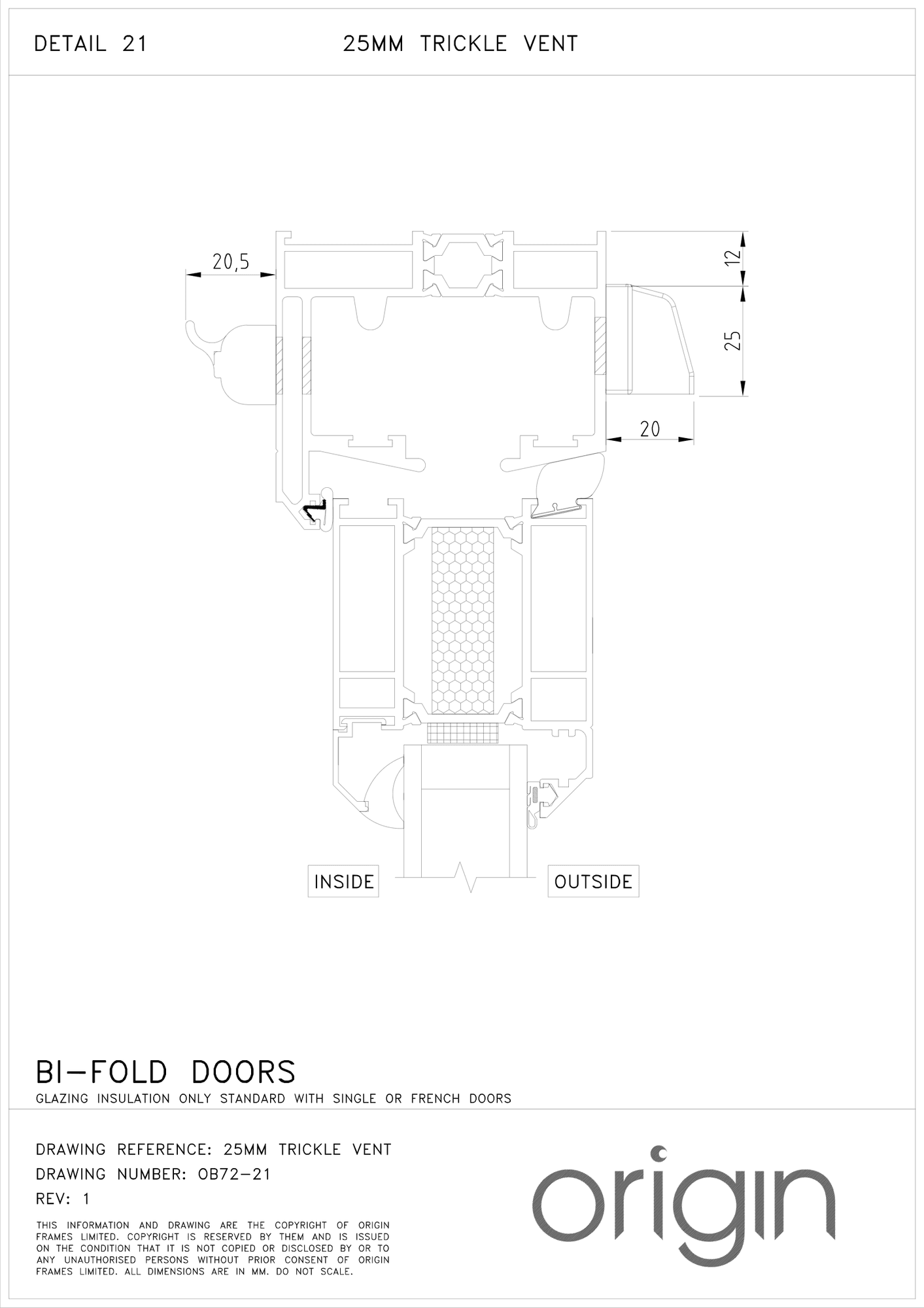

Technical Drawings | Detail 21
25mm Trickle Vent

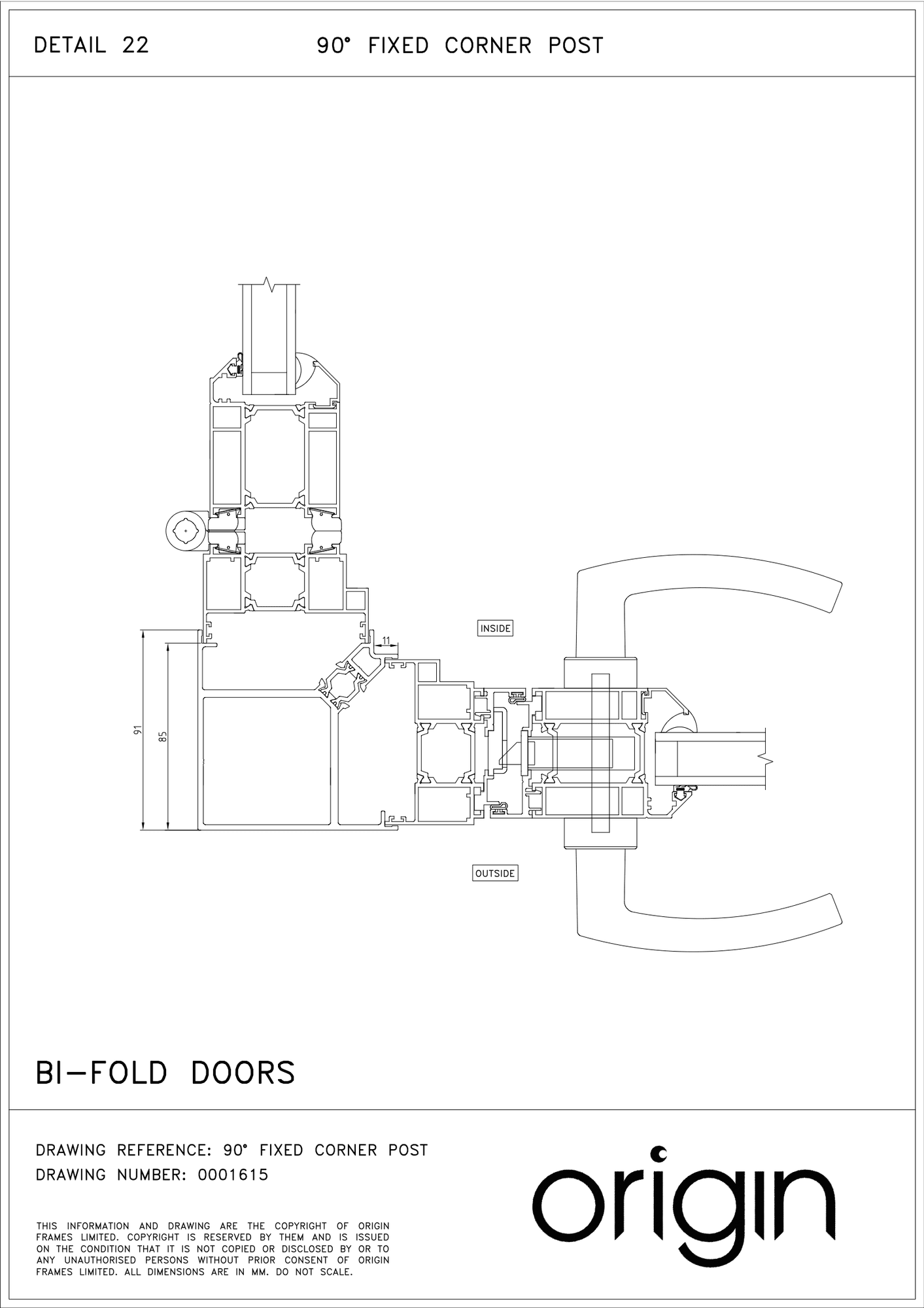

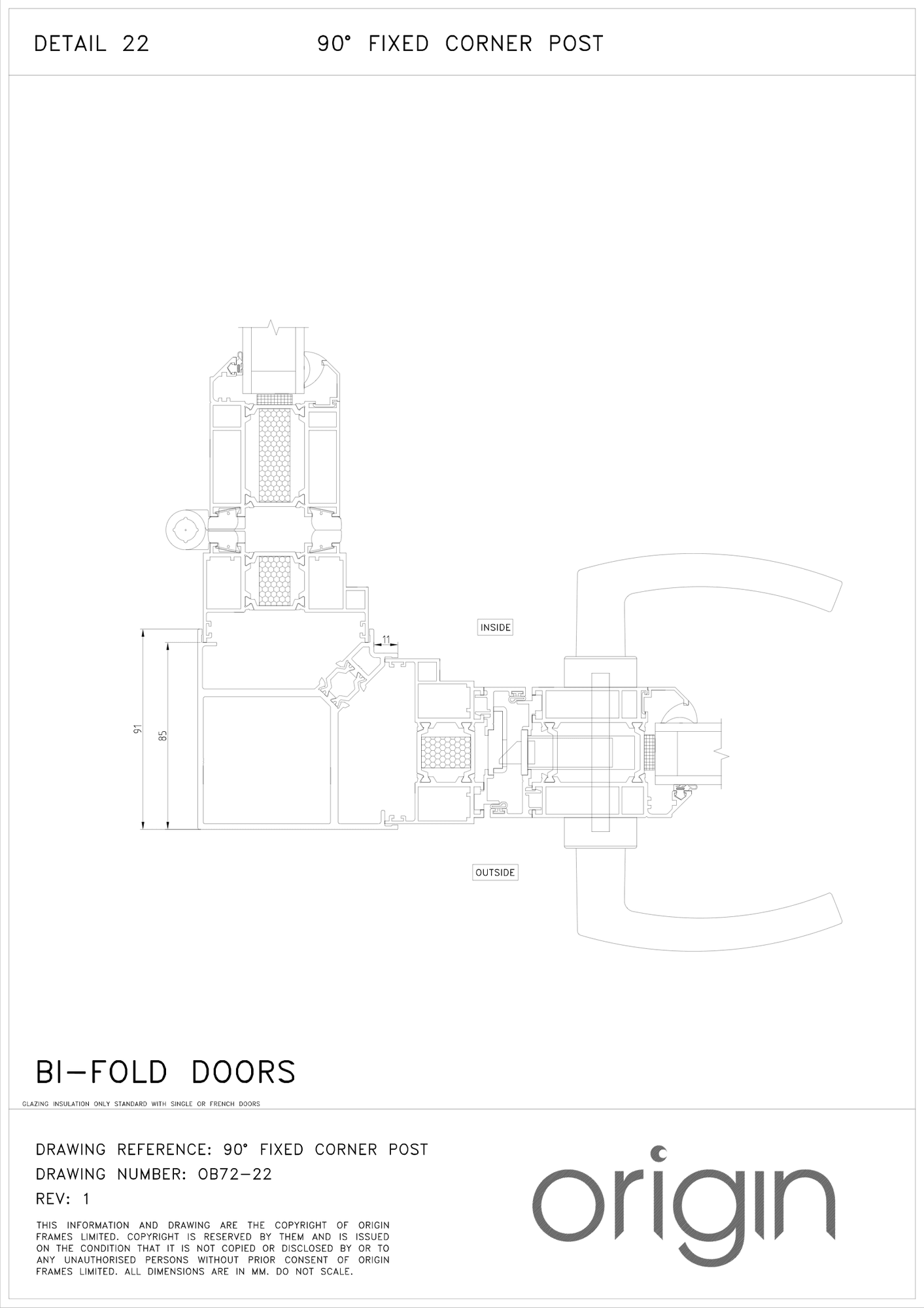

Technical Drawings | Detail 22
90° Fixed Corner Post

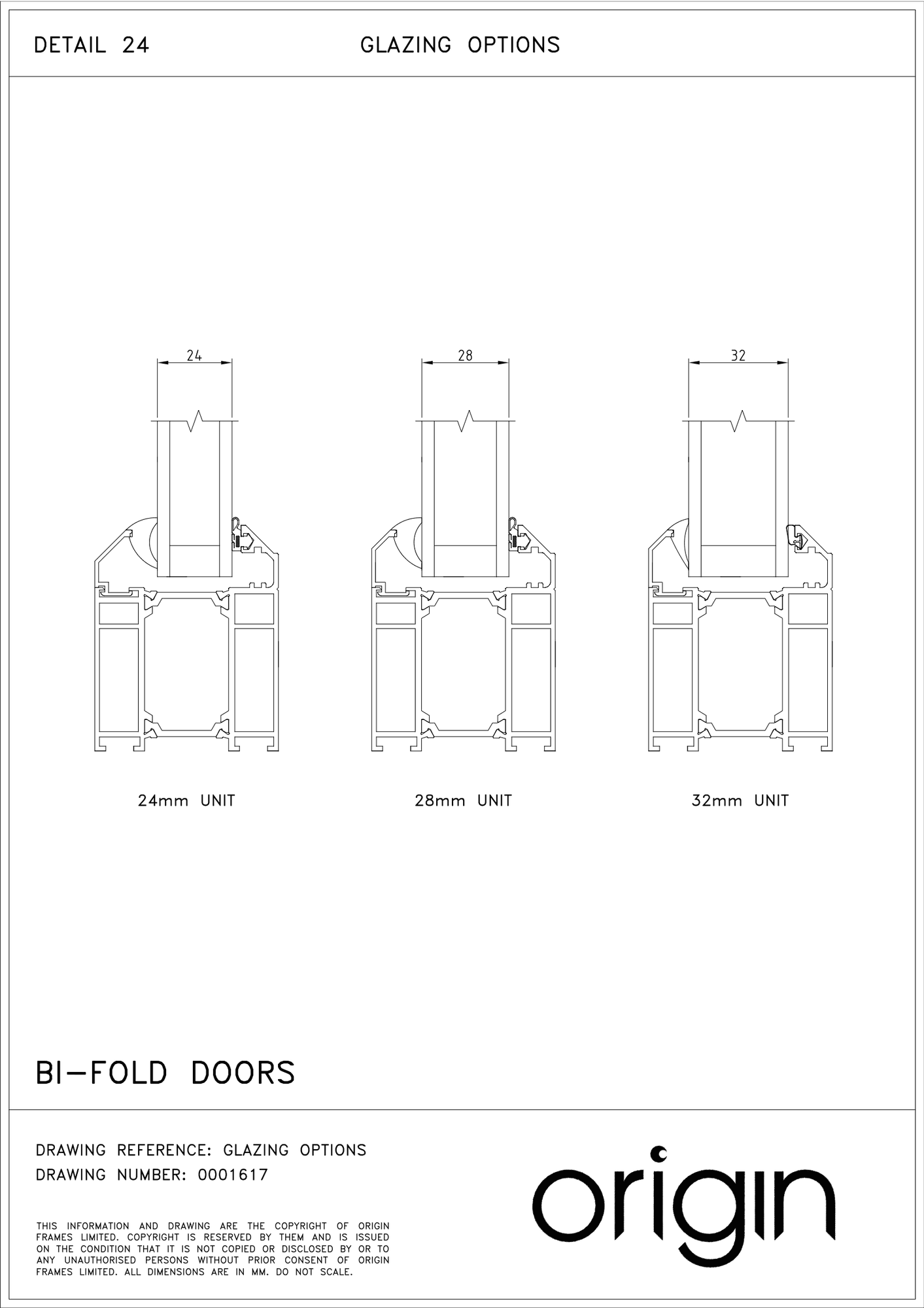

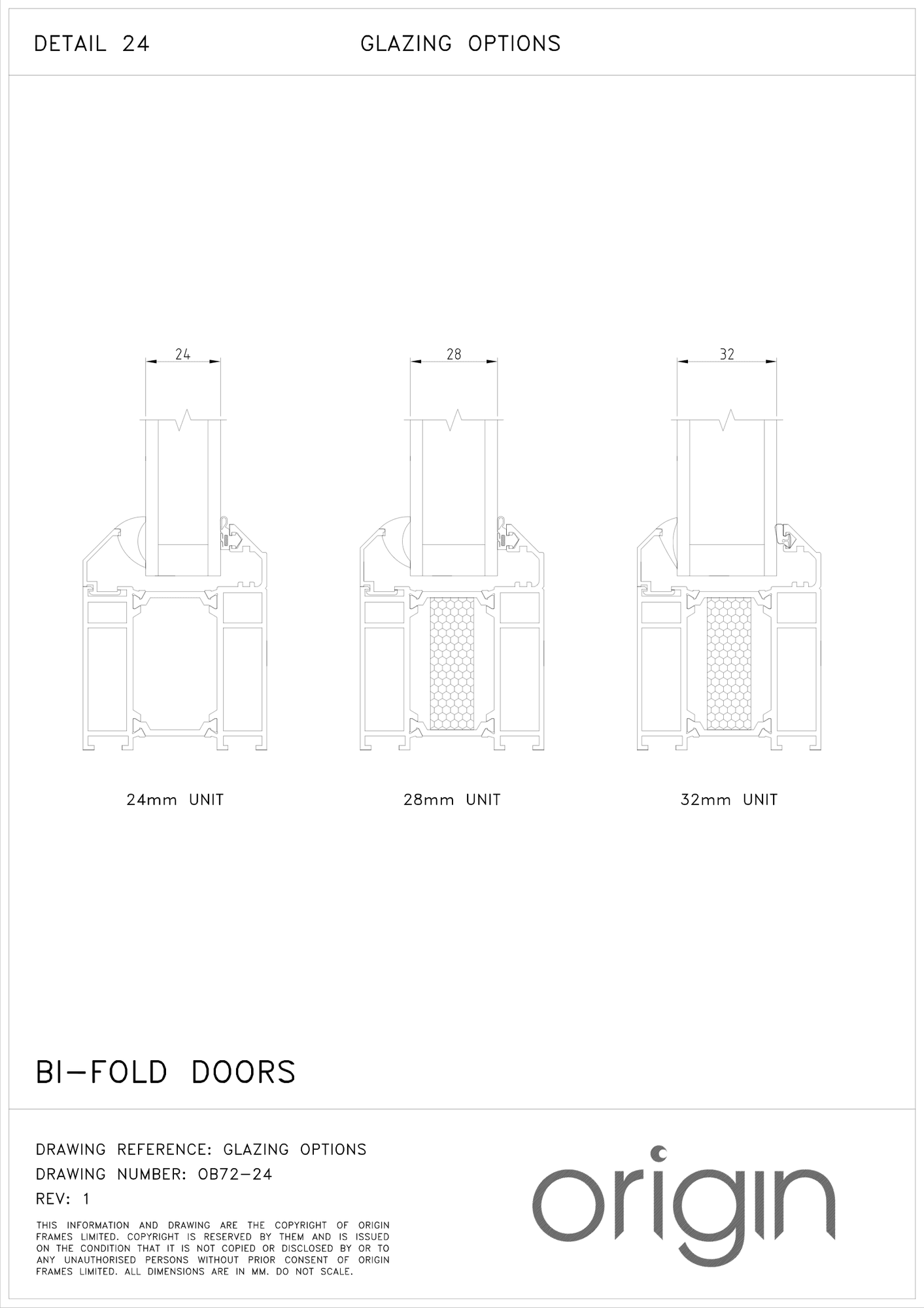

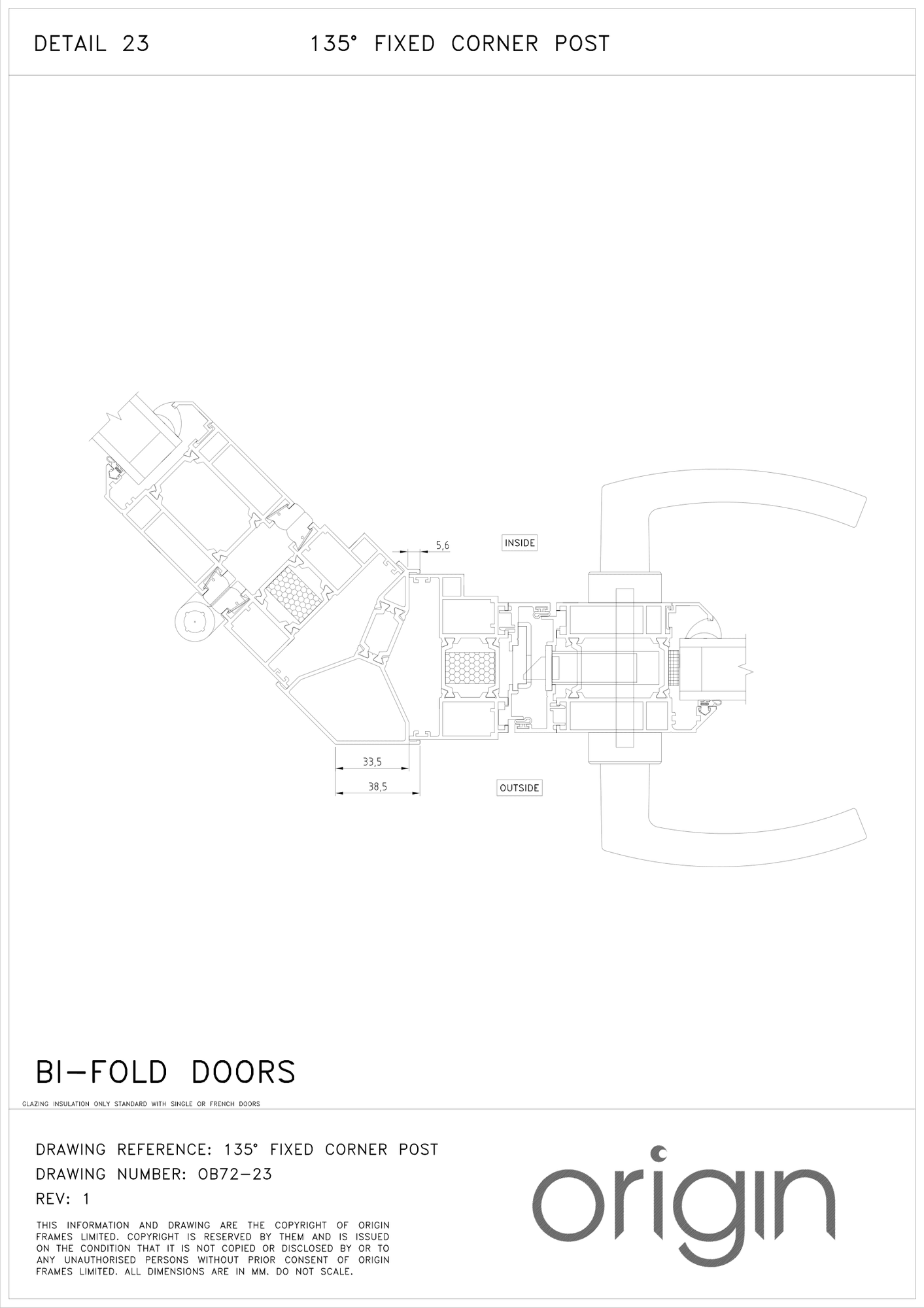

Technical Drawings | Detail 24
Glazing Options

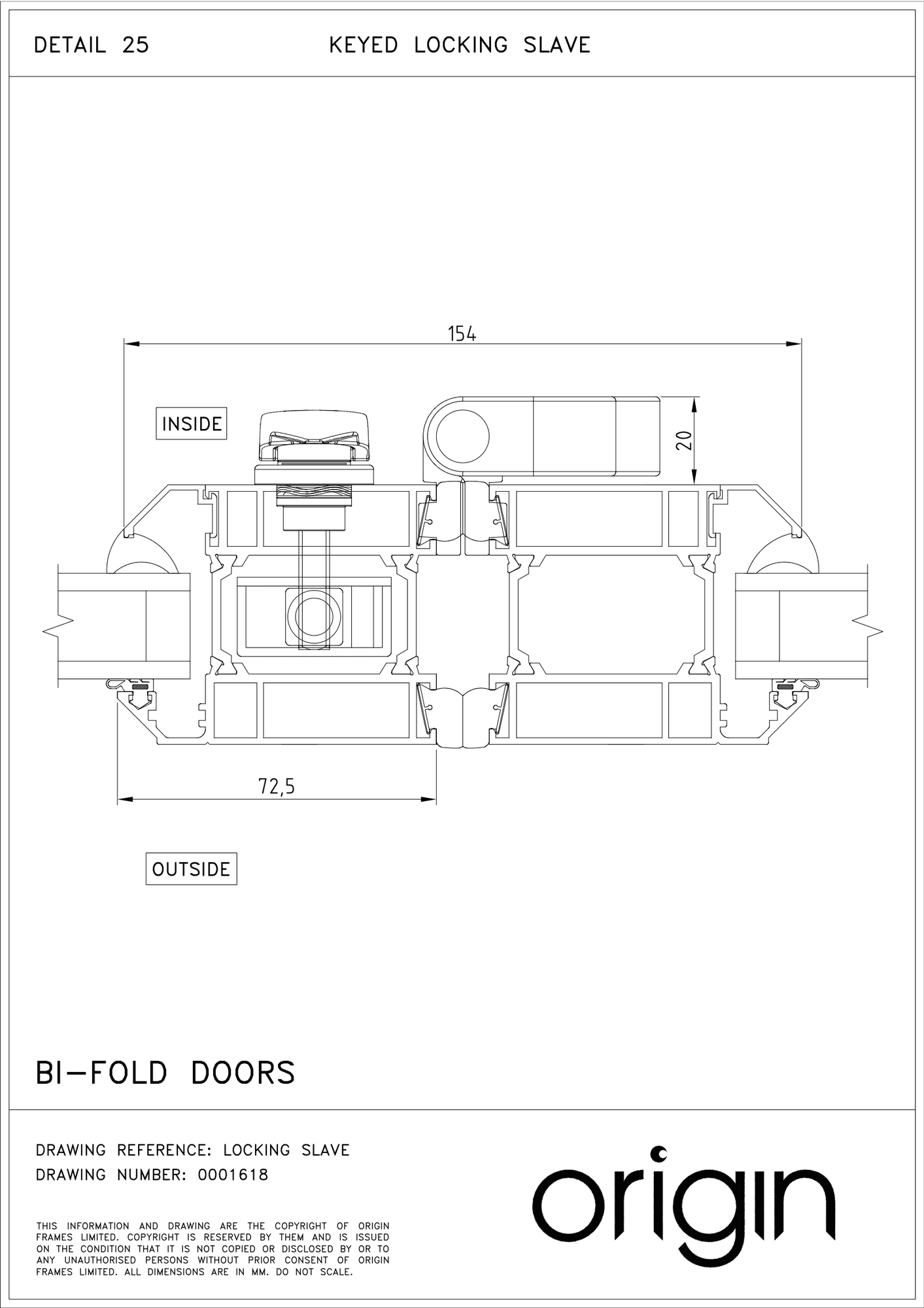

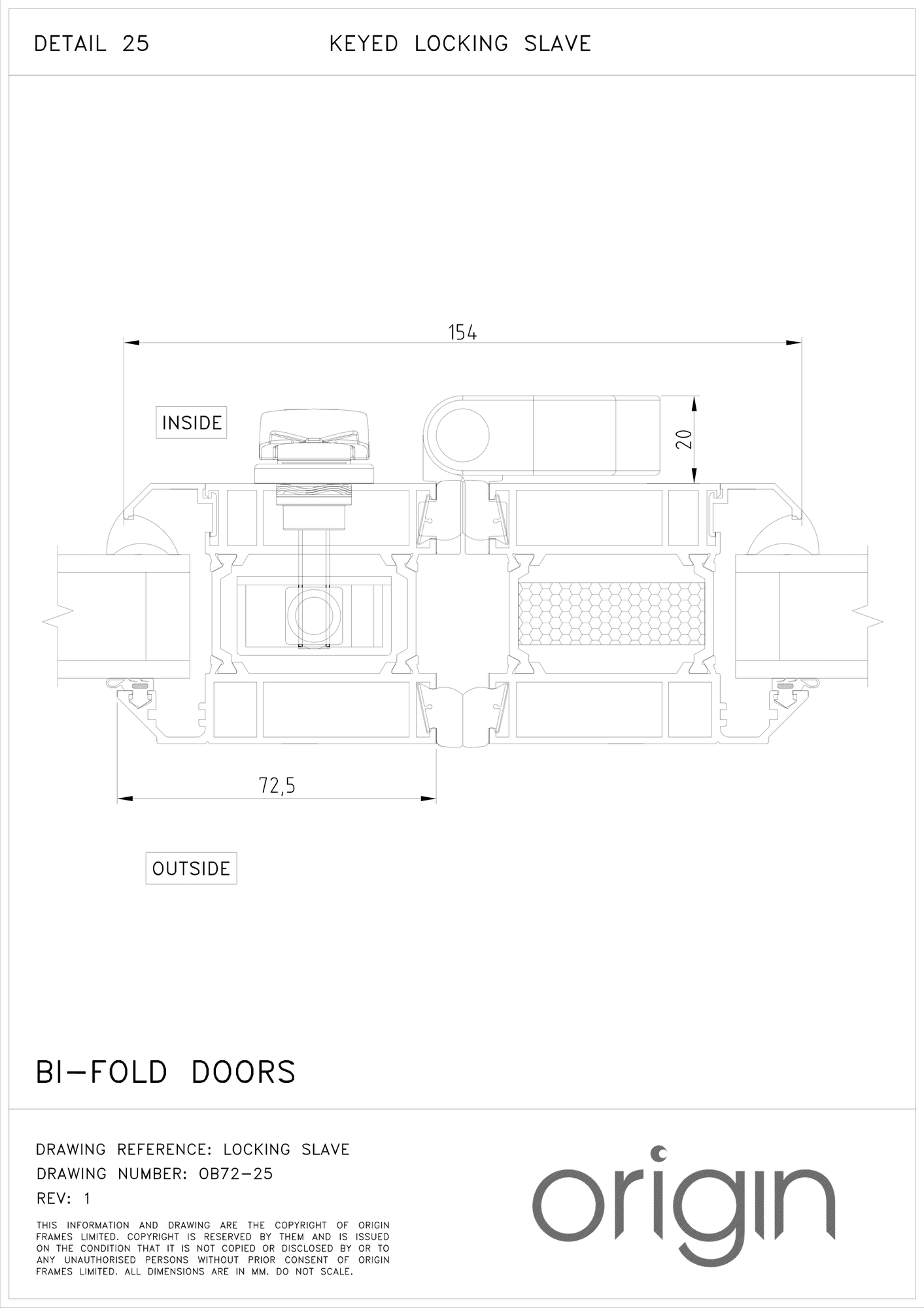

Technical Drawings | Detail 25
Keyed Locking Slave

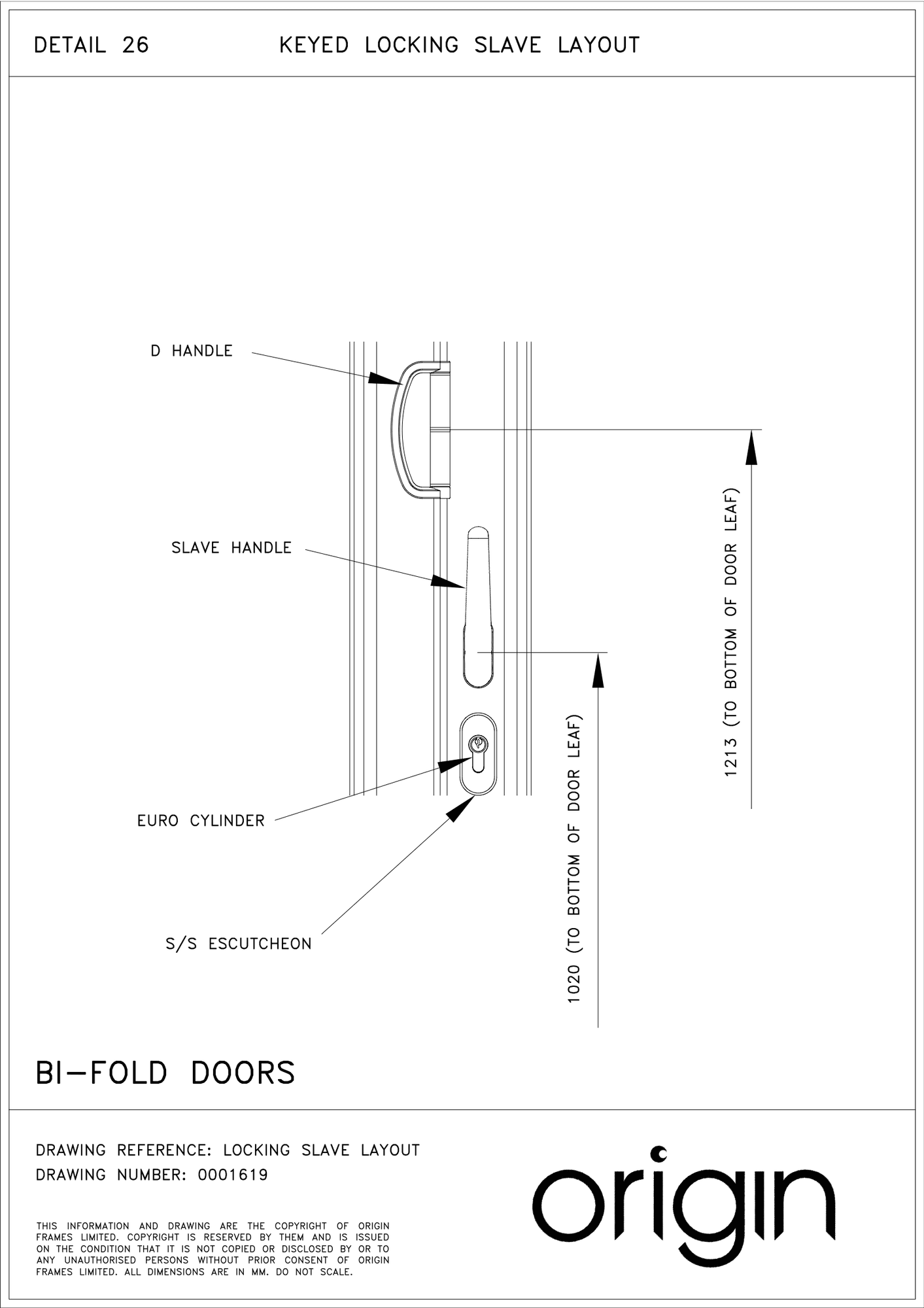

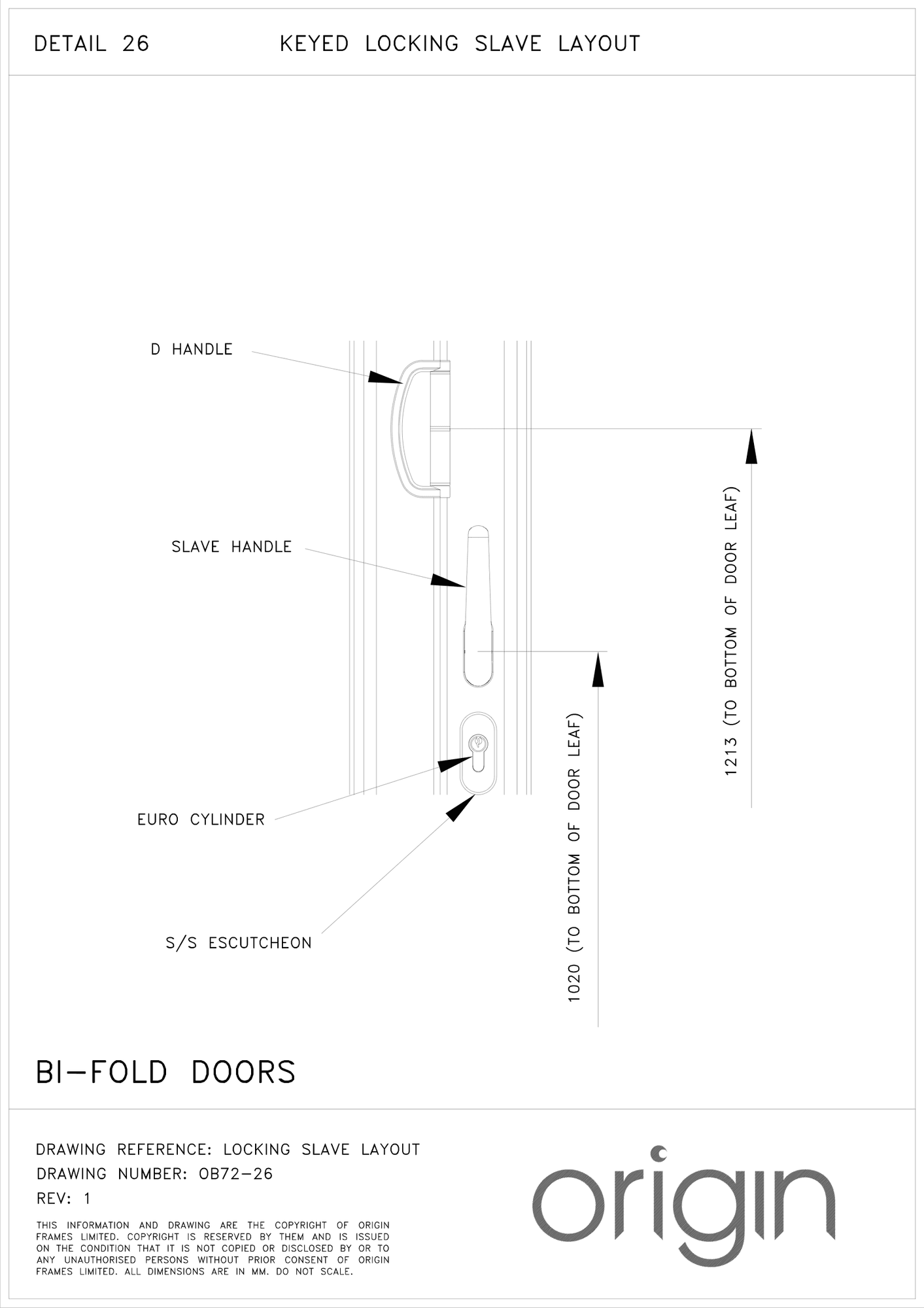

Technical Drawings | Detail 26

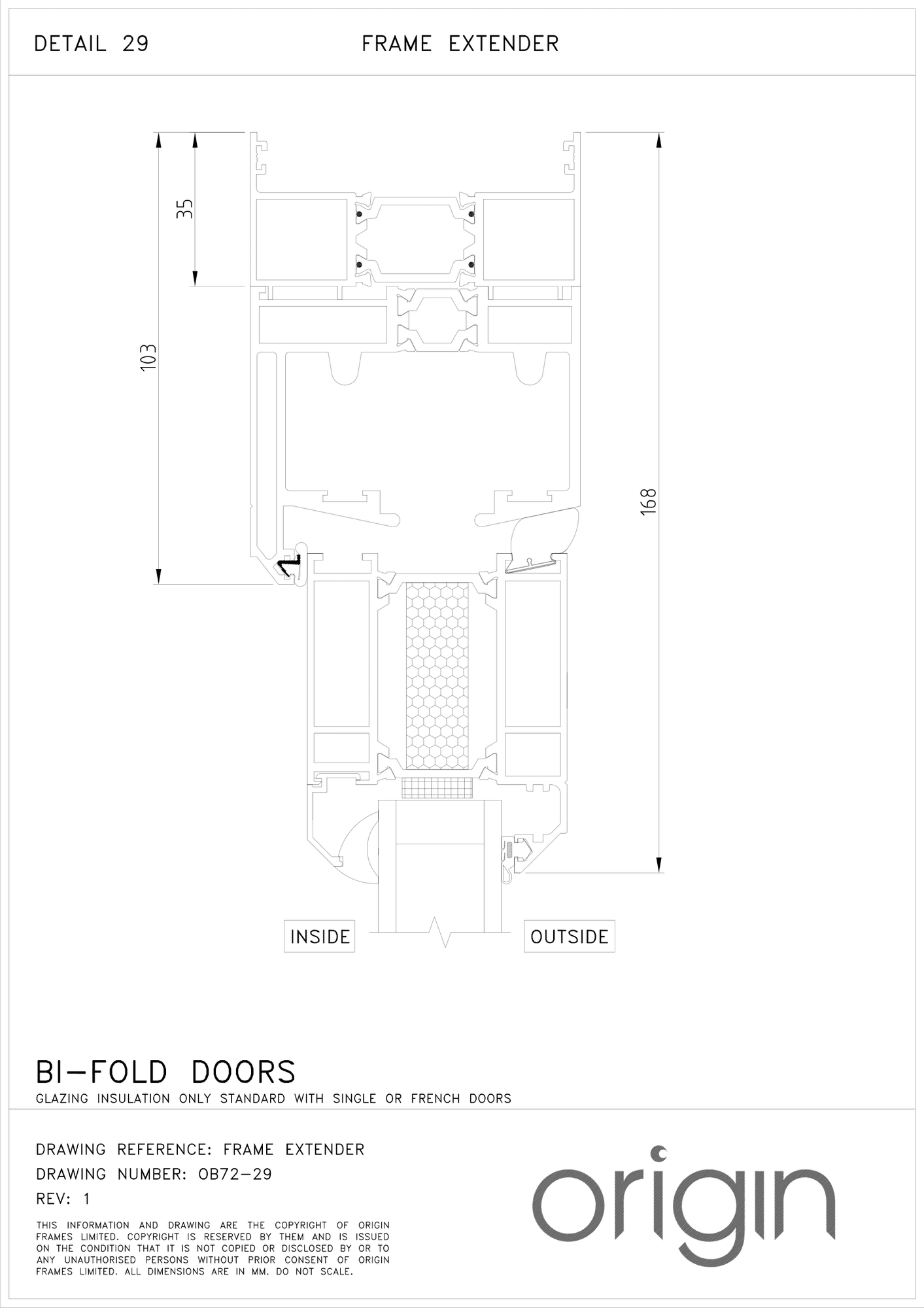

Keyed Locking Slave Handle
