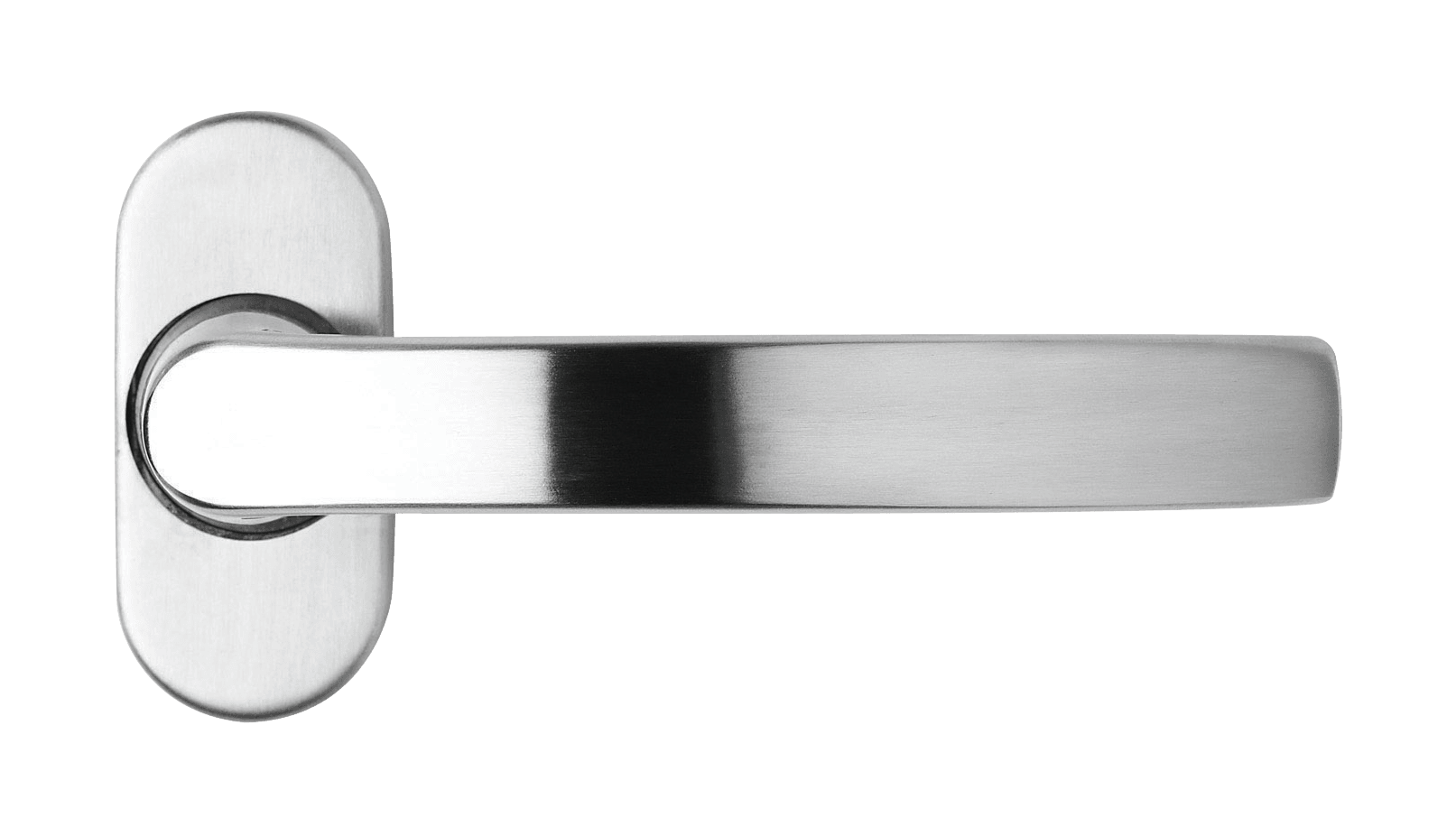

Handles
6.1 Locate the handles and the four M5 20mm screws from the components box
6.2 Remove the escutcheons from both handles
6.3 Insert the spindle into one lever and nip the grub screw using a 3mm Allen key
6.4 Install the handle and spindle into the door with the lever across the glass
6.5 Insert the M5 20mm screws and tighten using a Pozi 2 hand screwdriver only, being careful not to cross thread the screws - do not fully tighten until both handle sides are on
6.6 Install the remaining lever onto the door and secure in place, as described in the previous step and nip the remaining grub screw
6.7 Install both inner and outer escutcheons with the small cut out pointing down
NOTE: It may be necessary to use a rubber mallet to gently tap the escutcheons fully into position
