Specification Overview

OF-36⁺ External Door

Profile Specification
Frame Depth	82mm
Hinge Jamb	53mm
Sash Depth	74mm
Sash Width	36mm
Hingestile Glass-to-Glass Sightline	84mm
Low Threshold Height	30mm
Non-Weathered Threshold Height	56mm
Weathered Threshold Height	69mm
Glazing Options	28, 28.8, 44 and 46.8 mm

Features

The features of the OF-36⁺ External Door are really what makes it a design statement, as well as the right choice when it comes to thermal performance.

Modern look Soho-style, with sleek design

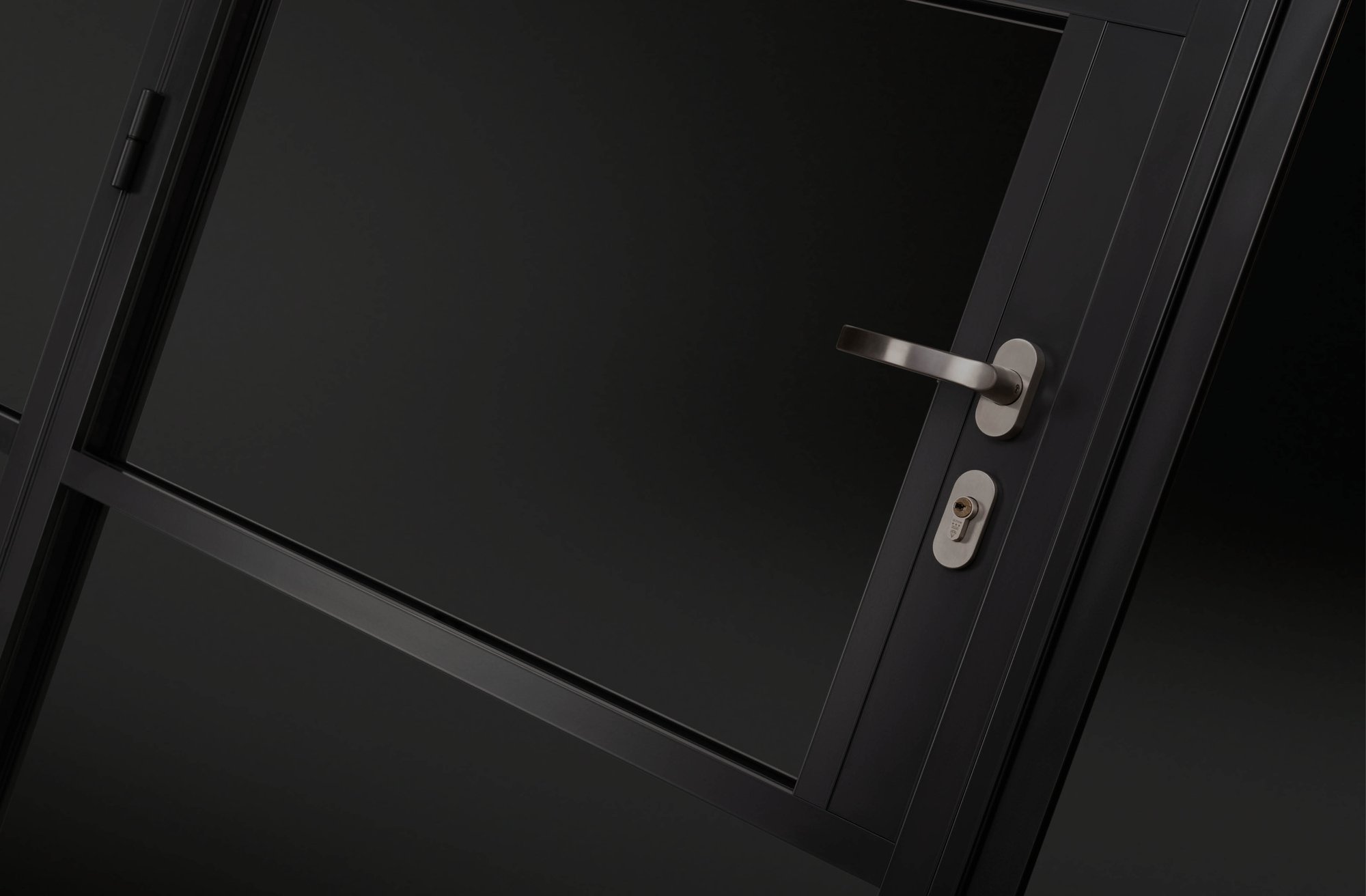

Traditional lock block and integral glazing divides
Exceptional performance, with U-Values as low as 0.78 W/m²K
Squared bead internally and square rebate externally
3-Star Diamond Cylinder with Multipoint lock
Open-in or open-out
Solid zinc hinges
Colour-coded gaskets
Colour-coded metal interlock caps
Available in over 150 RAL Colours
Marine grade powder coating
Up to a 20-year guarantee on parts*

*Guarantee based on installation location.
Visit origin-global.com for Terms and Conditions.

Colours

OF-36⁺ is available in the following popular colours, along with Hipca White - 9910G, and in over 150 special RAL colours.

Anthracite - 7016M

Jet Black - 9005M

Textured Black - 9005T

Lead Time
Popular colours:	1-working day
Special colours	20-working days
Visit origin-global.com for up-to-date lead times.

Options and Extras

The OF-36⁺ External Door has an extensive selection of flexible design options to fully customise any living space.

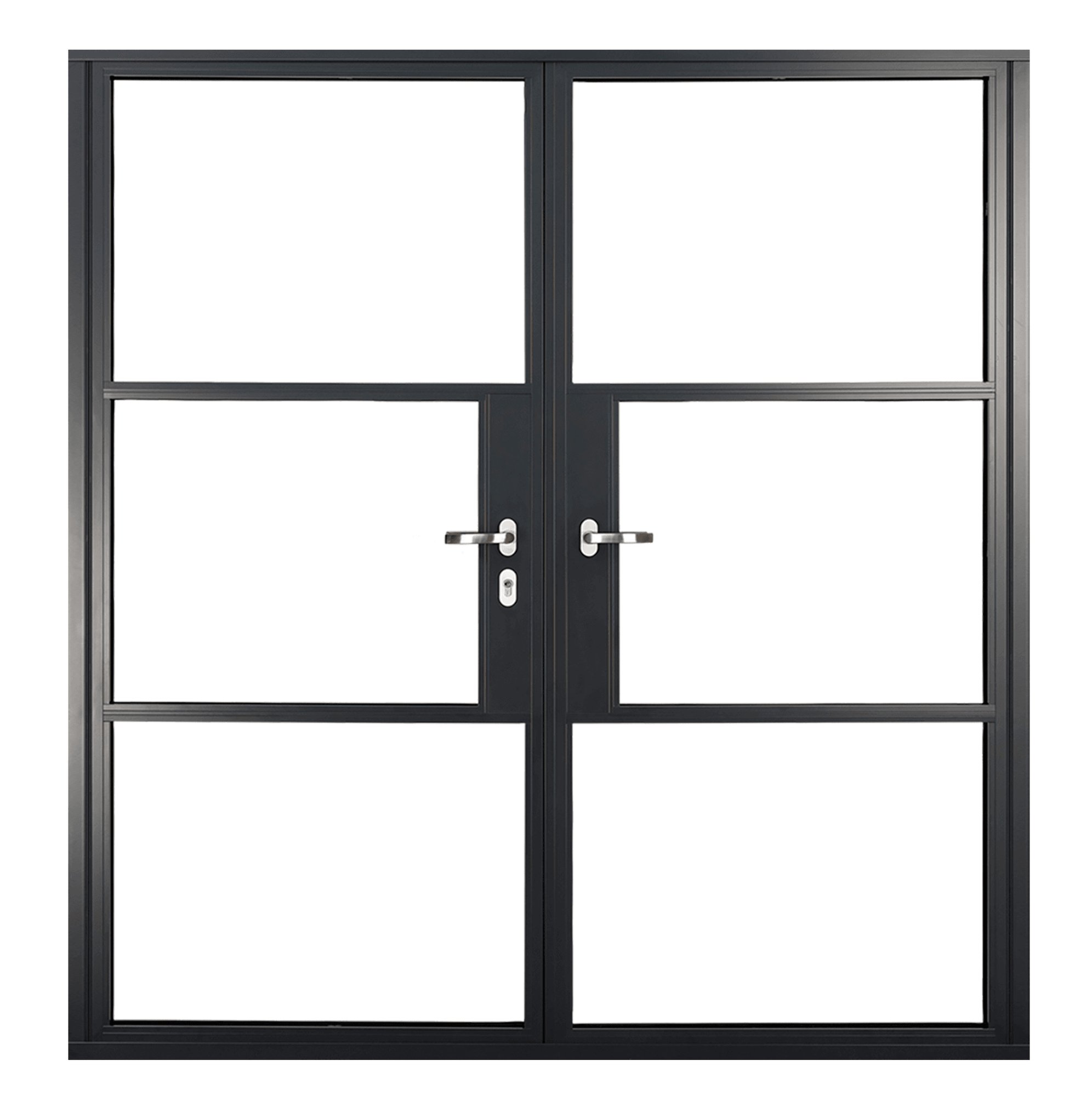

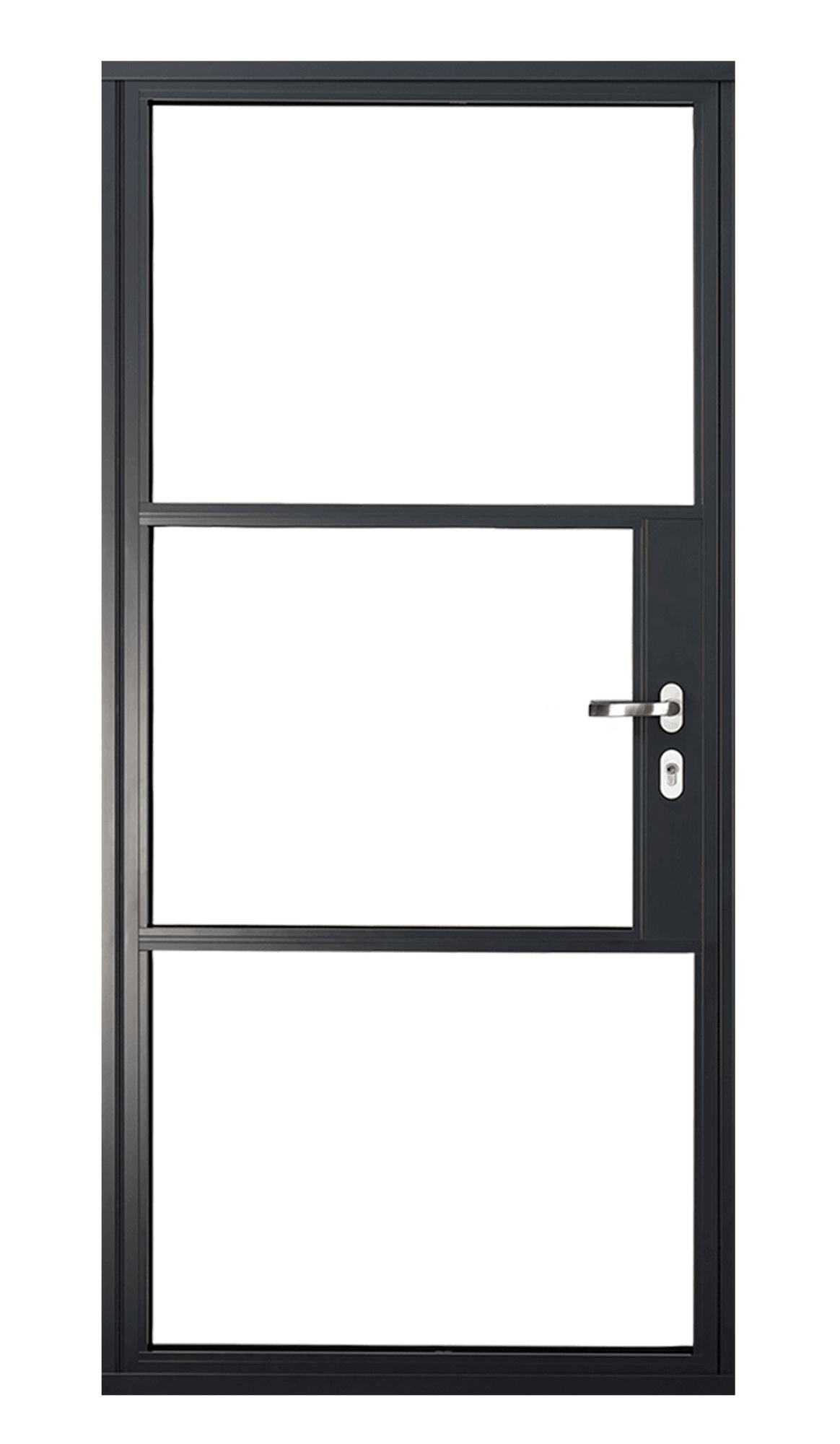

Configure as Single, French and Fixed
Double and triple-glazing
All Cills (inc. Face Drainage and Concealed Drainage)
Door-to-Window T-Coupler
Colour-coded gaskets
Keyed Alike
Fixing straps

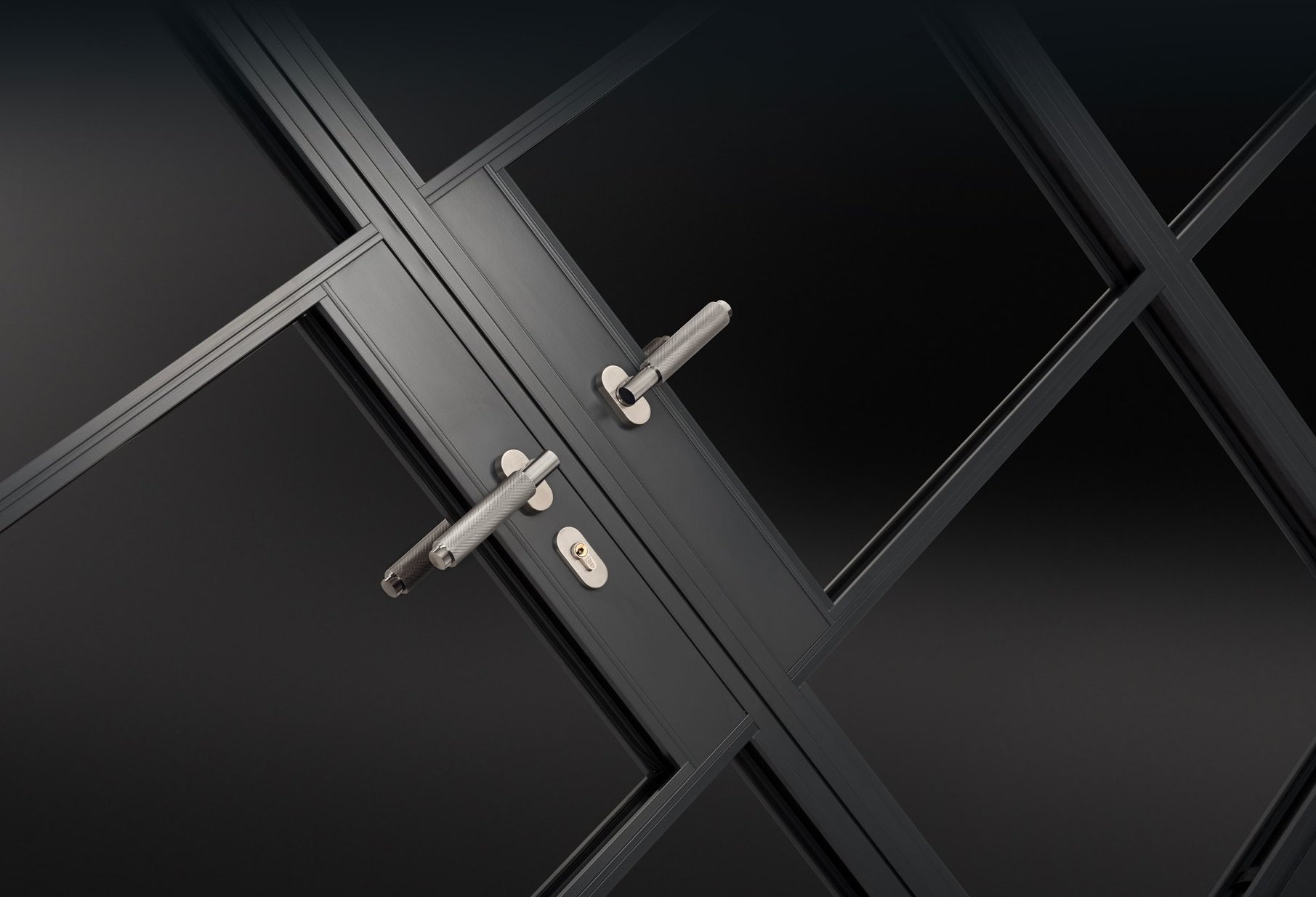

Signature Knurled Handles in six PVD finishes
Hinges in stainless steel finish or colour-coded
Door-to-window coupling available
Trickle vents available in either 4000EA or 5000EA
Door restrictors
Flat trim
Magnetic Keeps

Hardware Options

Handles
Signature Knurled	Antique Brass	Brushed Black	Brushed Bronze	Rose Gold	Satin Brass	Satin Stainless
Contemporary	Colour-coded			Stainless Steel

Hardware
Door Restrictors	90º		135º
Magnetic Keeps	Colour-coded
Trickle Vents	Anthracite	Black	White

Hardware Options…

System
Flat Trim	25mm	31mm		50mm
Concealed Drainage*	155mm		180mm
Dummy Lock Block	Yes
Kickplate	Yes
Frame Extender	35mm
Low Threshold	Yes
*Only available with a cill

Thermal Matrix

Glazing	Centre Pane U-Value	Unit Width	Unit Make-Up	Weight (kg/m²)	Coating Example	U-Value (W/m²K)
Double	1.2	28	4 / 20 / 4	20	Planitherm Total +	1.4
Double	1.2	28	6 / 16 / 6	30	Planitherm Total +	1.4
Double	1.1	28	4 / 20 / 4	20	Planitherm ONE	1.2
Double	1.0	28	6 / 16 / 6	30	Planitherm ONE	1.2
Triple	0.9	44	4 / 16 / 4 / 16 / 4	30	Planitherm Total +	1.1
Triple	0.8	44	4 / 16 / 4 / 16 / 4	30	Planitherm ONE	1.0
Triple	0.6	46	4 / 16 / 4 / 16 / 4	30	2 x Total +	0.85
Triple	0.5	44	4 / 16 / 4 / 16 / 4	30	2 x ONE	0.78

Size Limitations
Min. Sash Height	290mm (Fixed only)
Max. Set Height	3,048mm 2,500mm (Sash)
Min. Sash Width	535mm (Lead) 325mm
Max. Sash Width	1,200mm (Opening) 1,317mm (Fixed)
Max. N^o. Columns	6
Glazing Options	28, 28.8, 44 and 46.8 mm
Min. N^o. Glass Divides	2
Max. N^o. Glass Divides	4

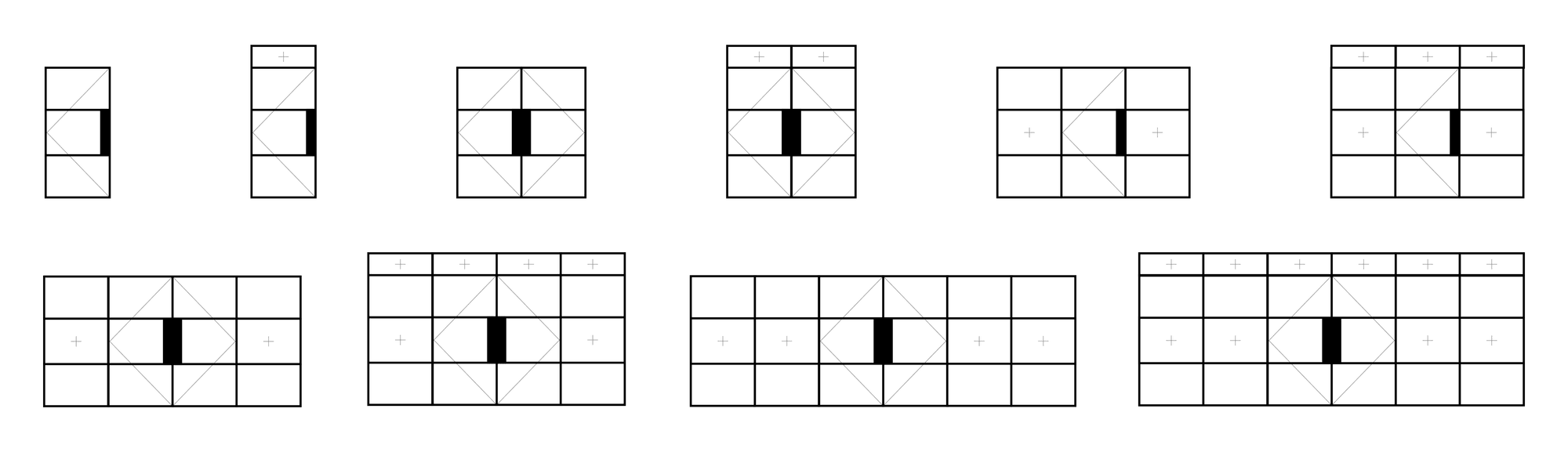

Configurations

OF-36⁺ is available in the following popular configurations, however to design your bespoke configuration, please log in to OSS.
