Specification Overview...

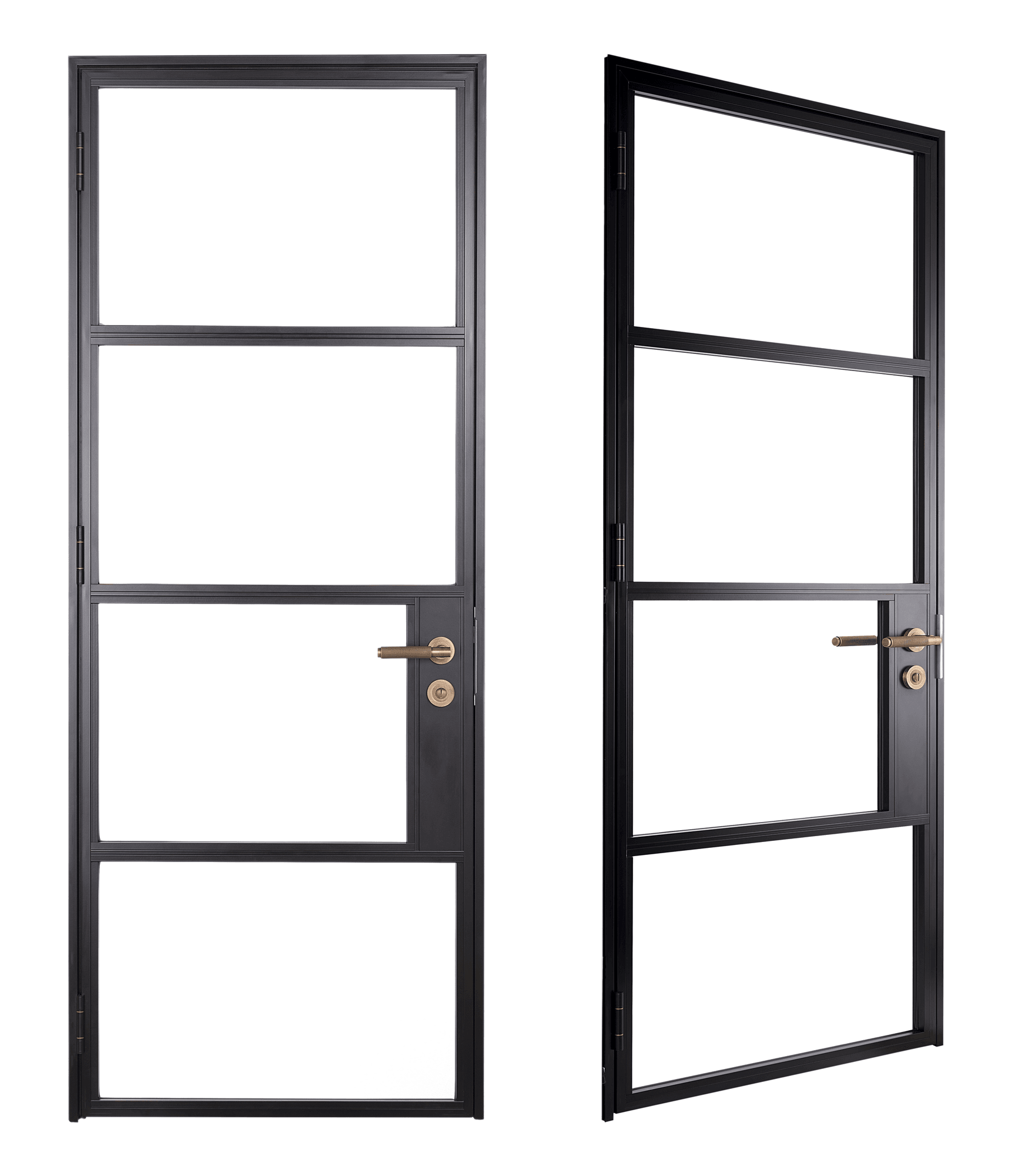

Single Door

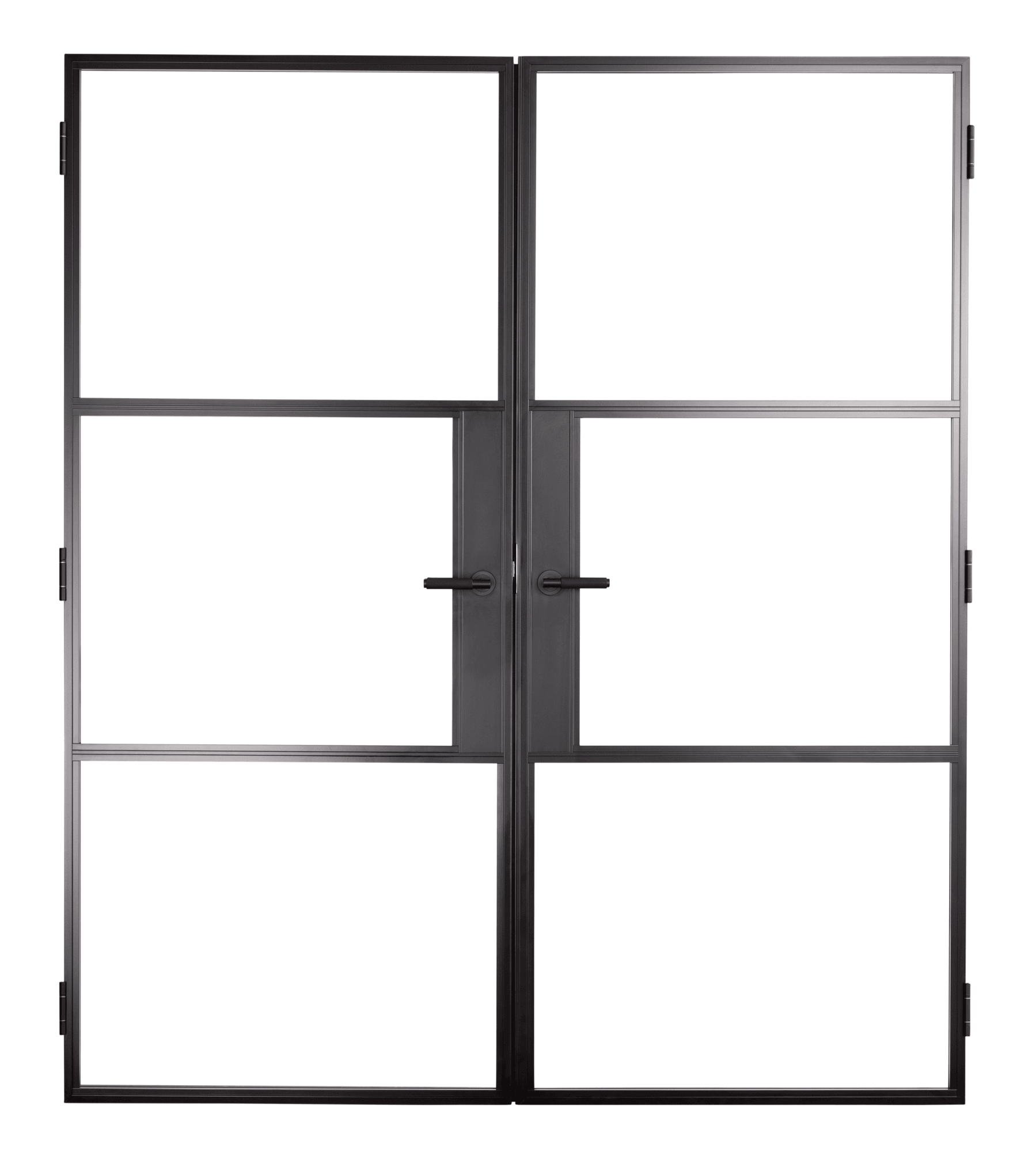

French Door

Profile Specification & Features

Profile Specification
Frame Depth	40mm
Frame Width	30mm
Sash Depth	32mm
Sash Width	30mm
Glass Divide Depth	31mm
Glass Divide Width	35mm
Threshold Clearance	10mm / 20mm
Corner Post	47mm x 47mm

Features

Up to a 20-year guarantee on parts*
Corner configuration available
Integral 35mm glazing divides
Square and chamfered bead option
Industry-first steel look internal door
Traditional Soho-style lock block
Coupling available
Available as as a sash only (on Single and French Doors)

*Guarantee based on installation location - Visit origin-global.com for Terms and Conditions

Colours

The OI-30 is available in the following popular colour, and in over 150 special RAL colours.

Jet Black - 9005M

Lead Time
Popular colours	3-working days
Special colours	20-working days
Visit origin-global.com for up-to-date lead times

Options and Extras

The OI-30 has an extensive selection of flexible design options to fully customise any interior space.

Single Door, French Door, Fixed Screen or corner configuration
Sash only available (on Single and French Door only)
Accommodates 4mm, 6mm and 6.8mm glazing
Purpose-designed corner post
Up to six horizontal and two vertical divides
Lock block available with or without locking
Four handle options to choose from
Turn and Release locks along with a keyed locking solution,
Lock and Keeps in multiple colour options

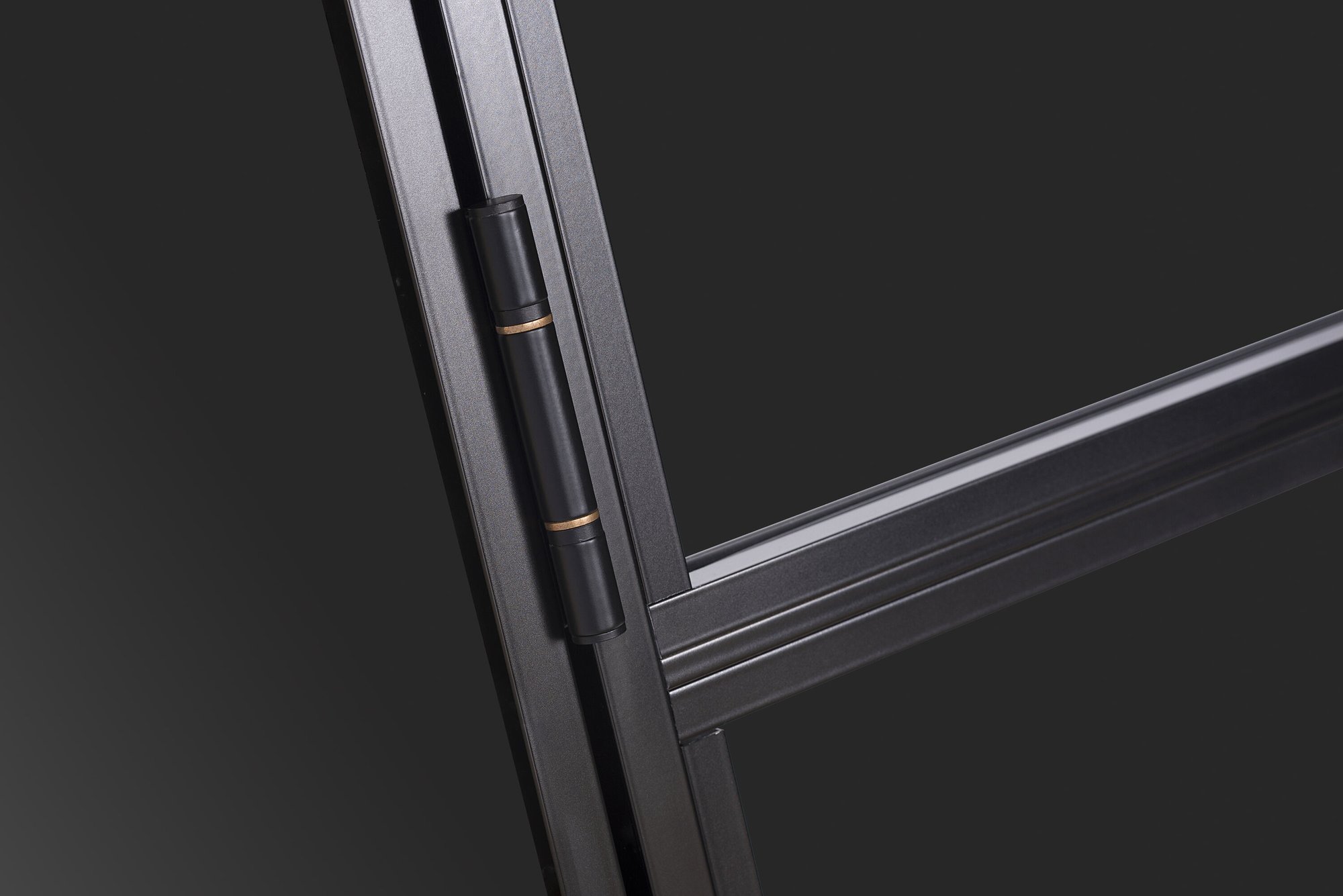

Hinge colours: Matt Black, Polished Brass, Satin Brass and Satin Nickel
Half Rose door stops in multiple colour options
Kickplates and blackout panels available
15mm frame extender
Square or chamfered beading
Threshold clearance of 10mm or 20mm

Options and Features

Bead

The Internal Door can be specified with either a square or chamfered bead.

The two options offer a different aesthetic and by combining the number of glazing divides with the choice of bead, one can significantly alter the style of the door.

Pairing fewer glazing divides with the square bead shifts the look of the doors to a more modern and contemporary style. The sharper edges of the square bead also tailor well to an industrial look.

The chamfered bead emulates a traditional putty line, and when paired with more glazing divides, lends itself to a more traditional Art Deco door style.

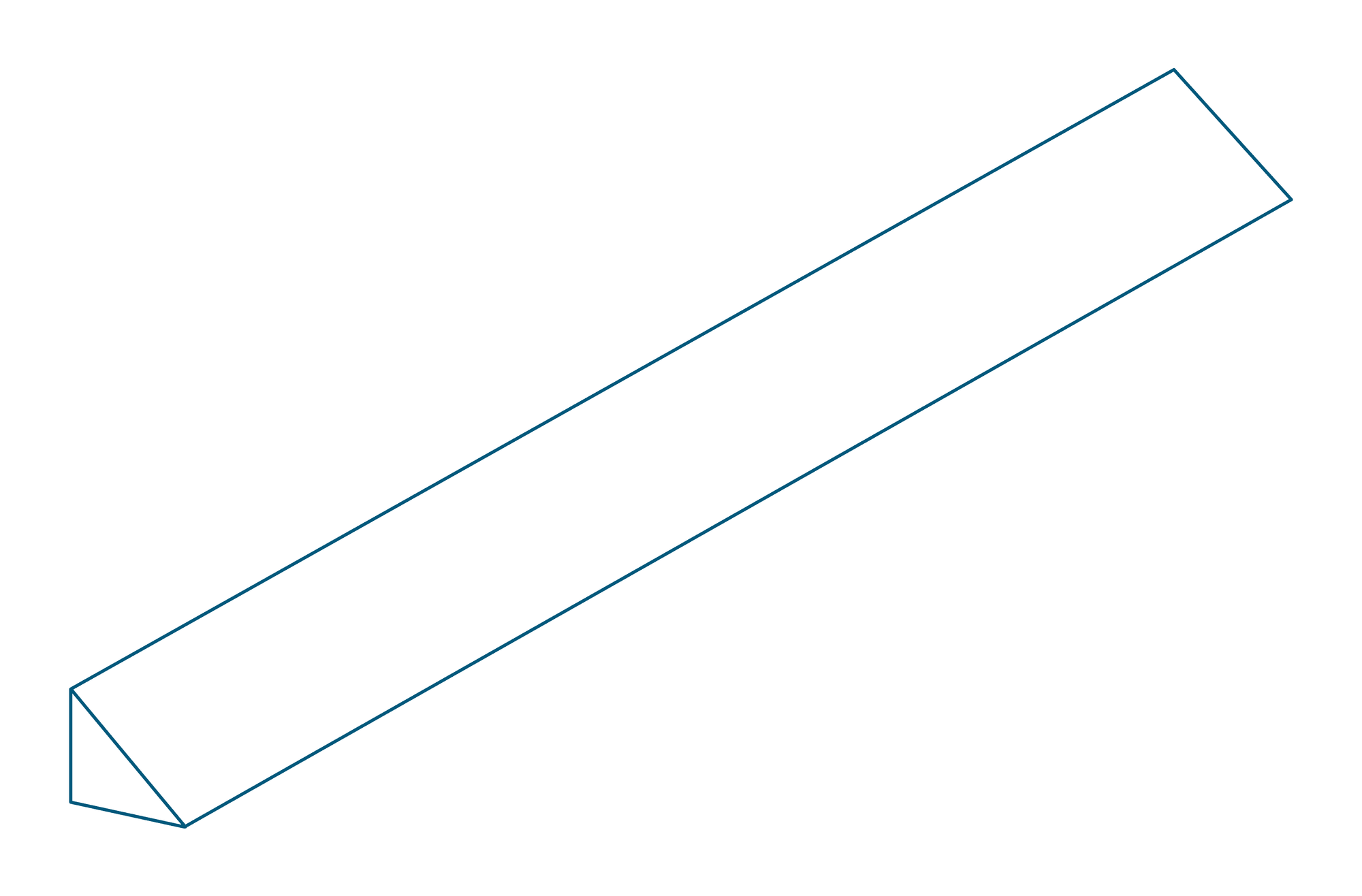

Square Bead

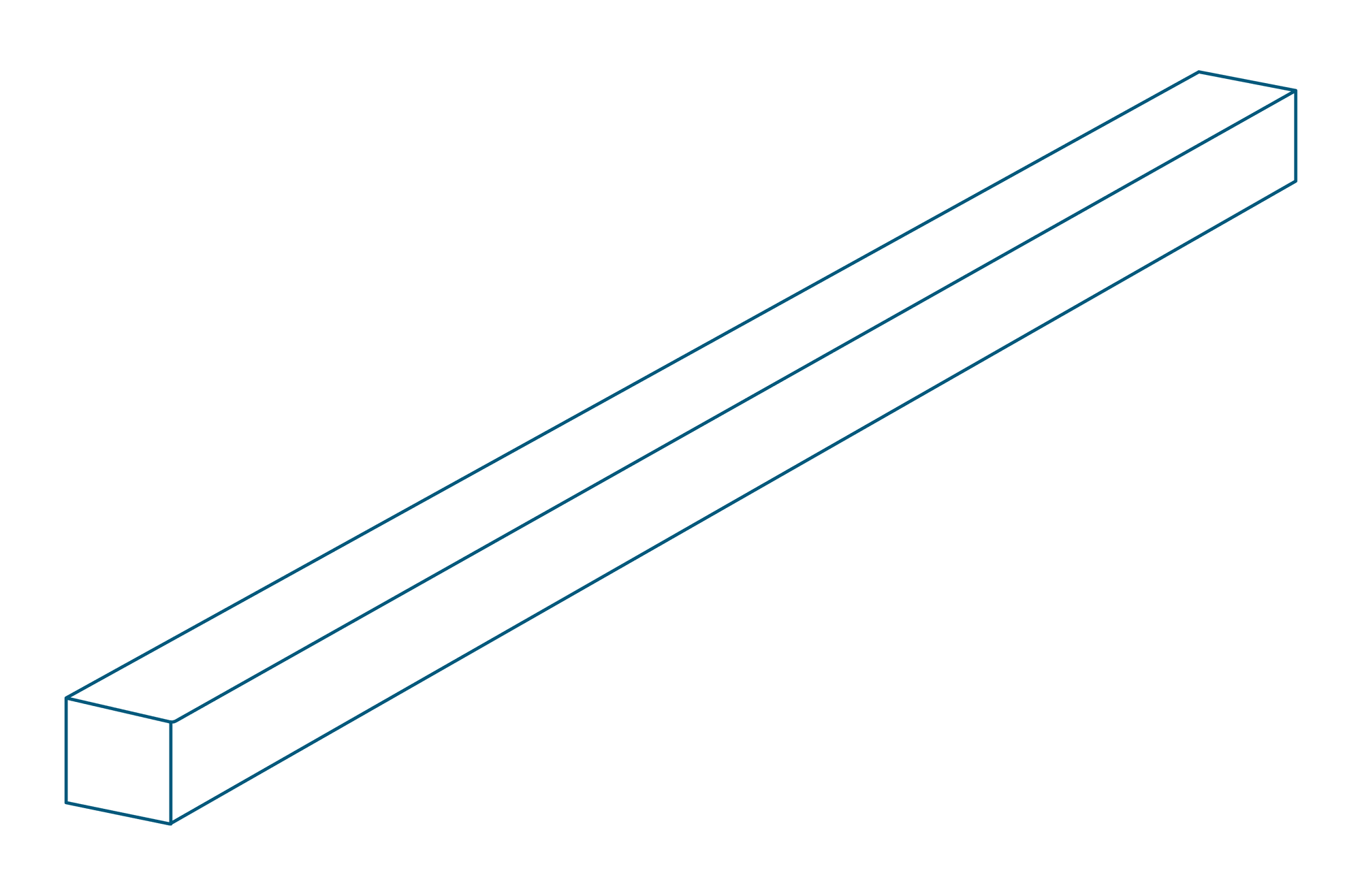

Chamfered Bead

Options and Features

Threshold Clearance

The default threshold clearance is 10mm which is ideal for an equal finished floor height either side of the door.

However, Local Authority Building Control states that if doors are being installed before a finished floor then there should be a minimum of 20mm underneath any door to allow for a new carpet or boards and still some ventilation underneath the sash. Therefore a threshold clearance of up to 50mm can be selected in the instance of a door without fixed frames.

If a door is coupled to a Fixed Frame and the frames are not raised with add-on’s underneath, the threshold can be adjusted up to 27mm.

If a door is coupled to a Fixed Frame and the frames are raised with add-on’s underneath, then a threshold clearance of up to 42mm can be selected.

Frame Extender

A 15mm frame extender is available for use on the sides of an aperture to assist during installation.

Optional Extras
Horizontal (True Glass Divides)	35mm
Vertical Glazing Bars	25mm or 35mm
Kickplate	88mm in height
Bottom Panel	Size determined by horizontal divides
Frame Extender	15mm
Top Light	Available above doors
Keyed Lock	Available on any lead door

Kickplates and Panels

The Internal Door can be specified with solid black panels, offering addtional privacy. Alternatively, kickplates are available, allowing the doors to be nudged open using your foot.

Option	Single Door	French Door	Fixed Screen	Corner
Dummy Handle	X	√	X	√
Fingerbolt	X	√	X	√
Fixed Above	√	√	√	√
Kickplate	√	√	√	√
Latch	√	√	X	√
Panel	√	√	√	√
Turn and Release	√	√	X	√
Vertical Divides	√	√	√	√

NOTE: When specifying a corner configuration, your door will be supplied with a bespoke corner post.

Specification
Number of Glazing Splits	0-6
Min. Panel Height	200mm
Max. Panel Height	900mm
Min. Fixed Above Height	200mm
Fixed Above - number of vertical divides	0-4
Min. Fixed Above Centres	250mm
Max. Sash Weight	120kg
Spindle Height Range	800 - 1,050mm
Concealed Coupler (No Deductions)	300mm - 1,800mm
T-Coupler (9mm Deduction)	1,801mm - 3,000mm
Min. Drill Depth (with Shootbolt Keep)	42mm
Min. Drill Depth (without Shootbolt Keep)	15mm

Styling Options	Lead Door	Secondary Door
Lock Block (90mm)	Required	Optional
Latch	Required	Fitted with Keep
Handle	Required	Optional Dummy Handle
Turn and Release	Optional	N/A
Top and Bottom Fingerbolt	N/A	Required
Frameless available on Single and French Door Cofigurations only)	N/A	N/A

Size Limitations	Single Door	French Door	Fixed Screen
Min. Frame Height	1,533mm	1,533mm	300mm
Max. Frame Height	3,048mm	3,048mm	3,048mm
Min. Frame Width	346mm	660mm	300mm
Max. Frame Width	1,046mm	2,060mm	2,000mm
Min. Sash Height	1,500mm	1,500mm	N/A
Max. Sash Height	2,500mm	2,500mm	N/A
Min. Sash Width	300mm	300mm	N/A
Max. Sash Width	1,000mm	1,000mm	N/A

NOTE: Opening doors cannot be coupled side-by-side

Configurations

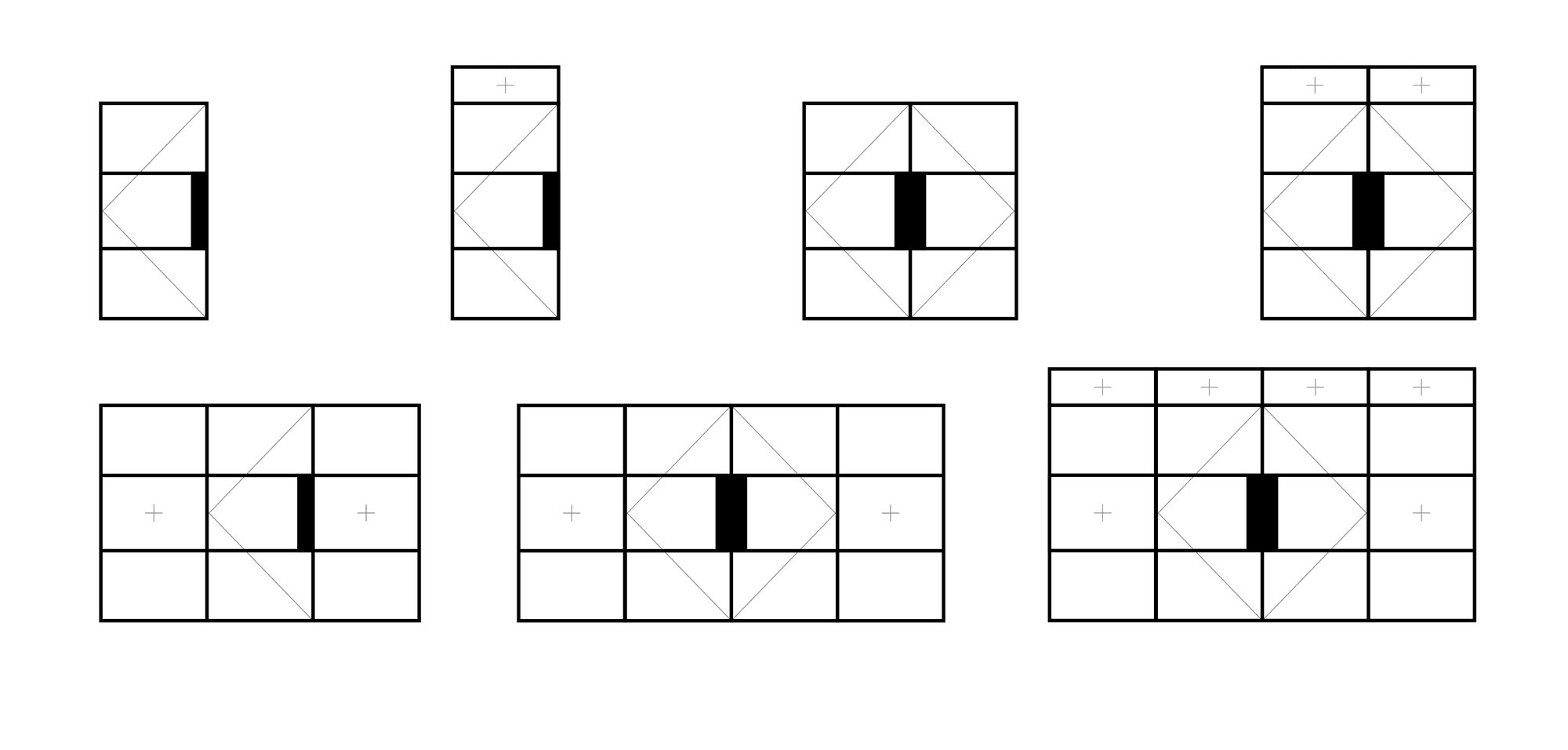

The OI-30 is available in the following popular configurations, however to design your bespoke configuration, please log in to OSS.
