Specification Overview

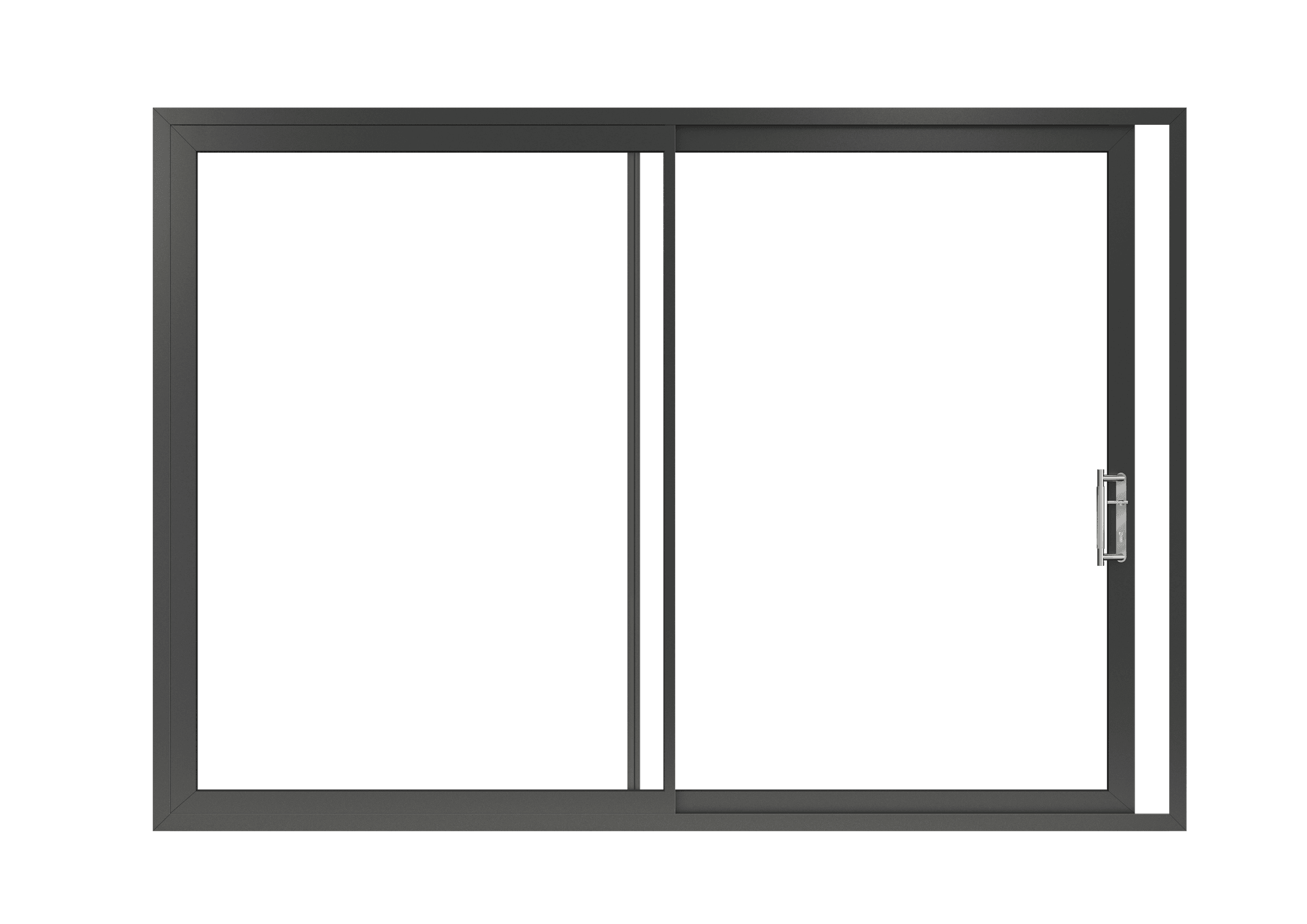

OS29+ Sliding Door

Profile Specification	OS29+	OS29
Double Track Frame Depth	167mm	143mm

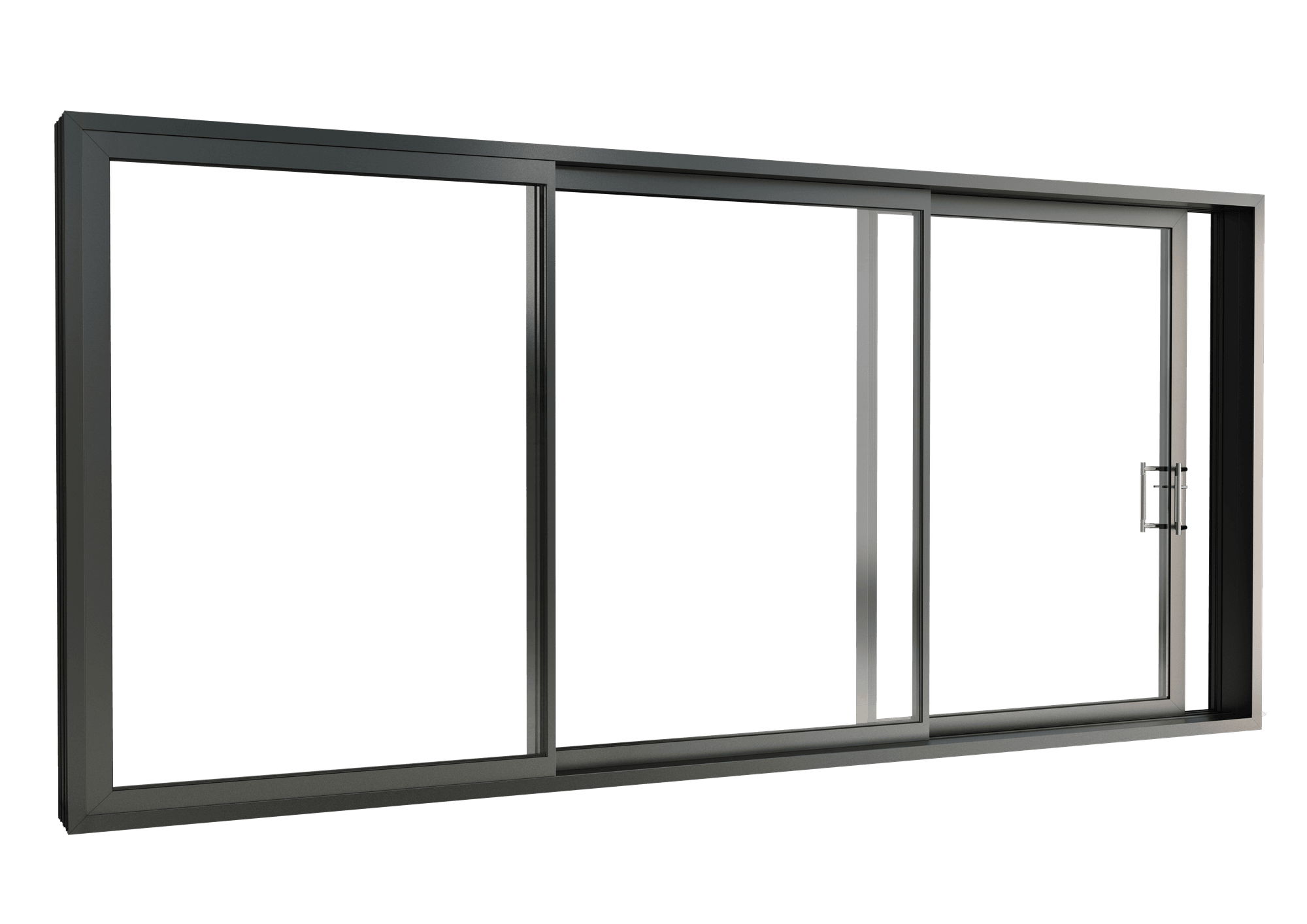

Triple Track Frame Depth	249mm	213mm

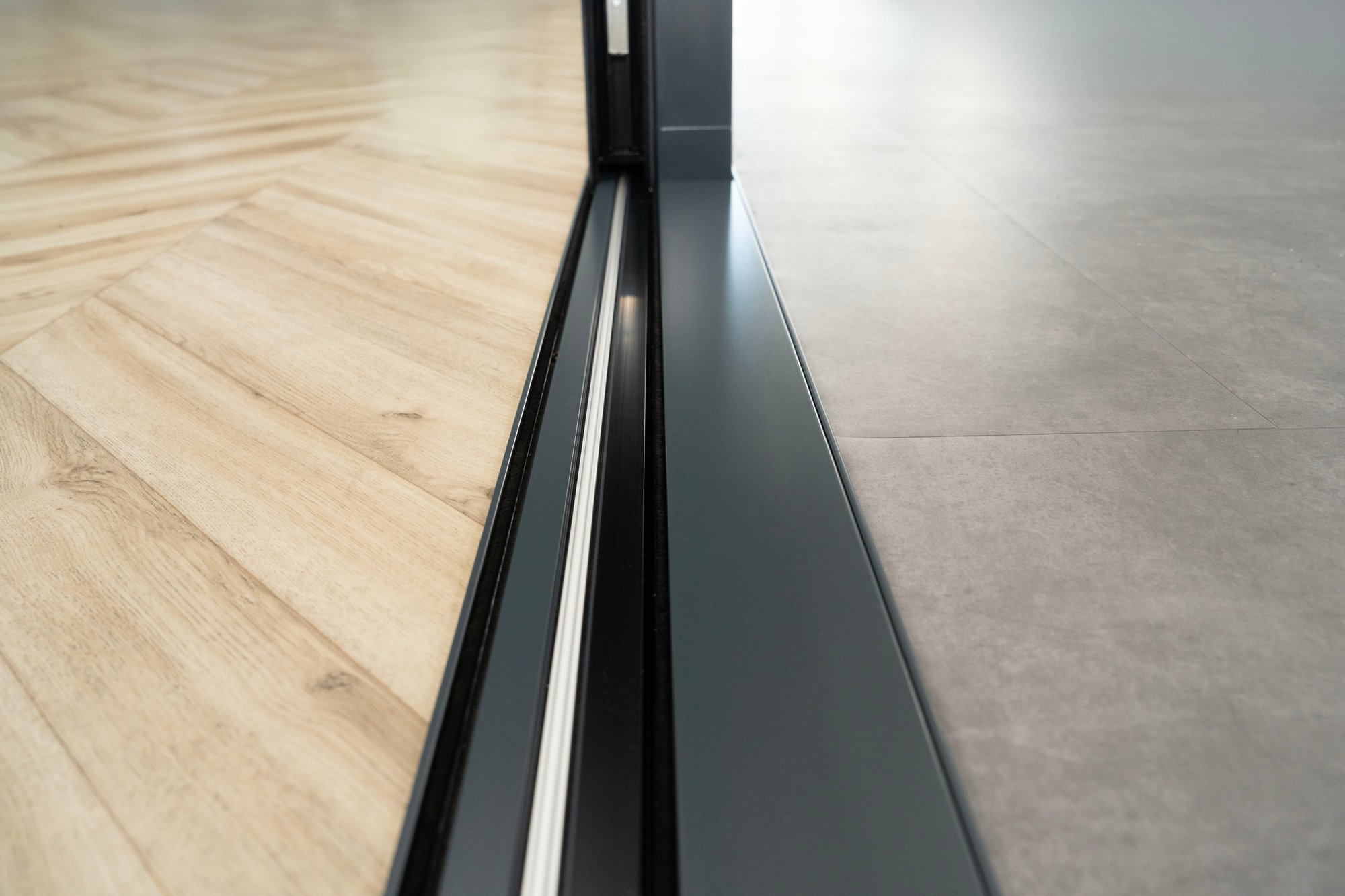

Track Height	50mm	50mm
Interlock Sightline	29mm	29mm
Central Locking Stile Sightline	156mm	153mm
Glazing Options	28mm, 44mm and 46.8mm	28mm, 32mm and 36mm

Features

The features of the all-new OS29+ Sliding Door are really what makes it a design statement, as well as the right choice when it comes to thermal performance.

Modern look, with sleek design
Exceptional thermal performance, with U-Values as low as 0.78 W/m²K
Squared bead

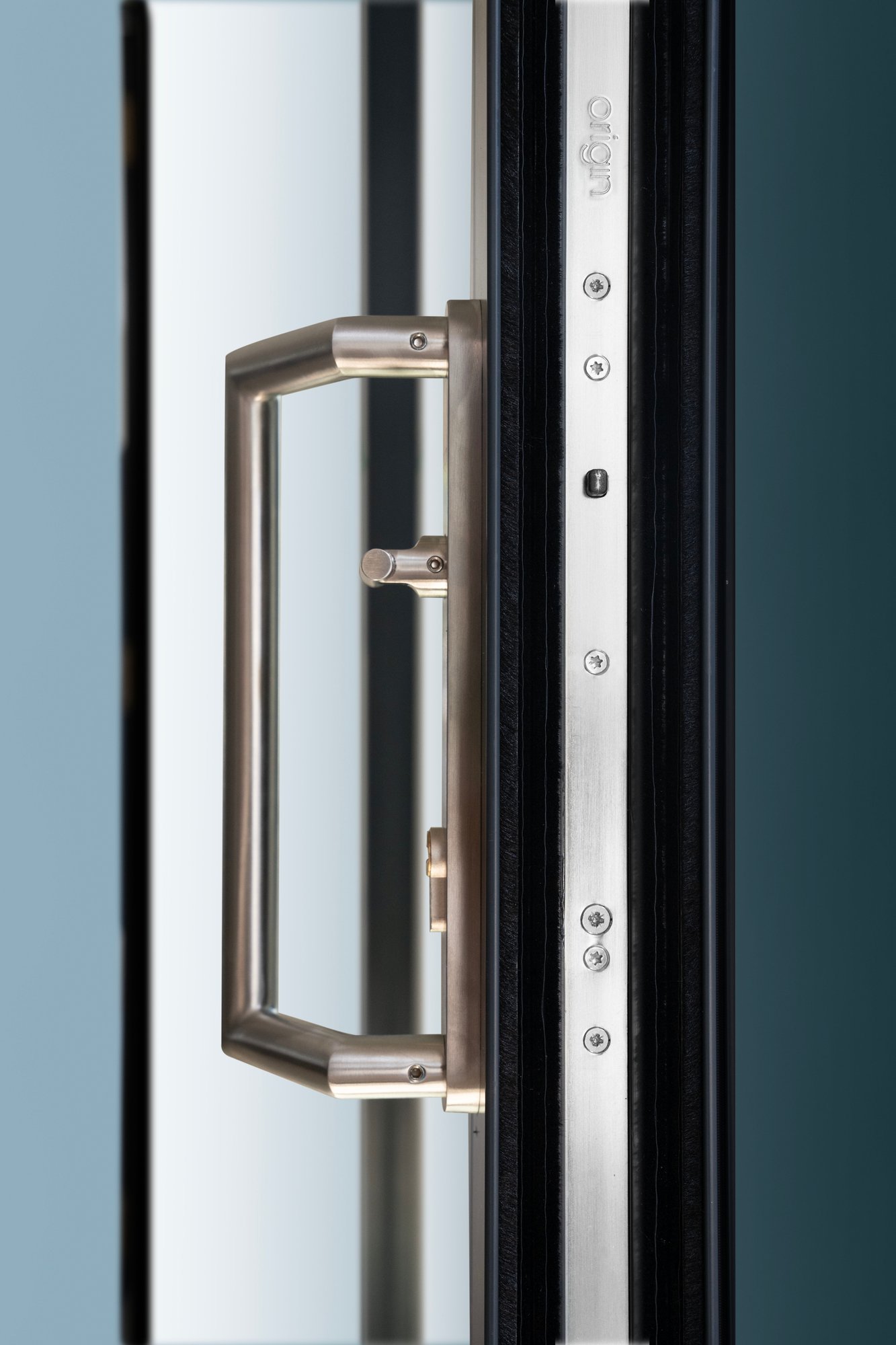

Stainless steel all-in-one handle
Concealed running gear
Colour-coded gaskets
Multipoint lock
Colour-coded metal interlock caps
Available in over 150 RAL Colours
Marine grade powder coating
Up to a 20-year guarantee on parts*

*Guarantee based on installation location.
Visit origin-global.com for Terms and Conditions.

Colours

OS29+ is available in the following popular colours, along with Hipca White - 9910G/M, and in over 150 special RAL colours. All colours are available with a Marine finish as an optional extra.

Anthracite - 7016M

Black/Grey - 7021M

Jet Black - 9005M

Textured Black - 9005T

Lead Time

Visit origin-global.com for up-to-date lead times.

Options and Extras

OS29+ has an extensive selection of flexible design options to fully customise any living space.

Flush stacking
Trickle vents
Colour-coded gaskets
Full 3-Star Cylinder
240mm cill
Multiple Drip Bar sizes
35mm frame extender

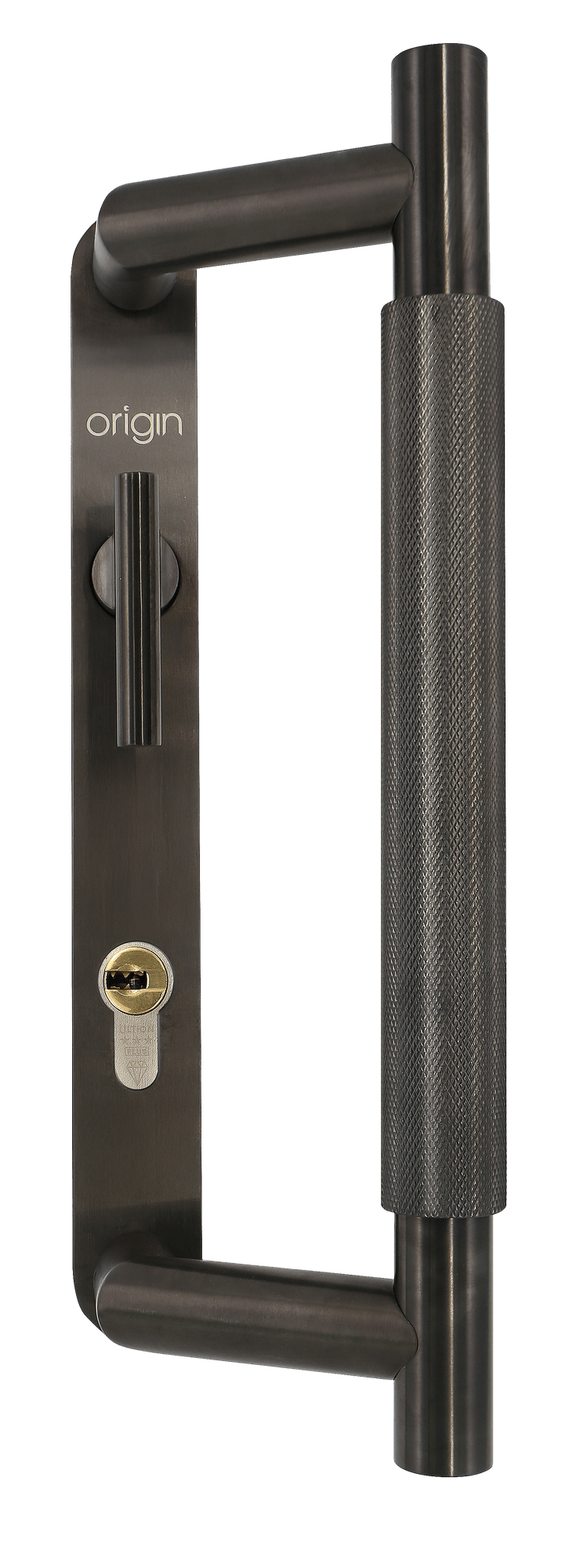

Signature Knurled or colour-coded handles
External lead door
User specified split widths
Steel-style glazing bars

Hardware Options

Handle Colours
Signature Knurled	Antique Brass	Brushed Black	Brushed Bronze	Rose Gold	Satin Brass	Satin Stainless
Contemporary	Stainless Steel			Colour-coded
D-Handle	Anthracite		Black	Stainless Steel		White

Hardware
Cills	240mm
Drip Bar	60mm		120mm	150mm
Lock	Multi-Point with 3-Star Diamond Cylinder
Trickle Vents	2500EA	4000EA	5000EA	Black, White and Colour-Coded
35mm Frame Extender	Yes

Thermal Matrix - U-Values¹(W/m²K)

Glazing	Centre Pane	Unit Width	Unit Make-Up	Weight (kg/m²)	Coating Example	OS29+¹	OS29¹
Double	1.2	28	4 / 20 / 4	20	Planitherm Total +	1.4	-
Double	1.2	28	6 / 16 / 6	30	Planitherm Total +	1.4	-
Double	1.2	30	8 / 14 / 8	40	Planitherm Total +	1.4	-
Double	1.1	28	4 / 20 / 4	20	Planitherm ONE	1.2	-
Double	1.0	28	6 / 16 / 6	30	Planitherm ONE	1.2	1.6
Triple	0.9	44	4 / 16 / 4 / 16 / 4	30	Planitherm Total +	1.1	-
Triple	0.8	44	4 / 16 / 4 / 16 / 4	30	Planitherm ONE	1.0	1.4
Triple	0.7	46	6 / 14 / 6 / 14 / 6	45	2 x Total +	0.91	1.3
Triple	0.6	44	4 / 16 / 4 / 16 / 4	30	2 x Total +	0.85	-
Triple	0.6	46	6 / 14 / 6 / 14 / 6	45	2 x ONE	0.84	-
Triple	0.5	44	4 / 16 / 4 / 16 / 4	30	2 x ONE	0.78	-

Size Limitations (comparing OS29+ and OS29)

Size Limitations	OS29+	OS29
Frame Height Min.	1,015mm	1,200mm
Frame Height Max.	2,700mm	2,600mm
Sash Height Min.	935mm	1,120mm
Sash Height Max.	2,620mm	2,520mm
Sash Width Min.	492mm	473mm
Sash Width Max.	2,200mm	2,200mm
Sash Height / Width Ratio Max.	3:1	3:1
Sash Weight Max.	300kg	200kg
Sash Area	6.0m²	6.0m²
#Sashes Per Set Min.	2	2
#Sashes Per Set Max.	6	6

Set Size Guide	OS29+	OS29
XO / OX / XX Min.	1,127mm	1,1011mm
XO / OX / XX Max.	4,450mm	4,442mm
XXO / OXX / XXX / OXO Min.	1,635mm	1,427mm
XXO / OXX / XXX / OXO Max.	6,621mm	6,587mm
OXXO Min.	2,177mm	1,946mm
OXXO Max.	8,825mm	8,802mm
OXXXXO Min.	3,194mm	2,779mm
OXXXXO Max.	13,166mm	12,000mm
The above is a very rough guide. The set widths will depend on the sash heights, widths and areas.

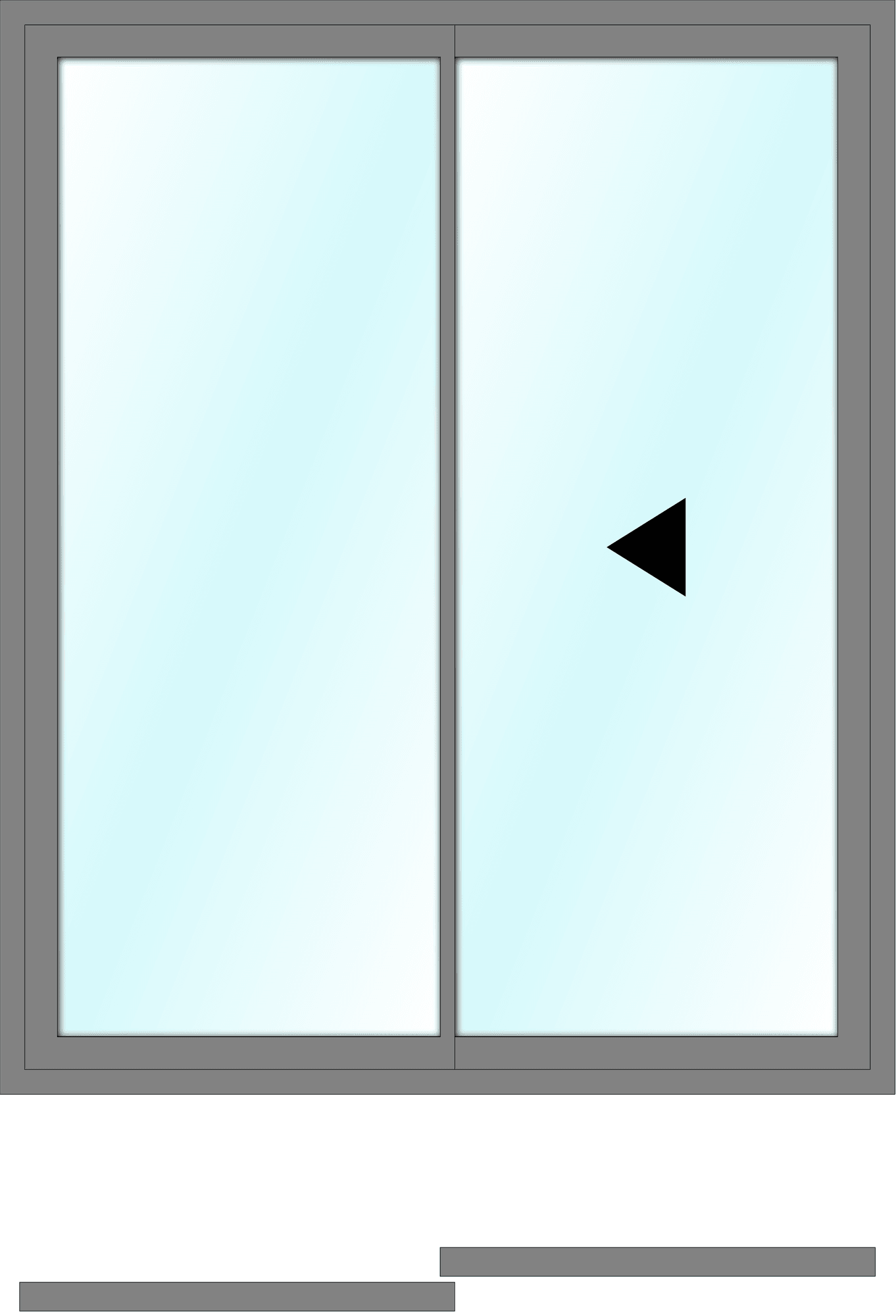

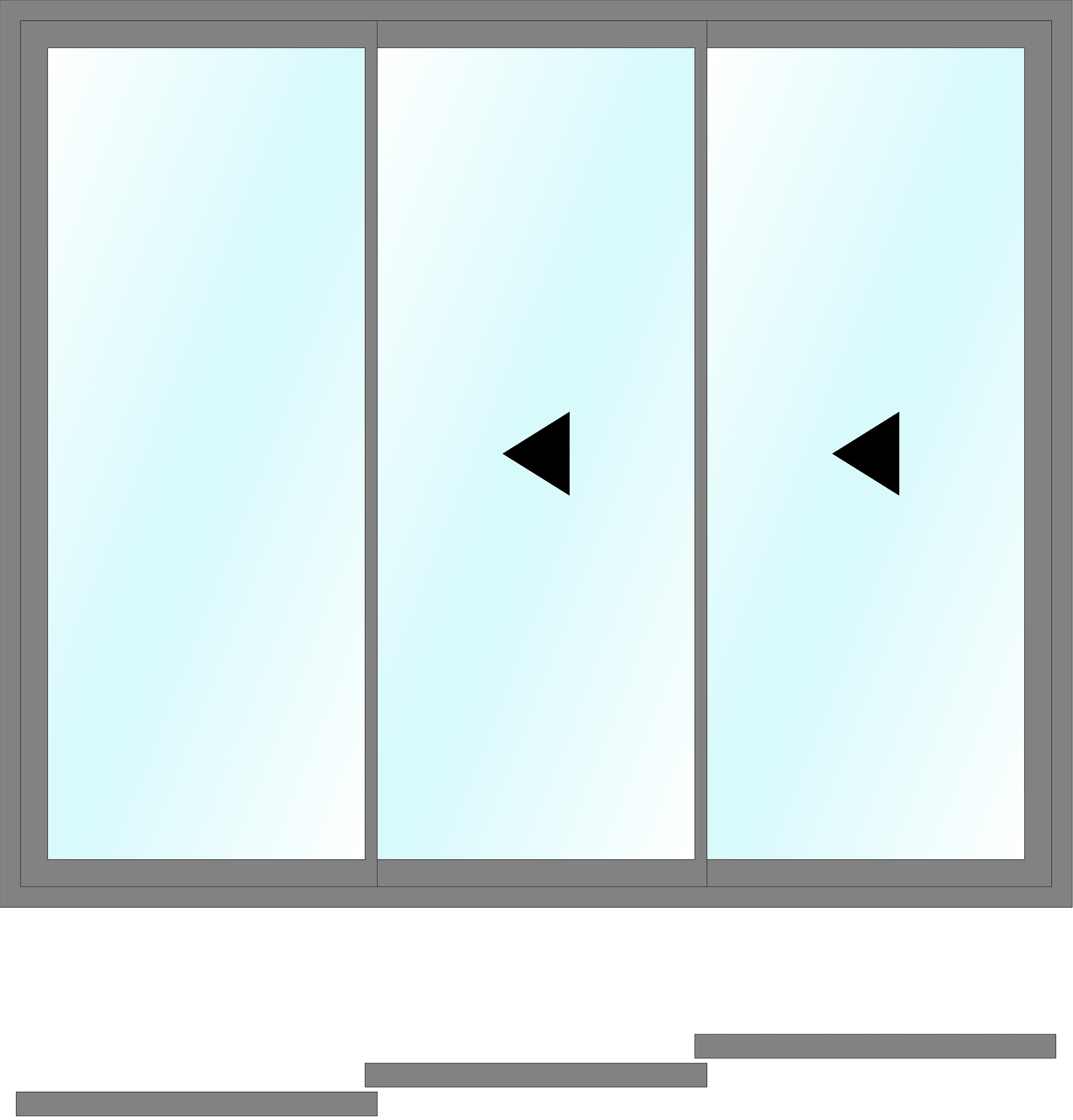

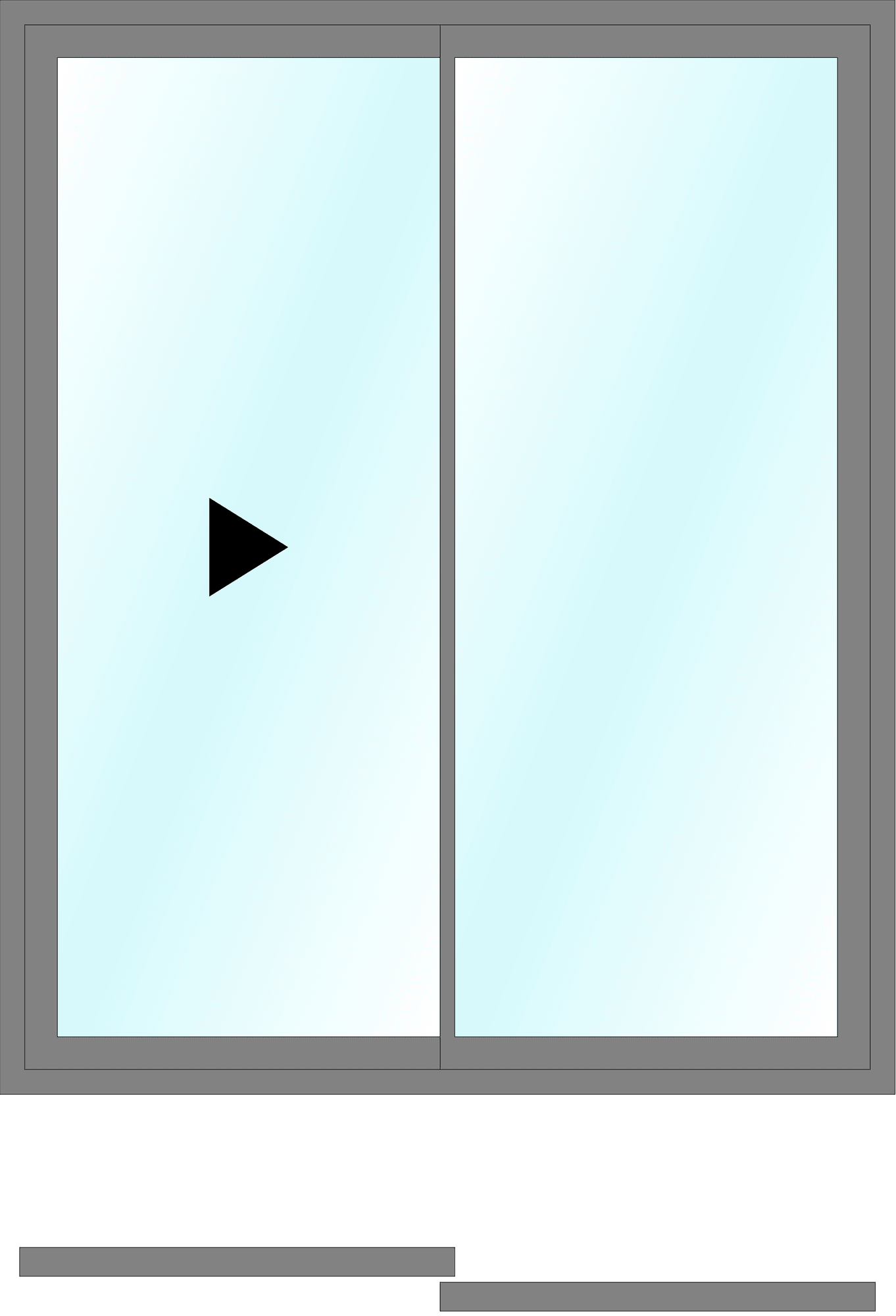

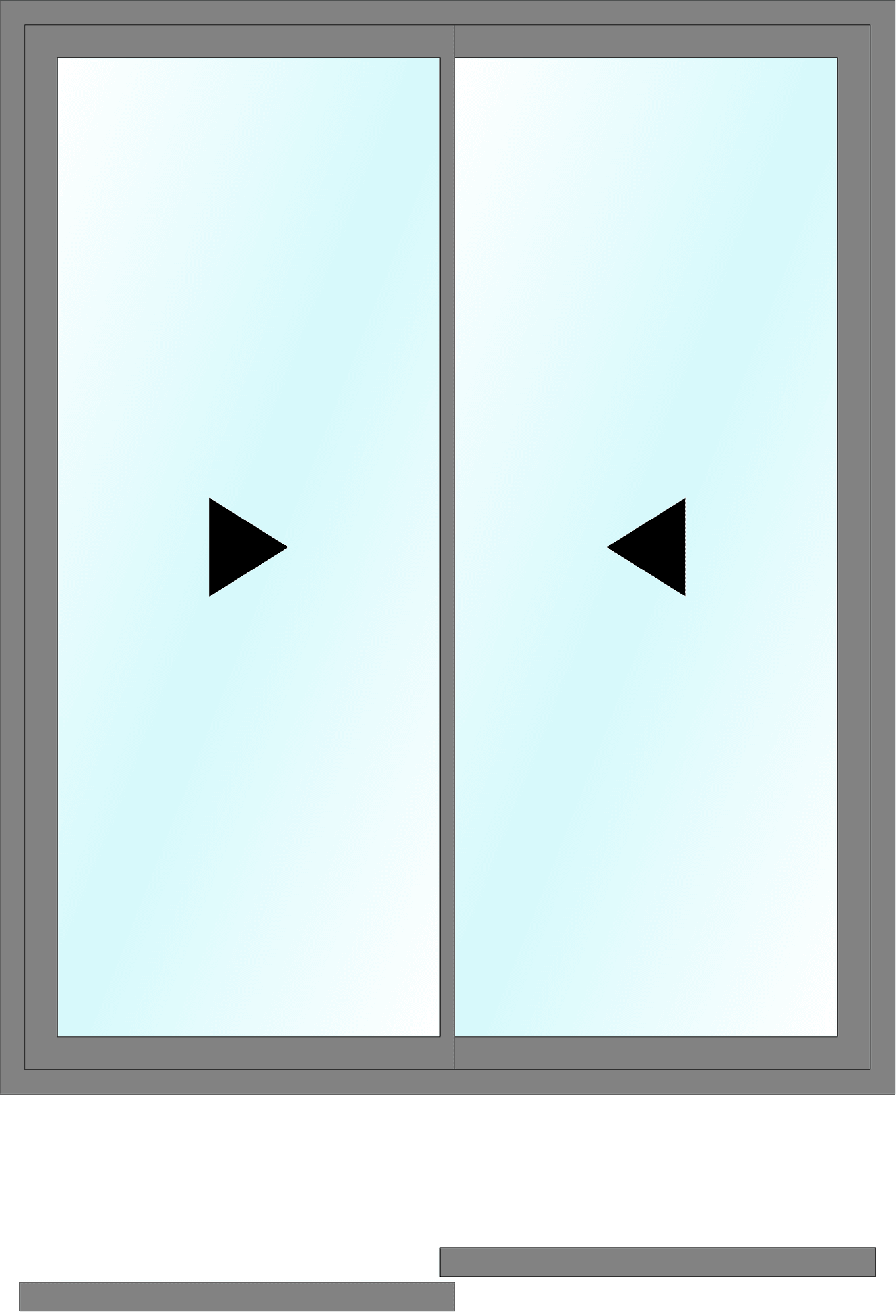

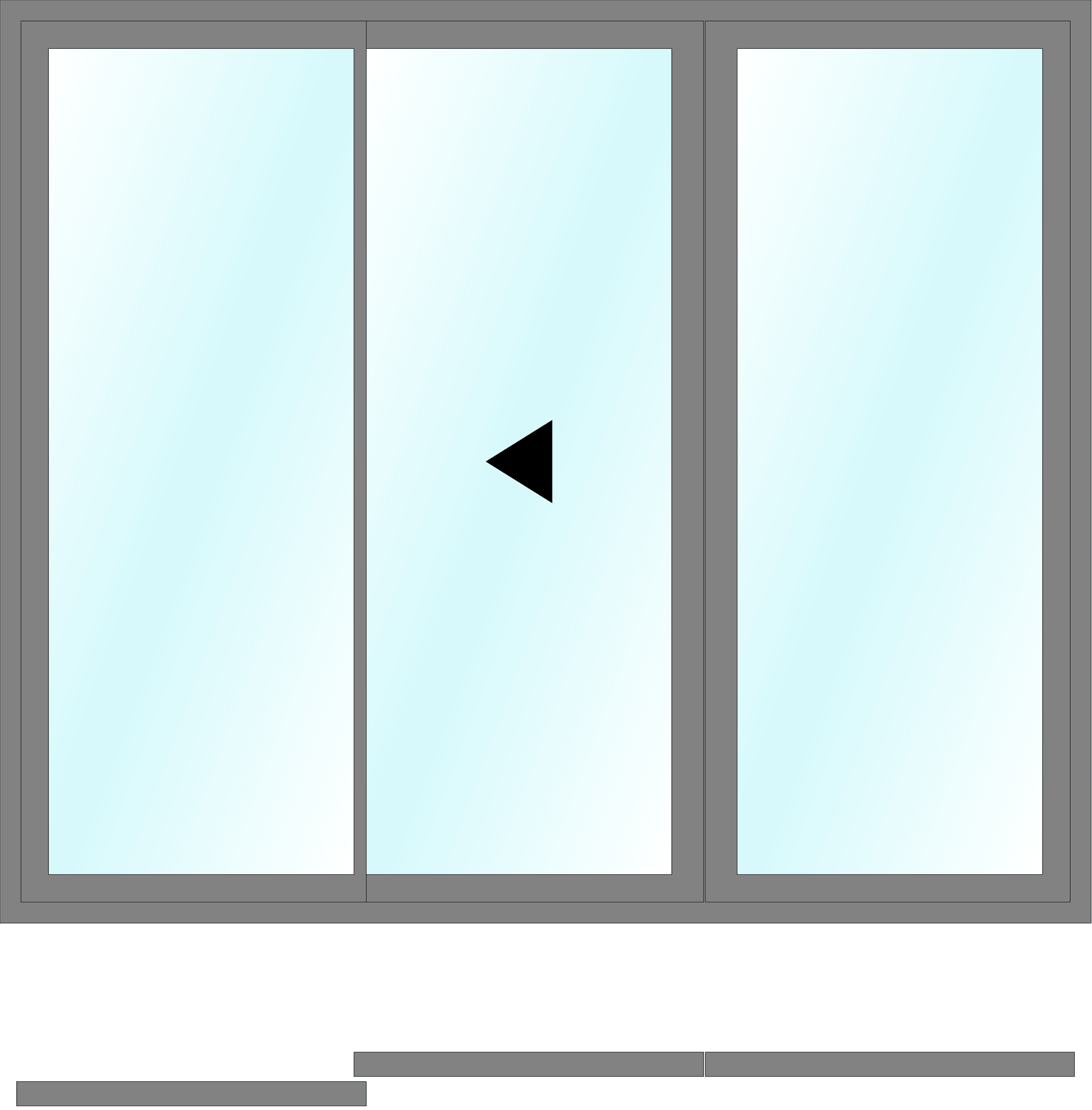

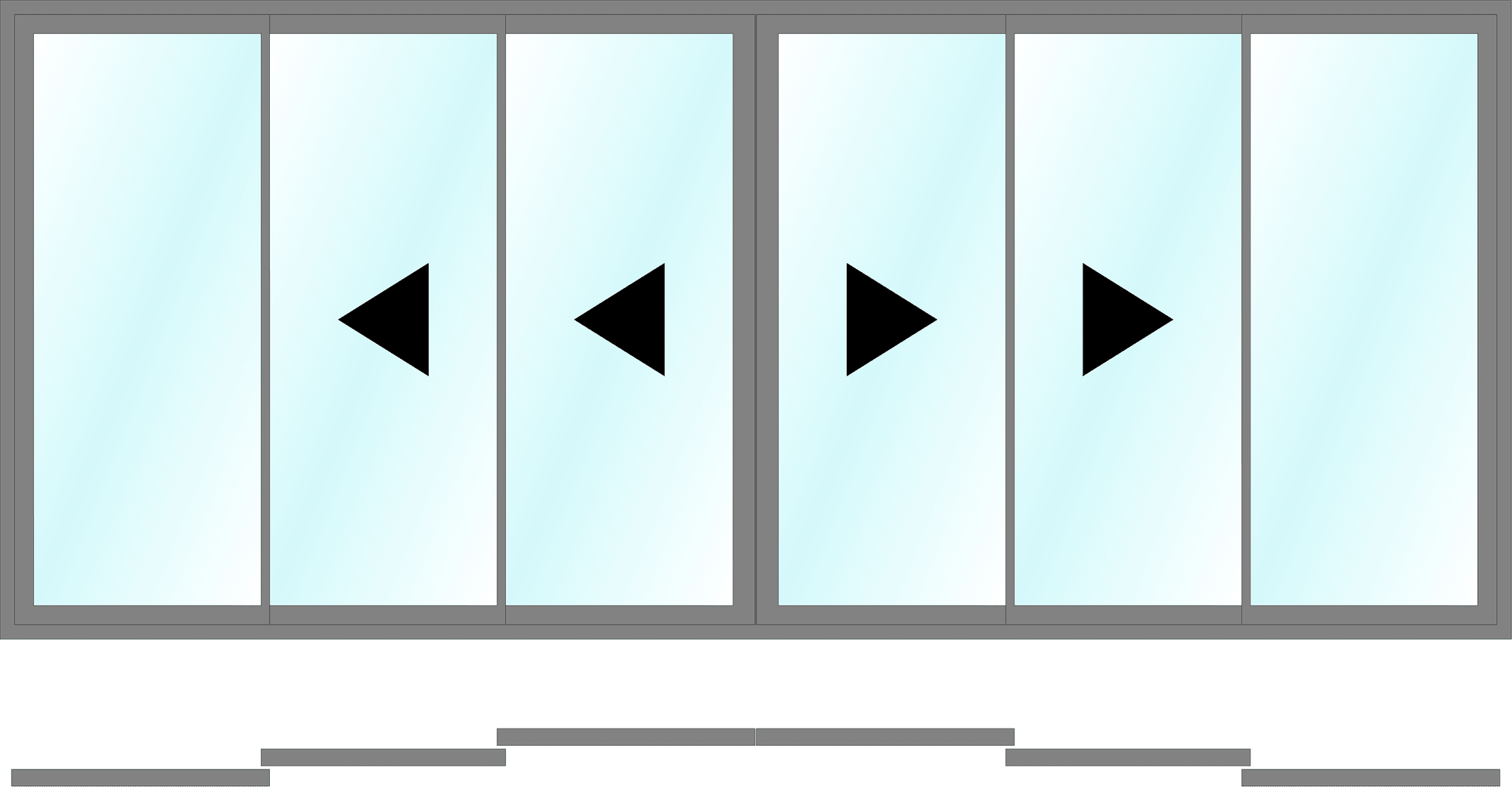

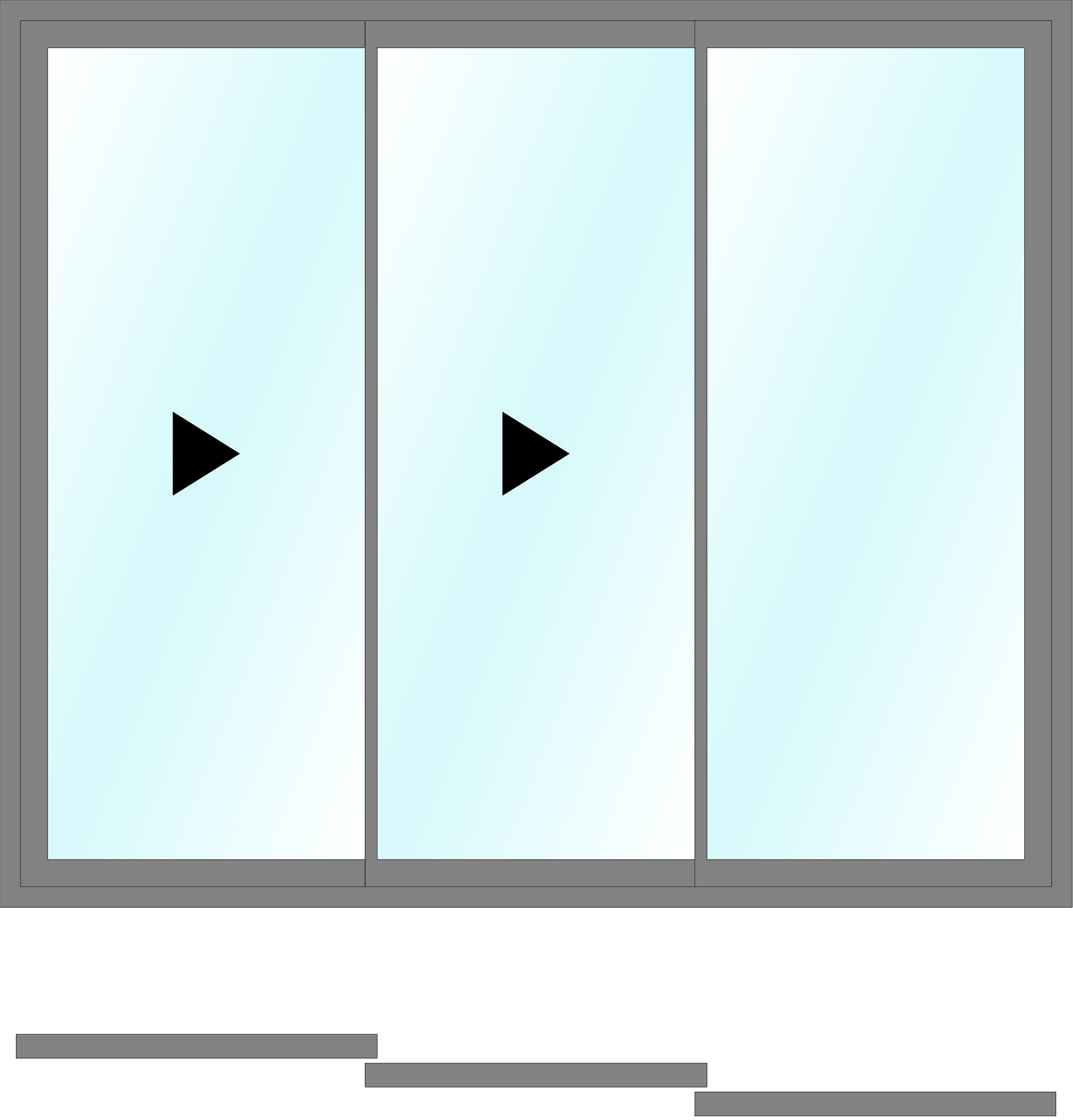

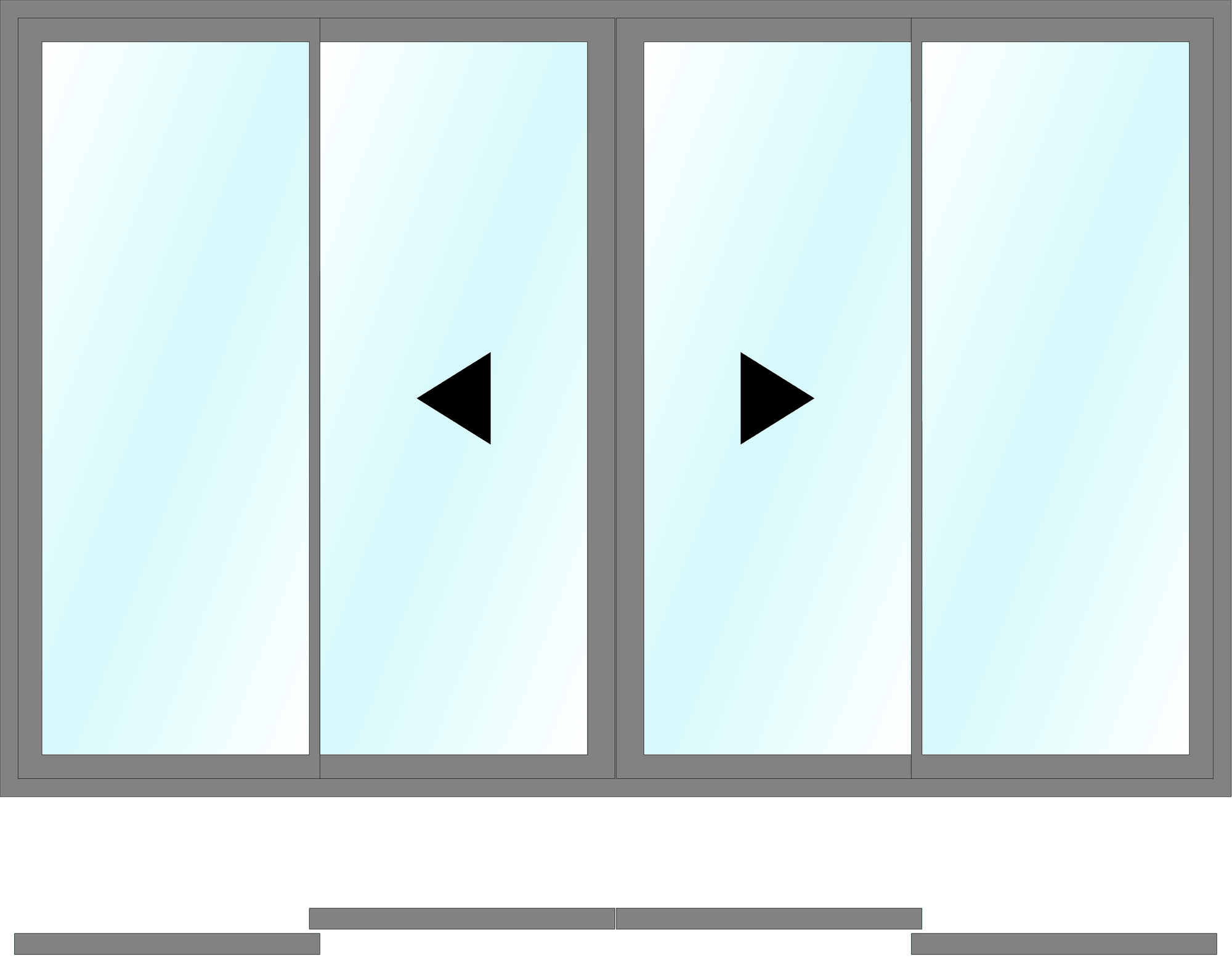

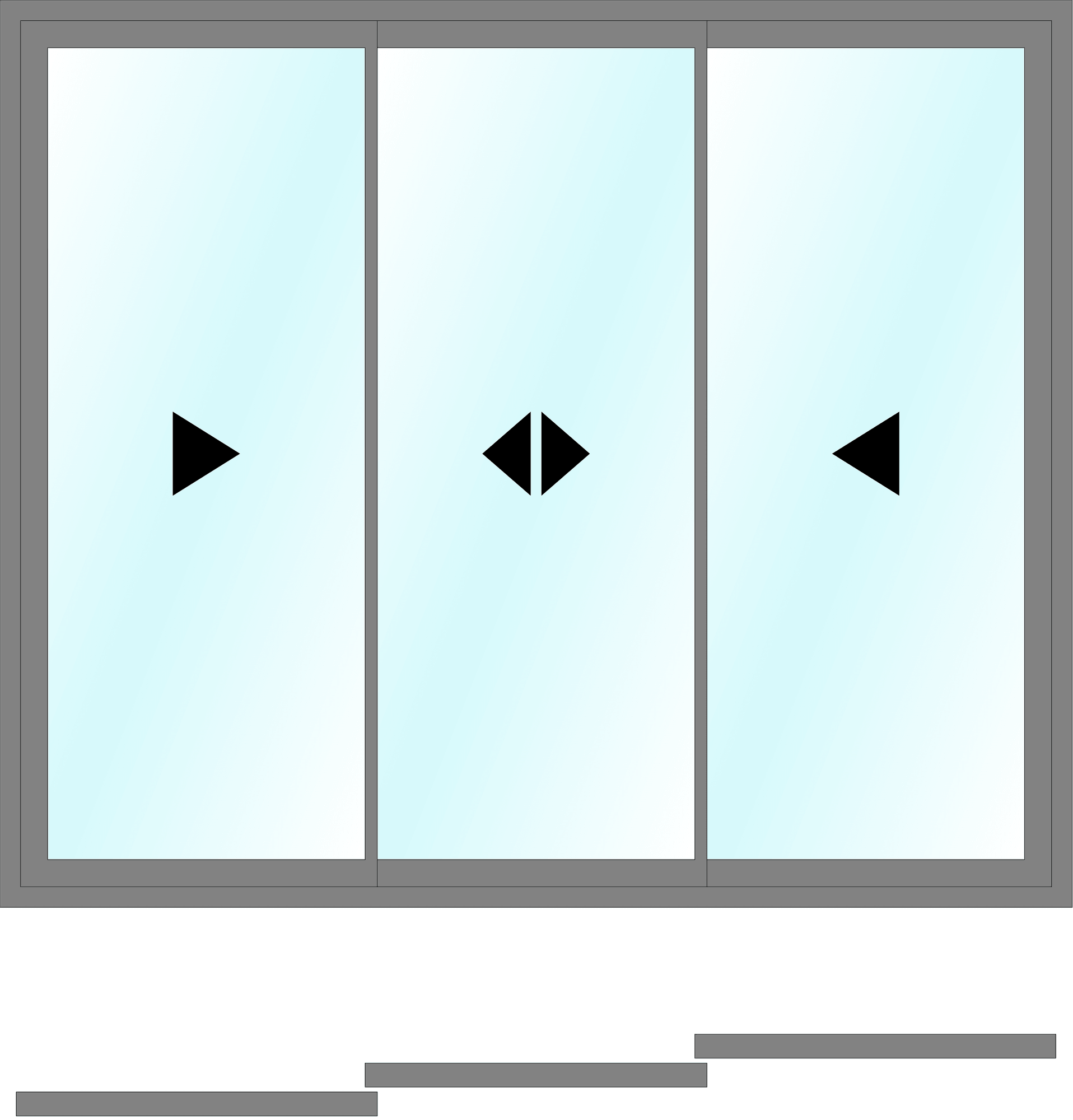

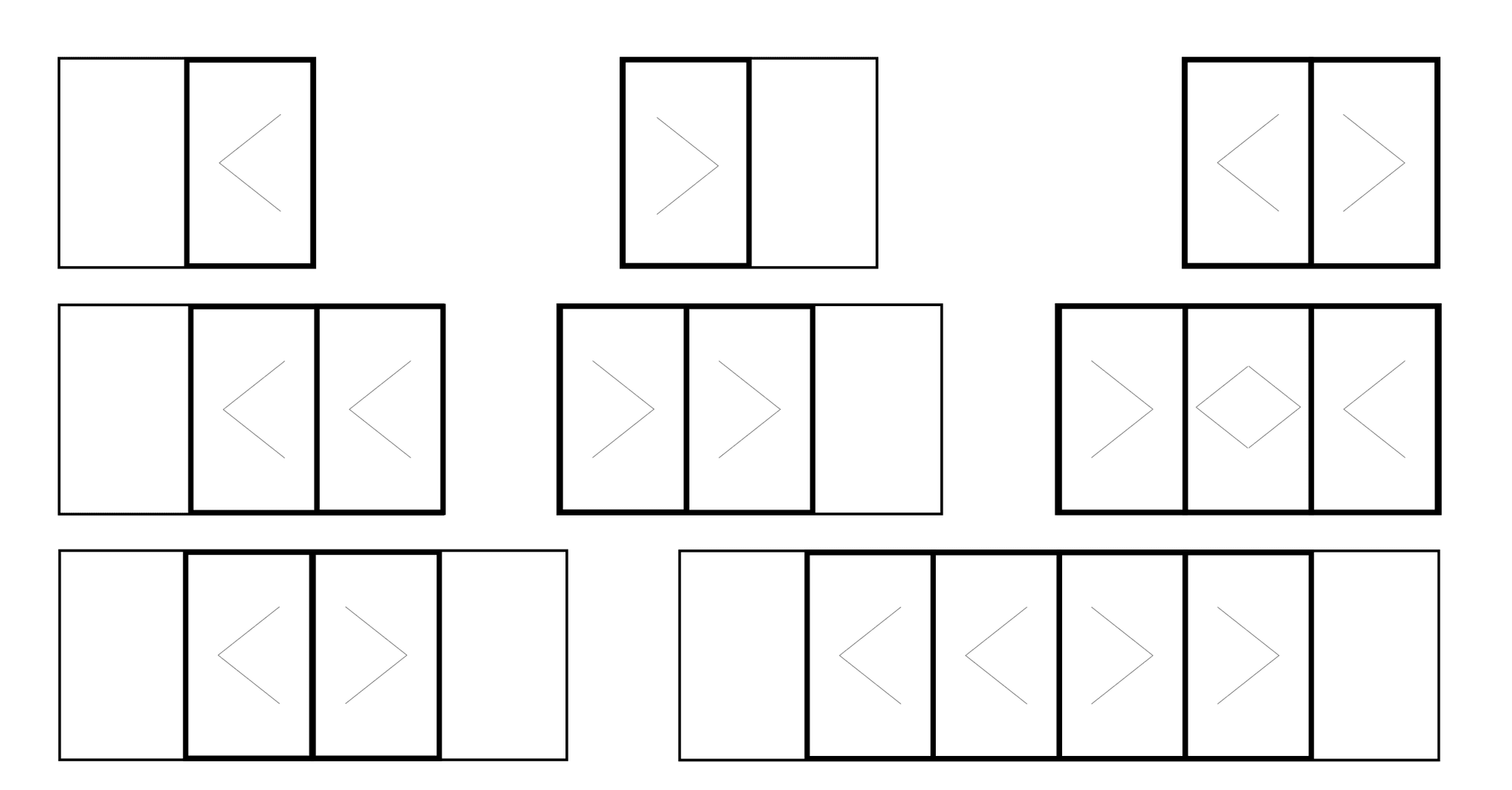

Configurations

OS29+ is available in the following popular configurations, however to design your bespoke configuration, please log in to OSS.
