Specification Overview...
Outer Frame Depth
70mm
Sash Depth
64mm
Frame and Sash Sightline
65mm
85mm
Mullion with Sash and Fixed Sightline
80.5mm
Mullion with Sash and Sash Sightline
107mm
Frame Polyamide Width
32mm
Min. No. Glazing Divides
0
Max. No. Glazing Divides
2
Glazing Divide Height
35mm
Glazing Options
28mm
Frame External Render Margin
10mm
30mm
Frame Internal Plaster Margin
38mm
58mm
The features of the Soho Window are really what makes it a design statement, as well as the right choice when it comes to thermal performance.
Traditional Soho-style look, with sleek steel-look design
Flush External Casement
True integral glazing divides
Square bead internally, for a clean minimalist finish
Square rebate externally
Exceptional thermal performance, with U-Values as low as 1.4W/m2K
Available in over 150 RAL Colours
Mechanical double crimped corners
Nemesis Espag locking mechanism
Up to a 20-year guarantee on parts
The OW-70 is available in the following popular colours, along with Hipca White - 9910G/M, and in over 150 special RAL colours.
Anthracite - 7016M
Black Grey - 7021M
Jet Black - 9005M
Textured Black - 9005T
Popular colours:
15-working days
Special colours
20-working days
Visit origin-global.com for up-to-date lead times.
The OW-70 Soho Window has an extensive selection of flexible design options to fully customise any living space.
Configure either as a Casement or Fixed Frame Window
Concealed drainage (available with cill only)
Colour coded gaskets
Door-to-window and window-to-window coupling
Easy clean side hung sashes*
Egress hardware*
Fixing strap
35mm frame extender
Metallic or colour-coded handles
*Size and weight limiations apply
Inline
Silver
Chrome
Brushed
Satin
Gold
Anthracite Grey
Offset
Colour-coded
Cills
95mm
155mm
180mm
225mm
Flat Trim
25mm
31mm
50mm
Hinge Guard Type
Vector Excluders
Lock
Nemesis
Trickle Vents
2500EA
4000EA
5000EA
Black, White and Colour-Coded
35mm Frame Extender
Yes
1.2 Centre Pane
1.5 W/m2K
1.1 Centre Pane
1.4 W/m2K
1.0 Centre Pane
0.8 Centre Pane
1.2 W/m2K
PAS 24
2022
Air Permeability
Class 4
Energy Rating
B - A+
Water Tightness
Class 9A
Wind Loading
Class AS
Guarantee
<20-Years on Parts
Fixed Frame Height
300mm
4,800mm
Fixed Frame Width
Fixed Frame Area (m2)
-
4.8m2
Side Hung Height
350mm
1,400mm
Side Hung Width
950mm
Top Hung Height
1,474mm
Top Hung Width
1,374mm
Dummy Sash Height
Dummy Sash Width
Mullion / Transom
1,800mm
Glazed Area Nesxt to Mullion (m2)
2.05m2
Glazing Divide Length (Sash Width)
1,200mm
Glazing Divide Length (Frame Width)

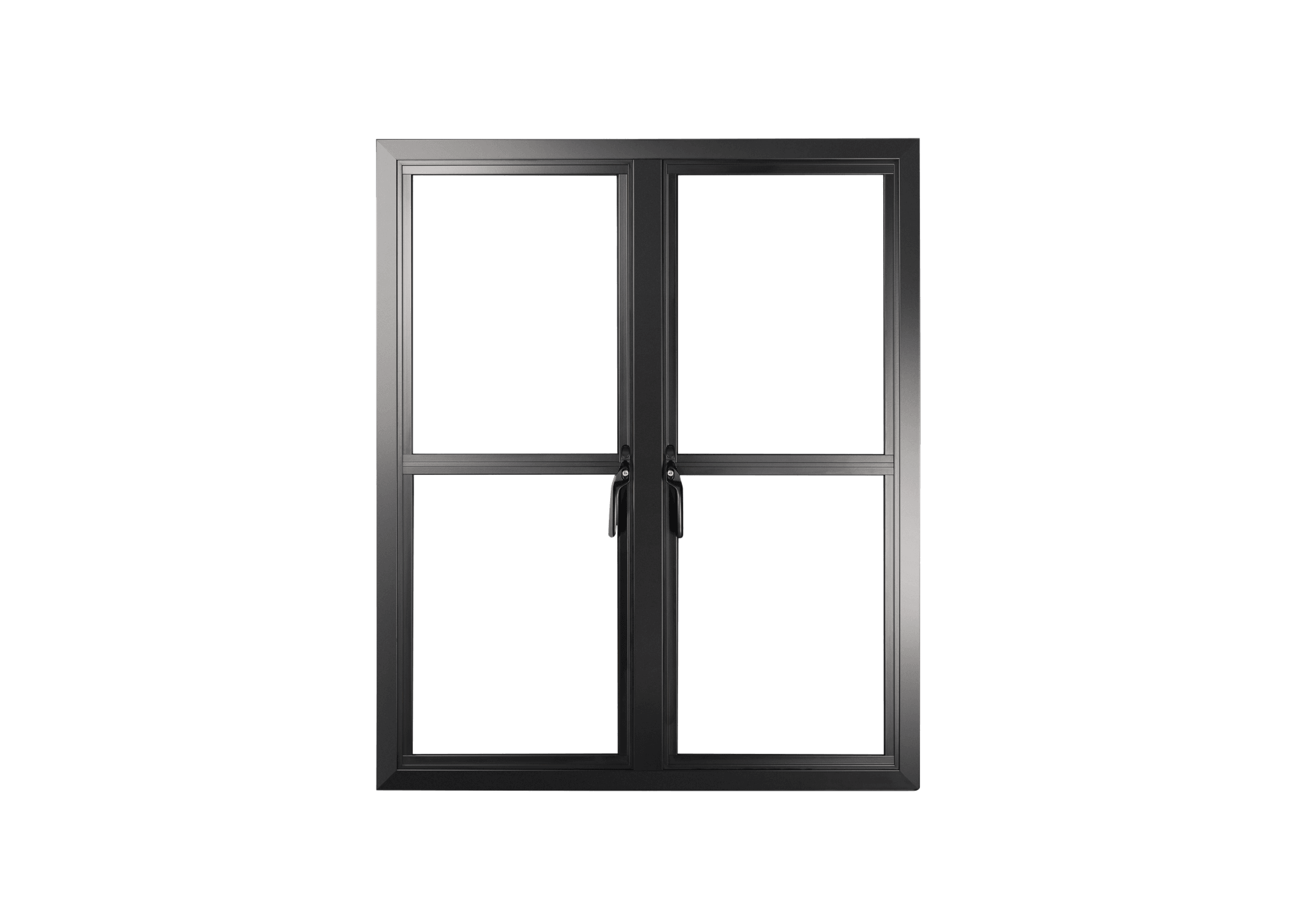

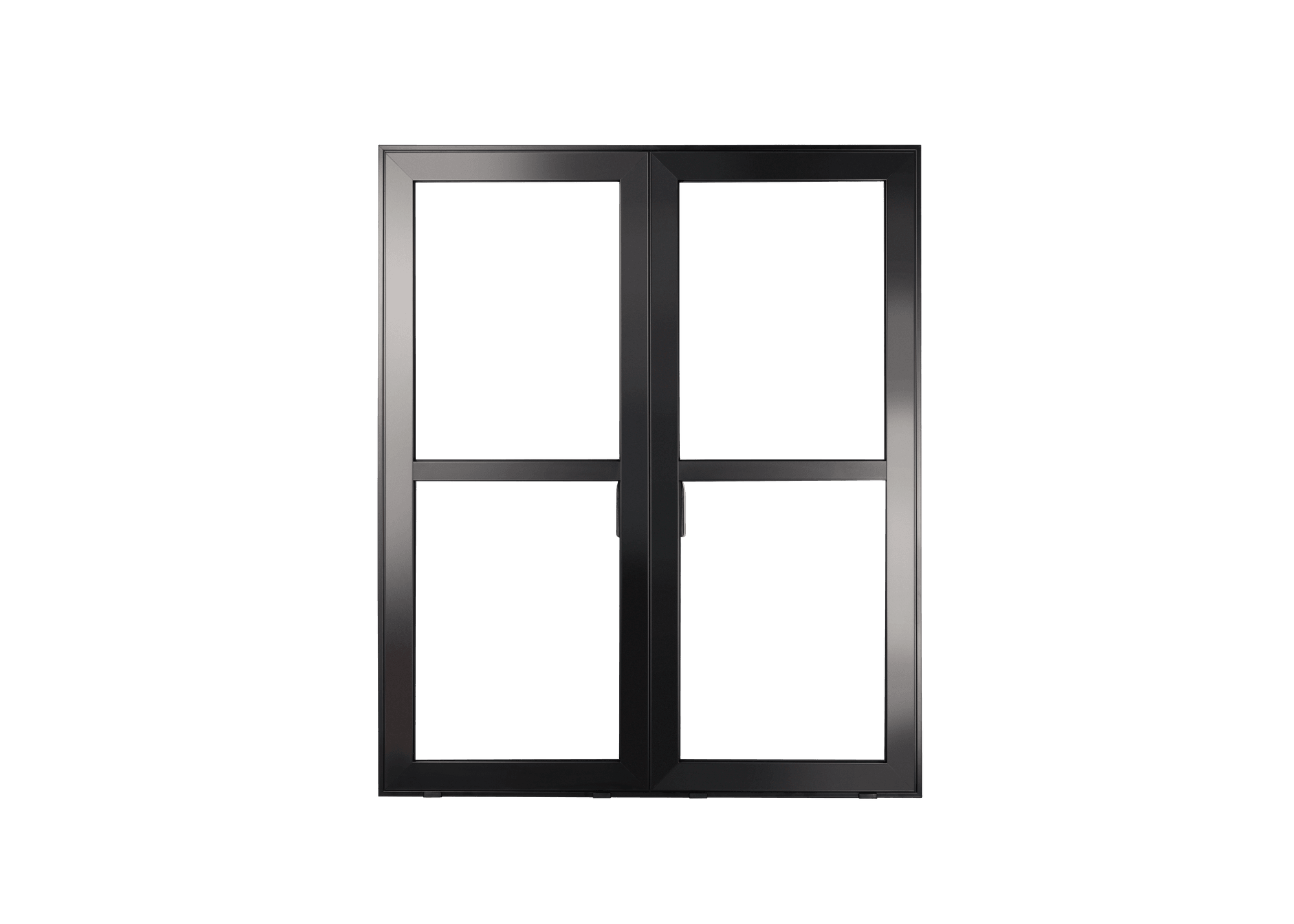

The OW-70 Soho is available in the following popular configurations, however to design your bespoke configuration, please log in to OSS.
