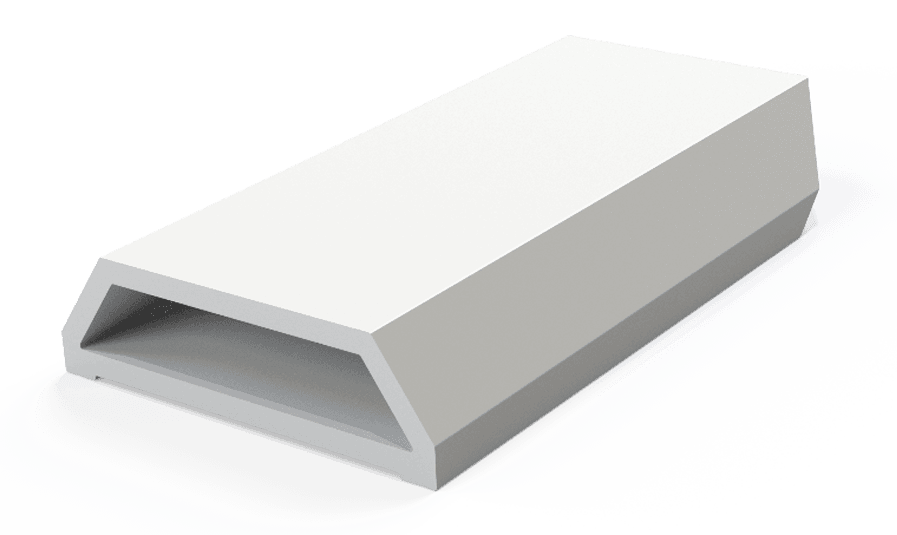

Glazing bars can be added to the Contemporary Window, for a more industrial look.

6.1 Glazing bars are supplied as 10m bar lengths (2x5m) with 13m tape - the tape will need to be bonded to the lengths of the bar

6.2 Once the glass is fully installed, ensure the glass is clean (we recommend using a saline solution or glass primer)

6.3 Measure the gap between glass divides and cut the glazing bars to suit

6.4 Clean the underside of the glazing bar using a saline solution or primer

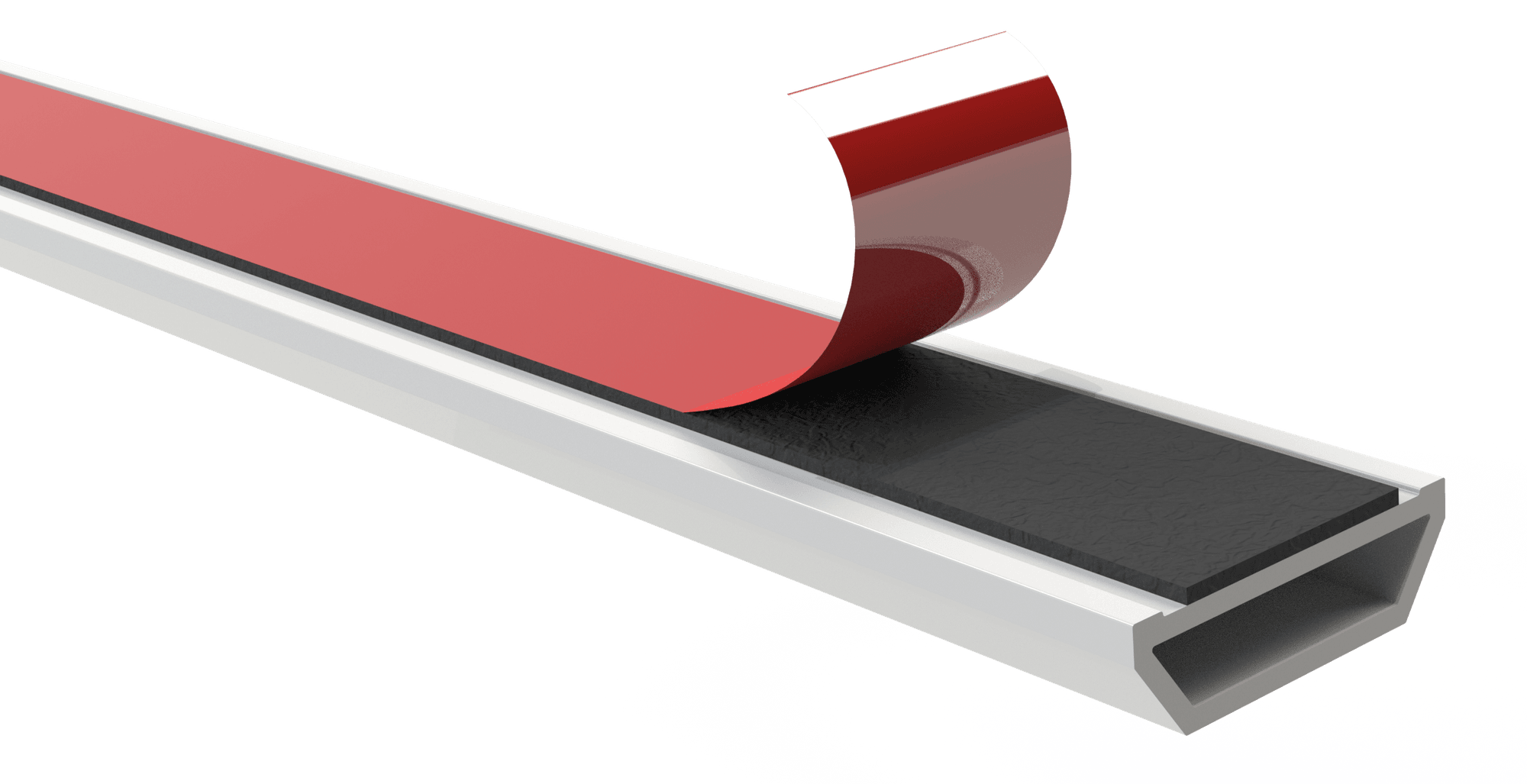

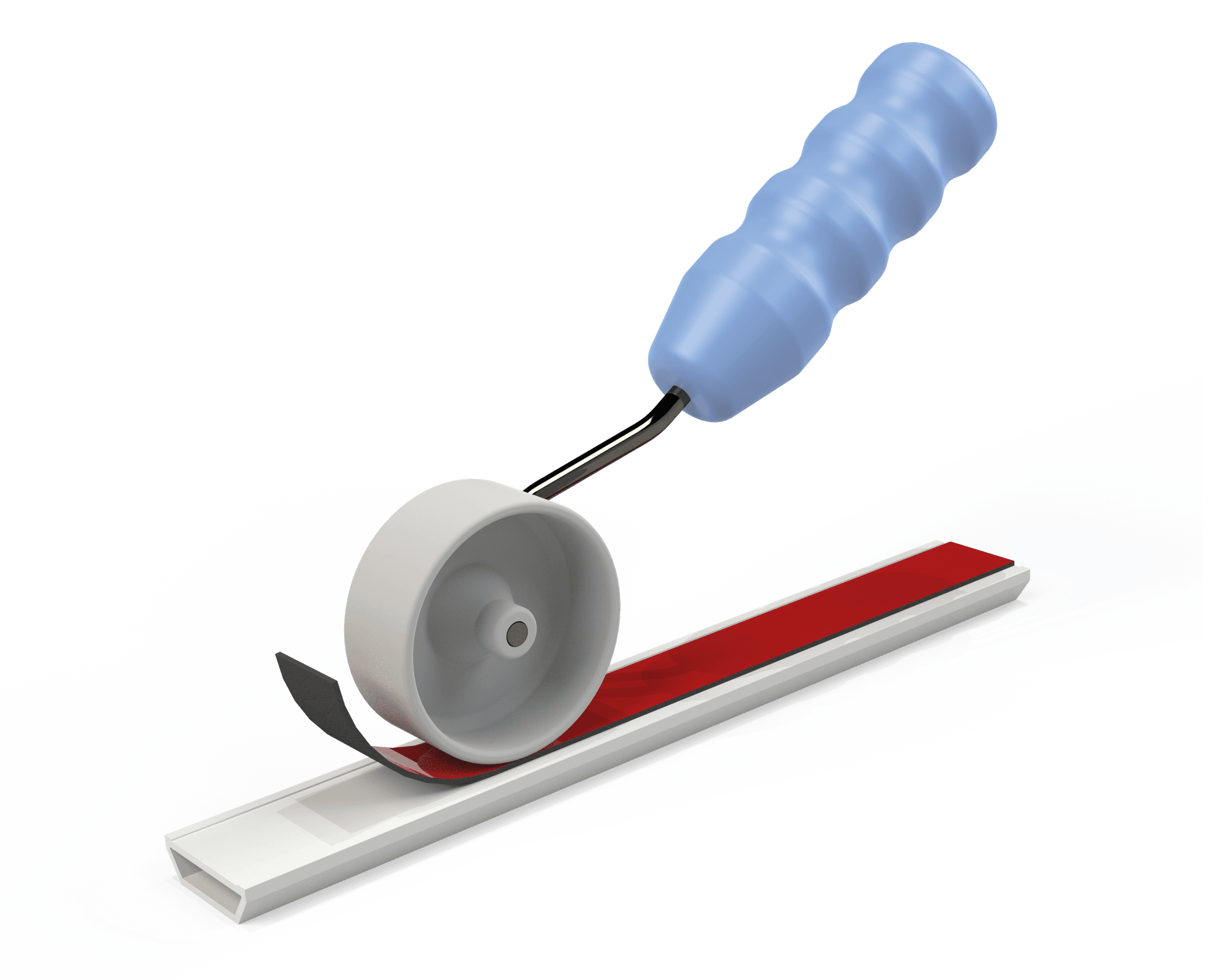

6.5 Place tape on the underside of the glazing bar, ensuring it remains central along the bar (we recommend that a roller is used for this to ensure strongest bond)

6.6 Before removing the red backing, offer the bars up to the glass and check for size, trim as required

6.7 Remove red backing of the tape and press bar firmly onto the glass

FIG 6A

FIG 6B

FIG 6C

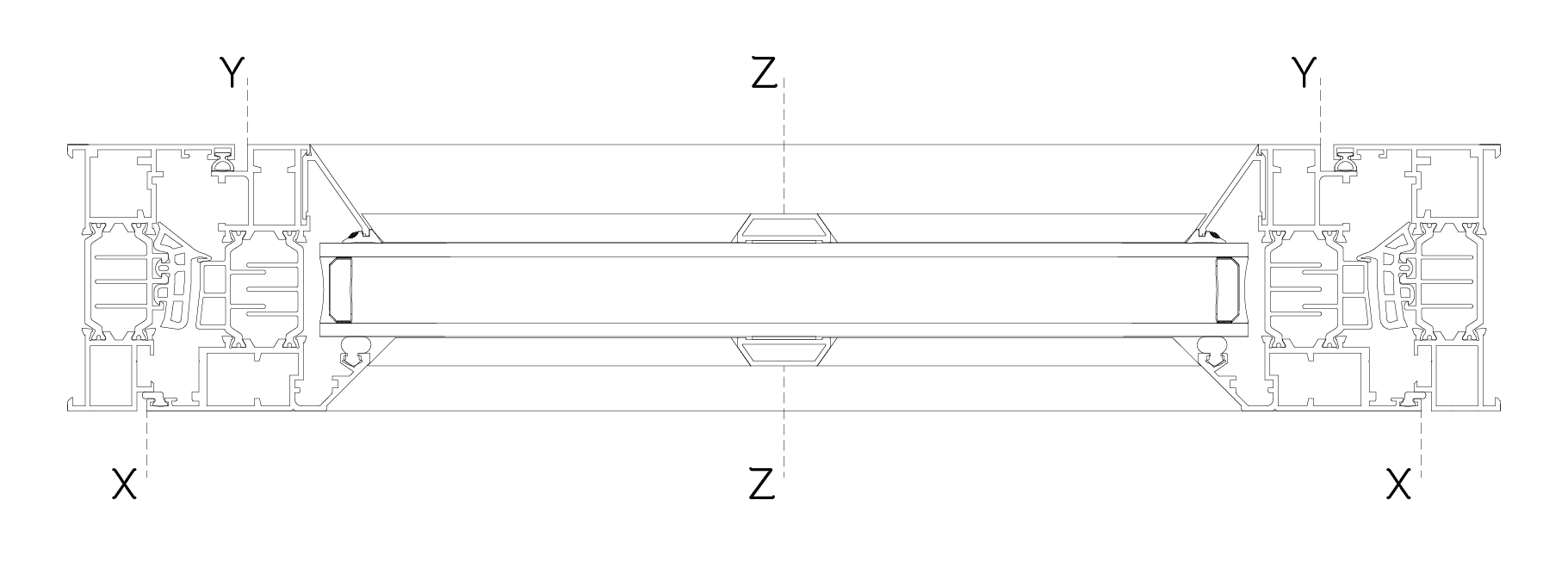

Glazing Bar Window Offsets

Full Lengths	Cut Angle	≈ Deduction
Sash Rebate to Sash Rebate	45º	X to X - 134mm
28mm Bead	35º	X to X - 138mm
44mm Bead	45º	X to X - 135mm

Crossover	Cut Angle	≈ Deduction
Bar to Bar	35º	Z to Z - 25mm
Rebate to Bar	45º + 35º	X to Z - 81mm
28mm Bead to Bar	45º	Y to Z - 150mm
44mm Bead to Bar	45º + 35º	Y to Z - 149mm
		(X - Y = 30mm)
